Makita HR2010 Rotary Hammer Parts

Makita HR2010 Parts

13/16 Inch SDS-Plus, Variable Speed Rotary Hammer

Download Schematic

Time to buy a new tool?

Makita HR2010

13/16 Inch SDS-Plus,...

$179.99

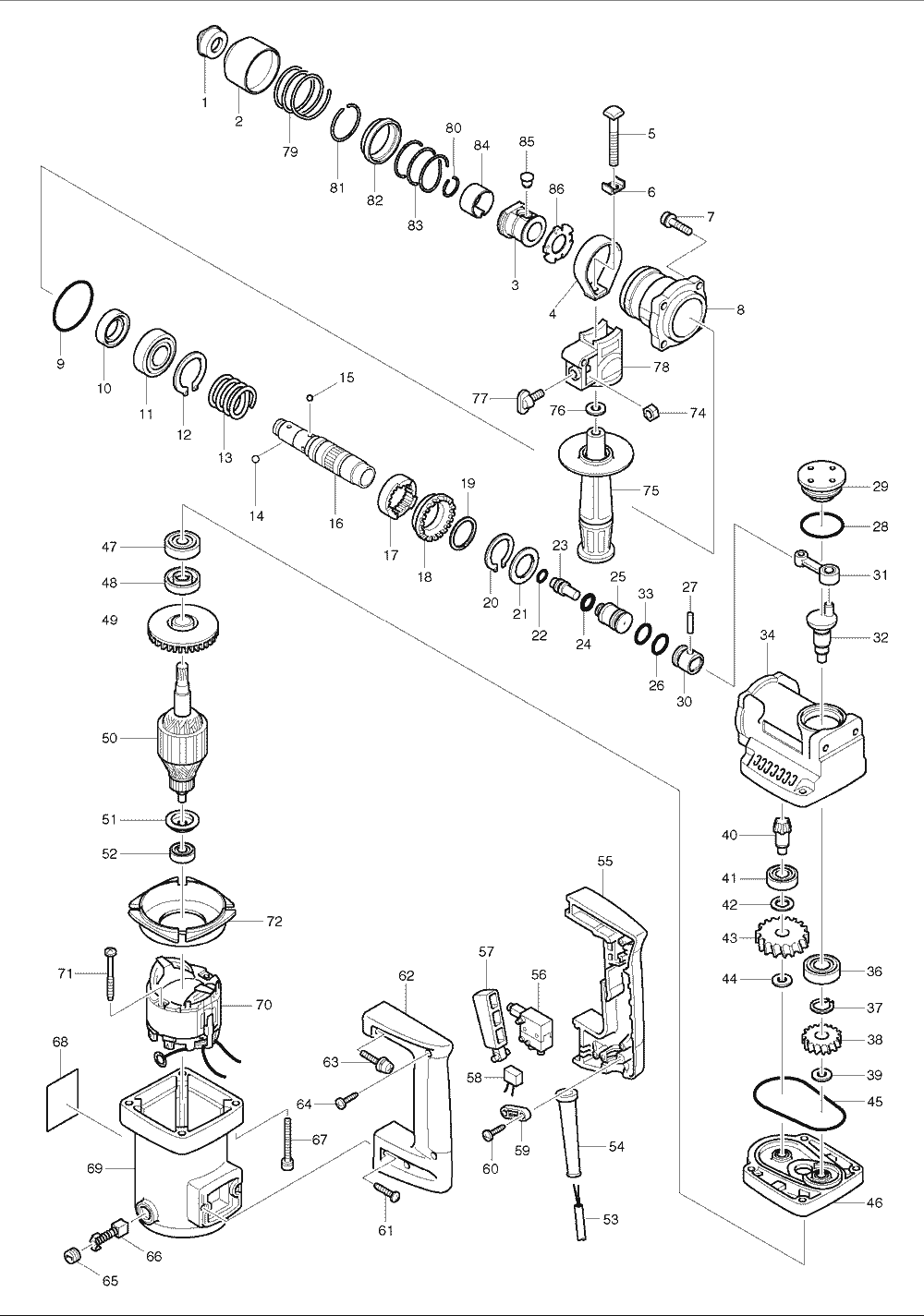

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	286265-0	CAP 31, HR2400,T2	$1.26
1	286251-1	CAP 37, HR2410,T2	$3.94
2	416410-5	CHUCK COVER, HR2400	$5.92
2	415076-8	CHANGE RING COVER, HR2400	$4.49
3	323820-8	CHUCK RING, HR2410	$14.61
3	152470-0	CHANGE RING COMPLETE, HR2410	$21.76
4	344205-5	BELT, HR2410	$3.06
5	266092-1	SQUARE BOLT M8X60, HR2410	$1.48
6	267719-6	SQUARE WASHER 9, HR2410	$1.63
7	922231-0	H.S.H. BOLT M5X20, HR2010	$1.48
8	316781-9	BARREL, HR2010-T1	$10.21
8	317102-8	BARREL, HR2010	$11.97
9	213604-1	O RING 50, 6911D	$3.61
10	213313-2	OIL SEAL 20, HM1214C	$7.46
11	211304-7	BALL BEARING 6004, HR2010	$15.27
12	961110-7	RETAINING RING S-30, HR2010	$1.74
13	233145-1	COMP. SPRING 31, HR2010	$4.16
14	216009-4	STEEL BALL 7.1, HR2400	$0.86
14	216022-2	STEEL BALL 7.0, HR2400	$0.86
15	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
16	322843-3	TOOL HOLDER, HR2010-T2	$51.10
16	323821-6	TOOL HOLDER, HR2010	$64.40
17	223112-4	CLUTCH CAM, HR2010	$20.33
18	226732-3	SPIRAL BEVEL GEAR 33, HR2010	$27.26
19	267127-1	FLAT WASHER 26, 9046,SH01W	$2.18
20	961106-8	RETAINING RING S-26, HR2010	$1.48
21	267148-3	FLAT WASHER 23, HR2010	$1.63
22	213063-9	O RING 10, HR2400	$3.61
23	323818-5	IMPACT BOLT, HR2410	$4.93
23	322739-8	IMPACT BOLT, HR2410	$3.61
24	213117-2	O RING 11, HR2410	$3.61
25	322864-5	STRIKER, HR2010	$5.92
26	213172-4	O RING 15, HR2010	$3.61
27	256123-4	PIN 5, HR1821	$4.93
28	213510-0	O RING 36, BO4556	$1.48
29	415902-1	CRANK CAP, HR2010	$3.06
30	316819-0	PISTON, HR2010	$5.92
31	152504-9	CONNECTING ROD CPL.,HR2010	$5.92
32	322842-5	CRANKSHAFT, HR2010	$13.18
33	213172-4	O RING 15, HR2010	$3.61
34	159847-0	CRANK HOUSING CPL.,HR2010	$37.53
36	211204-1	BALL BEARING 6002, HR2511	$15.27
37	961055-9	RETAINING RING S-15, 5007F	$1.19
38	226458-7	HELICAL GEAR 29, HR2010	$9.66
39	253865-1	F. WASHER 8, HR5000	$2.18
40	226731-5	SPIRAL BEVEL GEAR 9, HR2010	$15.27
41	211104-5	BALL BEARING 6001, HM1303	$13.07
42	253744-3	F. WASHER 12, HR2410	$1.34
43	226459-5	HELICAL GEAR 43, HR2010	$12.74
44	253865-1	F. WASHER 8, HR5000	$2.18
45	213760-7	O RING 78, HR2010	$1.96
46	159846-2	GEAR HOUSING CPL., HR2010	$24.29
47	211064-1	B. BEARING 6000, 2414B	$10.98
48	213112-2	OIL SEAL 12, HR2400	$8.78
49	241879-2	FAN 60, 9046	$4.49
50	516266-7	ARMATURE ASS'Y 115V, HR2010	$90.30
51	681625-5	INS. WASHER, 5007NK	$1.63
52	211033-2	B. BEARING 608LB, 5091D	$8.78
54	682503-2	CORD GUARD 8-90, 9005B	$2.51
54	682567-6	CORD GUARD 8, HM0810B	$4.16
54	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
55	182816-6	HANDLE SET, HR2010	$13.29
56	651918-4	SWITCH, HR2400	$41.20
57	415903-9	SWITCH LEVER, HR2010	$1.63
59	687063-9	STRAIN RELIEF, 4323K	$1.26
60	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
61	266041-8	TAPPING SCREW, FLANGE 5X25, 5177B	$1.96
62	182816-6	HANDLE SET, HR2010	$13.29
63	911243-8	P.H. SCREW M5X25, GA7911	$1.19
64	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
65	643600-9	BRUSH CAP 6-10, 9005B	$1.63
66	194975-4	A.C.CARBON BRUSH CB-105 HM0810B	$13.84
67	922910-0	H.S.H. BOLT M5X45, HR2010	$1.48
68	858055-7	NAME PLATE, HR2010	$1.21
69	159889-4	MOTOR HOUSING CPL., HR2010	$27.59
70	594251-0	FIELD ASS'Y 115V, HR2010	$48.04
71	266046-8	T. SCREW FLANGE PT5X50,HR2010	$1.96
72	415904-7	BAFFLE PLATE, HR2010	$1.63
74	931202-6	HEX NUT M5, HR2410	$0.79
75	152521-9	GRIP 36 CPL., DP4002	$4.49
76	253865-1	F. WASHER 8, HR5000	$2.18
77	265720-5	THUMB SCREW M5X14, HR2410	$3.61
78	415658-6	GRIP BASE, HR2410	$3.06
79	233203-3	COMPRESSION SPRING 38, HR2400	$2.07
80	231979-6	RING SPRING 16, HR2400	$0.86
81	231936-4	RING SPRING 30.5, HR2000	$1.48
82	323819-3	SPRING GUIDE, HR2410	$3.61
83	233234-2	COMP. SPRING 35, HR2410	$1.48
84	232190-3	LEAF SPRING 26, HR2410	$4.16
85	256447-8	PIN 8, HR2420	$3.61
86	344690-2	GUIDE WASHER, HR2410	$2.18
1003	421342-3	DUST CUP 5 HR2450F	$4.40
5001	810134-9	CAUTION LABEL, 3709	$0.93
