Makita HR2000 Rotary Hammer Parts

Makita HR2000 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

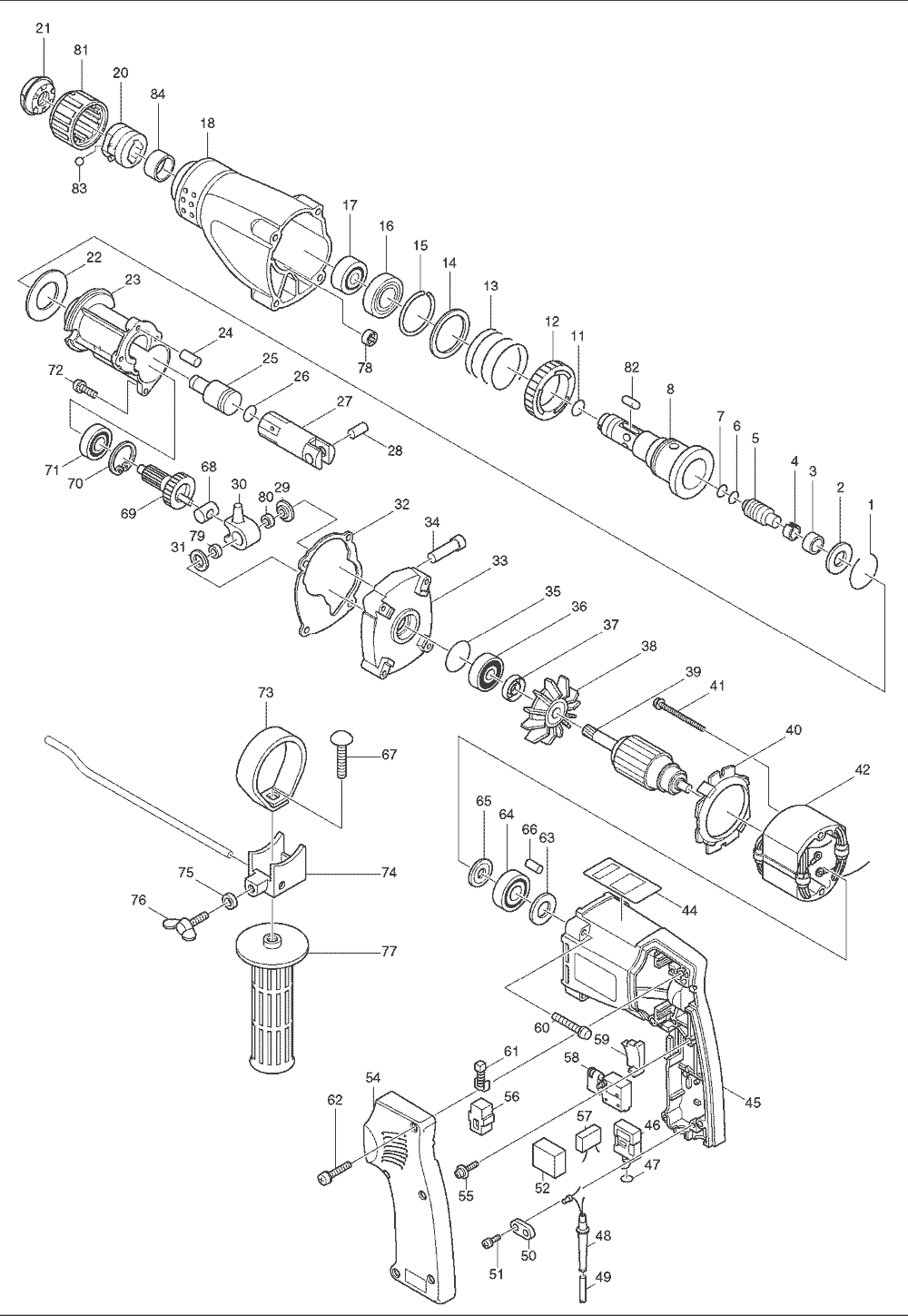

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	231935-6	RING SPRING 26, HR2000	$1.48
00	311782-2	KEY 4, HR2000	$11.75
84	257172-4	RING 20, HR2400	$4.49
2	267022-5	F. WASHER 13.5, HR2000	$5.26
3	262038-5	RUBBER RING 17, HR2400	$3.61
4	321915-1	IDLER, HR2400	$11.75
5	321913-5	IMPACT BOLT, HR2000	$4.71
6	213063-9	O RING 10, HR2400	$3.61
7	213063-9	O RING 10, HR2400	$3.61
8	322516-8	TOOL HOLDER, HR2000 (T2)	$120.77
11	213068-9	O RING 10, HR2400	$3.61
12	221924-9	S. GEAR 39, HR2000	$20.55
13	231408-9	COMP. SPRING 35, HR2000	$5.37
14	267023-3	F. WASHER 34, HR2000	$4.16
15	231936-4	RING SPRING 30.5, HR2000	$1.48
16	213418-8	OIL SEAL 28, HR2400	$7.46
17	211323-3	BALL BEARING 6904LLU, HR2420	$17.80
18	157611-3	GEAR HOUSING, HR2000	$65.90
19	231947-9	CONICAL COMP. SPRING HR2000 (T2)	$1.48
20	154404-9	CHANGE RING, HR2400 (T3)	$26.16
21	286234-1	CAP 37, HR2000,T2, HR2400	$8.78
22	261067-5	WASHER 28, HR2000	$27.70
23	315883-8	CRANK HOUSING, HR2000	$90.50
24	256162-4	PIN 7, HR2000	$2.51
25	321911-9	STRIKER, HR2000	$13.18
26	213214-4	O RING 16, HR2400	$5.37
27	331282-6	PISTON CYLINDER, HR2000	$38.96
28	321916-9	PISTON JOINT, HR2400	$10.32
29	342962-9	WASHER, HR2000	$1.63
30	321927-4	BELL CRANK, HR2000	$57.80
31	342962-9	WASHER, HR2000	$1.63
32	442087-0	GEAR HOUSING PACKING, HR2000	$3.17
33	157612-1	GEAR HOUSING COVER, HR2000	$36.51
34	256160-8	PIN 8, HR2000	$3.61
35	213407-3	O RING 26, 4200H	$1.19
36	211069-1	BALL BEARING 6200, HR1812	$10.98
37	213112-2	OIL SEAL 12, HR2400	$8.78
38	241832-8	FAN 62, HR2000	$7.46
40	410773-1	BAFFLE PLATE, HP2010N	$4.49
41	911581-8	PAN HEAD SCREW M4X55, 6820V	$1.48
42	525141-6	FIELD, HP2010N	$49.98
43	953106-2	RIVET 0-5, HM1500	$0.49
44	855437-4	NAME PLATE, HR2000	$1.36
45	159404-4	MOTOR HOUSING, HR2000,(T2)	$34.88
46	651470-2	SWITCH, HP2010N	$25.17
47	213105-9	O RING 11, HP2010N	$0.53
48	682502-4	CORD GUARD 8-85, HP2010N	$2.51
48	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
49	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
49	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
50	687002-9	STRAIN RELIEF, 9217SPC	$0.97
51	911133-5	P.H. SCREW M4X18, N9501B	$0.86
54	150315-6	HANDLE COVER, HR2000,(T2)	$16.04
55	911124-6	P.H. SCREW M4X14, 6402	$0.86
56	643605-9	BRUSH HOLDER, HP2010N	$1.63
59	411900-3	SWITCH COVER, HP2010N	$3.06
60	911278-9	P.H. SCREW M5X55, HR2000	$1.19
61	194978-8	CARBON BRUSH 113 HK0500	$13.84
62	911143-2	P.H. SCREW M4X22, 6211D	$0.86
63	253192-6	F. WASHER 14, HR2400	$1.63
64	211033-2	B. BEARING 608LB, 5091D	$8.78
65	681613-2	INS. WASHER, JN3200	$1.63
66	263002-9	RUBBER PIN 4, 5007NK	$0.86
67	923456-9	C.S.N. BOLT M8X35, HR2511	$1.74
68	321914-3	CRANK JOINT, HR2000	$13.18
69	153160-8	CRANKSHAFT, HR2000	$42.94
70	962151-6	RETAINING RING R-32, 9005B	$1.48
71	211204-1	BALL BEARING 6002, HR2511	$15.27
72	911216-1	P.H. SCREW M5X14, N9501B	$0.86
73	342633-8	GRIP ASSEMBLY BELT, HR2511	$4.49
74	315145-4	GRIP BASE, HR2511	$5.92
75	261042-1	WASHER 4.5,HR2000	$1.34
76	924216-2	THUMB SCREW M5X15, 9030	$1.48
77	273496-0	GRIP 32, HR2000	$21.76
78	212028-8	N. BEARING, HR2000	$10.32
79	212026-2	NEEDLE GAUGE 808, HR2000	$4.71
80	212026-2	NEEDLE GAUGE 808, HR2000	$4.71
81	415076-8	CHANGE RING COVER, HR2400	$4.49
82	322517-6	ROLLER 7, HR2400	$3.06
83	216009-4	STEEL BALL 7.1, HR2400	$0.86
83	216022-2	STEEL BALL 7.0, HR2400	$0.86
84	257172-4	RING 20, HR2400	$4.49
85	253926-7	LOCK WASHER 4, 6904	$0.90
403	765009-6	BLOW-OUT BULB HR2410	$6.40
406	410102-8	KEY HOLDER, 6013BR	$1.26
407	421342-3	DUST CUP 5 HR2450F	$4.40
