Makita HP2040 Electric Drill Parts

Makita HP2040 Electric Drill Parts Image

Makita HP2040 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

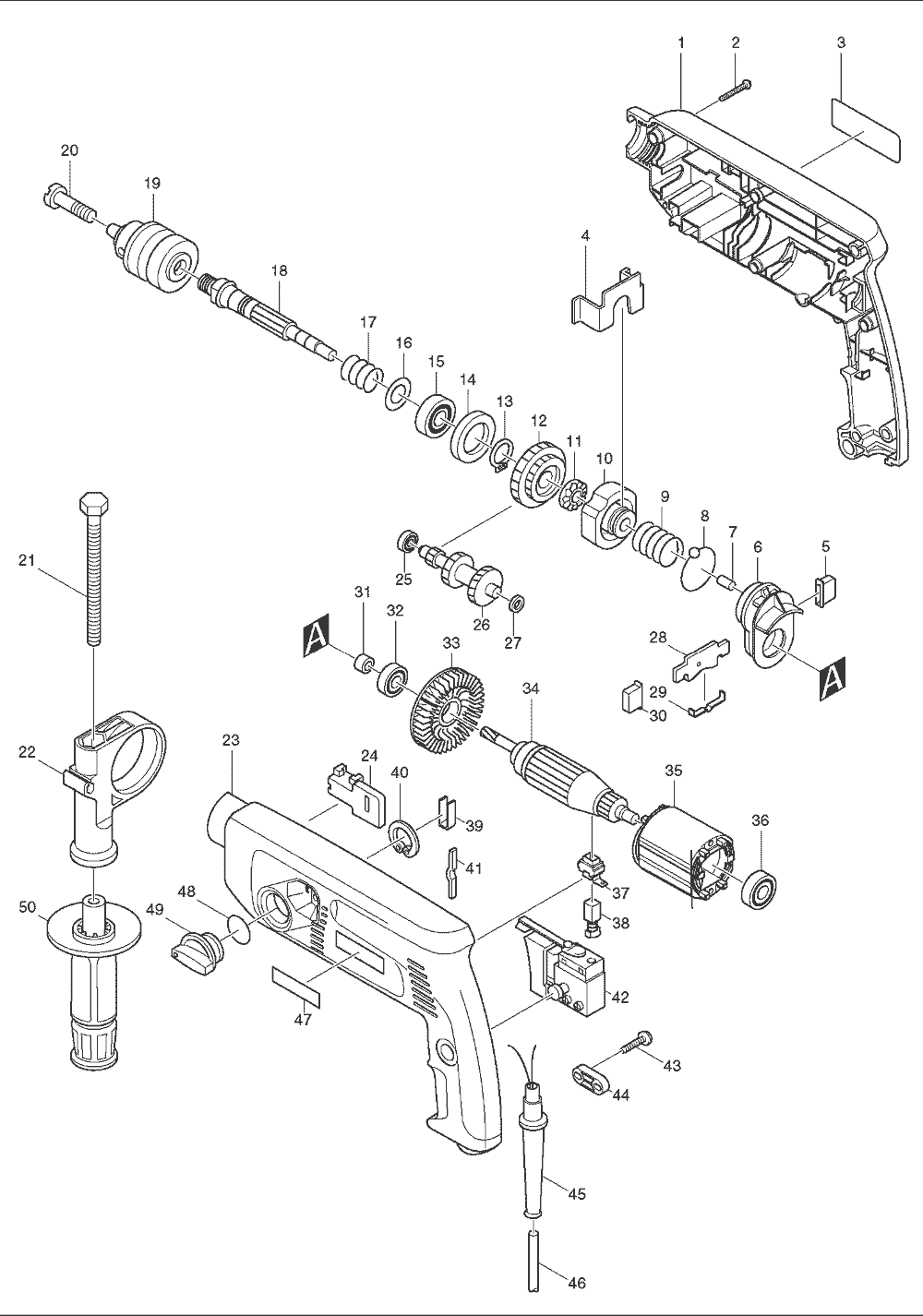

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	182906-5	HOUSING SET, HP2040	$25.06
2	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
3	859033-0	NAME PLATE, HP2040	$1.21
4	344439-0	RETAINER, HP2040	$3.06
5	415453-4	CHANGE BUTTON, HP1501	$2.84
6	159965-4	INNER HOUSING CPL.,HP2040	$9.33
7	256251-5	PIN 4, HP2050F	$1.19
8	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
9	233170-2	COMP. SPRING 23, HP2040	$1.96
10	223119-0	CAM B, HP2040	$13.29
11	223118-2	CAM A, HP2040	$3.06
12	226331-1	SPUR GEAR 28-38, HP2040	$7.68
13	961055-9	RETAINING RING S-15, 5007F	$1.19
14	267126-3	FLAT WASHER 22, GD0601	$2.18
15	211201-7	B. BEARING 6002LLB, 6510LVR	$13.07
16	267164-5	FLAT WASHER 15, HP2040	$1.63
17	233169-7	COMP. SPRING 18, HP2040	$1.63
18	322920-1	SPINDLE, HP2040	$23.74
19	763114-3	DRILL CHUCK S13 HP2040	$45.60
20	251425-3	FLAT SCREW M6X22, NHP1310	$1.48
21	921919-9	BOLT M8X10, HP2030	$3.61
22	415485-1	GRIP BASE, HP2030	$5.92
23	182906-5	HOUSING SET, HP2040	$25.06
24	416189-8	SLIDER, HP2040	$3.06
25	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
26	226130-1	GEAR CPL.,8-18-23, HP2040	$27.74
27	253777-8	F. WASHER 8, 8412DWG	$1.63
28	344419-6	CHANGE PLATE, HP1501	$1.63
29	232134-3	LEAF SPRING, HP1501	$1.48
30	415453-4	CHANGE BUTTON, HP1501	$2.84
31	262541-6	SLEEVE 8, HP2040	$0.75
32	211033-2	B. BEARING 608LB, 5091D	$8.78
33	241869-5	FAN 55, 5621DWA	$4.16
34	517211-5	ARMATURE ASSY 115V, HP2040	$62.00
35	633346-5	FIELD 115V, HP2040	$20.55
36	211028-5	B. BEARING 627LB, 6510LVR	$8.78
37	643923-5	BRUSH HOLDER, HR2410	$1.63
37	643936-6	BRUSH HOLDER, 6821	$4.16
38	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
39	344440-5	SLIDER PLATE, HP2040	$1.26
40	961104-2	RETAINING RING, 2414	$1.19
41	232053-3	LEAF SPRING, HP2030	$0.86
43	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
44	687063-9	STRAIN RELIEF, 4323K	$1.26
45	682549-8	CORD GUARD 8, HP2030	$2.51
46	664881-2	CORD	$10.43
46	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
47	819063-3	MAKITA LABEL, DA3010F	$0.96
48	213373-4	O RING 22, GEO600	$1.19
49	152559-4	CHANGE LEVER CPL.,HP2040	$3.06
50	152521-9	GRIP 36 CPL., DP4002	$4.49
1001	415486-9	STOPPER POLE HP2030	$4.20
1002	763440-0	CHUCK KEY S13 HP1640	$6.40
