Makita HP2032 Electric Drill Parts

Makita HP2032 Electric Drill Parts Image

Makita HP2032 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

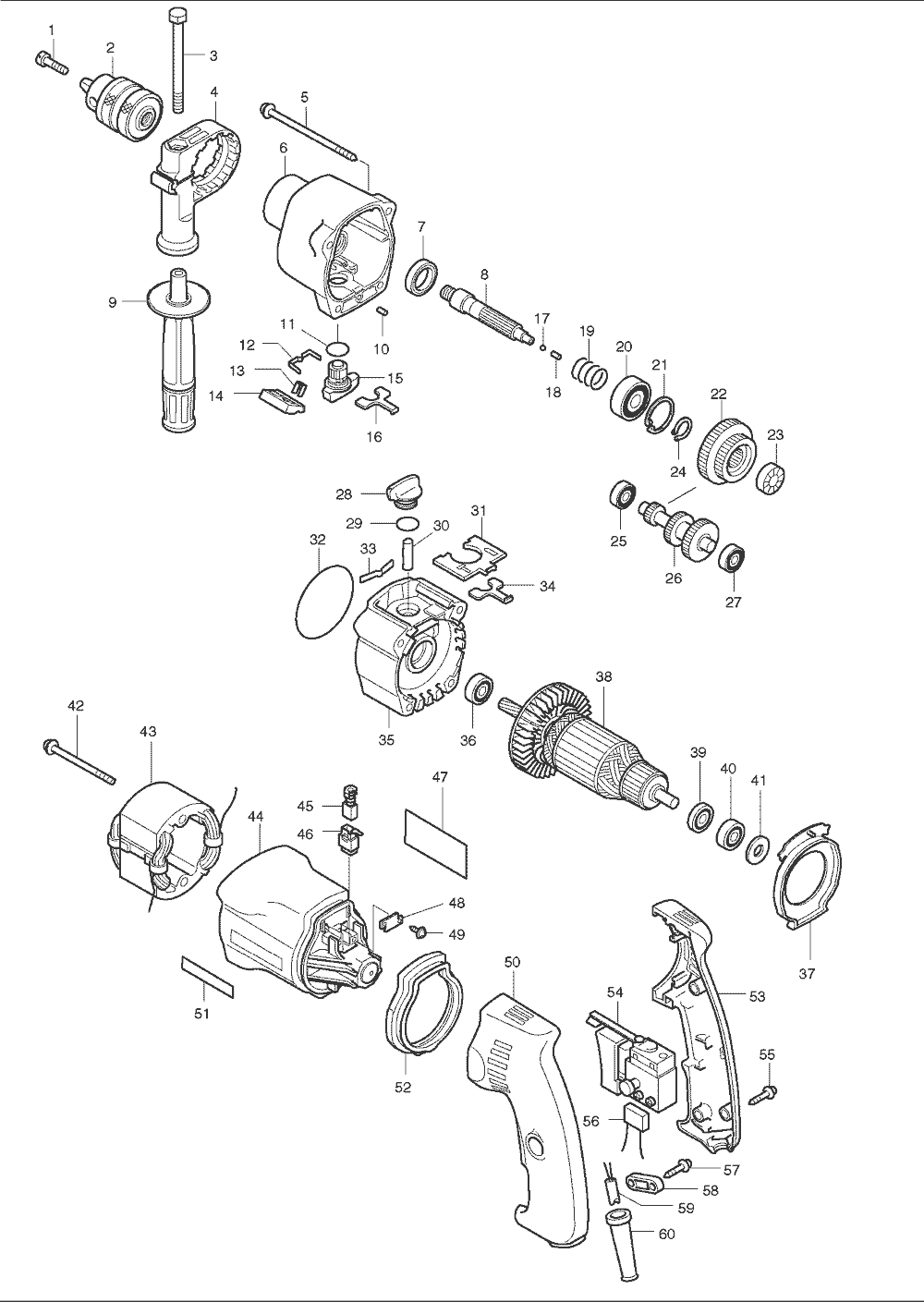

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	251469-3	F.H. SCREW 6X25, HP2032	$1.74
3	921923-8	HEX. BOLT M8 X 120, HP2050F	$1.96
3	921919-9	BOLT M8X10, HP2030	$3.61
4	415485-1	GRIP BASE, HP2030	$5.92
5	266038-7	TAPPING SCREW 5X70, HP2030	$5.37
6	317111-7	GEAR HOUSING, HP2032	$29.37
7	213314-0	OIL SEAL 19, HP2030	$5.92
8	323854-1	SPINDLE, HP2032	$21.10
9	152489-9	GRIP 36, HR2410	$4.49
10	256251-5	PIN 4, HP2050F	$1.19
11	213162-7	O RING 14, 2414B	$0.86
12	232143-2	LEAF SPRING, HP2030	$3.61
13	344179-0	CHANGE PLATE, HP2030	$0.97
14	415621-9	RACK 12, HP2030	$1.63
15	415620-1	CHANGE LEVER B, HP2030	$3.06
16	344178-2	LOCK PLATE, HP2030	$1.26
17	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
18	256251-5	PIN 4, HP2050F	$1.19
19	233091-8	COMP. SPRING 16, HP2030	$0.86
20	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
21	962153-2	RETAINING RING R-35,HP2030	$1.48
22	226289-4	SPUR GEAR 27-38, HP2030	$26.72
23	223104-3	CAM A, HP2030	$13.18
24	961055-9	RETAINING RING S-15, 5007F	$1.19
25	211014-6	B. BEARING 606, 6826	$13.07
26	226818-3	GEAR CPL. 8-19-25, HP2030	$49.06
27	211014-6	B. BEARING 606, 6826	$13.07
28	415619-6	CHANGE LEVER A, HP2030	$3.06
29	213162-7	O RING 14, 2414B	$0.86
30	322787-7	CHANGE PIN 8, HP2030	$5.92
31	416747-0	CAM HOUSING COVER, HP2032	$2.84
32	213759-2	O RING 72, HP2030	$3.61
33	232053-3	LEAF SPRING, HP2030	$0.86
34	344178-2	LOCK PLATE, HP2030	$1.26
35	151550-9	CAM HOUSING CPL., HP2032	$28.15
36	210005-4	BALL BEARING 608DDW, 9031	$13.07
37	415618-8	BAFFLE PLATE, HP2030	$1.26
38	517101-2	ARMATURE, HP2030	$69.60
40	211026-9	B. BEARING 627LLB, N9514B	$8.78
41	253707-9	F. WASHER 16, 6802BV	$1.34
43	633410-2	FIELD 100/115V, HP2032	$26.49
44	415601-5	MOTOR HOUSING, HP2030	$11.75
45	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
46	643923-5	BRUSH HOLDER, HR2410	$1.63
47	851533-6	NAME PLATE, HP2032	$1.12
48	415622-7	BRUSH HOLDER PLATE, HP2030	$1.26
49	266007-8	TAPPING SCREW 3X10, 9557NB	$0.53
50	182724-1	HANDLE SET, HP2030	$10.32
51	819063-3	MAKITA LABEL, DA3010F	$0.96
52	421505-1	CUSHION RUBBER, HP2030	$3.06
53	182724-1	HANDLE SET, HP2030	$10.32
55	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
57	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
58	687063-9	STRAIN RELIEF, 4323K	$1.26
59	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
59	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
60	682549-8	CORD GUARD 8, HP2030	$2.51
1001	415486-9	STOPPER POLE HP2030	$4.20
1002	763440-0	CHUCK KEY S13 HP1640	$6.40
