Makita HP1641 Electric Drill Parts

Makita HP1641 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

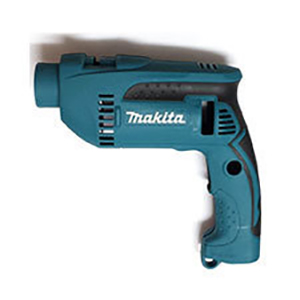

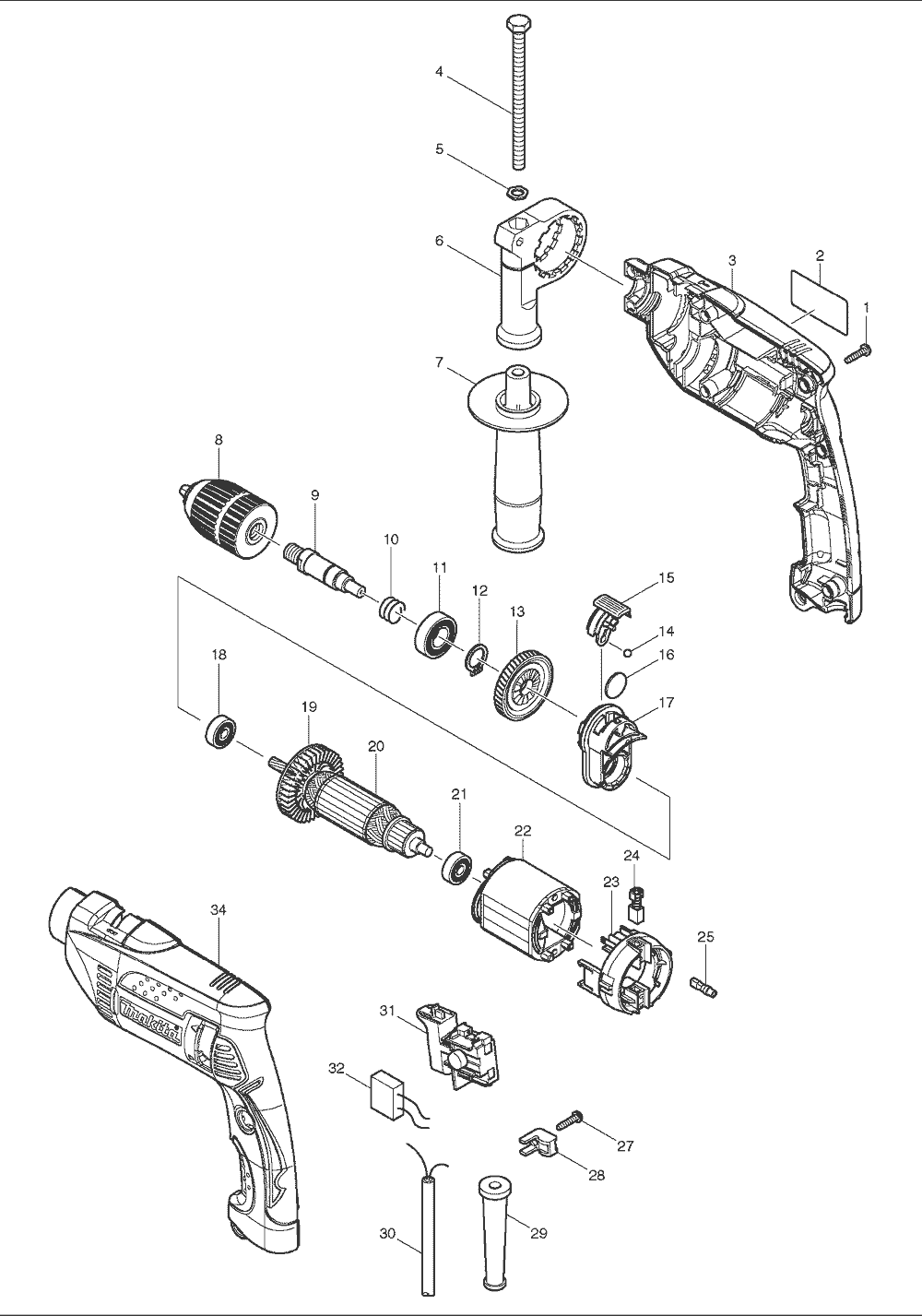

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
2	866006-6	NAME PLATE, HP1641	$1.08
3	188611-2	HOUSING SET, HP1641	$16.04
4	921923-8	HEX. BOLT M8 X 120, HP2050F	$1.96
5	345280-4	HEX. WASHER, HP2050F	$1.01
6	417630-4	GRIP BASE, HP1640	$2.84
7	153503-4	GRIP 36 CPL., HP2050F	$2.84
9	324397-6	SPINDLE, HP1621F	$4.16
10	233389-3	COMPRESSION SPRING 15, HP1621F	$0.86
11	211201-7	B. BEARING 6002LLB, 6510LVR	$13.07
12	961055-9	RETAINING RING S-15, 5007F	$1.19
13	226579-5	HELICAL GEAR 45, HP1621F	$5.92
14	216018-3	STEEL BALL 5.0,BFT122FZ	$1.96
15	418319-7	CHANGE LEVER, HP1640	$1.26
16	345354-1	PLATE 19, HP1621F	$2.84
17	141165-0	CAM HOLDER CPL., HP1640	$9.10
18	210023-2	BALL BEARING 627DDW, 9910	$6.69
19	240067-8	FAN 55, HP1621F	$1.52
20	517456-5	ARMATURE ASS'Y 115V, HP1621F	$61.00
21	211028-5	B. BEARING 627LB, 6510LVR	$8.78
22	633566-1	FIELD 115V, HP1641K	$19.01
23	638237-5	BRUSH HOLDER UNIT, HP1621F	$11.53
24	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
25	686038-5	RECEPTACLE SLEEVE, HP2070F	$0.75
27	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
28	687260-7	CORD CLAMP, GA5020	$0.75
29	682502-4	CORD GUARD 8-85, HP2010N	$2.51
29	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
30	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
30	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
31	650570-5	SWITCH, HR1830F	$16.59
34	188611-2	HOUSING SET, HP1641	$16.04
1001	324219-0	DEPTH GAUGE,HP2050F	$4.40
