Makita HM1303B Demolition Hammer Parts

Makita HM1303B Demolition Hammer Parts Image

Makita HM1303B Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

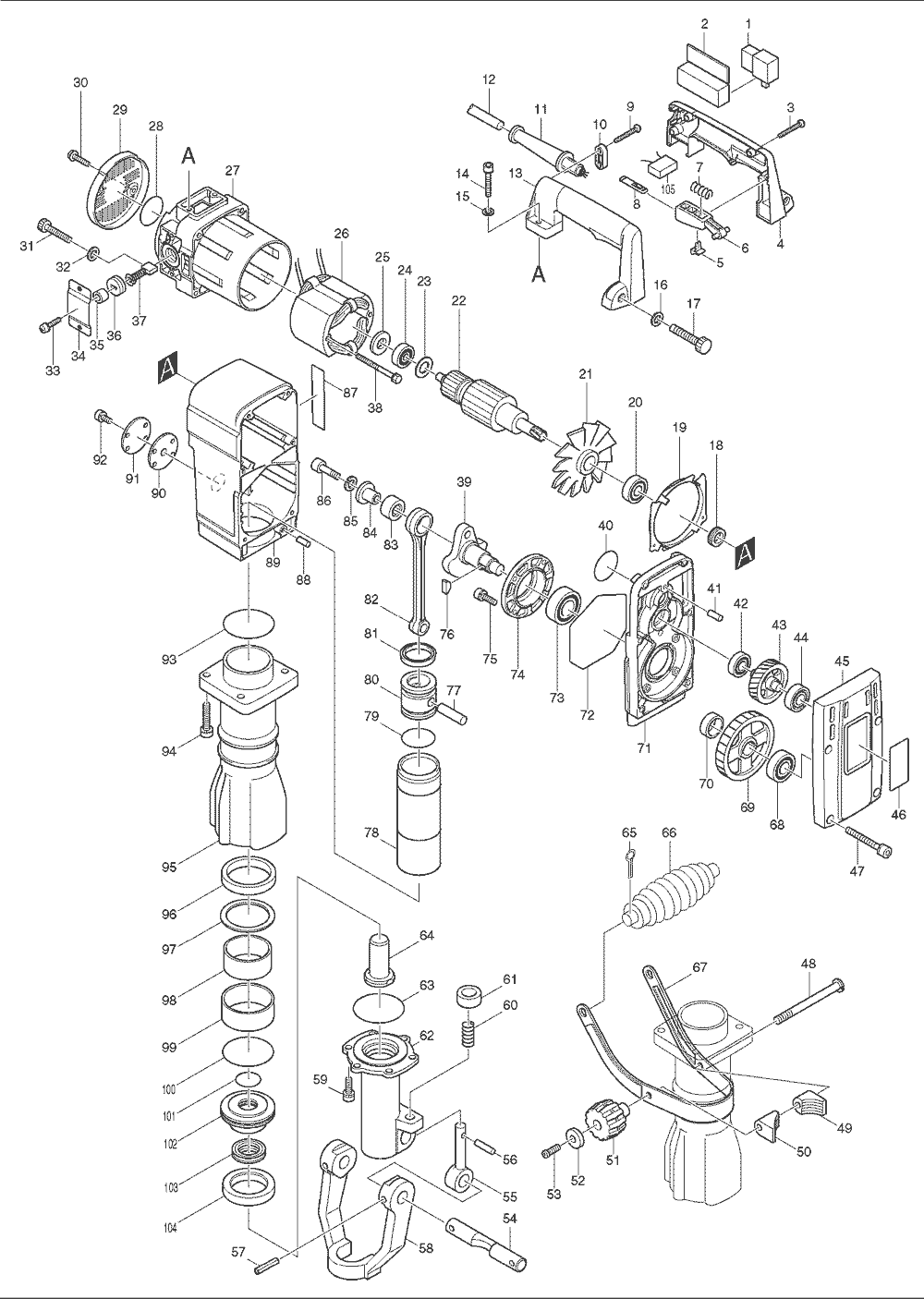

Makita HM1303B Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 651922-3 SWITCH, HM1303B $19.45
2 421529-7 SWITCH BOX, HM1303B $4.49
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
4 182844-1 HANDLE SET, HM1303B $41.61
5 415805-9 LOCK BUTTON, HM1304B $1.63
6 415120-1 SWITCH LEVER, HR2400 $3.06
7 231457-6 COMP. SPRING 3, HR2400 $2.07
8 415806-7 LOCK PLATE, HM1304B $1.63
9 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
10 687063-9 STRAIN RELIEF, 4323K $1.26
11 682505-8 CORD GUARD, 2711 $2.51
11 682568-4 CORD GUARD, HR5000 $4.16
11 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
12 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
12 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
13 182844-1 HANDLE SET, HM1303B $41.61
14 922361-7 H.S.H. BOLT M6X40, HM1303B $1.48
15 941152-7 F. WASHER 6, HM1500 $0.75
16 941152-7 F. WASHER 6, HM1500 $0.75
17 922376-4 H.S.H. BOLT M6X55, HR5000 $3.61
18 331212-7 SEAL, HM1303B $4.49
19 344273-8 BAFFLE PLATE, HM1303B $4.49
20 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
21 241128-7 FAN $5.70
22 516701-5 ARMATURE ASS'Y 115V, HM1303B $160.06
25 253794-8 F. WASHER 18, 6905B $1.63
26 626041-4 FIELD 115V, HM1303B $67.70
27 159904-4 MOTOR HOUSING CPL.,HM1303B $63.00
28 213406-5 O RING 30, HR5000 $1.19
29 284069-4 REAR COVER, HM1303B $7.46
30 266021-4 TAPPING SCREW PT5X20, BPB180 $1.48
31 922376-4 H.S.H. BOLT M6X55, HR5000 $3.61
32 941151-9 F. WASHER 6, 5007NB $0.75
33 911221-8 P.H. SCREW M5X16, JR3000V $0.86
34 344384-9 HOLDER CAP PLATE, HM1303B $3.06
35 262049-0 RUBBER RING 6, HM1303B $1.19
36 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
37 194992-4 A.C.CARBON BR.SET,CB-204,HM1800 $19.45
38 265428-1 HEX. BOLT M5X65, HM1303B $3.61
39 322894-6 CRANKSHAFT, HM1303B $49.57
40 213460-9 O RING 35, HM1500 $1.19
41 256111-1 PIN 6, HM1500 $1.96
42 211104-5 BALL BEARING 6001, HM1303 $13.07
43 226449-8 HELICAL GEAR 34, HM1303B $38.04
44 211109-5 BALL BEARING 6201, HR3851 $13.07
45 316732-2 GEAR HOUSING COVER, HM1303B $42.02
46 858363-6 NAME PLATE, HM1303B $2.51
47 922371-4 H.S.H. BOLT M6X50, HM1211 $2.40
47 266304-2 H.S.H. BOLT 6X50, HM1303 $1.74
48 266140-6 SET BOLT M10X113, HM1303B $10.54
49 416228-4 HANDLE BASE, HM1303B $3.06
50 416228-4 HANDLE BASE, HM1303B $3.06
51 252633-9 KNOB, HM1500 $8.78
52 253194-2 F. WASHER 5, HM1303B $1.63
53 922221-3 HEX BOLT M5X16, 6906 $1.34
54 322550-8 TOOL RETAINER SHAFT, HM1500B $26.92
55 322477-2 TOOL RETAINER POLE, HM1500B $33.55
56 256219-1 PIN 4, HM1500 $1.19
57 951272-9 SPRING PIN 8-40, HM1500B $2.07
58 322478-0 TOOL RETAINER, HM1500B $228.73
59 266010-9 H.S.H.BOLT M8X30, HM1303B $2.40
60 233083-7 COMP. SPRING 12, HM1800 $4.16
61 322560-5 RETAINER RING, HM1800 $8.78
62 322901-5 TOOL HOLDER, HM1303B $165.20
63 213707-1 O RING 65, HM1100C $3.61
64 322873-4 IMPACT BOLT, HM1303B $20.66
65 952257-8 SPLIT PIN 3-20, HM1303B $0.86
66 273492-8 GRIP 38, HM1303B $13.18
67 345233-3 SIDE HANDLE, HM1303 $11.97
68 211214-8 BALL BEARING 6302, HM1810 $17.47
69 226450-3 HELICAL GEAR 57, HM1303B $42.43
70 257196-0 RING 25, HM1303B $4.49
71 159806-4 GEAR HOUSING CPL.,HM1303B $63.10
72 421731-2 SEAL RING, HM1302 $2.84
73 211373-8 BALL BEARING 6205LLU, HM1304B $17.47
74 316730-6 HOUSING W/O BEARING, HM1303B $8.78
75 265366-7 H.S.H.BOLT M6X22, HM1500 $3.28
76 254001-2 WOODRUFF KEY 4, HM1810 $1.26
77 256238-7 PIN 12, HM1307CB $5.37
78 322919-6 HAMMER, HM1303B $97.00
79 213519-2 O RING 36, HM1303B $7.13
80 322871-8 PISTON, HM1303B $57.80
81 213520-7 Y RING 36, HM1303B $8.78
82 322812-4 CONNECTING ROD, HM1303B $26.92
83 212260-4 N. BEARING 1716, HM1303B $21.76
84 321825-2 CRANK SLEEVE, HM1303B $10.32
85 942251-8 SPRING WASHER 10, 2711 $1.34
86 922557-0 H.S.H. BOLT M10X35, HM1303B $1.74
87 819084-5 MAKITA LABEL, HR5001C $1.48
88 256111-1 PIN 6, HM1500 $1.96
89 159971-9 CRANK HOUSING CPL.,HM1303B $81.30
90 442009-0 PACKING 50, HM1303B $1.26
91 341397-1 PLATE 50, HM1303B $1.63
92 911211-1 P.H. SCREW M5X12, HM1500B $0.86
93 213707-1 O RING 65, HM1100C $3.61
94 265367-5 H.S.H.BOLT M8X40, HM1500 $3.61
95 316831-0 BARREL, HM1303B $114.47
96 262068-6 URETHANE RING 59, HM1303B $12.19
97 267146-7 FLAT WASHER 58, HM1303B $5.92
98 322815-8 IDLER, HM1303B $49.57
99 262536-9 RUBBER SLEEVE 64, HM1303B $4.49
100 213707-1 O RING 65, HM1100C $3.61
101 213390-4 O RING 25, HM1303B $5.37
102 322872-6 SEAL HOLDER, HM1303B $30.90
103 213383-1 X RING 25, HM1303B $24.29
104 262072-5 URETHANE RING 49, HM1303B $13.95
