Makita HM1214C Demolition Hammer Parts

Makita HM1214C Demolition Hammer Parts Image

Makita HM1214C Parts
27 lb. AVT Demolition Hammer (SDS-MAX)

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HM1214C
27 lb. AVT Demolitio...
$906.99
Tool Diagram    (Click image to Zoom in) View larger Image

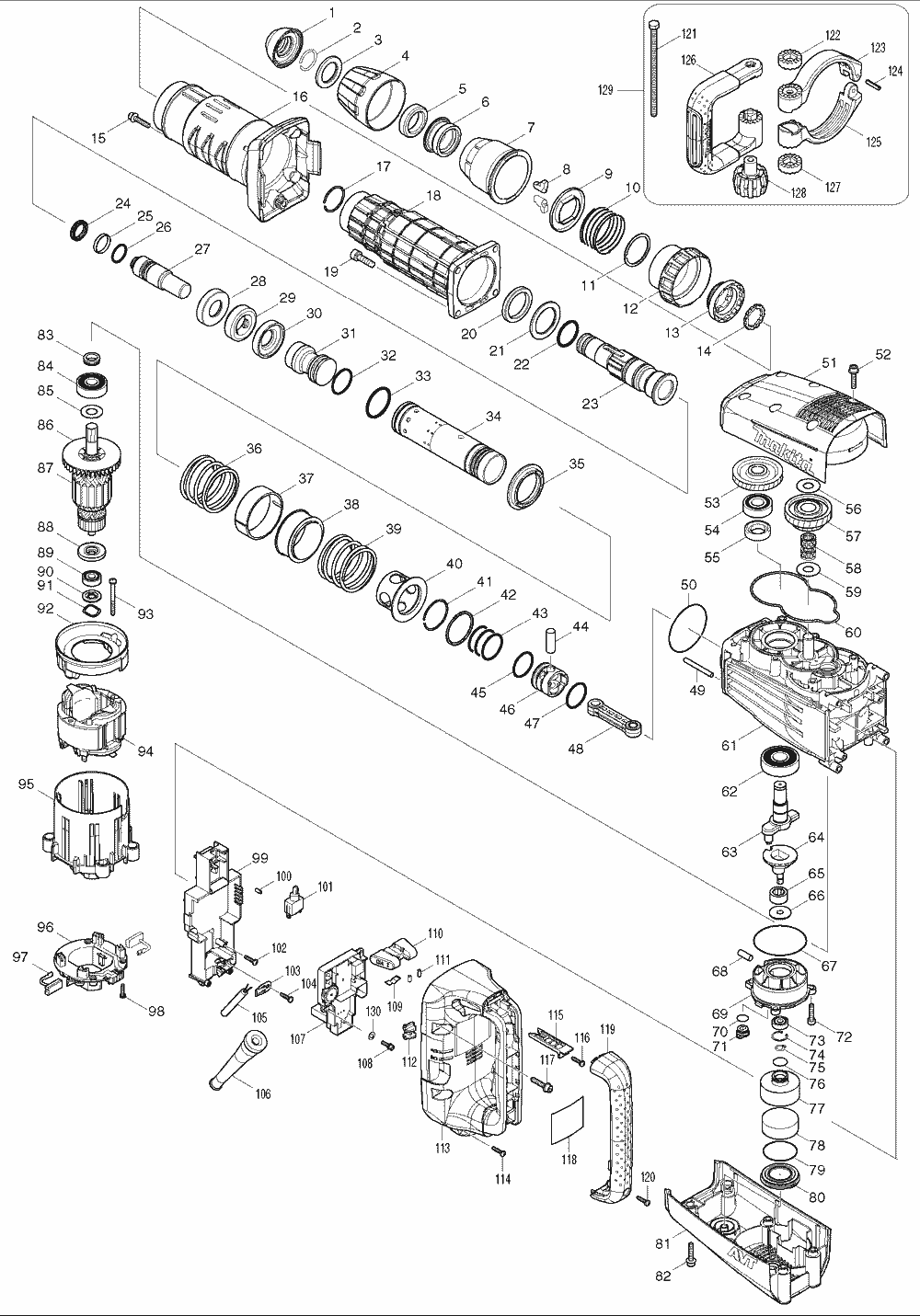

Makita HM1214C Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 424165-8 TOOL HOLDER CAP, HM1214C & HM1203C $3.61
00 162271-8 LATCH, HM1214C $2.51

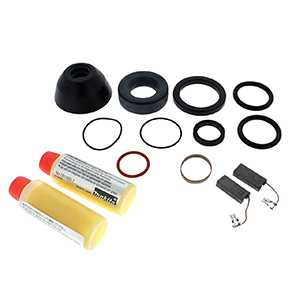

00 195114-9 HAMMER SERVICE KIT, HM1214C AND HM1203C $33.86
2 233973-4 RING SPRING 26, HM1214C $1.34
00 442180-0 BOTH SIDE ADHESIVE TAPE, HM1214C $1.30
3 267386-7 FLAT WASHER 30, HM1214C $5.92
92 346546-5 PLATE, HM1214C $1.08
4 450894-7 CHUCK COVER, HM1214C $3.61
5 262147-0 RUBBER RING 30, HM1214C $3.61
6 324987-5 CHUCK RING, HM1214C $14.94
7 450895-5 RELEASE COVER, HM1214C $3.61
8 310279-8 TOOL RETAINER, HM1214C $4.71
9 346015-6 SPRING GUIDE, HM1214C $3.61
10 234086-4 COMPRESSION SPRING 56, HM1214C $3.61
11 961232-3 RETAINING RING WR-45, HR5001C $3.61
12 450893-9 CHANGE RING COVER, HM1214C $3.61
13 324969-7 CHANGE RING, HM1214C $26.52
14 324988-3 CLOCK RING, HM1214C $17.25
15 266499-1 H.S. HEAD BOLT M6X30 W/GM, HM1307CB $1.34
16 451113-4 BARREL COVER, HM1214C $21.76
17 233970-0 RING SPRING 35, HM1214C $1.34
19 266010-9 H.S.H.BOLT M8X30, HM1303B $2.40
20 262148-8 RUBBER RING 39, HM1214C $3.61
21 267387-5 FLAT WASHER 39, HM1214C $4.71
22 213079-4 O-RING 35.5, HM1214C $2.51
23 324985-9 TOOL HOLDER, HM1214C $103.12
24 213980-3 X-RING 21, HR4510C $4.16
25 213431-6 FLUORIDE RING 28, HR5001C $11.97
26 213394-6 O RING 23, HR5001C $1.48
27 325681-2 IMPACT BOLT, HM1214C $18.35
28 324993-0 SHOUDER SLEEVE, HM1214C $9.22
29 262149-6 RUBBER RING 24, HM1214C $4.71
30 324993-0 SHOUDER SLEEVE, HM1214C $9.22
31 325680-4 STRIKER, HM1214C $19.45
32 213499-2 O-RING 31.5, HM1214C $3.61
33 213581-7 O-RING 44, HM1214C $2.51
34 331856-3 CYLINDER 40, HM1214C $79.50
35 451110-0 CYLINDER GUIDE, HM1214C $3.61
36 234107-2 COMPRESSION SPRING 58, HM1214C $5.92
37 451103-7 WEIGHT GUIDE, HM1214C $4.71
38 331854-7 COUNTER WEIGHT, HM1214C $5.92
39 234107-2 COMPRESSION SPRING 58, HM1214C $5.92
40 325661-8 SLIDE SLEEVE, HM1214C $26.52
41 231985-1 RING SPRING 43, HR5001C $1.48
42 257297-4 RING 45, HM1214C $4.71
43 213510-0 O RING 36, BO4556 $1.48
44 268121-6 PIN 12, HR5210C $1.48
45 213499-2 O-RING 31.5, HM1214C $3.61
46 450961-8 PISTON, HM1214C $7.02
47 213149-9 O-RING 35, HM1214C $2.51
48 450890-5 CONNECTING ROD, HM1214C $7.02
49 268235-1 PIN 6, HM1214C $5.92
50 213754-2 O RING 71, HR5000 $3.61
51 451115-0 GEAR COVER, HM1214C $22.86
52 266499-1 H.S. HEAD BOLT M6X30 W/GM, HM1307CB $1.34
53 226699-5 HELICAL GEAR 52, HM1214C $17.25
54 211256-2 B. BEARING 6203LLB, GA7001L $10.98
54 211290-2 BALL BEARING 6203ZZ, HM1214C $5.92
55 213313-2 OIL SEAL 20, HM1214C $7.46
56 267166-1 FLAT WASHER, HM0860C $2.18
57 226155-5 GEAR CPL 34-48, HM1214C $49.57
58 212159-3 NEEDLE CAGE 1412, HM1214C $4.71
59 267166-1 FLAT WASHER, HM0860C $2.18
60 424196-7 SEAL RING, HM1214C $1.34
61 158983-9 CRANK HOUSING CPL., HM1214C $151.04
62 211327-5 BALL BEARING 63604LLU, HR5000 $21.76
63 325659-5 CRANK SHAFT, HM1214C $11.53
64 325660-0 COUNTER SHAFT, HM1214C $38.04
65 212225-6 NEEDLE BEARING 1613, HM1214C $13.84
66 325662-6 SHOULDER WASHER 8, HM1214C $2.51
67 213754-2 O RING 71, HR5000 $3.61
68 268222-0 PIN 8, HM1214C $4.71
69 158985-5 BEARING BOX CPL., HM1214C $32.74
70 213176-6 O RING 14, AN922 $0.82
71 451104-5 GREASE CAP, HM1214C $2.51
72 266087-4 HEX. BOLT M6X25, HM1214C $1.12
73 211032-4 B. BEARING 608ZZ, N1900B $8.78
74 962112-6 RETAINING RING R-22, AN451 $1.41
75 961004-6 RETAINING RING S-8, DA391D $0.53
76 213262-3 O RING 18, 5005BA $1.96
77 451108-7 FILTER CASE, HM1214C $3.61
78 443147-1 FILTER, HM1214C $3.61
79 213569-7 O RING 45, AN611 $1.41
80 451109-5 FILTER CASE COVER, HM1214C $3.61
81 451116-8 REAR COVER, HM1214C $21.76
82 266499-1 H.S. HEAD BOLT M6X30 W/GM, HM1307CB $1.34
83 331855-5 SEALING SCREW, HM1214C $2.51
84 211249-9 BALL BEARING 6302LLU, HM1214C $8.12
85 267397-2 FLAT WASHER 15, HM1214C $1.34
86 240003-4 FAN 80, 5007NK $4.16
87 517836-5 ARMATURE ASS'Y, HM1214C $90.80
88 681642-5 INSULATION WASHER, LS1016L $10.32
89 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
90 451107-9 WASHER GUIDE, HM1214C $2.51
91 267809-5 WAVE WASHER, HM1202C $0.90
92 451111-8 BAFFLE PLATE, HM1214C $3.61
93 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
94 636301-6 FIELD 115V, HR5210C $27.74
95 451117-6 MOTOR HOUSING, HM1214C $14.94
96 638447-4 BRUSH HOLDER UNIT, HR5210C $6.80
98 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
99 158986-3 CONTROLLER COVER CPL., HM1214C $9.22
100 263027-3 RUBBER PIN 4, HM0860C $1.19
101 651423-1 SWITCH, RD1100/1101 $13.84
102 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
103 687169-3 STRAIN RELIEF, HP1621F $0.97
104 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
105 664471-1 CORD, 2X14X16;SJ, HM1500 $49.47
105 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
106 682560-0 CORD GUARD 10, HM1202C $4.16
106 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
107 620151-9 CONTROLLER, HM1214C $62.00
108 265490-6 HEX BOLT M4 X 16, 9560CV $1.08
109 232209-8 LEAF SPRING, HM0860C $1.96
110 451112-6 SLIDE LEVER, HM1214C $3.61
111 263027-3 RUBBER PIN 4, HM0860C $1.19
112 451105-3 LENS, HM1214C $2.51
113 451118-4 HANDLE, HM1214C $26.52
114 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
115 451106-1 SWITCH LEVER, HM1214C $3.61
116 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
117 266499-1 H.S. HEAD BOLT M6X30 W/GM, HM1307CB $1.34
118 866749-0 NAME PLATE, HM1214C $1.30
119 451119-2 HANDLE COVER, HM1214C $14.94
120 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
121 265439-6 HEX BOLT M8X150, HM1100C $3.61
122 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
123 318430-4 SIDE HADLE BASE 90A, HM1214C $10.43
124 951166-8 SPRING PIN 5-24, HR5210C $1.63
125 318431-2 SIDE HANDLE 90B, HM1214C $9.22
126 417003-1 SIDE HANDLE, HM1214C & HM1203C $13.18
127 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
128 252640-2 WING NUT M8, HM1214C & HM1203C $7.02
129 135283-4 SIDE HANDLE 90 ASS'Y, HM1214C $39.06
130 941051-3 F. WASHER 4, 2107F $0.75
1002 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
1005 809301-1 PLASTIC CASE LABEL, HM1214C $14.50
