Makita HM1203C Demolition Hammer Parts

Makita HM1203C Demolition Hammer Parts Image

Makita HM1203C Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HM1203C
20 lb. Demolotion Ha...
$656.99
Tool Diagram    (Click image to Zoom in) View larger Image

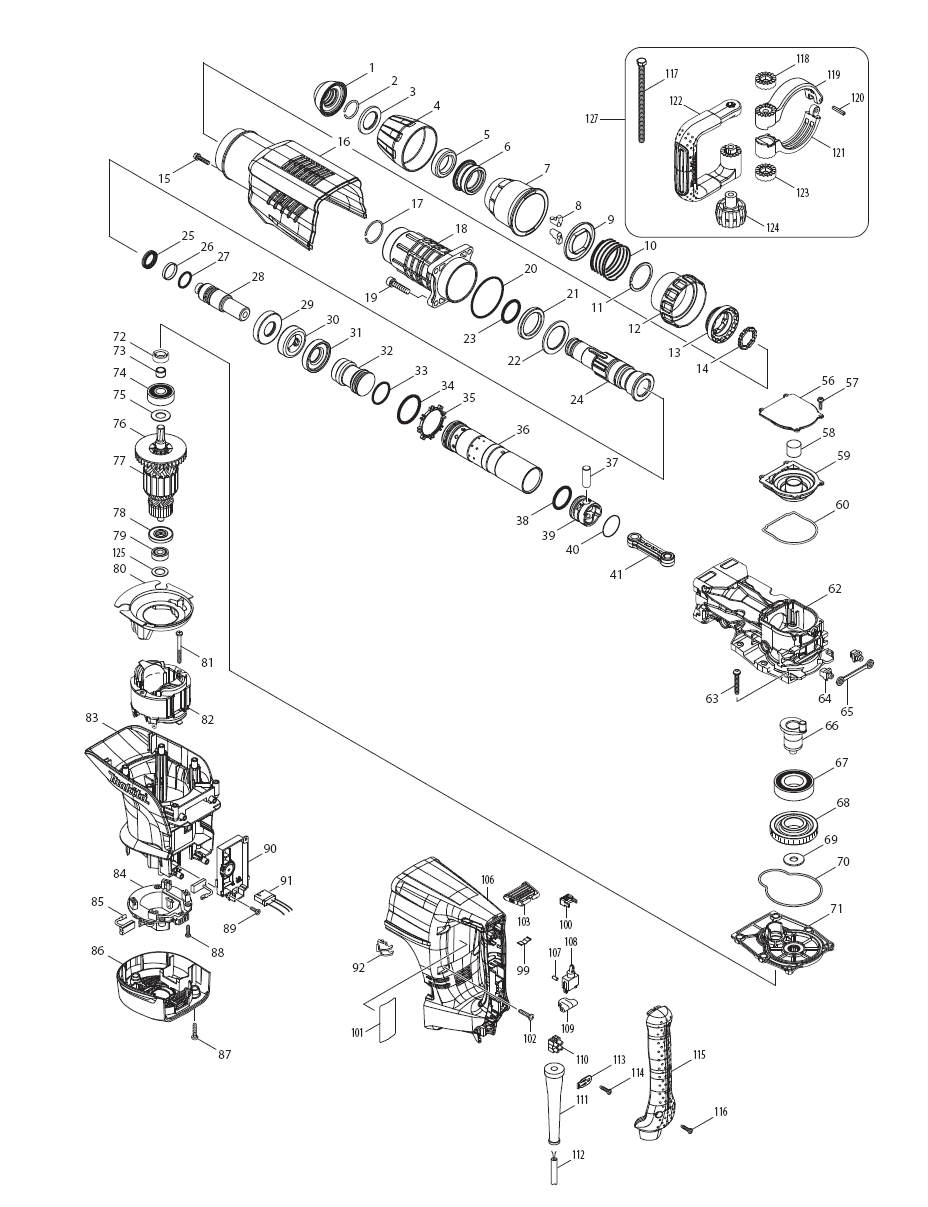

Makita HM1203C Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 424165-8 TOOL HOLDER CAP, HM1214C & HM1203C $3.61
2 233973-4 RING SPRING 26, HM1214C $1.34
3 267386-7 FLAT WASHER 30, HM1214C $5.92
4 450894-7 CHUCK COVER, HM1214C $3.61
5 262147-0 RUBBER RING 30, HM1214C $3.61
6 324987-5 CHUCK RING, HM1214C $14.94
7 450895-5 RELEASE COVER, HM1214C $3.61
8 310279-8 TOOL RETAINER, HM1214C $4.71
9 346015-6 SPRING GUIDE, HM1214C $3.61
10 234086-4 COMPRESSION SPRING 56, HM1214C $3.61
11 961232-3 RETAINING RING WR-45, HR5001C $3.61
12 450893-9 CHANGE RING COVER, HM1214C $3.61
13 324969-7 CHANGE RING, HM1214C $26.52
14 324988-3 CLOCK RING, HM1214C $17.25
15 922243-3 H. S. H. BOLT M5X25,2702 $1.96
16 450903-2 HOUSING COVER, HM1203C $21.76
17 233970-0 RING SPRING 35, HM1214C $1.34
18 158858-2 BARREL CPL., HM1203C $61.00
19 922456-6 H.S.H. BOLT M8X35, 2107F $1.48
20 213720-9 O RING 67, HR2400 $1.96
21 262148-8 RUBBER RING 39, HM1214C $3.61
22 267387-5 FLAT WASHER 39, HM1214C $4.71
23 213079-4 O-RING 35.5, HM1214C $2.51
24 324985-9 TOOL HOLDER, HM1214C $103.12
25 213980-3 X-RING 21, HR4510C $4.16
26 213431-6 FLUORIDE RING 28, HR5001C $11.97
27 213394-6 O RING 23, HR5001C $1.48
28 324990-6 IMPACT BOLT, HM1203C $27.54
29 324993-0 SHOUDER SLEEVE, HM1214C $9.22
30 262149-6 RUBBER RING 24, HM1214C $4.71
31 324993-0 SHOUDER SLEEVE, HM1214C $9.22
032-1 326002-1 STRIKER, HM1203C $33.86
33 213499-2 O-RING 31.5, HM1214C $3.61
34 213581-7 O-RING 44, HM1214C $2.51
35 450889-0 ONE WAY VALVE GUIDE, HM1203C $2.51
036-1 331925-0 CYLINDER 40, HM1203C $68.20
37 268121-6 PIN 12, HR5210C $1.48
38 213499-2 O-RING 31.5, HM1214C $3.61
39 450961-8 PISTON, HM1214C $7.02
40 213149-9 O-RING 35, HM1214C $2.51
41 450890-5 CONNECTING ROD, HM1214C $7.02
56 450899-7 CRANK CAP COVER, HM1203C $3.61
57 911133-5 P.H. SCREW M4X18, N9501B $0.86
58 443127-7 FILTER, HR4041C $1.26
59 450898-9 CRANK CAP, HM1203C $3.61
60 424166-6 SEAL RING, HM1203C $1.34
62 318364-1 CRANK HOUSING, HM1203C $96.00
63 266482-8 H.S. BUTTON HEAD SCREW M6X40, HM1203C $1.34
64 419008-7 FIX GUIDE, HR4001C $1.26
65 423366-5 CUSHION PLATE, HR5210C $1.26
66 324994-8 CRANK SHAFT, HM1203C $11.53
67 211424-7 BALL BEARING, 6206LLU, HM1203C $14.94
68 226691-1 HELICAL GEAR 57, HM1203C $30.70
69 267398-0 FLAT WASHER, HM1203C $2.51
70 424167-4 SEAL RING, HM1203C $1.34
71 158859-0 GEAR HOUSING CPL., HM1203C $34.88
72 213231-4 OIL SEAL 15, HR4500C $5.48
73 331596-3 SLEEVE 12, HR4041C $5.48
74 211249-9 BALL BEARING 6302LLU, HM1214C $8.12
75 267397-2 FLAT WASHER 15, HM1214C $1.34
76 240003-4 FAN 80, 5007NK $4.16
77 517816-1 ARMATURE ASS'Y, HM1203C $98.07
78 681642-5 INSULATION WASHER, LS1016L $10.32
079-1 211289-7 BALL BEARING 6000DDW, HM1203C $8.12
80 450900-8 BAFFLE PLATE, HM1203C $3.61
81 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
82 636301-6 FIELD 115V, HR5210C $27.74
83 450904-0 MOTOR HOUSING, HM1203C $28.56
84 638447-4 BRUSH HOLDER UNIT, HR5210C $6.80
86 450901-6 REAR COVER, HM1203C $9.22
87 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
88 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
89 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
90 631868-9 CONTROLLER, HM1203C $48.55
91 638650-7 LEAD UNIT, HM1203C $5.92
92 419010-0 LENS, HR4001C $1.52
99 232209-8 LEAF SPRING, HM0860C $1.96
100 450891-3 LEVER STOPPER, HM1203C $2.51
101 866622-4 NAME PLATE, HM1203C $1.30
102 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
103 450897-1 SLIDE LEVER, HM1203C $3.61
106 450907-4 HANDLE, HM1203C $29.58
107 263027-3 RUBBER PIN 4, HM0860C $1.19
108 651423-1 SWITCH, RD1100/1101 $13.84
109 423379-6 SPONGE SHEET, HM1203C $0.90
110 654531-7 TERMINAL BLOCK 2P, 5007MG $4.49
111 682560-0 CORD GUARD 10, HM1202C $4.16
111 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
112 664471-1 CORD, 2X14X16;SJ, HM1500 $49.47
112 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
113 687169-3 STRAIN RELIEF, HP1621F $0.97
114 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
115 450908-2 HANDLE COVER, HM1203C $13.84
116 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
117 265439-6 HEX BOLT M8X150, HM1100C $3.61
118 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
119 318505-9 SIDE HANDLE BASE 82A, HM1202C $10.32
120 951166-8 SPRING PIN 5-24, HR5210C $1.63
121 318506-7 SIDE HANDLE BASE 82B, HM1202C $8.78
122 417003-1 SIDE HANDLE, HM1214C & HM1203C $13.18
123 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
124 252640-2 WING NUT M8, HM1214C & HM1203C $7.02
125 267164-5 FLAT WASHER 15, HP2040 $1.63
127 135269-8 SIDE HANDLE 82 ASS'Y, HM1203C $45.39
A02-1 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
C10 162271-8 LATCH, HM1214C $2.51
C20 325637-5 SHAFT, HM1203C $3.61
C30 450990-1 HANDLE, BHR261 $2.51
A05 809279-8 PLASTIC CASE LABEL, HM1203C $1.30
D01 652008-6 P.H. SCREW M3.5X7, PV7001C $0.49
