Makita HM1202C Demolition Hammer Parts

Makita HM1202C Demolition Hammer Parts Image

Makita HM1202C Parts
20 Lb. Demolition Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HM1202C
20 Lb. Demolition Ha...
$547.99
Tool Diagram    (Click image to Zoom in) View larger Image

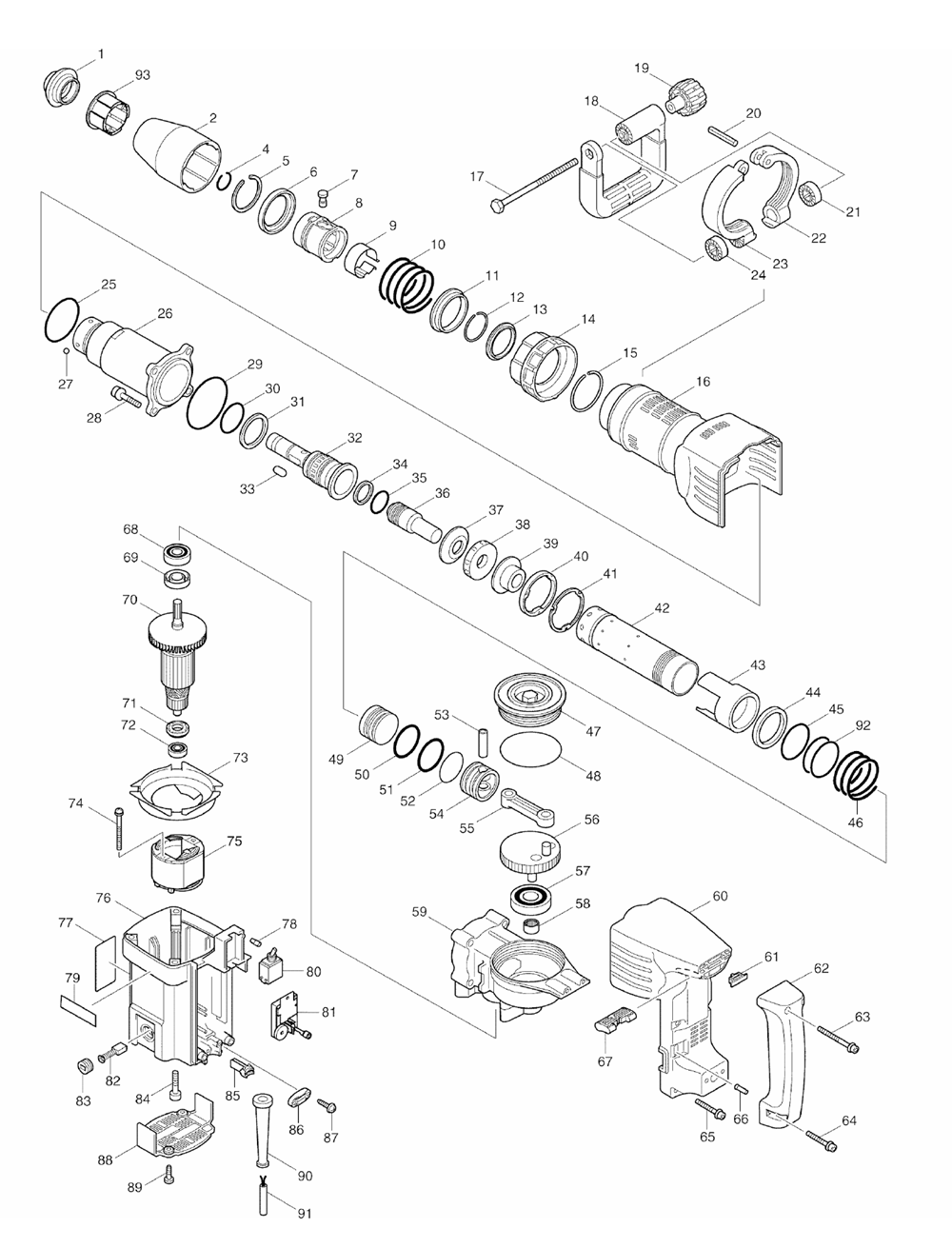

Makita HM1202C Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286250-3 TOOL HOLDER CAP, HM1202C $3.06
00 193391-7 HAMMER SERVICE KIT, HM1202C $31.72
2 416933-3 TOOL HOLDER COVER, HM1202C-T1 $6.47
2 417577-2 TOOL HOLDER COVER, HM1202C $5.48
3 233217-2 COMPRESSION SPRING 51, HR5001C $2.07
4 231984-3 RING SPRING 25, HR5001C $2.07
5 961232-3 RETAINING RING WR-45, HR5001C $3.61
6 267735-8 CUP WASHER 45, HR5001C $5.92
7 323767-6 PIN 8, HR5001C $4.49
8 323773-1 CHUCK RING, HR5001C $45.08
8 324185-1 CHUCK RING, HM1202C $45.08
9 232180-6 LEAD SPRING 41, HR5001C $5.37
10 233218-0 COMPRESSION SPRING 55, HR5001C $3.61
11 323876-1 STEEL BALL GUIDE, HM1202C-T1 $3.94
11 324131-4 STEEL BALL GUIDE, HM1202C $11.97
12 231988-5 RING SPRING 34, HM1242C $2.07
12 233909-3 RING SPRING 33, HM1202C $1.96
13 267197-0 FLAT WASHER 37, HM1242C $4.16
13 267760-9 WASHER 37, HM1202C $8.12
14 416934-1 CHANGE RING, HM1202C $5.92
15 231989-3 RING SPRING 46, HM1202C $2.07
16 416938-3 HOUSING COVER, HM1202C $24.62
17 265439-6 HEX BOLT M8X150, HM1100C $3.61
18 417003-1 SIDE HANDLE, HM1214C & HM1203C $13.18
19 252640-2 WING NUT M8, HM1214C & HM1203C $7.02
20 951166-8 SPRING PIN 5-24, HR5210C $1.63
21 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
22 317223-6 SIDE HANDLE BASE 82A, HM1202C $10.32
22 318505-9 SIDE HANDLE BASE 82A, HM1202C $10.32
23 317224-4 SIDE HANDLE BASE 82B, HM1202C $8.78
23 318506-7 SIDE HANDLE BASE 82B, HM1202C $8.78
24 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
25 213670-8 O RING 58, HM1202C $1.96
26 310087-7 BARREL, HM1202C $69.60
27 216011-7 STEEL BALL 5.6, 6222DWE $0.86
28 922451-6 H.S.H. BOLT M8X30, LS1013FL $2.40
29 213720-9 O RING 67, HR2400 $1.96
30 213510-0 O RING 36, BO4556 $1.48
30 213508-7 O RING 38, HM0810B $1.96
31 262095-3 URETHANE RING 41, HM1202C $4.93
32 323878-7 TOOL HOLDER, HM1202C-T1 $69.30
32 324109-7 TOOL HOLDER, HM1202C $82.30
33 322908-1 ROLLER 8, HM1100C $3.06
34 213431-6 FLUORIDE RING 28, HR5001C $11.97
35 213394-6 O RING 23, HR5001C $1.48
36 323908-4 IMPACT BOLT, HM1242C $17.47
36 324132-2 IMPACT BOLT, HM1202C $15.93
37 323909-2 IMPACT BOLT GUIDE, HM1202C $8.01
38 421691-8 RUBBER RING 25, HM1202C $10.32
39 323875-3 COLLARED SLEEVE 24, HM1202C $11.75
40 416927-8 GUIDE RING, HM1202C-T1 $3.94
40 417600-3 GUIDE RING, HM1242C $4.16
41 344790-8 FLAT WASHER 49, HM1202C-T1 $2.73
41 344998-4 FLAT WASHER 49, HM1202C $5.92
42 331554-9 CYLINDER LINER 44, HM1202C-T1 $38.35
42 331608-2 CYLINDER LINER 44, HM1202C $51.20
43 416928-6 SLIDE SLEEVE 49, HM1202C $5.92
44 257224-1 RING 49, HM1202C $10.32
45 213508-7 O RING 38, HM0810B $1.96
46 233246-5 COMPRESSION SPRING 50, HM1202C $4.16
47 416935-9 CRANK CAP, HM1202C $8.78
48 213806-9 O RING 90, HM1500 $3.61
49 323910-7 STRIKER, HM1202C $14.61
50 213485-3 O RING 34, HM1202C $3.61
51 213485-3 O RING 34, HM1202C $3.61
52 213523-1 O RING 36, HM1202C $1.48
53 257693-6 SLEEVE 9, HM1202C $3.06
54 416929-4 PISTON, HM1202C $8.78
55 416930-9 ROD, HM1202C $4.49
56 323877-9 CRANK SHAFT, HM1202C $48.24
57 211327-5 BALL BEARING 63604LLU, HR5000 $21.76
58 212113-7 N. BEARING 1212, LS1440 $11.75
59 318102-1 CRANK HOUSING, HM1202C $54.90
60 416940-6 CONTROLLER COVER, HM1202C $26.16
61 415692-6 STOPPER, HM1100C $3.06
62 421507-7 HANDLE, HM1100C $32.23
63 922361-7 H.S.H. BOLT M6X40, HM1303B $1.48
64 922353-6 H. S. H. BOLT M6X30,HR5001C $1.96
65 922353-6 H. S. H. BOLT M6X30,HR5001C $1.96
66 416932-5 ACRYLIC PIN 5, HM1202C $2.84
67 416931-7 SWITCH LEVER, HM1202C $4.49
68 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
68 211238-4 BALL BEARING 6202LLU, HR4500C $9.99
69 213273-8 OIL SEAL 17, HM1202C $9.33
70 516801-1 ARMATURE ASS'Y 115V, HM1202C $140.07
71 681642-5 INSULATION WASHER, LS1016L $10.32
72 211088-7 BALL BEARING 6000DDW, 9005B $13.07
73 416936-7 BAFFLE PLATE, HM1202C $4.49
74 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
75 526091-8 FIELD ASS'Y 115V, HM1202C $52.70
76 151795-9 MOTOR HOUSING CPL., HM1202C $48.24
76 158581-9 MOTOR HOUSING CPLT., HM1202C $44.37
77 851765-5 NAME PLATE, HM1202C $2.51
78 263002-9 RUBBER PIN 4, 5007NK $0.86
79 819064-1 MAKITA MARK, 5402NA $1.26
80 651481-7 SWITCH STE215K, HM1202C $27.54
81 631274-8 CONTROLLER, HR5001C $71.60
82 194987-7 CARBON BRUSH 155, HR5000 $14.94
83 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
84 922364-1 H.S.H. BOLT M6X40, HM1100C $1.48
85 415695-0 FIX ROD, HM1100C $3.06
86 687052-4 STRAIN RELIEF, HM1500B $1.26
87 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
88 416937-5 REAR COVER, HM1202C $7.46
89 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
90 682560-0 CORD GUARD 10, HM1202C $4.16
90 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
91 664471-1 CORD, 2X14X16;SJ, HM1500 $49.47
91 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
92 213508-7 O RING 38, HM0810B $1.96
93 417576-4 SLEEVE 39, HM1202C $2.84
94 421914-4 CONTROLLER PROTECTOR, HM1202C $1.52
95 267809-5 WAVE WASHER, HM1202C $0.90
1001 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
2001 135269-8 SIDE HANDLE 82 ASS'Y, HM1203C $45.39
5001 810134-9 CAUTION LABEL, 3709 $0.93
