Makita HM1140C Demolition Hammer Parts

Makita HM1140C Demolition Hammer Parts Image

Makita HM1140C Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

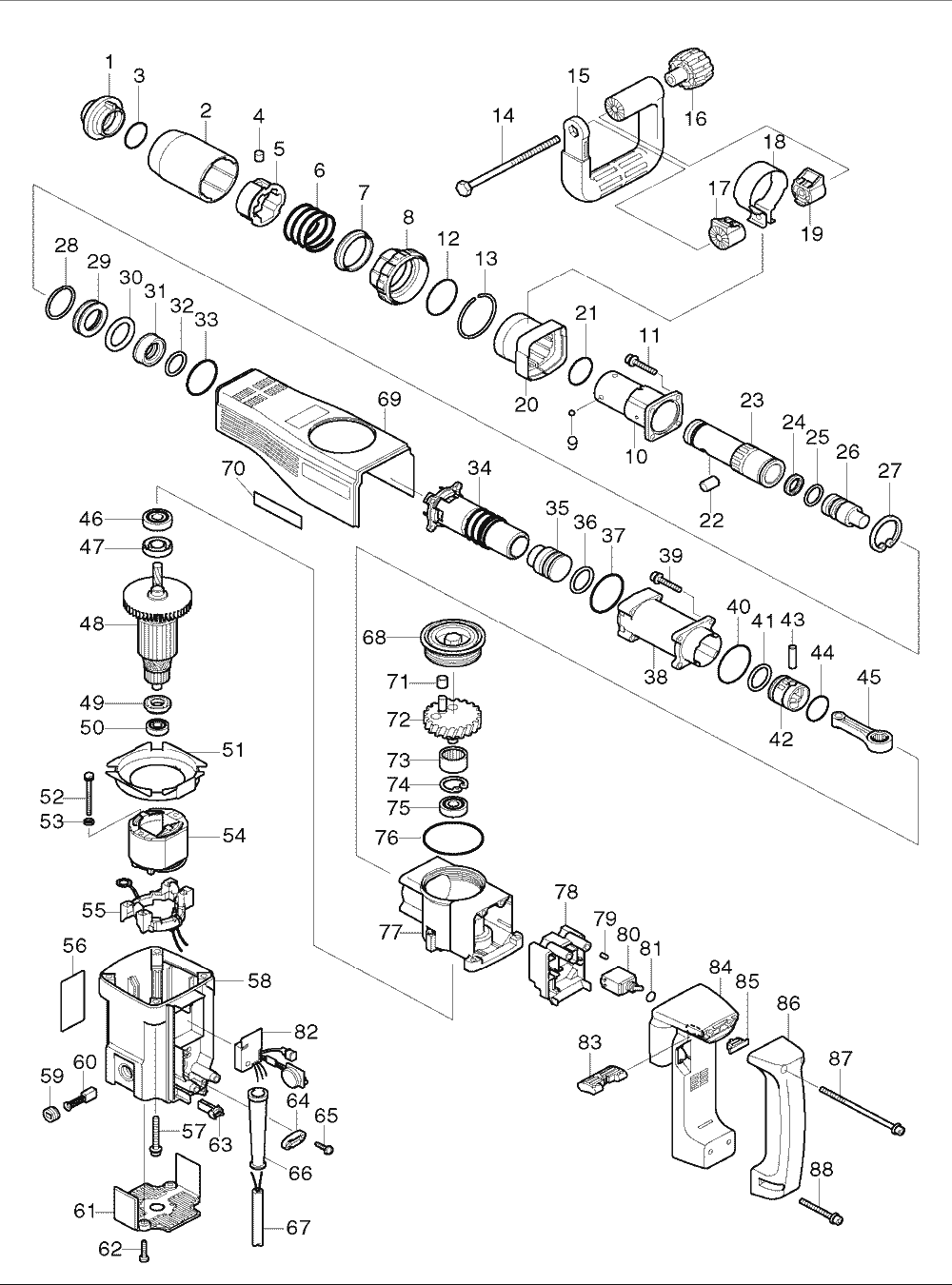

Makita HM1140C Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286252-9 TOOL HOLDER CAP, HM1140C $4.49
2 416790-9 TOOL HOLDER COVER, HM1140C $8.78
3 213430-8 O RING 28, HM1140C $1.19
4 256156-9 PIN 6, HK1800 $1.48
5 323833-9 ROLLER GUIDE, HM1140C $29.58
6 233208-3 COMPRESSION SPRING 47, HM1140C $2.07
7 331489-4 STEEL BALL GUIDE, HM1100C $7.46
8 416087-6 CHANGE RING, HM1100C $4.49
9 216011-7 STEEL BALL 5.6, 6222DWE $0.86
10 323835-5 TOOL HOLDER SUPPORT, HM1140C $61.70
12 213554-0 O RING, HR2511 $1.96
13 231972-0 RING SPRING 52, HM1100C $1.63
14 265439-6 HEX BOLT M8X150, HM1100C $3.61
15 416009-6 SIDE HANDLE, HM1100C $17.69
15 417003-1 SIDE HANDLE, HM1214C & HM1203C $13.18
16 252640-2 WING NUT M8, HM1214C & HM1203C $7.02
17 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
17 416396-3 HANDLE BASE 60,HM1100C $2.73
18 152620-7 SIDE HANDLE BASE CPL.,HM1100C $15.93
18 344559-0 HANDLE SPRING 60,HM1100C-T1 $3.94
19 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
19 416396-3 HANDLE BASE 60,HM1100C $2.73
20 416086-8 SIDE HANDLE SUPPORT, HM1100C $5.92
21 213479-8 O RING 33, HM1100C $1.48
22 323860-6 ROLLER 12, HM1140C $4.49
23 323834-7 TOOL HOLDER, HM1140C $86.60
24 213269-9 X RING 19, HM1100C $5.37
25 213311-6 O RING 19, HM1100C $1.96
26 323845-2 IMPACT BOLT, HM1100C $10.21
27 962154-0 RETAINING RING R-36, HM1100C $1.74
28 421570-0 RING 36, HM1100C $1.63
29 331487-8 IMPACT BOLT GUIDE, HM1100C $9.66
30 213391-2 O RING 25, HM1100C $10.54
31 331526-4 SLEEVE GUIDE, HM1140C $9.33
32 213370-0 O RING 22, AF502 $1.08
33 213554-0 O RING, HR2511 $1.96
34 125071-7 CYLINDER LINER ASS'Y, HM1100C-T1 $79.50
34 322757-6 CYLINDER LINER 34, HM1140C $60.40
35 323861-4 STRIKER, HM1140C $13.29
36 213429-3 O RING 27, HM1100C $1.96
37 213614-8 O RING 50, HM1100C $1.96
38 316672-4 BARREL, HM1100C $36.21
40 213606-7 O RING 48, HR2511 $1.96
41 213429-3 O RING 27, HM1100C $1.96
42 415773-6 PISTON, HM1100C $5.92
43 256165-8 PIN 8, HM0810B $1.96
44 213415-4 O RING 28, 5005BA $1.96
45 415689-5 ROD, HM1100C $16.04
46 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
47 213160-1 OIL SEAL 14, HR3851 $20.33
48 516286-1 ARMATURE ASS'Y 115V, HM1100C $145.12
49 681650-6 INSULATION WASHER, HR4000C $11.75
50 211033-2 B. BEARING 608LB, 5091D $8.78
51 415693-4 BAFFLE PLATE, HM1100C $4.49
52 265345-5 HEX. BOLT M5X60, HM0810B $3.61
53 941102-2 F. WASHER 5, HM1100C $0.75
54 634281-0 FIELD 115V, HM1100C $38.45
55 632678-7 SUPPORT COMPLETE, HM1100C $5.92
56 851366-9 NAME PLATE, HM1140C $2.51
57 922364-1 H.S.H. BOLT M6X40, HM1100C $1.48
58 152662-1 MOTOR HOUSING COMPLETE,HM1100C $29.37
58 159919-1 MOTOR HOUSING COMPLETE, HM1100C $32.53
59 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
60 194997-4 A.C. CARBON BRUSH CB-304 HM1100C $12.63
61 415700-3 REAR COVER, HM1100C $4.49
62 266021-4 TAPPING SCREW PT5X20, BPB180 $1.48
63 415695-0 FIX ROD, HM1100C $3.06
64 687052-4 STRAIN RELIEF, HM1500B $1.26
65 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
66 682560-0 CORD GUARD 10, HM1202C $4.16
66 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
67 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
67 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
68 415690-0 CRANK CAP, HM1100C $7.46
69 159975-1 HOUSING COVER COMPLETE, HM1140C $17.47
70 819064-1 MAKITA MARK, 5402NA $1.26
71 216116-3 INNER SLEEVE 812, HM1100C $8.78
72 153249-2 CRANK SHAFT COMPLETE, HM1100C $46.92
73 212259-9 NEEDLE BEARING 2116, HM1100C $23.19
74 962105-3 RETAINING RING R-26, GA4530 $1.48
75 210054-1 BALL BEARING 6000LLU, HM1100C $8.78
76 213707-1 O RING 65, HM1100C $3.61
77 317143-4 CRANK HOUSING, HM1140C $37.53
78 415699-2 SWITCH BOX, HM1100C $5.92
79 263002-9 RUBBER PIN 4, 5007NK $0.86
80 651481-7 SWITCH STE215K, HM1202C $27.54
81 213107-5 O RING 12, JR3000V $0.86
82 631203-1 CONTROLLER 100/115V, HM1100C $99.70
83 415691-8 SWITCH LEVER, HM1100C $3.06
84 415696-8 CONTROLLER COVER, HM1100C-T1 $12.63
84 417447-5 CONTROLLER COVER, HM1100C $13.29
85 415692-6 STOPPER, HM1100C $3.06
86 421507-7 HANDLE, HM1100C $32.23
87 266135-9 H.S.H. BOLT M6X90,HM1100C $3.61
88 922371-4 H.S.H. BOLT M6X50, HM1211 $2.40
89 331486-0 SLEEVE 39, HM1140C $26.92
90 233190-6 COMPRESSION SPRING 39, HM1100C $4.16
91 267156-4 FLAT WASHER 39, HM1100C $2.18
92 231971-2 RING SPRING 36, HM1100C $1.48
2001 134909-5 SIDE HANDLE ASSEMBLY,HM1100C $29.37
