Makita GA7011C Grinder Parts

Makita GA7011C Parts

7 Inch Electronic Angle Grinder

Download Schematic

Time to buy a new tool?

Makita GA7011C

7 Inch Electronic An...

$196.99

Free Shipping

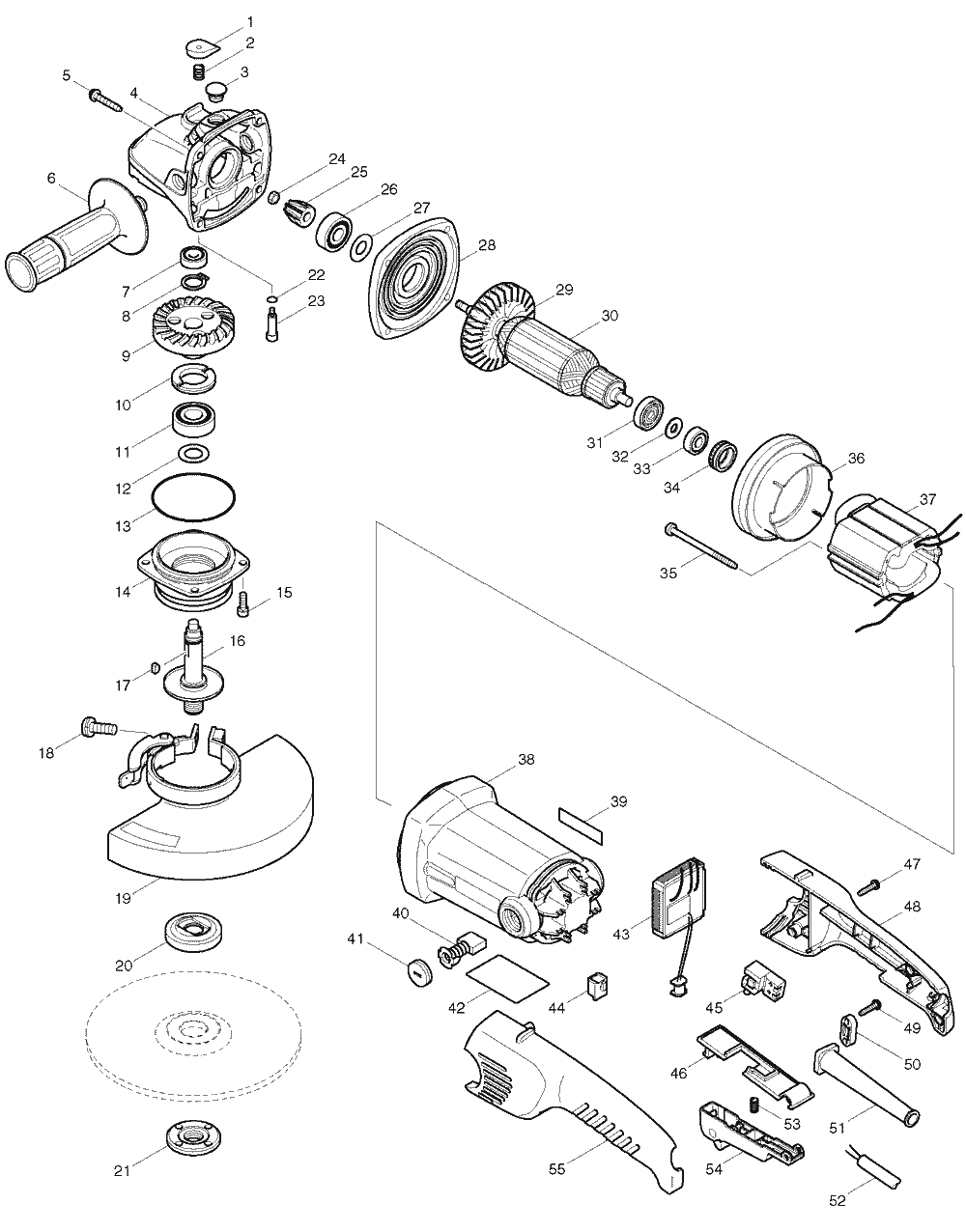

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	418517-3	PIN CAP, GA7011C	$0.97
2	231037-8	COMP. SPRING 7, GA7001L	$0.79
3	416972-3	CAP,GA7011C	$1.26
5	266173-1	T. SCREW FLANGE PT5X3, GA7011c	$1.19
6	152539-0	GRIP 36 COMPLETE, 9040L	$5.92
7	211031-6	BALL BEARING 608LLB, 9227C	$10.98
8	961055-9	RETAINING RING S-15, 5007F	$1.19
9	227457-2	SPIRAL BEVEL GEAR 43, GA7011C	$38.25
10	285809-3	BEARING RETAINER 23-36, 5477NB	$3.06
11	211228-7	BALL BEARING 6202DDW, HM1303B	$15.27
12	267215-4	FLAT WASHER 15, BTD200SH	$2.18
13	213720-9	O RING 67, HR2400	$1.96

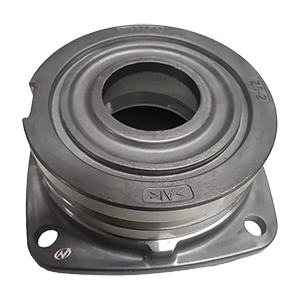

14	317754-5	BEARING BOX, GA7011C	$6.36
15	922221-3	HEX BOLT M5X16, 6906	$1.34

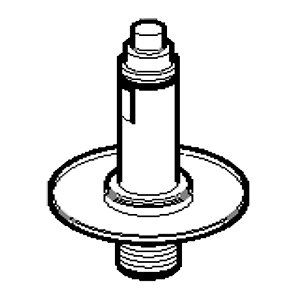

16	153816-3	SPINDLE CPL.,GA7011C	$8.01
17	254011-9	WOODRUFF KEY 4, 9557PB	$1.26
18	265050-4	PAN HEAD SCREW M8X25, 9046	$1.74
20	224317-9	INNER FLANGE 89, GA7021	$16.60
21	193465-4	LOCK NUT 5/8-45, 9005B REPLACES 224568-4	$12.60
22	213026-5	O RING 7, AF502	$1.08
23	256483-4	SHOULDER PIN 7, GA7011C	$1.48
24	931303-0	HEX NUT M6, 2012	$0.79
25	227456-4	SPIRAL BEVEL GEAR 9, GA7011C	$15.27
26	211106-1	B. BEARING 6201LLB, 9227C	$13.07
27	253759-0	WASHER 12, JS3200	$1.63
28	317753-7	GEAR HOUSING COVER, GA7011C	$5.70
29	240070-9	FAN 76, GA7011C	$4.16
30	513566-6	ARMATURE ASS'Y 115V, GA7011C	$40.18
31	681660-3	INSULATION WASHER, GV7000C	$5.92
32	267281-1	FLAT WASHER 8, GA7011C	$1.01
33	210005-4	BALL BEARING 608DDW, 9031	$13.07
34	421720-7	RUBBER RING 22, GA7011C	$8.01
35	266059-9	T. SCREW, FLANGE 5X75,2414B	$4.93
36	418516-5	BAFFLE PLATE, GA7011C	$1.52
37	625701-5	FIELD 115V, GA7011C	$22.86
39	819063-3	MAKITA LABEL, DA3010F	$0.96
40	194992-4	A.C.CARBON BR.SET,CB-204,HM1800	$19.45
41	643700-5	BRUSH HOLDER CAP, GA7021	$1.63
43	631597-4	CONTROLLER, GA7011C	$56.10
44	418518-1	SLEEVE, JR3070CT	$1.26
45	651922-3	SWITCH, HM1303B	$19.45
46	418519-9	SWITCH BASE, GA7011C	$1.52
47	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
48	183783-8	HANDLE SET, GA7011C	$16.04
49	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
50	687052-4	STRAIN RELIEF, HM1500B	$1.26
51	682573-1	CORD GUARD,JR3070CT	$2.51
51	Boot-B	Strain Relief fits 14/2 + 16/2 + 16/3	$4.19
52	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
52	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
53	233117-6	COMPRESSION SPRING, AF502,SH01W	$0.90
54	153789-0	SWITCH LEVER CPL.,GA7011C	$4.16
55	183783-8	HANDLE SET, GA7011C	$16.04
1001	782412-6	LOCK NUT WRENCH 28, GA7911	$8.40
