Makita G6100R Generator Parts

Makita G6100R Generator Parts Image

Makita G6100R Parts
Generator - 5800W

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita G6100R
Generator - 5800W
$1,889.99
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Page-10
Page-11
Page-12
Page-13
Page-14
Tool Diagram    (Click image to Zoom in) View larger Image
Makita G6100R Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.

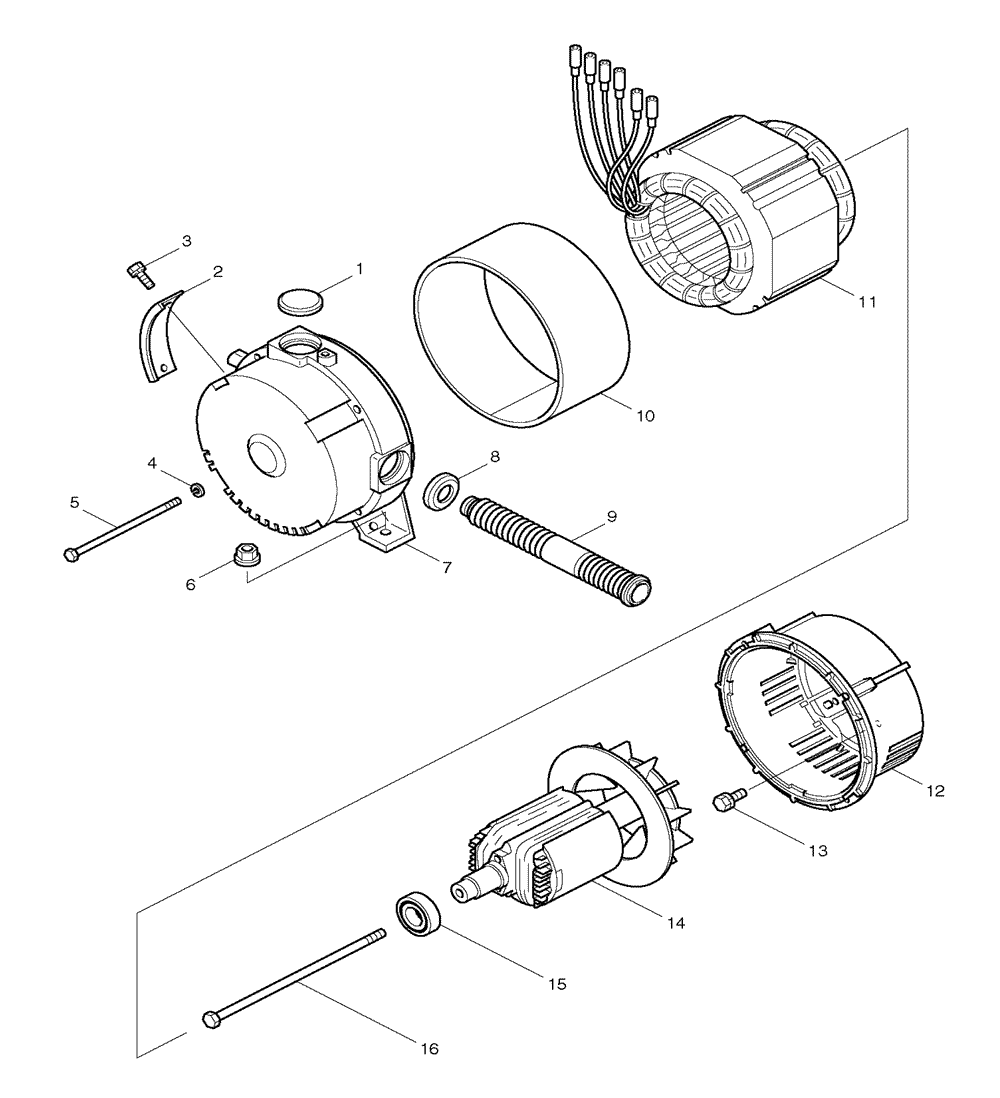

1 354-54514-08 CAP, G6101R $6.69
00 239-16302-13 OIL SEAL, G6100R $12.30
2 354-54513-08 BRUSH COVER, G6101R $9.22

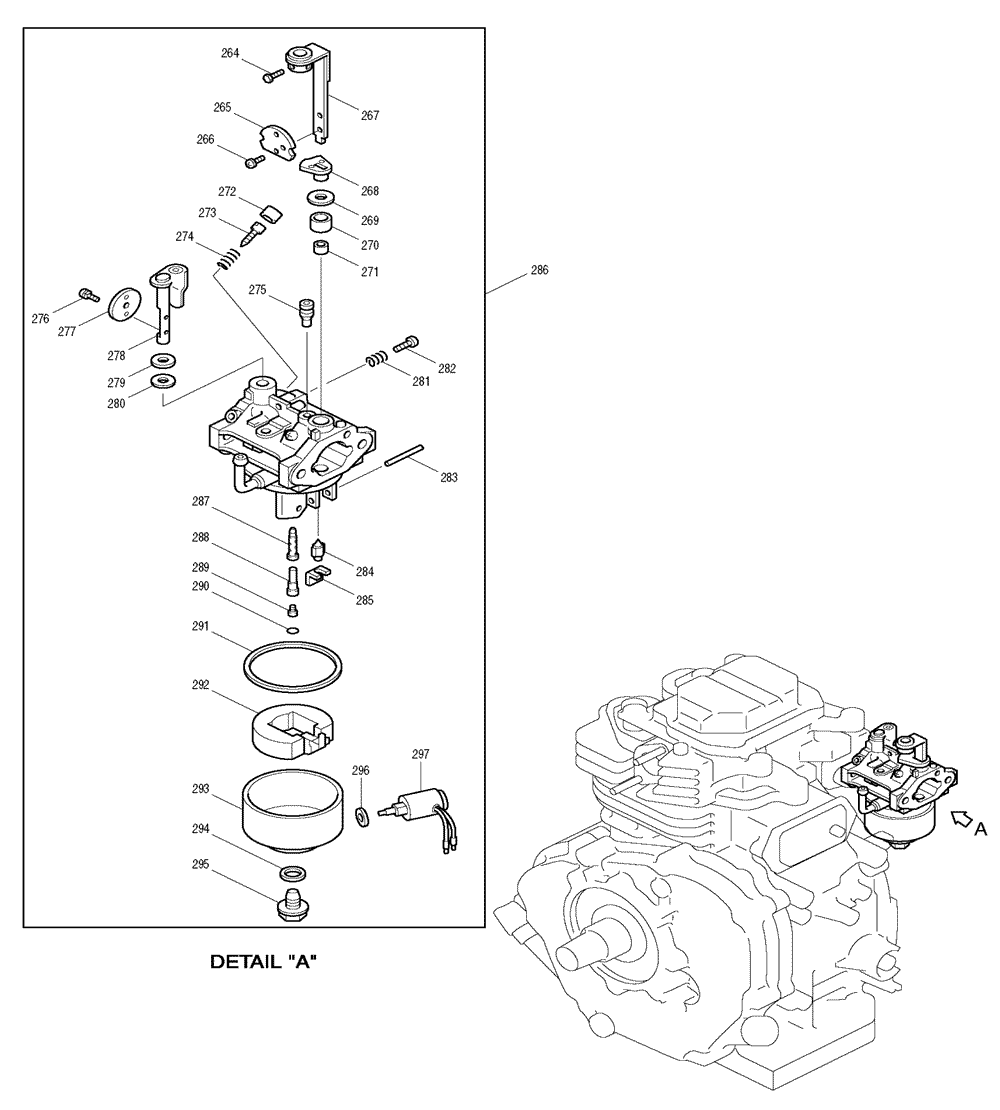

286 247-62325-20 CARBURETOR ASSY, G6100R $189.35
3 015-20500-10 TAPPING SCREW, G3511R $1.08
146 246-16002-13 GASKET, G6100R $5.70
4 003-20080-00 SPRING WASHER, G2800R $1.34
5 31D-51025-01 COVER BOLT (M8X160MM),G6101R $7.68
6 002-38080-00 FLANGE NUT, G6100R $2.40
7 31D-51022-01 REAR COVER, G6101R $151.91
8 31D-51024-01 CAP, G6101R $10.65
9 391-29000-13 BUSHING, G2800R $12.96
10 31D-51023-01 STATOR COVER, G6101R $27.15
11 31D-51121-01 STATOR CPL., G6101R $854.28
12 354-54116-08 FRONT COVER, G6101R $126.78
13 001-14082-00 BOLT & WASHER, G2800R $1.34
14 390-55511-01 ROTOR CPL., G6101R $703.16
15 354-58204-08 B. BEARING, G5711R $28.25
16 355-58009-08 THROUGH BOLT, G6101R $27.94

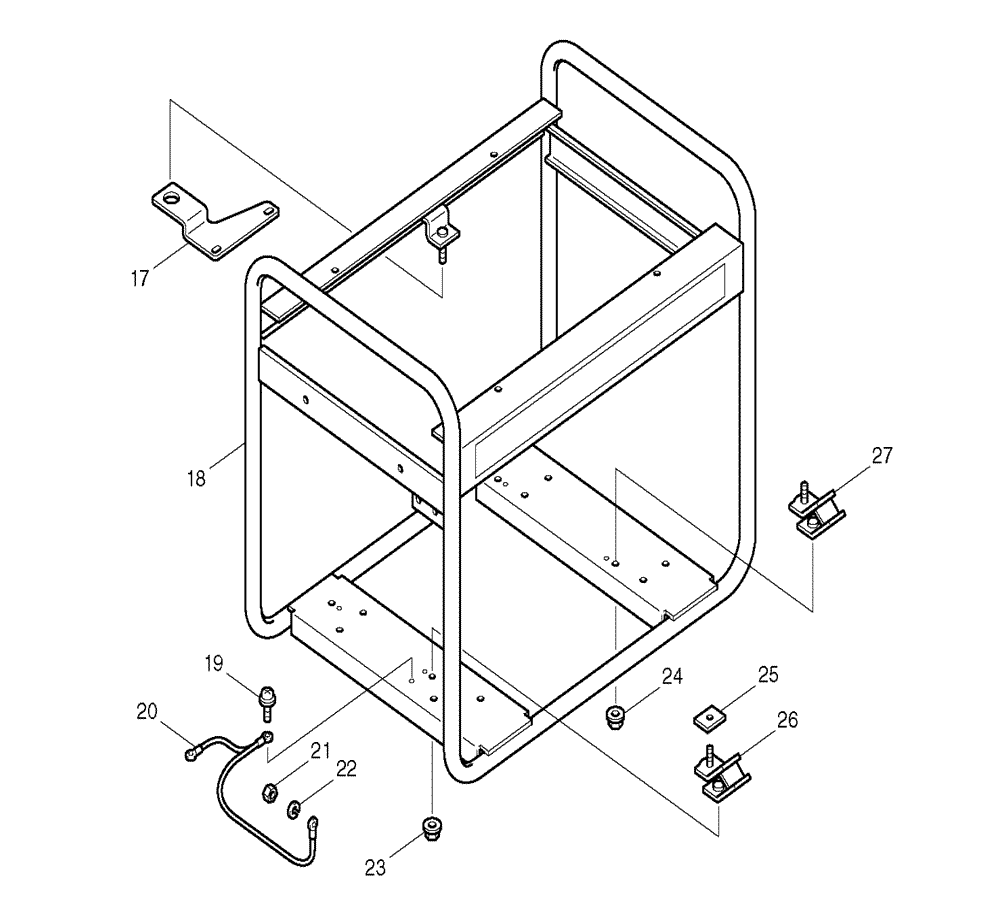

17 31D-69101-01 STOPPER PLATE, G6101R $19.67
18 31D-31301-01 PIPE FRAME CPL.,G6101R $334.95
19 376-39100-01 SCREW & WASHER, G2800R $1.34
20 390-54416-01 EARTH CORD, G5710R $11.42
21 002-19040-00 NUT, G5710R $1.96
22 003-20040-00 SPRING WASHER, G5711R $1.34
23 002-38080-00 FLANGE NUT, G6100R $2.40
24 002-38080-00 FLANGE NUT, G6100R $2.40
25 31C-69001-03 SPACER, G6101R $4.71
26 31D-35001-01 MOUNT, GENERATOR SIDE, G5710R $26.72
27 31D-35002-01 MOUNT, ENGINE SIDE, G5710R $32.84

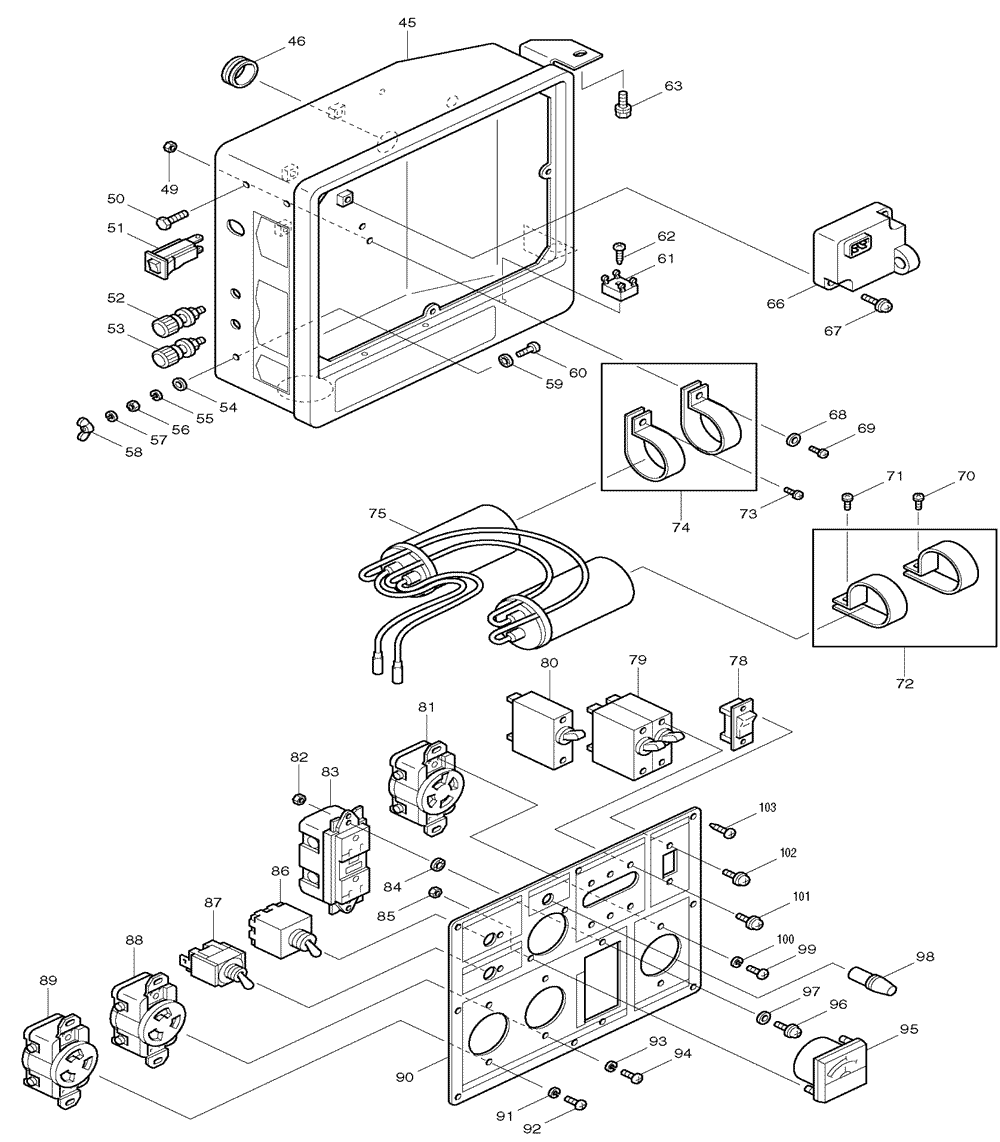

45 31D-42101-01 CONTROL BOX CPL., G6101R $68.20
46 024-11500-10 GROMMET, G5500R $1.85
49 002-17040-00 NUT, G2800R $1.34
50 001-14061-60 BOLT & WASHER, G2800R $1.34
51 388-87002-01 CIRCUIT BREAKER (10A), G5710R $65.50
52 363-45701-08 TERMINAL BOLT(RED), G2800R $7.90
53 363-45700-08 TERMINAL BOLT (BLK),G2800R $7.90
54 353-49903-08 WASHER, G2800R $1.63
55 332-00050-08 SPRING WASHER, G2800R $1.34
56 353-49902-08 NUT, G2800R $1.96
57 332-00050-08 SPRING WASHER, G2800R $1.34
58 353-49901-08 WING NUT, G2800R $5.26
59 003-30050-00 LOCK WASHER, G2800R $0.90
60 388-88001-03 SCREW (M5), G5711R $1.41
61 353-45804-08 DIODE STACK, G2800R $35.90
62 015-00400-70 TAPPING SCREW, G2800R $1.41
63 001-14061-60 BOLT & WASHER, G2800R $1.34
67 004-35062-00 SCREW & WASHER,G5711R . $0.90
68 003-10040-00 WASHER, G6101R $0.97
69 004-35041-00 SCREW & WASHER, G2800R $0.90
70 004-35041-00 SCREW & WASHER, G2800R $0.90
71 389-59989-08 SCREW & WASHER, G5711R $1.34
72 380-47531-08 CONDENSER BRACKET, G5711R $6.14
73 004-35041-00 SCREW & WASHER, G2800R $0.90
74 380-47531-08 CONDENSER BRACKET, G5711R $6.14
75 390-47553-08 CONDENSER, G6101R $244.64
78 31D-44001-03 SWITCH, G6100R $15.60
79 31D-43101-03 CIRCUIT BREAKER (20A),G6101R $103.02
81 353-45724-08 AC RECEPTACLE, G3510R $47.32
82 002-17040-00 NUT, G2800R $1.34
83 33K-49951-01 AC RECEPTACLE GFCI (125V-20A),G6101R $98.20
84 003-30040-00 LOCK WASHER,G6101R $0.90
85 002-17030-00 NUT, G2800R $1.34
87 344-45615-08 SWITCH, G6101R $19.67
88 389-85001-01 AC RECEPTACLE, G5711R $36.21
89 356-45711-08 AC RECEPTACLE, G3510R $42.94
90 31D-42203-01 CONTROL PANEL CPL.,G6100R $72.30
91 326-00335-08 SPRING WASHER, G3510R $1.63
92 356-59937-08 SCREW, G3510R $1.08
93 326-00335-08 SPRING WASHER, G3510R $1.63
94 356-59937-08 SCREW, G3510R $1.08
96 004-35041-00 SCREW & WASHER, G2800R $0.90
97 003-10040-00 WASHER, G6101R $0.97
98 320-75173-08 NEON LAMP (RED), G2800R $16.70
99 356-59937-08 SCREW, G3510R $1.08
100 326-00335-08 SPRING WASHER, G3510R $1.63
101 31B-79011-03 SCREW & WASHER ASSY(M3X5MM)G12000R $2.18
102 31B-79011-03 SCREW & WASHER ASSY(M3X5MM)G12000R $2.18
103 353-49904-08 TAPPING SCREW, G2800R $1.08
104 014-50500-40 COUNTER HEAD SCREW, G2800R $1.85

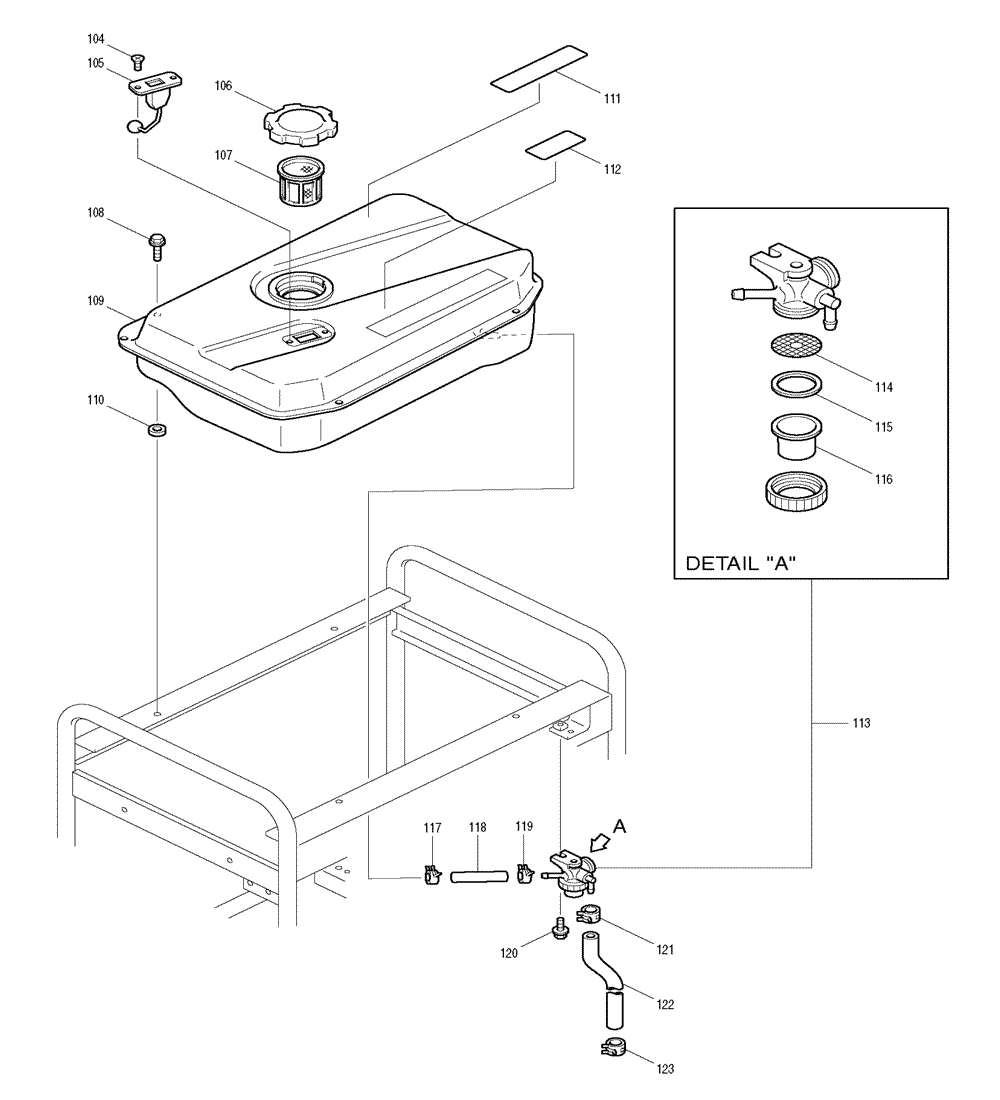

105 064-80003-00 FUEL GAUGE, G5501R $30.70
106 043-05900-11 FUEL TANK CAP COMPL., G2800R $28.76
107 064-15400-11 FUEL FILTER, G6101R $9.00
108 011-00602-20 FLANGE BOLT, G2800R $3.50
109 31D-36013-01 FUEL TANK CPL., G6101R $295.57
110 391-39000-13 RUBBER WASHER, G2800R $5.26
111 377-92500-03 LABEL (CAUTION), G2800R $4.84
112 388-93002-03 LABEL (STOPPING), G2800R $3.39
113 064-20107-00 FUEL STRAINER, G12010R $23.30
114 064-20002-20 FILTER, G2400R $2.40
115 064-20030-30 RUBBER PACKING, G6100R $2.40
116 064-20036-10 CAP, G6100R $4.93
117 056-11100-20 HOSE CLAMP, G2800R $1.41
118 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
119 056-11100-20 HOSE CLAMP, G2800R $1.41
120 011-00600-30 FLANGE BOLT, G2800R $1.85
121 056-11100-20 HOSE CLAMP, G2800R $1.41
122 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
123 056-11100-20 HOSE CLAMP, G2800R $1.41

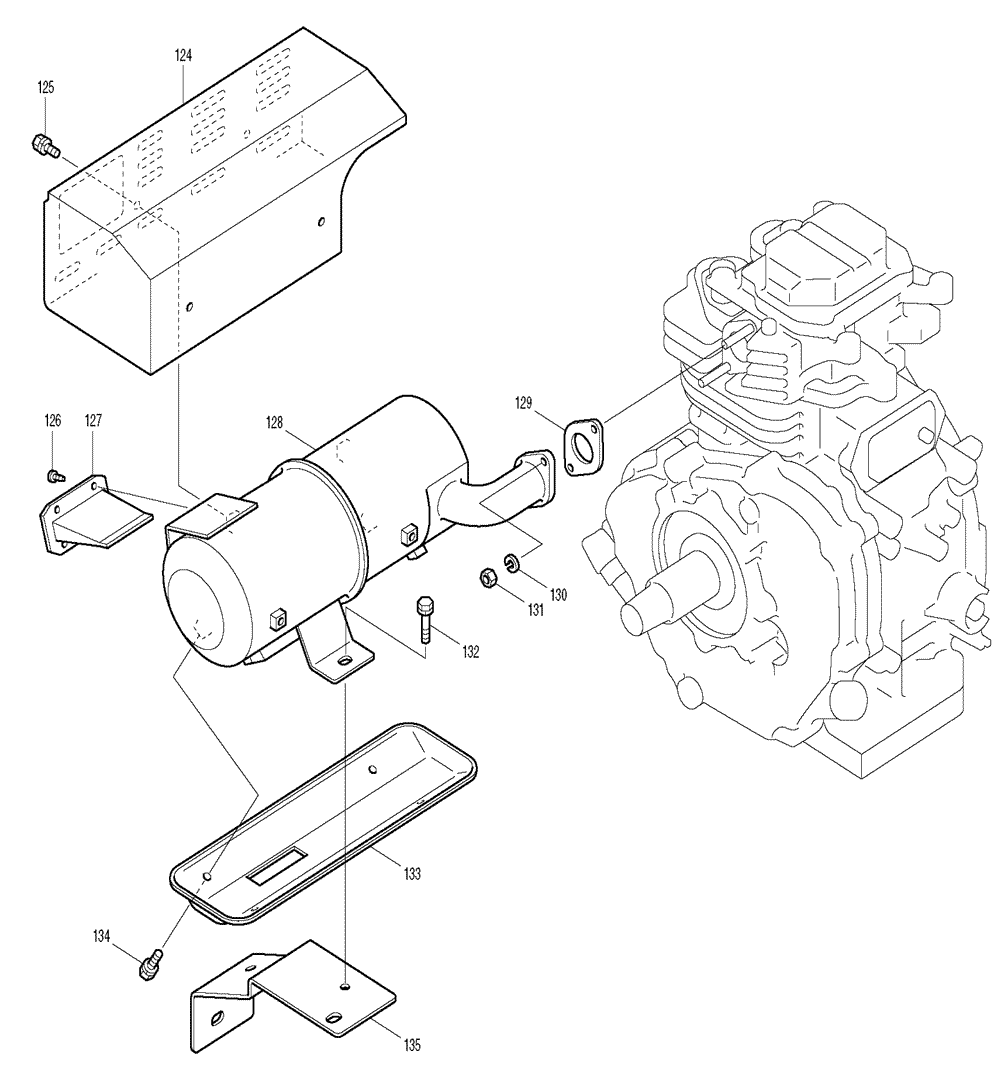

124 31D-12001-01 MUFFLER COVER 1 CPL.,G6101R $97.70
125 001-11061-20 BOLT & WASHER ASS'Y, G2400R $1.63
126 015-00400-40 TAPPING SCREW, G2800R $0.82
127 31D-14001-01 SPARK ARRESTER, G6101R $45.79
128 31D-11004-01 MUFFLER CPL., G6101R $267.24
129 234-35201-21 GASKET CPLT., G6100R $4.71
130 003-20080-00 SPRING WASHER, G2800R $1.34
131 017-00800-30 NUT, STAINLESS STEEL, G2800R $1.96
132 001-15082-00 BOLT & WASHER, G2800R $1.34
133 31D-13001-03 MUFFLER COVER 2 CPL.,G6101R $16.04
134 001-11061-20 BOLT & WASHER ASS'Y, G2400R $1.63
135 31D-15101-01 MUFFLER STAY, G6101R $27.37
136 011-01000-40 FLANGE BOLT, G3510R $3.50
137 011-00600-20 FLANGE BOLT, G6100R $2.40

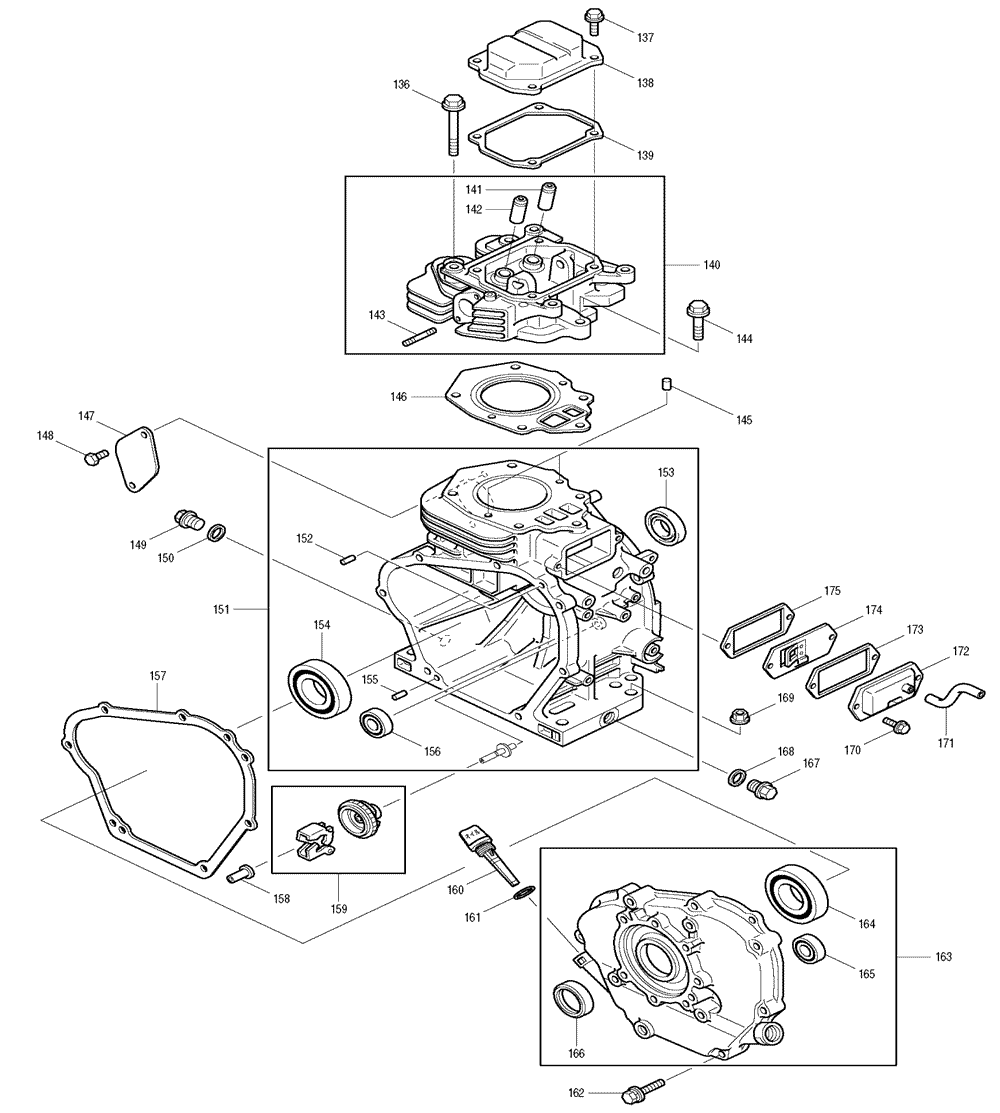

138 246-15501-01 ROCKER COVER, G6101R $15.60
139 246-16002-03 GASKET (ROCKER COVER), G5710R $3.83
140 247-13101-11 CYLINDER HEAD CPL., GE5800 $117.76
140 247-13101-41 CYLINDER HEAD CPLT., G6100R $295.57
141 246-14202-03 VALVE GUIDE, G3510R(OVERSIZE) $10.10
142 246-14202-03 VALVE GUIDE, G3510R(OVERSIZE) $10.10
143 010-50802-90 STUD, G2800R $1.85
144 011-01000-20 FLANGE BOLT, G5710R $3.50
145 031-00600-20 DOWEL PIN, G2800R $1.08
146 247-15001-23 HEAD GASKET, G6100R $10.10
147 224-17101-03 BLIND COVER, G5710R $3.50
148 001-65081-20 HEX BOLT, G5711R $1.34
149 040-11400-30 PLUG, G2800R $3.50
150 021-11400-20 GASKET, G2800R $1.08
151 247-10102-21 CRANKCASE, G5710R $400.03
152 031-00600-20 DOWEL PIN, G2800R $1.08
153 044-03500-90 OIL SEAL, G5710R $9.00
154 060-03500-10 BEARING BB6207C3, G5711R $18.90
155 031-00600-20 DOWEL PIN, G2800R $1.08
156 060-01500-60 BALL BEARING, RBL500 $7.68
157 246-15101-13 BEARING COVER GASKET, G5710R $15.60
158 205-41901-03 GOVERNOR SLEEVE, G2800R $4.71
159 246-45001-01 GOVERNOR GEAR CPL., G5710R $21.76
160 224-63601-01 OIL GAUGE CPL., G5711R $5.70
161 021-32000-50 GASKET, G4300L $2.40
162 001-13084-00 BOLT & WASHER ASS'Y, G5710R $1.34
163 246-11001-41 MAIN BEARING COVER CPL., G5710R $130.28
164 060-03500-10 BEARING BB6207C3, G5711R $18.90
165 060-01500-60 BALL BEARING, RBL500 $7.68
166 044-03500-90 OIL SEAL, G5710R $9.00
167 040-11400-30 PLUG, G2800R $3.50
168 021-11400-20 GASKET, G2800R $1.08
169 002-38080-00 FLANGE NUT, G6100R $2.40
170 011-00600-30 FLANGE BOLT, G2800R $1.85
171 246-10801-03 RUBBER PIPE, G5710R $4.93
172 246-14301-01 BREATHER COVER CPL., G5710R $9.77
173 246-16006-03 GASKET (BREATHER COVER), G5710R $1.85
174 246-14401-01 BREATHER PLATE CPL., G5710R $11.42
175 246-16007-13 GASKET (BREATHER PLATE), G6100R $3.50

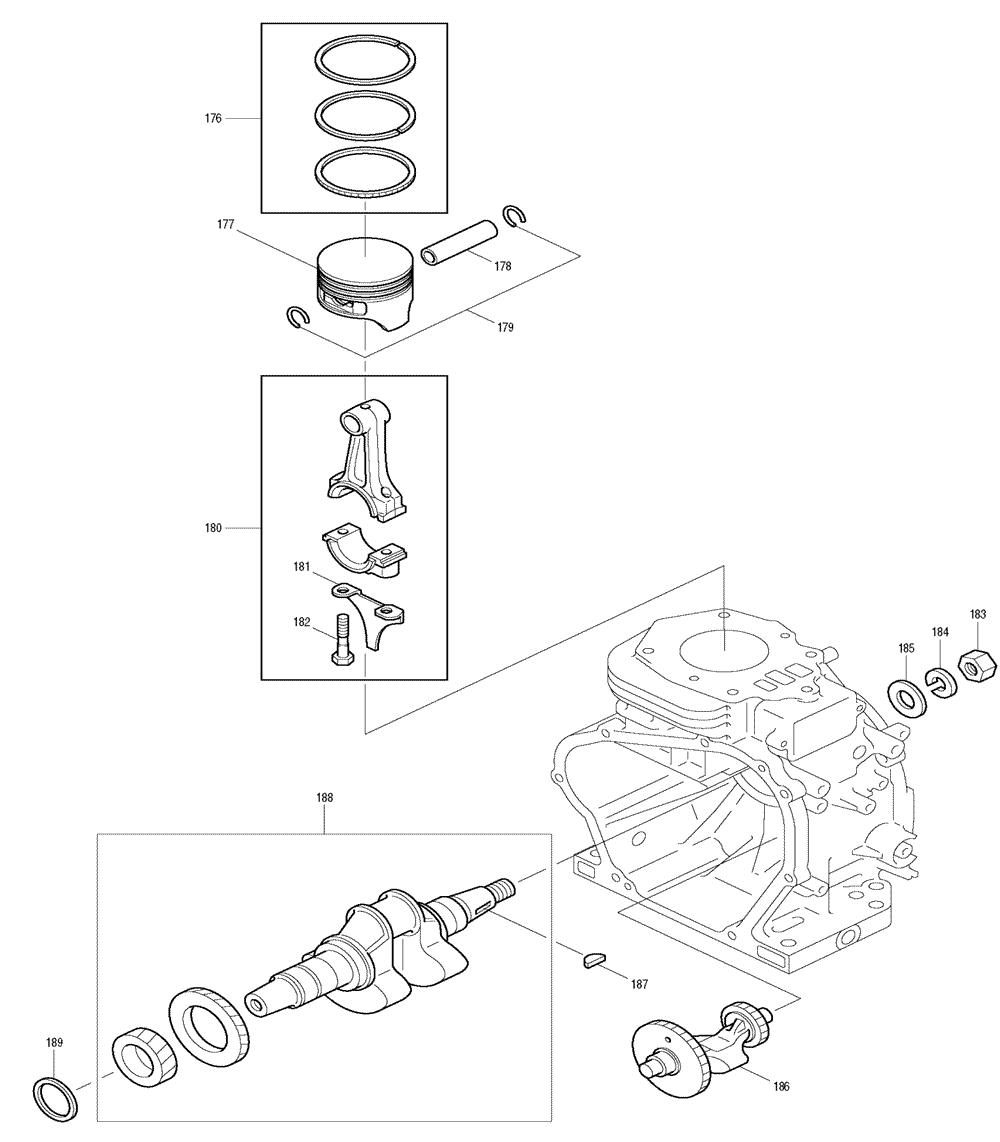

176 247-23501-17 PISTON RING SET (STD), G6100R $42.02
176 247-23502-17 PISTON RING SET (0.25MM), G5710R $48.14
176 247-23503-17 PISTON RING SET (0.50MM),G5710R $44.06
177 247-23401-H3 PISTON (STD), G5710R $73.70
177 247-23402-H3 PISTON (OVER SIZE 0.25MM), G5710R $84.20
177 247-23403-13 PISTON (OVER SIZE 0.50MM),G5710R $52.10
178 246-23301-03 PISTON PIN, G5710R $11.20
179 056-52100-20 CLIP, G5710R $1.96
180 246-22501-00 CONNECTING ROD ASS'Y, G5710R $125.33
181 246-23101-13 OIL SCRAPER, G5710R $4.93
182 246-23001-03 CONNECTING ROD BOLT, G3510R $4.93
183 002-18180-00 FLYWHEEL NUT 18MM, G3510R $5.26
184 003-20180-00 SPRING WASHER, G3510R $2.18
185 003-10180-00 WASHER, G5711R $2.18
186 246-24102-23 BALANCER SHAFT, G5710R $102.24
187 005-32054-01 WOODRUFF KEY, G5710R $4.93
188 246-20701-01 CRANKSHAFT CPL., G5710R $352.31
189 023-03501-60 SPACER (T=0.6), G5710R $4.93
189 023-03501-70 SPACER (T=0.8), G5710R $4.93
189 023-03501-80 SPACER (T=1.0), G5710R $4.93

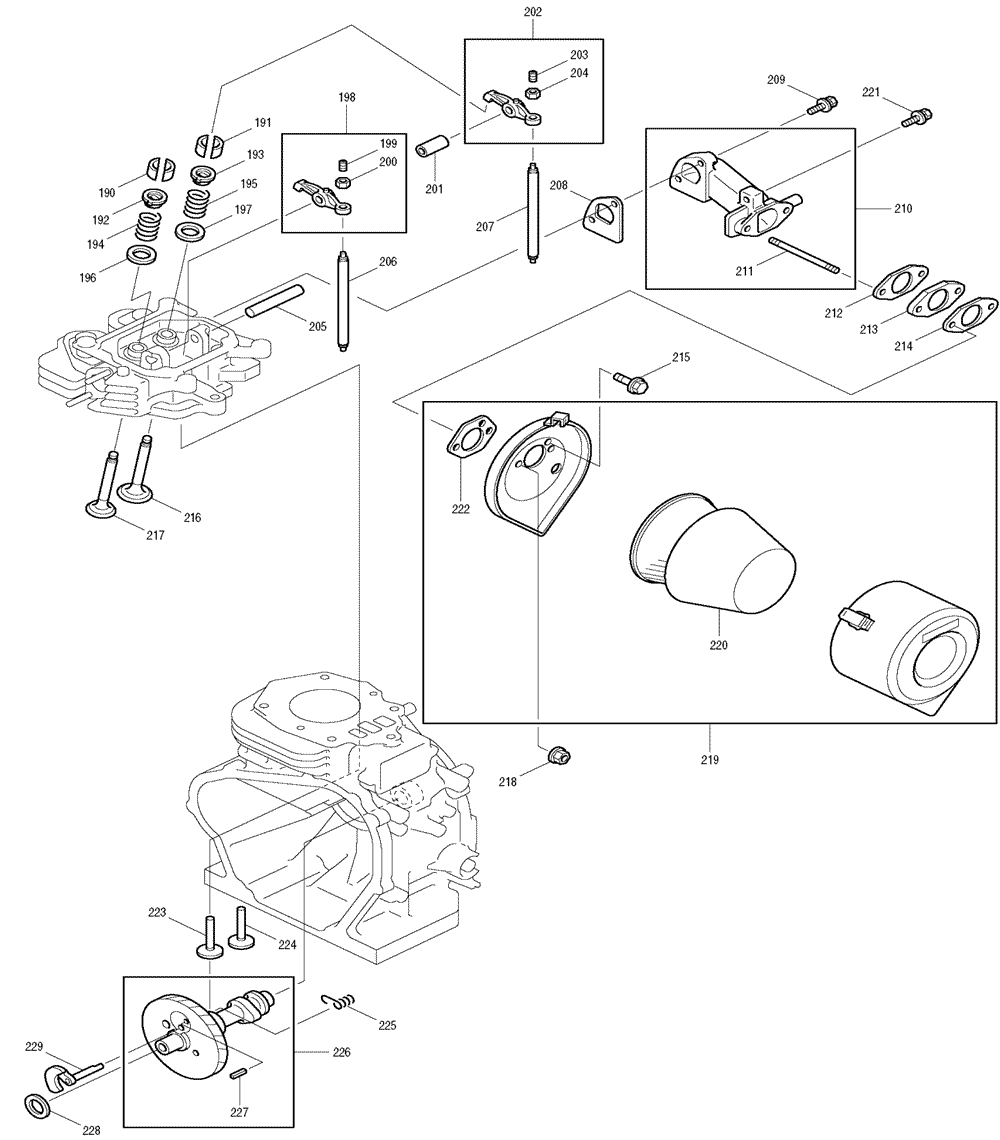

190 246-35501-03 COLLET VALVE, G5710R $2.40
191 246-35501-03 COLLET VALVE, G5710R $2.40
192 246-33711-13 SPRING RETAINER, G6100R $5.70
193 246-33711-13 SPRING RETAINER, G6100R $5.70
194 246-33611-03 VALVE SPRING, G5710R $3.61
195 246-33611-03 VALVE SPRING, G5710R $3.61
196 020-02000-10 WASHER, G5710R $1.63
197 020-02000-10 WASHER, G5710R $1.63
198 246-36101-10 ROCKER ARM ASS'Y, G5710R $16.04
199 014-90800-21 ADJUSTING SCREW, G5710R $4.93
200 017-00800-90 NUT, G5710R $5.26
201 246-36120-13 SPACER (ROCKER SHAFT), G5710R $4.93
202 246-36101-10 ROCKER ARM ASS'Y, G5710R $16.04
203 014-90800-21 ADJUSTING SCREW, G5710R $4.93
204 017-00800-90 NUT, G5710R $5.26
205 239-35001-03 ROCKER SHAFT, G5710R $8.12
206 246-35301-11 PUSH ROD CPL., G5710R $31.11
207 246-35301-11 PUSH ROD CPL., G5710R $31.11
208 246-36001-13 GASKET (INTAKE PIPE), G5710R $3.50
209 001-13082-80 BOLT & WASHER, G3510R $1.63
210 246-33001-01 INTAKE PIPE CPL., G5710R $39.98
211 010-50602-30 STUD, G5710R $3.50
212 234-35902-03 INSULATOR GASKET 2, G3510R $1.41
213 246-32901-03 INSULATOR, G5710R $5.70
214 234-35902-03 INSULATOR GASKET 2, G3510R $1.41
215 001-10061-20 BOLT & WASHER, G3510R $1.63
216 246-33411-03 INTAKE VALVE, G5710R $17.80
216 263-33401-03 INTAKE VALVE, G12000R $17.80
217 263-33502-13 EXHAUST VALVE, G12010R $30.80
217 246-33511-03 EXHAUST VALVE, G5710R $30.80
218 002-38060-00 FLANGE NUT, G6101R $2.40
219 254-32612-20 AIR CLEANER ASSY,G5710R $107.87
220 234-32607-07 ELEMENT SET, G6101R-T2 $34.06
221 001-13082-80 BOLT & WASHER, G3510R $1.63
222 234-36003-03 GASKET, G3510R $1.41
223 246-33301-03 TAPPET, G5710R $11.42
224 246-33301-03 TAPPET, G5710R $11.42
225 246-36701-03 RETURN SPRING, G5710R $5.26
226 246-31701-01 CAMSHAFT, G5710R $85.30
227 005-19041-00 SPRING PIN, G5710R $1.34
228 023-02200-50 SPACER (T=0.6), G5710R $4.93
228 023-02200-60 SPACER (T=0.7), G5710R $4.93
228 023-02200-70 SPACER (T=0.8), G5710R $4.93
229 246-36201-01 RELEASE LEVER CPL., G5710R $12.96
230 246-42201-23 GOVERNOR SHAFT, G6101R $9.22
231 003-13060-00 CLIP, G2800R $1.34

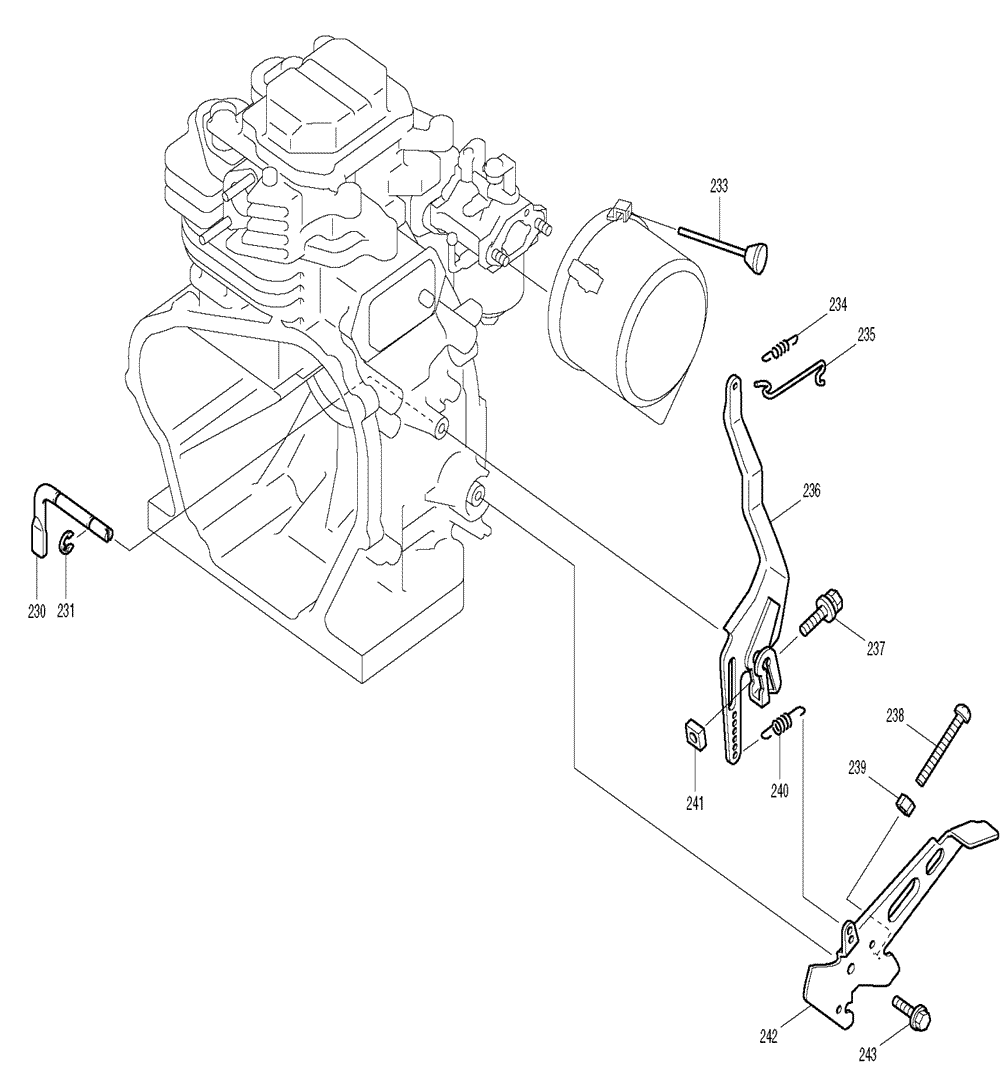

233 246-45006-01 KNOB CPL., G5710R $5.70
234 246-42801-13 ROD SPRING CPL., G5710R $2.40
236 246-42304-01 GOVERNOR LEVER CPL., G5710R $12.96
237 001-14062-50 BOLT & WASHER, G2800R $1.34
238 004-31053-50 P.H. SCREW, G5710R $0.82
239 002-17050-00 NUT M5, EM4251 $1.34
240 246-42503-01 GOVERNOR SPRING, G5710R $5.70
241 018-60600-20 NUT, G2800R . $1.34
242 246-43310-03 SPEED CONTROL, G6101R $13.62
243 001-10081-60 BOLT & WASHER, G2800R $1.63
244 011-00600-10 FLANGE BOLT, G6100R $2.40
245 001-65101-60 BOLT, G5710R $1.41

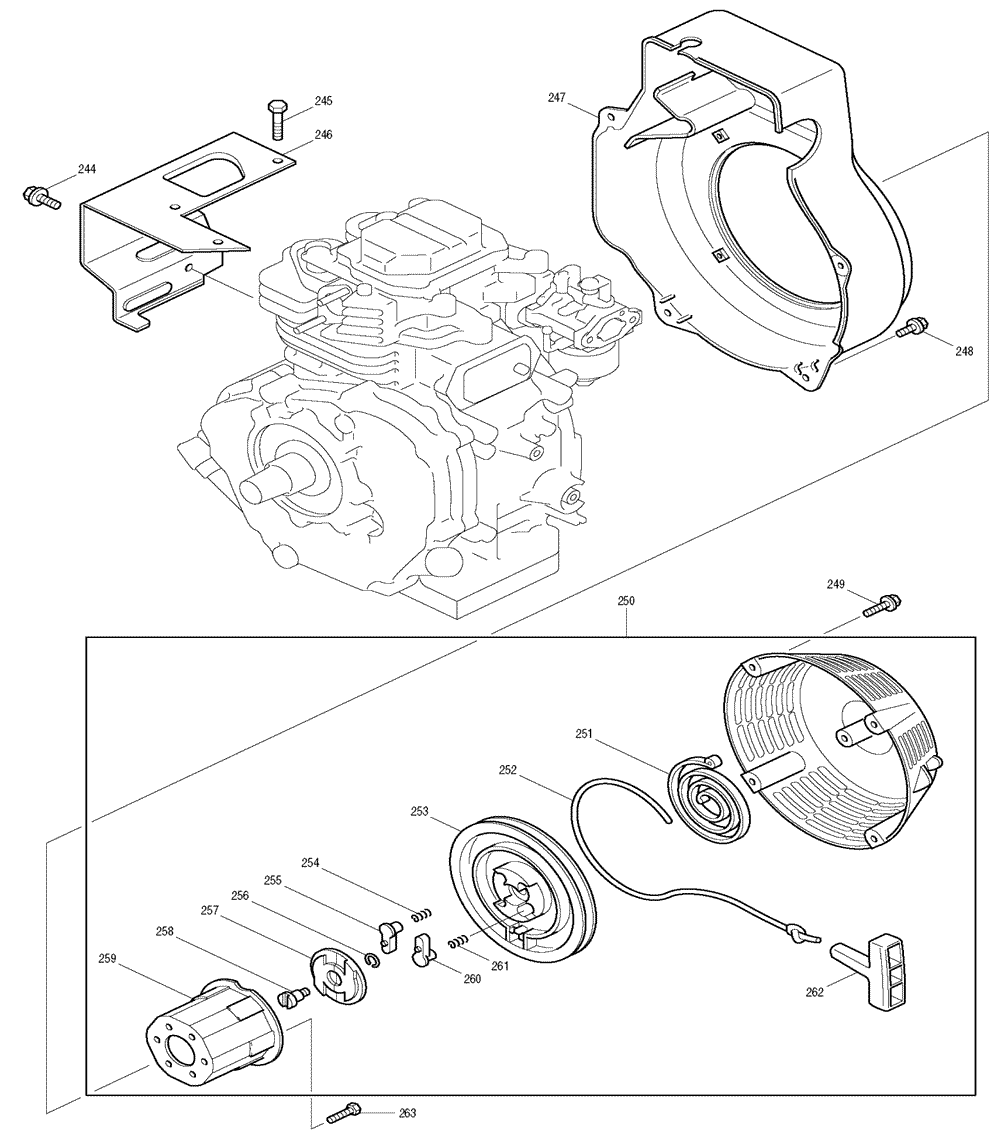

246 246-52706-03 CYLINDER BAFFLE, G6101R $20.88
247 246-51215-01 BLOWER HOUSING CPL., G5710R $113.69
248 011-00600-10 FLANGE BOLT, G6100R $2.40
249 011-00600-10 FLANGE BOLT, G6100R $2.40
250 246-50204-20 RECOIL STARTER ASS'Y, G5710R $121.45
251 261-50115-08 SPIRAL SPRING, G6100R $26.72
251 246-50115-08 SPIRAL SPRING, G6101R $24.40
252 106-50113-08 ROPE, G3511R $12.30
252 235-50110-08 STARTER ROPE, G6101R $13.40
253 246-50120-08 REEL, G6101R $28.76
254 227-50135-08 RETURN SPRING, G2410R $5.26
255 246-50125-08 RATCHET, G6101R $4.93
256 246-50130-08 FRICTION SPRING, G6101R $3.61
257 246-50160-08 RATCHET GUIDE, G6101R $6.80
258 227-50152-08 SET SCREW, G2800R $4.93
259 246-50147-08 STARTER PULLEY, G6101R $16.70
260 246-50125-08 RATCHET, G6101R $4.93
261 227-50135-08 RETURN SPRING, G2410R $5.26
262 261-50100-08 STARTER KNOB, G4100R $9.22
262 236-50101-08 STARTER KNOB, G2410R $11.20
263 001-65081-20 HEX BOLT, G5711R $1.34
264 246-62455-08 BOLT, G6101R $7.90
265 234-62525-08 CHOKE VALVE, G3500R $6.69
267 234-62521-08 CHOKE LEVER, G3510R $29.58
268 239-62560-08 RING (CHOKE), G5710R $4.93
269 236-62680-08 SEAL, G5710R $4.93
270 247-62550-08 CAP, G5710R $4.93
271 226-62550-08 RING, G2410R $3.50
272 246-62551-08 CAP, G5710R $4.93
273 246-62436-08 PILOT SCREW, G5710R $20.88
274 209-62445-08 SPRING, G2800R $3.61
275 247-62420-08 PILOT JET (#42.5), G5710R $9.77
276 209-62351-08 SCREW ASS'Y, G5711R $1.41
277 213-62535-08 THROTTLE VALVE, G5710R $17.69
278 246-62531-08 THROTTLE SHAFT ASS'Y, G5710R $25.61
279 156-62351-08 PACKING, G5710R $6.69
280 106-62392-18 SEAL, G6100R $3.50
281 209-62445-08 SPRING, G2800R $3.61
282 246-62435-08 SCREW, G5710R $3.50
283 214-62515-08 FLOAT PIN, G3510R $3.50
285 224-62569-08 CLIP, EW300TR $2.73
285 224-62569-18 CLIP, EW300TR $3.61
286 247-62325-20 CARBURETOR ASSY, G6100R $189.35
287 246-62441-08 MAIN NOZZLE, G5710R $20.88
288 246-62425-08 GUIDE HOLDER, G5710R $13.62
289 246-62403-08 MAIN JET (#95), G5710R $9.77
290 242-62313-08 O RING, G5710R $2.40
291 206-62540-08 PACKING, G3510R $4.93
292 234-62506-08 FLOAT ASSY, G5711R $26.60
293 247-62556-08 FLOAT CHAMBER BODY, G5710R $44.26
294 248-62451-08 WASHER, G5710R $1.63
295 248-62425-08 JET HOLDER, G5710R $24.40
296 247-62565-08 WASHER, G5710R $1.63
297 247-62562-08 SOLENOID ASS'Y G5710R $97.68

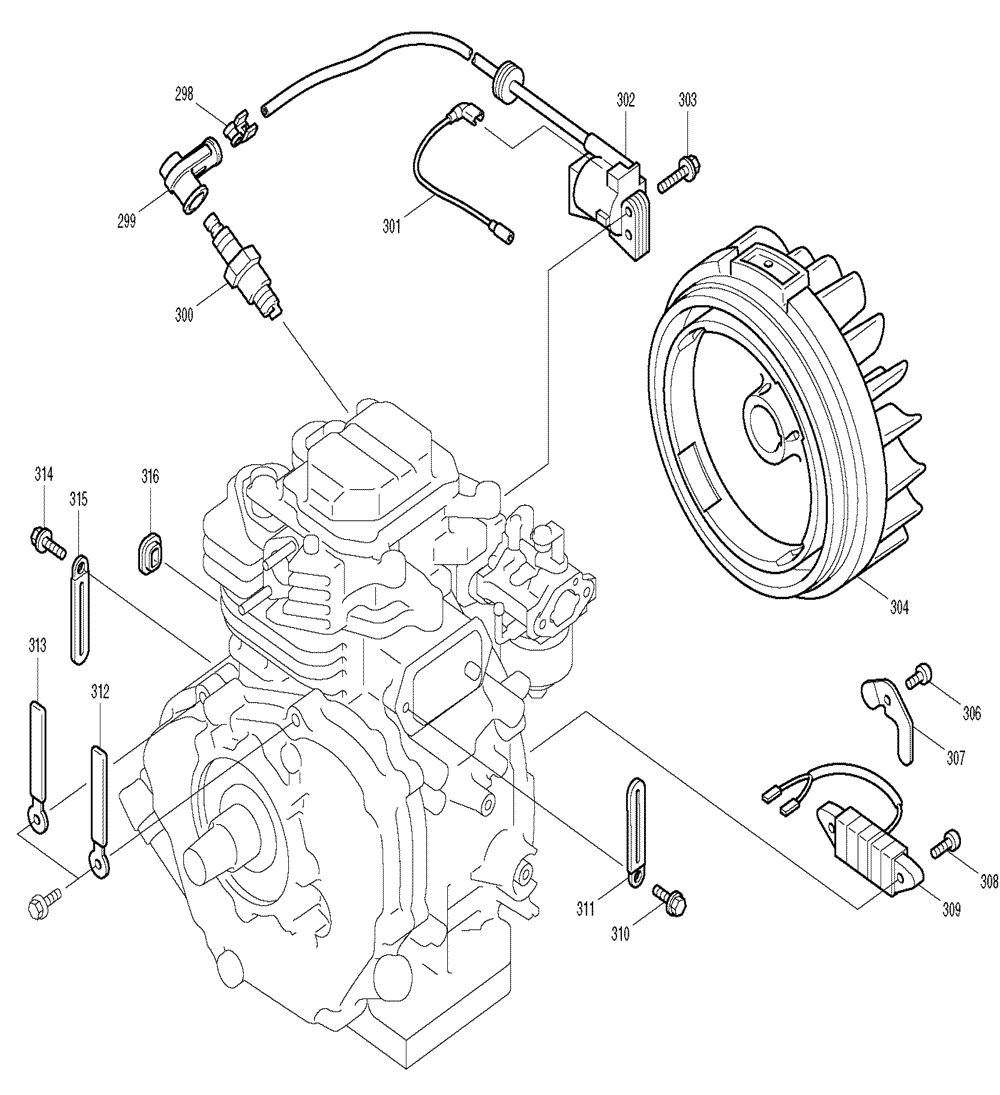

298 065-90000-10 PLUG TERMINAL, G5710R $3.50
299 065-50001-40 SPARK PLUG CAP, G5710R $4.93
300 065-01405-80 SPARK PLUG B6ES, G5710R $7.02
301 246-73101-01 WIRE 1 CPL., G5710R $6.69
302 246-78201-21 IGNITION COIL CPL., G6100R $139.88
303 001-14063-00 BOLT & WASHER ASS'Y, G5710R $1.34
304 246-77204-01 FLYWHEEL CPL., G5710R $160.93
306 004-31060-80 P.H. SCREW, G5710R $0.82
307 246-75502-01 CLAMP CPL., G5710R $4.93
308 004-35062-00 SCREW & WASHER,G5711R . $0.90
309 246-79201-01 CHARGE COIL CPL., G5710R $87.20
310 011-00600-10 FLANGE BOLT, G6100R $2.40
311 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
312 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
313 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
314 011-00600-10 FLANGE BOLT, G6100R $2.40
315 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
316 226-75501-03 GROMMET, G3510R $3.17

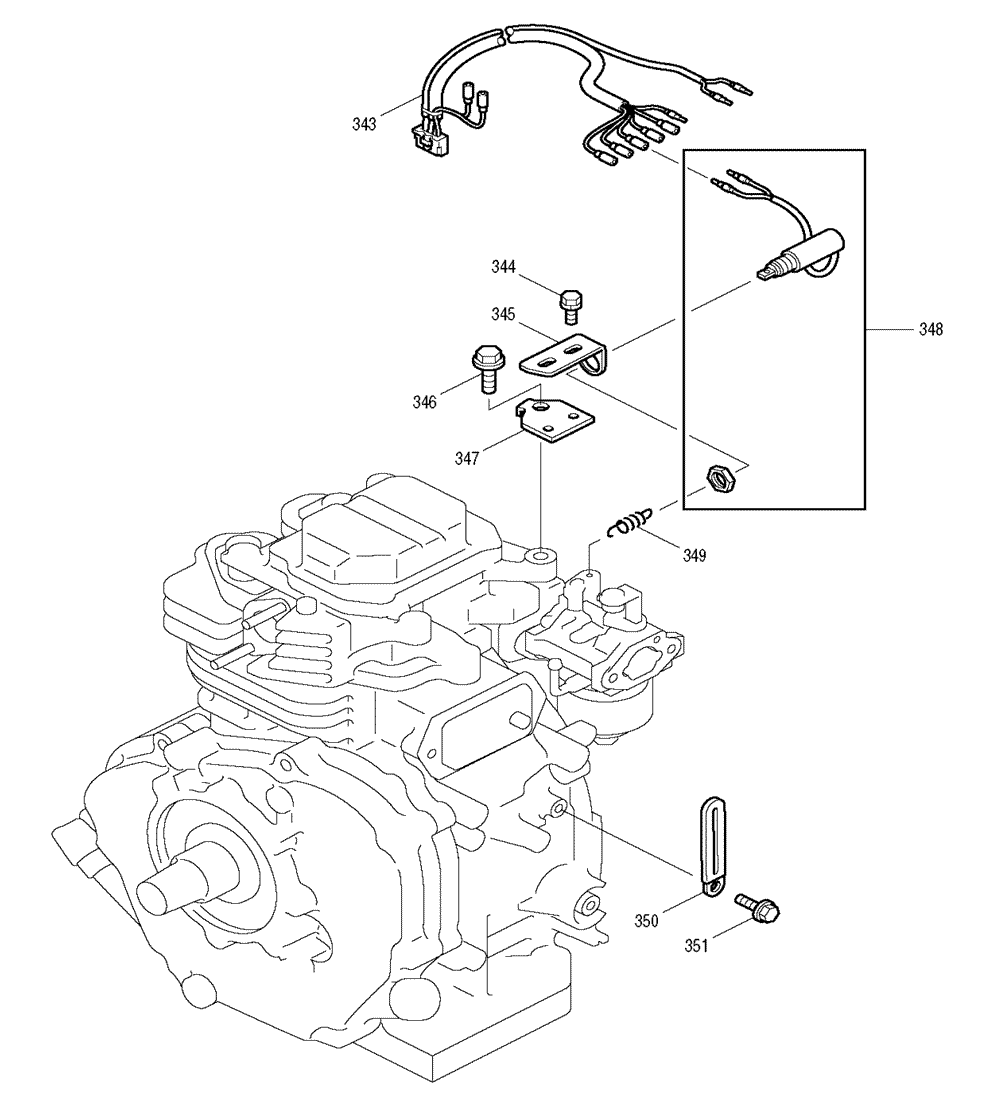

343 246-73119-11 WIRE 19 CPL., G5710R $39.98
344 001-11061-20 BOLT & WASHER ASS'Y, G2400R $1.63
345 246-76007-01 BRACKET (SOLENOID) 2, G5710R $16.04
346 001-13102-00 BOLT & WASHER ASS'Y, G5710R $1.63
347 246-76005-01 BRACKET (SOLENOID) 1, G5710R $12.63
348 227-75501-00 SOLENOID, G5711R $78.20
349 234-78202-13 SOLENOID SPRING, G3500R $5.70
350 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
351 011-00600-10 FLANGE BOLT, G6100R $2.40

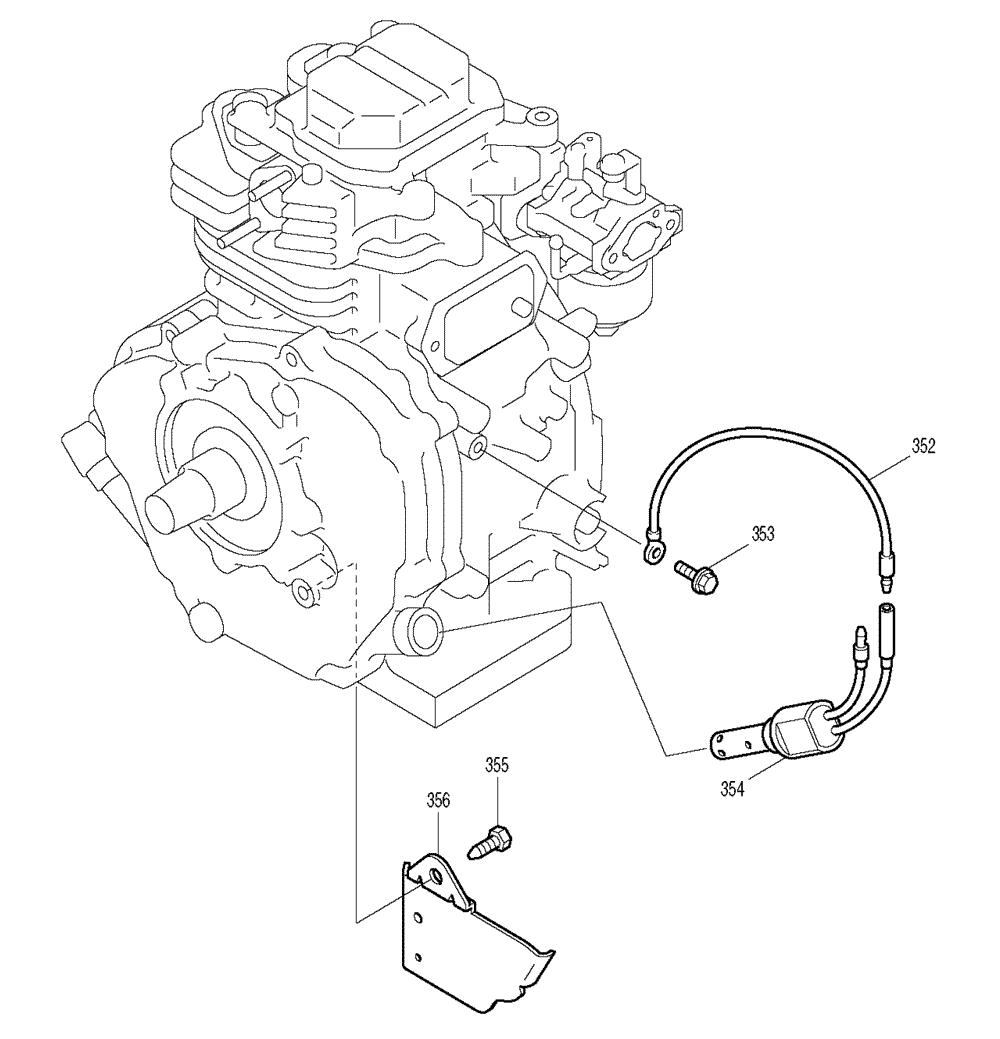

352 253-73103-01 WIRE 3 CPL., G5710R $4.93
353 011-00600-10 FLANGE BOLT, G6100R $2.40
355 015-20600-50 TAPPING BOLT, G5710R $1.34
356 246-17501-03 SHELTER PLATE, G5710R $6.69
357 247-99002-27 ENGINE GASKET SET, G5710R $43.04
358 044-00800-10 OIL SEAL, G12000R $4.93
359 003-11080-00 WASHER, G1300R $1.34
