Makita G5711R Generator Parts

Makita G5711R Generator Parts Image

Makita G5711R Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Tool Diagram    (Click image to Zoom in) View larger Image

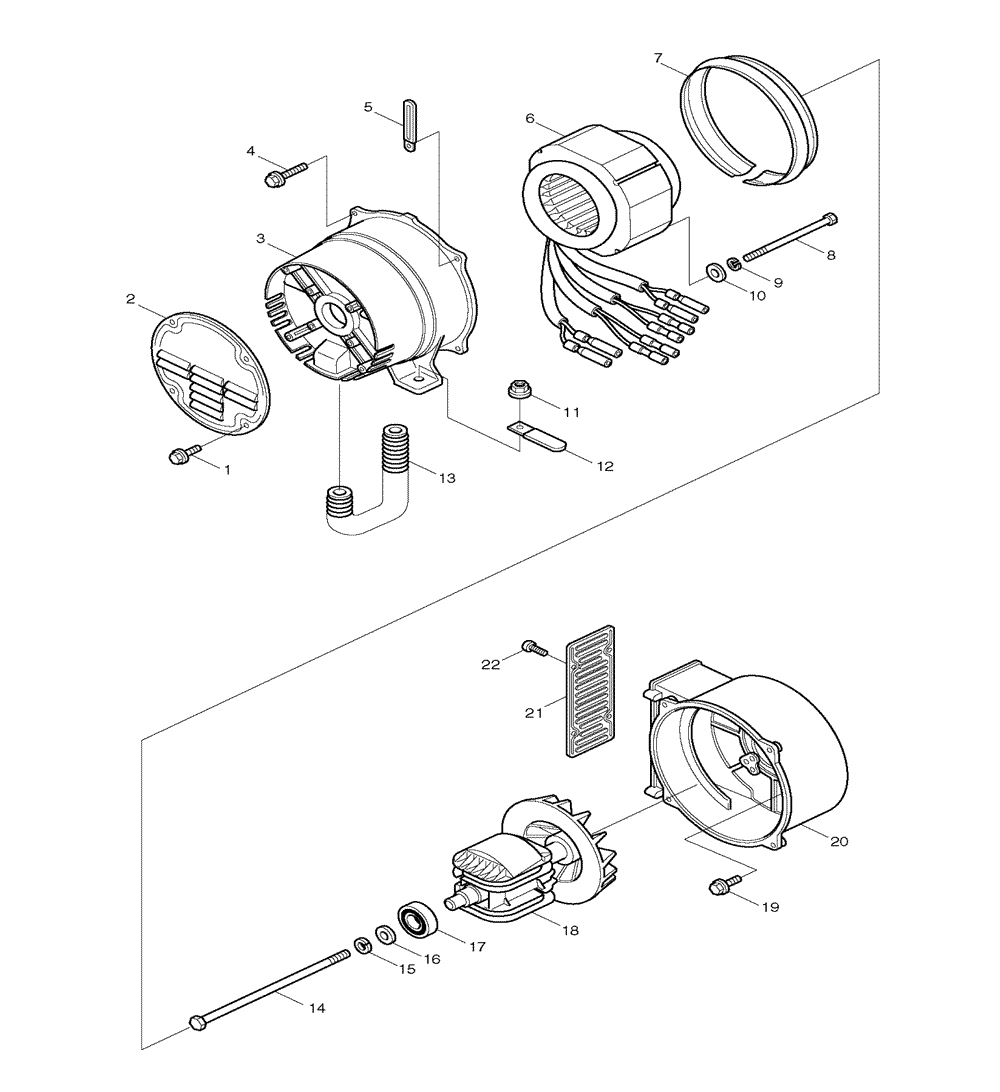

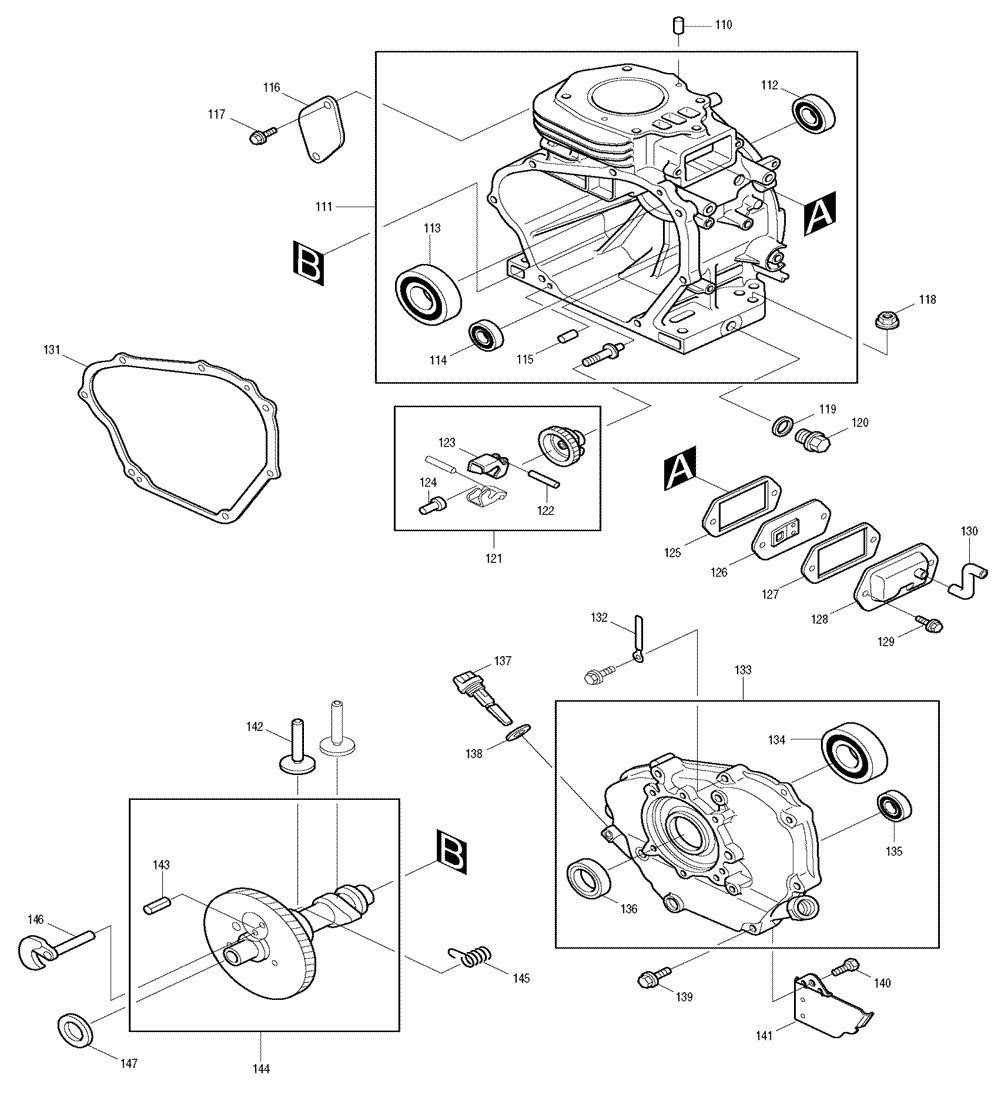

Makita G5711R Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 011-00600-10 FLANGE BOLT, G6100R $2.40
2 388-55001-13 END COVER, G3511R $6.69
3 390-54001-01 REAR COVER, G5711R $138.72
4 001-14062-50 BOLT & WASHER, G2800R $1.34
5 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
6 390-01400-01 STATOR, G5710R $861.37
7 385-54381-03 SUPPORT RING, G5711R $10.65
7 388-54381-03 SUPPORT RING, G2410R $9.55
8 386-59982-08 BOLT, G5711R $3.50
9 003-10060-00 WASHER, G2410R $0.90
10 003-20060-00 SPRING WASHER, G2800R $1.34
11 002-38080-00 FLANGE NUT, G6100R $2.40
12 056-60001-70 CLAMP, G2410R $1.41
13 390-05001-03 BUSHING, G5711R $18.13
14 367-58008-08 THROUGH BOLT, G5711R $20.88
15 003-20100-00 SPRING WASHER, G3510R $1.34
16 003-12100-00 WASHER, G5710R $3.72
17 354-58204-08 B. BEARING, G5711R $28.25
18 390-01000-01 ROTOR, G5711R $759.90
19 001-13082-00 BOLT & WASHER, G2410R . $1.63
20 390-54101-13 FRONT COVER, G5711R $59.30
21 388-55101-03 FRONT PROTECTOR, G3511R $8.12
22 015-20500-10 TAPPING SCREW, G3511R $1.08

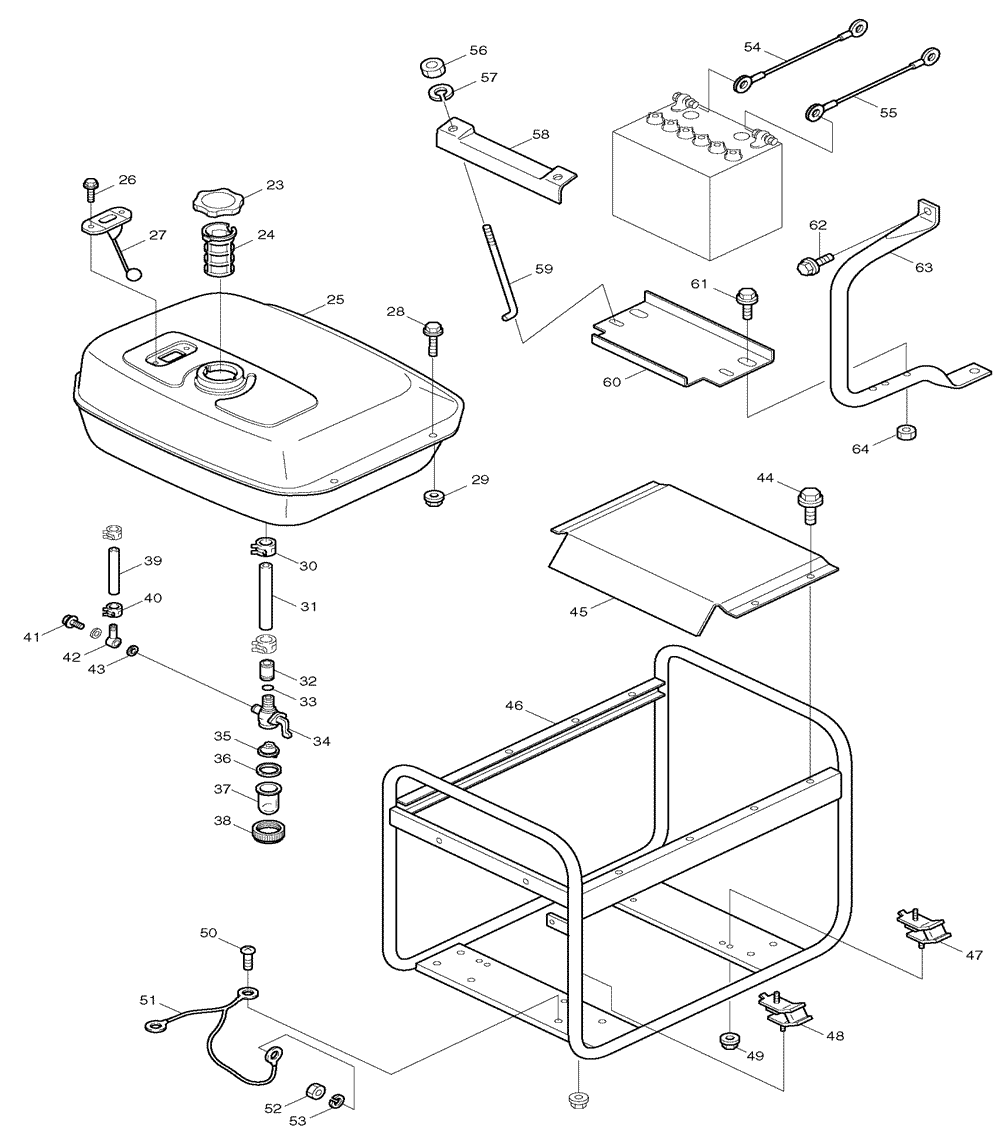

23 043-04300-60 FUEL TANK CAP, G5711R $16.70
24 064-13600-10 FUEL FILTER, G2400R $4.93
25 31D-36003-01 FUEL TANK, G5710R $178.58
26 014-50500-40 COUNTER HEAD SCREW, G2800R $1.85
27 064-80011-00 FUEL GAUGE CPL., G5710R $29.58
28 011-00602-20 FLANGE BOLT, G2800R $3.50
29 391-39000-13 RUBBER WASHER, G2800R $5.26
30 056-11700-10 HOSE CLAMP, G5711R $1.85
32 053-30900-20 NUT (JOINT), G2400R $6.69
33 064-20003-30 O RING, G2400R $1.85
35 064-20002-20 FILTER, G2400R $2.40
36 064-20002-30 PACKING, G2400R $2.40
37 064-20019-10 CUP, G2400R $4.93
38 064-20024-10 LOCK NUT, G2400R $7.68
39 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
40 056-11100-20 HOSE CLAMP, G2800R $1.41
41 064-20002-40 BANJO BOLT, G2400R $3.50
42 052-10700-42 BANJO, G3500R $4.93
43 064-20002-50 FIBER PACKING, G2400R $1.08
44 011-00601-40 FLANGE BOLT, G2410R $1.85
45 31D-33001-01 TOP COVER, G5710R $52.10
46 31D-31201-01 PIPE FRAME, G5710R $345.13
47 31D-35002-01 MOUNT, ENGINE SIDE, G5710R $32.84
48 31D-35001-01 MOUNT, GENERATOR SIDE, G5710R $26.72
49 002-38080-00 FLANGE NUT, G6100R $2.40
50 376-39100-01 SCREW & WASHER, G2800R $1.34
51 390-54416-01 EARTH CORD, G5710R $11.42
52 002-19040-00 NUT, G5710R $1.96
53 003-20040-00 SPRING WASHER, G5711R $1.34
54 390-54455-08 BATTERY CORD (+), G5711R $37.63
55 389-54453-08 BATTERY CORD (-), G3511R $40.39
56 002-17060-00 NUT, G3511R $1.34
57 003-20060-00 SPRING WASHER, G2800R $1.34
58 391-33003-21 BATTERY RETAINER, G3511R $27.26
59 391-33004-12 BATTERY BOLT, G5711R $31.72
60 391-33008-31 BATTERY BASE CPL.,G6101R $41.82
61 001-11063-50 BOLT & WASHER, G3511R $1.34
62 001-14082-00 BOLT & WASHER, G2800R $1.34
63 390-56076-18 BATTERY FRAME CPL.,G6101R $95.40
64 002-17060-00 NUT, G3511R $1.34

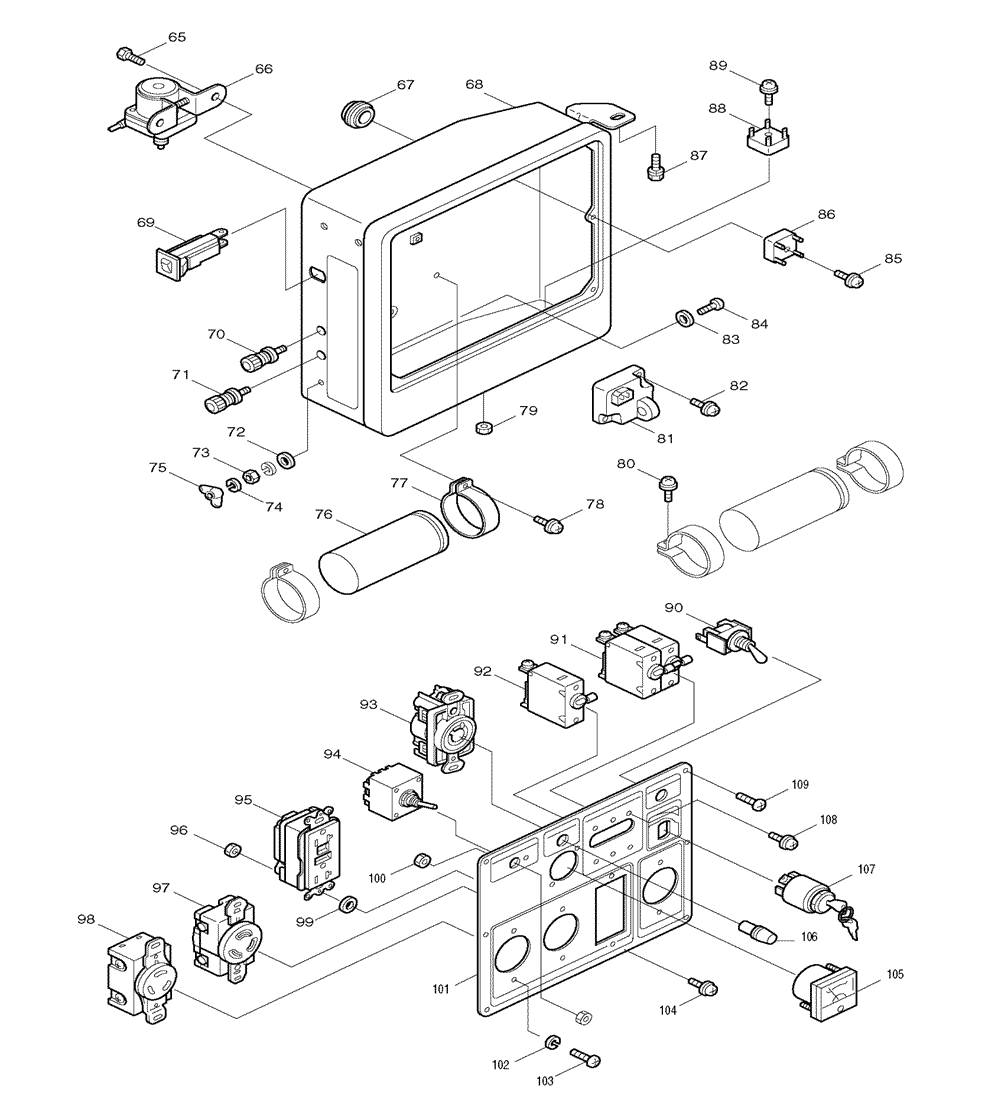

65 001-65051-20 BOLT, G5501R $1.08
67 024-11500-10 GROMMET, G5500R $1.85
68 390-80002-21 CONTROL BOX,G5710R $105.06
69 388-87002-01 CIRCUIT BREAKER (10A), G5710R $65.50
70 363-45701-08 TERMINAL BOLT(RED), G2800R $7.90
71 363-45700-08 TERMINAL BOLT (BLK),G2800R $7.90
72 353-49903-08 WASHER, G2800R $1.63
73 353-49902-08 NUT, G2800R $1.96
74 332-00050-08 SPRING WASHER, G2800R $1.34
75 353-49901-08 WING NUT, G2800R $5.26
77 380-47531-08 CONDENSER BRACKET, G5711R $6.14
78 004-35041-00 SCREW & WASHER, G2800R $0.90
79 002-17040-00 NUT, G2800R $1.34
80 389-59989-08 SCREW & WASHER, G5711R $1.34
81 KU3-11047-01 IDLE CONTROL UNIT, G5710R $222.81
82 004-35062-00 SCREW & WASHER,G5711R . $0.90
83 003-30050-00 LOCK WASHER, G2800R $0.90
84 388-88001-03 SCREW (M5), G5711R $1.41
85 015-00300-10 TAPPING SCREW, G3501R $1.08
86 363-45803-08 DIODE STACK, G3511R $37.63
87 001-14061-60 BOLT & WASHER, G2800R $1.34
88 353-45804-08 DIODE STACK, G2800R $35.90
89 015-00400-70 TAPPING SCREW, G2800R $1.41
90 344-45615-08 SWITCH, G6101R $19.67
91 31D-43001-03 CIRCUIT BREAKER, G5710R $192.26
92 390-45673-08 CIRCUIT BREAKER, G5711R $132.61
93 353-45724-08 AC RECEPTACLE, G3510R $47.32
94 389-85501-01 SWITCH, G5710R $102.24
96 002-17040-00 NUT, G2800R $1.34
97 389-85001-01 AC RECEPTACLE, G5711R $36.21
98 356-45711-08 AC RECEPTACLE, G3510R $42.94
99 003-30050-00 LOCK WASHER, G2800R $0.90
100 002-17030-00 NUT, G2800R $1.34
101 390-81051-31 CONTROL PANEL, COMPL. G5710R $75.20
102 326-00335-08 SPRING WASHER, G3510R $1.63
103 356-59937-08 SCREW, G3510R $1.08
104 004-35041-00 SCREW & WASHER, G2800R $0.90
106 320-75173-08 NEON LAMP (RED), G2800R $16.70
107 066-00003-30 KEY SWITCH, G3511R $66.20
108 004-35030-60 SCREW & WASHER, G2410R . $0.90
109 353-49904-08 TAPPING SCREW, G2800R $1.08
110 031-00600-20 DOWEL PIN, G2800R $1.08
111 247-10102-21 CRANKCASE, G5710R $400.03
112 044-03500-90 OIL SEAL, G5710R $9.00
113 060-03500-10 BEARING BB6207C3, G5711R $18.90
114 060-01500-60 BALL BEARING, RBL500 $7.68
115 031-00600-20 DOWEL PIN, G2800R $1.08
118 002-38080-00 FLANGE NUT, G6100R $2.40
119 021-11400-20 GASKET, G2800R $1.08
120 040-11400-30 PLUG, G2800R $3.50
121 246-45001-01 GOVERNOR GEAR CPL., G5710R $21.76
124 205-41901-03 GOVERNOR SLEEVE, G2800R $4.71
125 246-16007-13 GASKET (BREATHER PLATE), G6100R $3.50
126 246-14401-01 BREATHER PLATE CPL., G5710R $11.42
127 246-16006-03 GASKET (BREATHER COVER), G5710R $1.85
128 246-14301-01 BREATHER COVER CPL., G5710R $9.77
129 011-00600-30 FLANGE BOLT, G2800R $1.85
130 246-10801-03 RUBBER PIPE, G5710R $4.93
131 246-15101-13 BEARING COVER GASKET, G5710R $15.60
132 056-60002-60 CLAMP, G5710R $3.50
133 246-11001-41 MAIN BEARING COVER CPL., G5710R $130.28
134 060-03500-10 BEARING BB6207C3, G5711R $18.90
135 060-01500-60 BALL BEARING, RBL500 $7.68
136 044-03500-90 OIL SEAL, G5710R $9.00
137 224-63601-01 OIL GAUGE CPL., G5711R $5.70
138 021-32000-50 GASKET, G4300L $2.40
139 001-13084-00 BOLT & WASHER ASS'Y, G5710R $1.34
140 015-20600-50 TAPPING BOLT, G5710R $1.34
141 246-17501-03 SHELTER PLATE, G5710R $6.69
142 246-33301-03 TAPPET, G5710R $11.42
143 005-19041-00 SPRING PIN, G5710R $1.34
144 246-31701-01 CAMSHAFT, G5710R $85.30
145 246-36701-03 RETURN SPRING, G5710R $5.26
146 246-36201-01 RELEASE LEVER CPL., G5710R $12.96
147 023-02200-50 SPACER (T=0.6), G5710R $4.93
147 023-02200-60 SPACER (T=0.7), G5710R $4.93
147 023-02200-70 SPACER (T=0.8), G5710R $4.93
148 056-52100-20 CLIP, G5710R $1.96

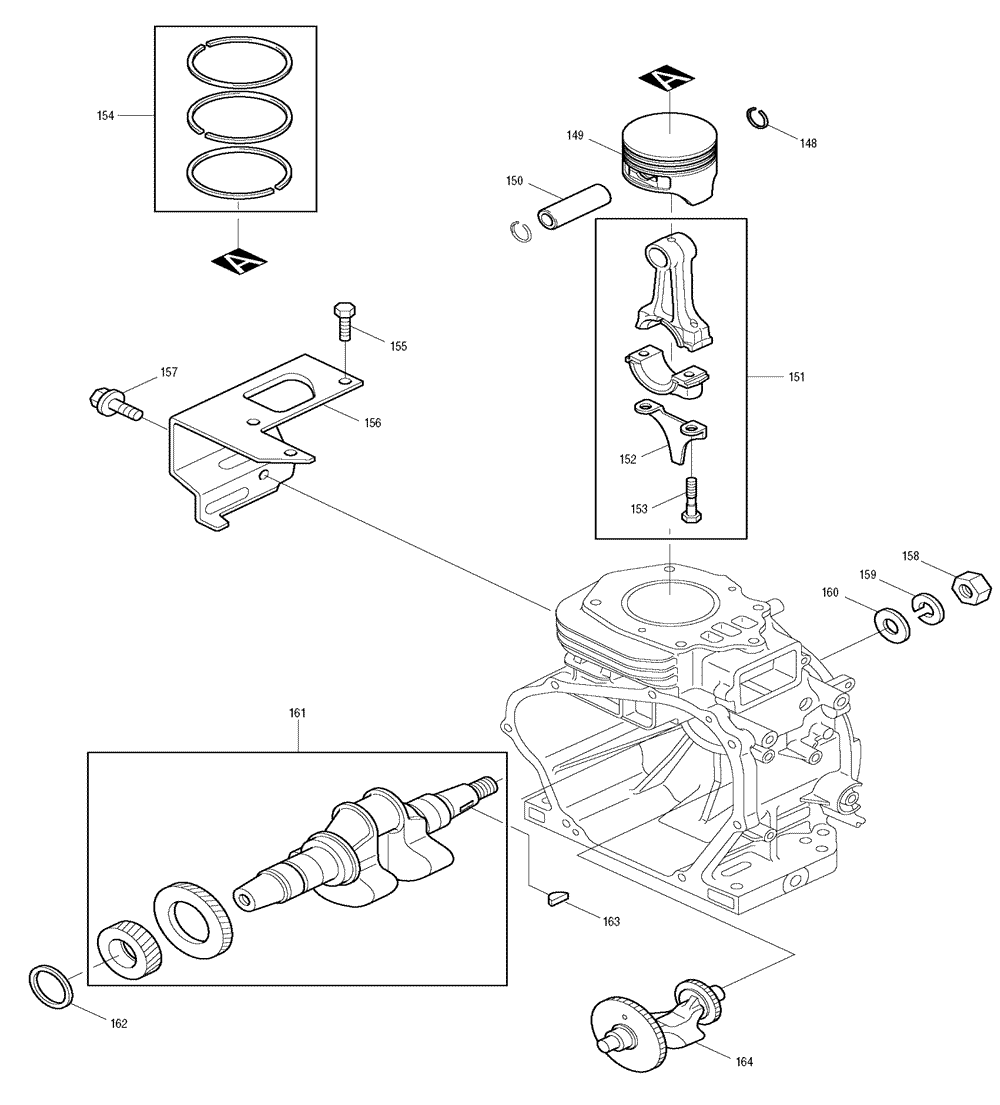

149 247-23401-H3 PISTON (STD), G5710R $73.70
149 247-23402-H3 PISTON (OVER SIZE 0.25MM), G5710R $84.20
149 247-23403-13 PISTON (OVER SIZE 0.50MM),G5710R $52.10
150 246-23301-03 PISTON PIN, G5710R $11.20
151 246-22501-00 CONNECTING ROD ASS'Y, G5710R $125.33
152 246-23101-13 OIL SCRAPER, G5710R $4.93
153 246-23001-03 CONNECTING ROD BOLT, G3510R $4.93
154 247-23501-17 PISTON RING SET (STD), G6100R $42.02
154 247-23502-17 PISTON RING SET (0.25MM), G5710R $48.14
154 247-23503-17 PISTON RING SET (0.50MM),G5710R $44.06
155 001-65101-60 BOLT, G5710R $1.41
156 246-52701-12 CYLINDER BAFFLE UNIT, G5710R $20.88
157 011-00600-10 FLANGE BOLT, G6100R $2.40
158 002-18180-00 FLYWHEEL NUT 18MM, G3510R $5.26
159 003-20180-00 SPRING WASHER, G3510R $2.18
160 003-10180-00 WASHER, G5711R $2.18
161 246-20701-01 CRANKSHAFT CPL., G5710R $352.31
162 023-03501-60 SPACER (T=0.6), G5710R $4.93
162 023-03501-70 SPACER (T=0.8), G5710R $4.93
162 023-03501-80 SPACER (T=1.0), G5710R $4.93
163 005-32054-01 WOODRUFF KEY, G5710R $4.93
164 246-24102-23 BALANCER SHAFT, G5710R $102.24
165 011-00600-20 FLANGE BOLT, G6100R $2.40
166 246-15501-01 ROCKER COVER, G6101R $15.60
167 246-16002-03 GASKET (ROCKER COVER), G5710R $3.83
168 246-33701-13 SPRING RETAINER, G5710R $5.26
169 246-33601-03 VALVE SPRING, G5710R $3.61
170 020-02000-10 WASHER, G5710R $1.63

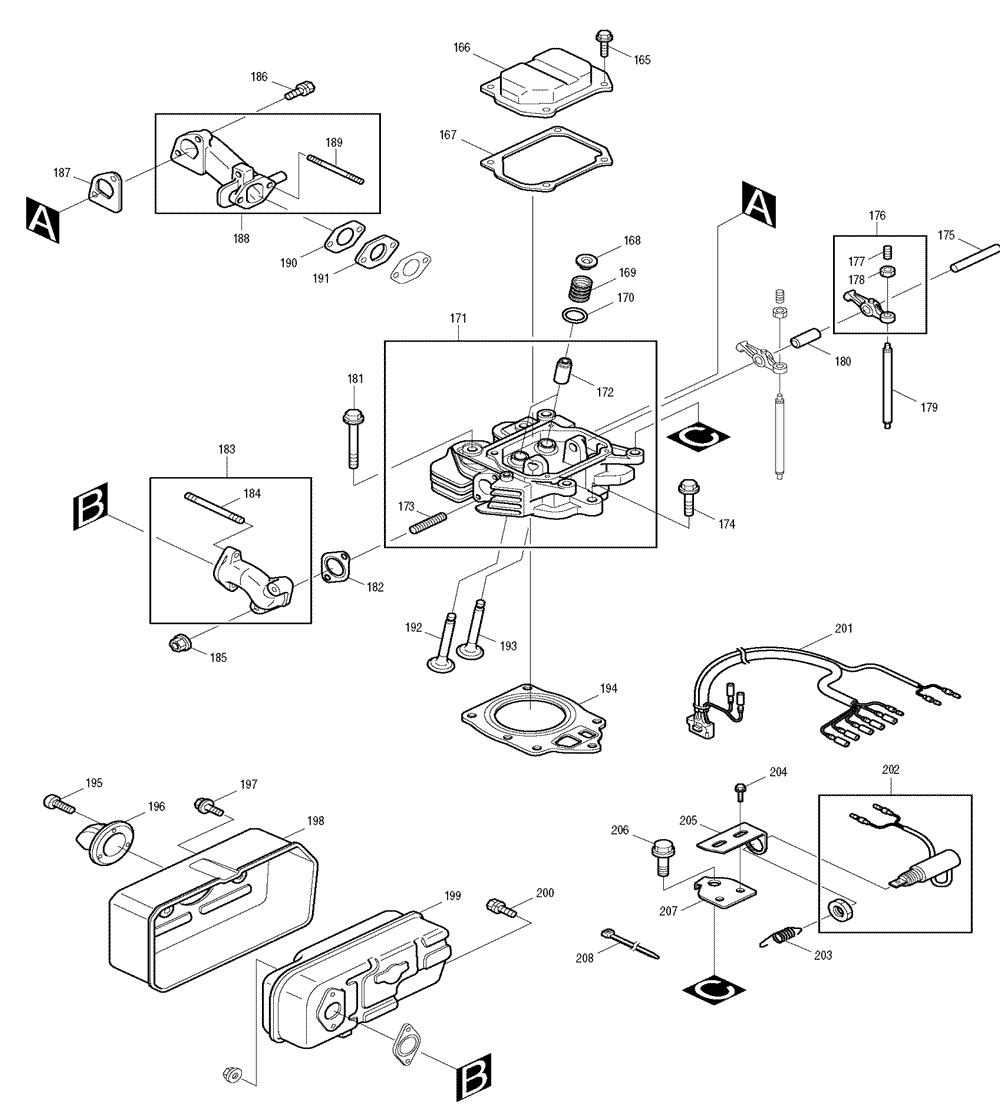

171 247-13001-31 CYLINDER HEAD CPL., G5710R $122.13
172 246-14202-03 VALVE GUIDE, G3510R(OVERSIZE) $10.10
173 010-50804-30 STUD, G5710R $4.93
174 011-01000-20 FLANGE BOLT, G5710R $3.50
175 239-35001-03 ROCKER SHAFT, G5710R $8.12
176 246-36101-10 ROCKER ARM ASS'Y, G5710R $16.04
177 014-90800-21 ADJUSTING SCREW, G5710R $4.93
178 017-00800-90 NUT, G5710R $5.26
179 246-35301-11 PUSH ROD CPL., G5710R $31.11
180 246-36120-13 SPACER (ROCKER SHAFT), G5710R $4.93
181 011-01000-40 FLANGE BOLT, G3510R $3.50
182 263-35503-A3 GASKET, G12010R $3.50
183 246-34001-01 EXHAUST PIPE CPL., G5710R $47.32
184 010-50803-60 STUD, G5710R $4.93
185 018-00800-10 FLANGE NUT, G5711R $4.71
186 001-13083-00 BOLT & WASHER ASS'Y, EW400TR $1.63
187 246-36001-13 GASKET (INTAKE PIPE), G5710R $3.50
188 246-33001-01 INTAKE PIPE CPL., G5710R $39.98
189 010-50602-30 STUD, G5710R $3.50
190 234-35902-03 INSULATOR GASKET 2, G3510R $1.41
191 246-32901-03 INSULATOR, G5710R $5.70
192 246-33501-03 EXHAUST VALVE, G5710R $26.72
193 246-33411-03 INTAKE VALVE, G5710R $17.80
194 247-15001-23 HEAD GASKET, G6100R $10.10
195 015-00400-60 TAPPING SCREW, G5710R $0.82
196 246-37003-01 SPARK ARRESTER, G5710R $35.59
197 011-00600-10 FLANGE BOLT, G6100R $2.40
198 246-34205-01 MUFFLER COVER, G5710R $34.06
199 246-30104-01 MUFFLER CPL., G5710R $75.20
200 001-11081-60 BOLT & WASHER ASSY, G5711R $1.63
201 246-73119-11 WIRE 19 CPL., G5710R $39.98
202 227-75501-00 SOLENOID, G5711R $78.20
203 234-78202-13 SOLENOID SPRING, G3500R $5.70
204 001-11061-20 BOLT & WASHER ASS'Y, G2400R $1.63
205 246-76007-01 BRACKET (SOLENOID) 2, G5710R $16.04
206 001-13102-00 BOLT & WASHER ASS'Y, G5710R $1.63
207 246-76005-01 BRACKET (SOLENOID) 1, G5710R $12.63
208 056-30000-40 WIRE BAND, G3510R $4.27

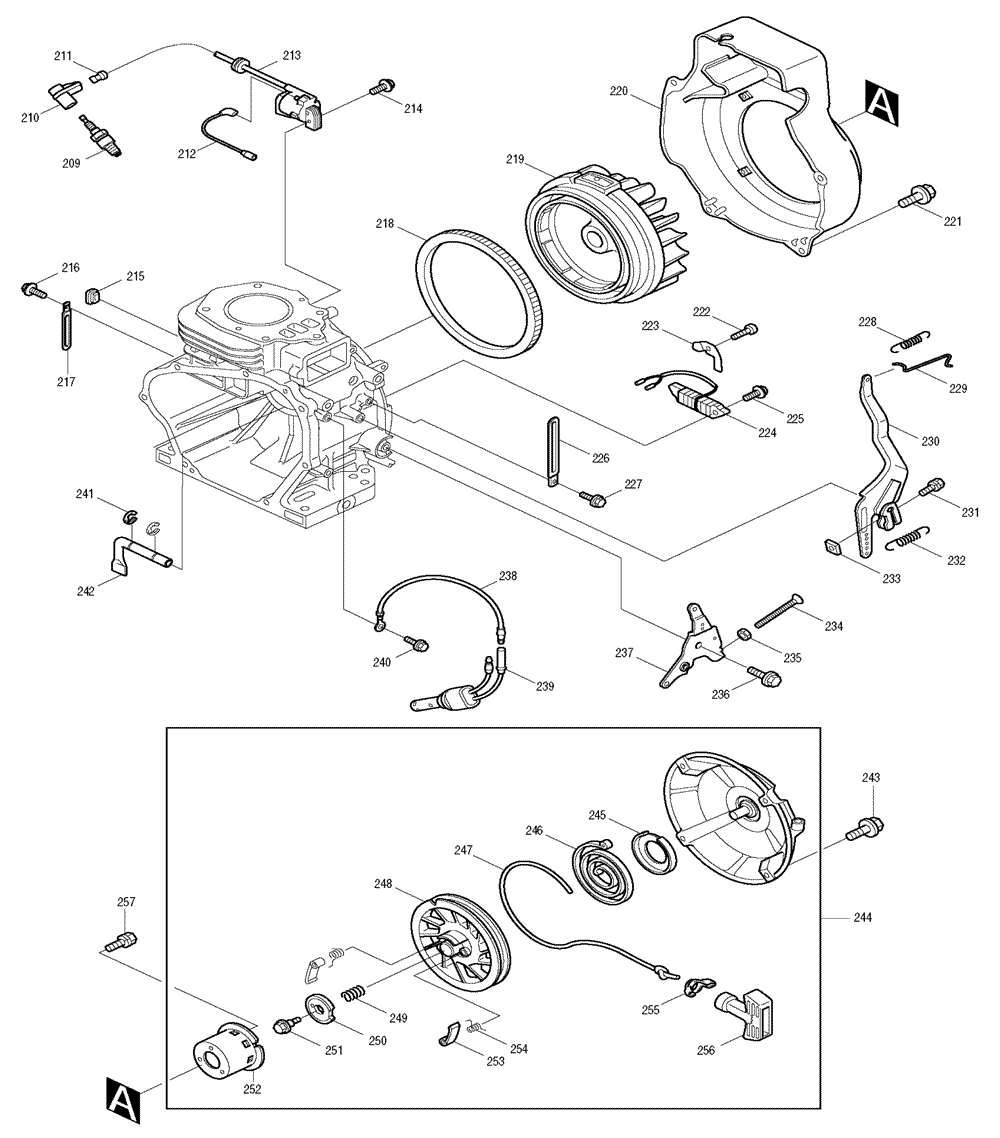

209 065-01405-80 SPARK PLUG B6ES, G5710R $7.02
210 065-50001-40 SPARK PLUG CAP, G5710R $4.93
211 065-90000-10 PLUG TERMINAL, G5710R $3.50
212 246-73101-01 WIRE 1 CPL., G5710R $6.69
213 246-78201-21 IGNITION COIL CPL., G6100R $139.88
214 001-14063-00 BOLT & WASHER ASS'Y, G5710R $1.34
215 226-75501-03 GROMMET, G3510R $3.17
216 011-00600-10 FLANGE BOLT, G6100R $2.40
217 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
218 246-71002-03 RING GEAR, G5711R $137.65
219 246-77204-01 FLYWHEEL CPL., G5710R $160.93
220 246-51215-01 BLOWER HOUSING CPL., G5710R $113.69
221 011-00600-10 FLANGE BOLT, G6100R $2.40
222 004-31060-80 P.H. SCREW, G5710R $0.82
223 246-75502-01 CLAMP CPL., G5710R $4.93
224 246-79201-01 CHARGE COIL CPL., G5710R $87.20
225 004-35062-00 SCREW & WASHER,G5711R . $0.90
226 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
227 011-00600-10 FLANGE BOLT, G6100R $2.40
228 246-42801-13 ROD SPRING CPL., G5710R $2.40
230 246-42304-01 GOVERNOR LEVER CPL., G5710R $12.96
231 001-14062-50 BOLT & WASHER, G2800R $1.34
232 246-42503-01 GOVERNOR SPRING, G5710R $5.70
233 018-60600-20 NUT, G2800R . $1.34
234 004-31053-50 P.H. SCREW, G5710R $0.82
235 002-27050-00 NUT M5, EM4251 $1.34
236 001-10081-60 BOLT & WASHER, G2800R $1.63
238 253-73103-01 WIRE 3 CPL., G5710R $4.93
239 KS3-11012-01 OIL SENSOR, G6100R $136.00
240 011-00600-10 FLANGE BOLT, G6100R $2.40
241 003-13060-00 CLIP, G2800R $1.34
242 246-42201-23 GOVERNOR SHAFT, G6101R $9.22
243 011-00600-10 FLANGE BOLT, G6100R $2.40
244 246-50204-20 RECOIL STARTER ASS'Y, G5710R $121.45
245 246-50760-08 SPRING KEEPER, G5710R $11.42
246 226-50715-08 SPIRAL SPRING, G1200R $23.96
247 246-50705-08 STARTER ROPE, G5710R $11.42
248 246-50720-18 REEL, G5710R $26.72
249 226-50730-08 FRICTION SPRING, G1200R $3.61
250 246-50740-08 FRICTION PLATE, G5710R $9.77
251 226-50751-08 CENTER SCREW, G1200R $4.93
252 246-50745-08 STARTER PULLEY, G5710R $21.10
253 246-50725-08 RATCHET, G5710R $4.93
254 226-50752-08 RATCHET SPRING, G1200R $3.61
255 226-50750-08 KNOB CAP, G1200R $4.93
256 246-50700-08 STARTER KNOB, G5710R $6.80
257 001-65081-20 HEX BOLT, G5711R $1.34

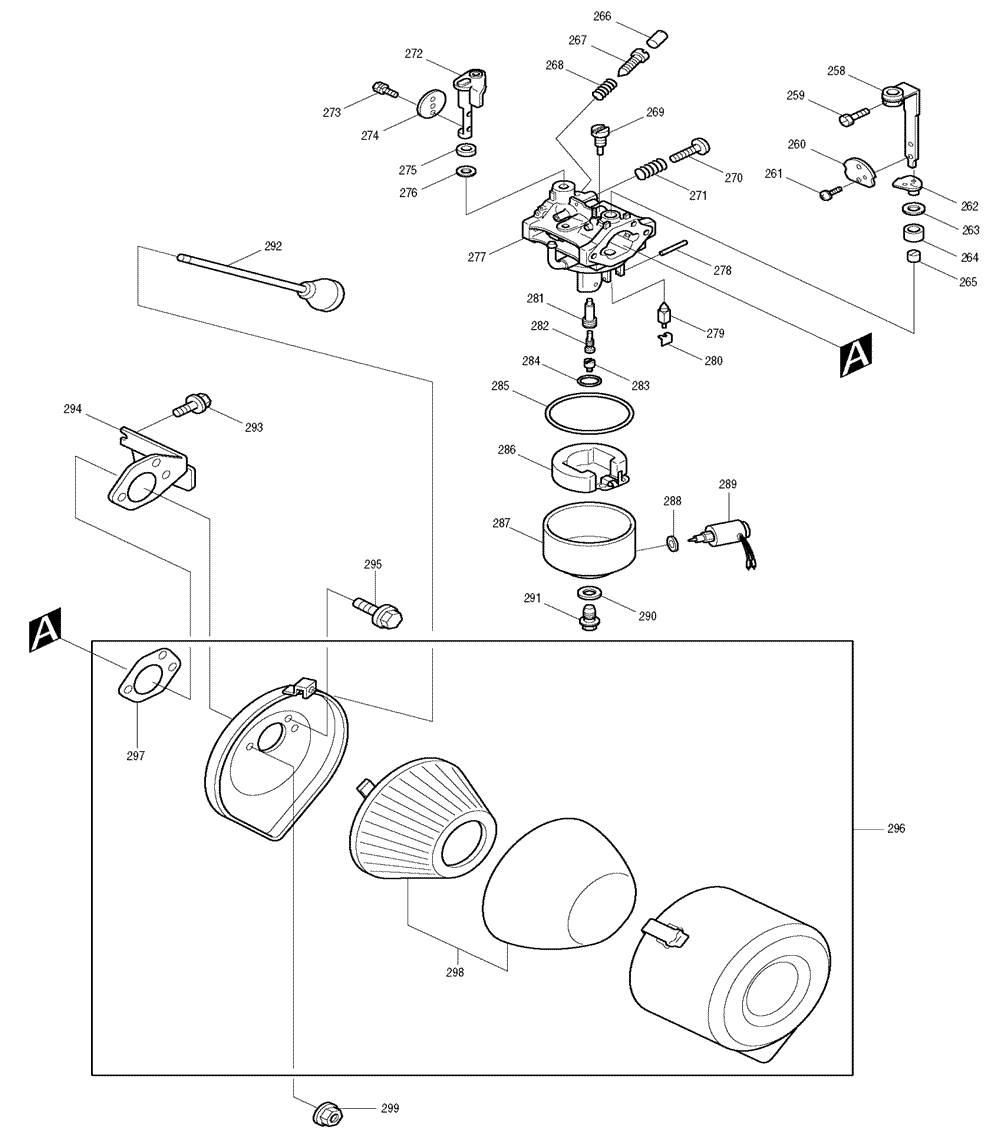

258 234-62521-08 CHOKE LEVER, G3510R $29.58
259 227-62450-08 BOLT, G3510R $6.69
260 234-62525-08 CHOKE VALVE, G3500R $6.69
262 239-62560-08 RING (CHOKE), G5710R $4.93
263 236-62680-08 SEAL, G5710R $4.93
264 247-62550-08 CAP, G5710R $4.93
265 226-62550-08 RING, G2410R $3.50
266 246-62551-08 CAP, G5710R $4.93
267 246-62436-08 PILOT SCREW, G5710R $20.88
268 209-62445-08 SPRING, G2800R $3.61
269 247-62420-08 PILOT JET (#42.5), G5710R $9.77
270 246-62435-08 SCREW, G5710R $3.50
271 209-62445-08 SPRING, G2800R $3.61
272 246-62531-08 THROTTLE SHAFT ASS'Y, G5710R $25.61
273 209-62351-08 SCREW ASS'Y, G5711R $1.41
274 213-62535-08 THROTTLE VALVE, G5710R $17.69
275 156-62351-08 PACKING, G5710R $6.69
276 106-62392-18 SEAL, G6100R $3.50
278 214-62515-08 FLOAT PIN, G3510R $3.50
280 224-62569-08 CLIP, EW300TR $2.73
280 224-62569-18 CLIP, EW300TR $3.61
281 246-62441-08 MAIN NOZZLE, G5710R $20.88
282 246-62425-08 GUIDE HOLDER, G5710R $13.62
283 246-62403-08 MAIN JET (#95), G5710R $9.77
284 242-62313-08 O RING, G5710R $2.40
285 206-62540-08 PACKING, G3510R $4.93
286 234-62506-08 FLOAT ASSY, G5711R $26.60
287 247-62556-08 FLOAT CHAMBER BODY, G5710R $44.26
288 247-62565-08 WASHER, G5710R $1.63
289 247-62562-08 SOLENOID ASS'Y G5710R $97.68
290 248-62451-08 WASHER, G5710R $1.63
291 248-62425-08 JET HOLDER, G5710R $24.40
292 246-45006-01 KNOB CPL., G5710R $5.70
293 011-00600-10 FLANGE BOLT, G6100R $2.40
294 246-40202-11 CONTROL PANEL CPL., G5710R $35.59
295 001-10061-20 BOLT & WASHER, G3510R $1.63
296 254-32612-20 AIR CLEANER ASSY,G5710R $107.87
297 234-36003-03 GASKET, G3510R $1.41
298 234-32607-07 ELEMENT SET, G6101R-T2 $34.06
299 002-38060-00 FLANGE NUT, G6101R $2.40

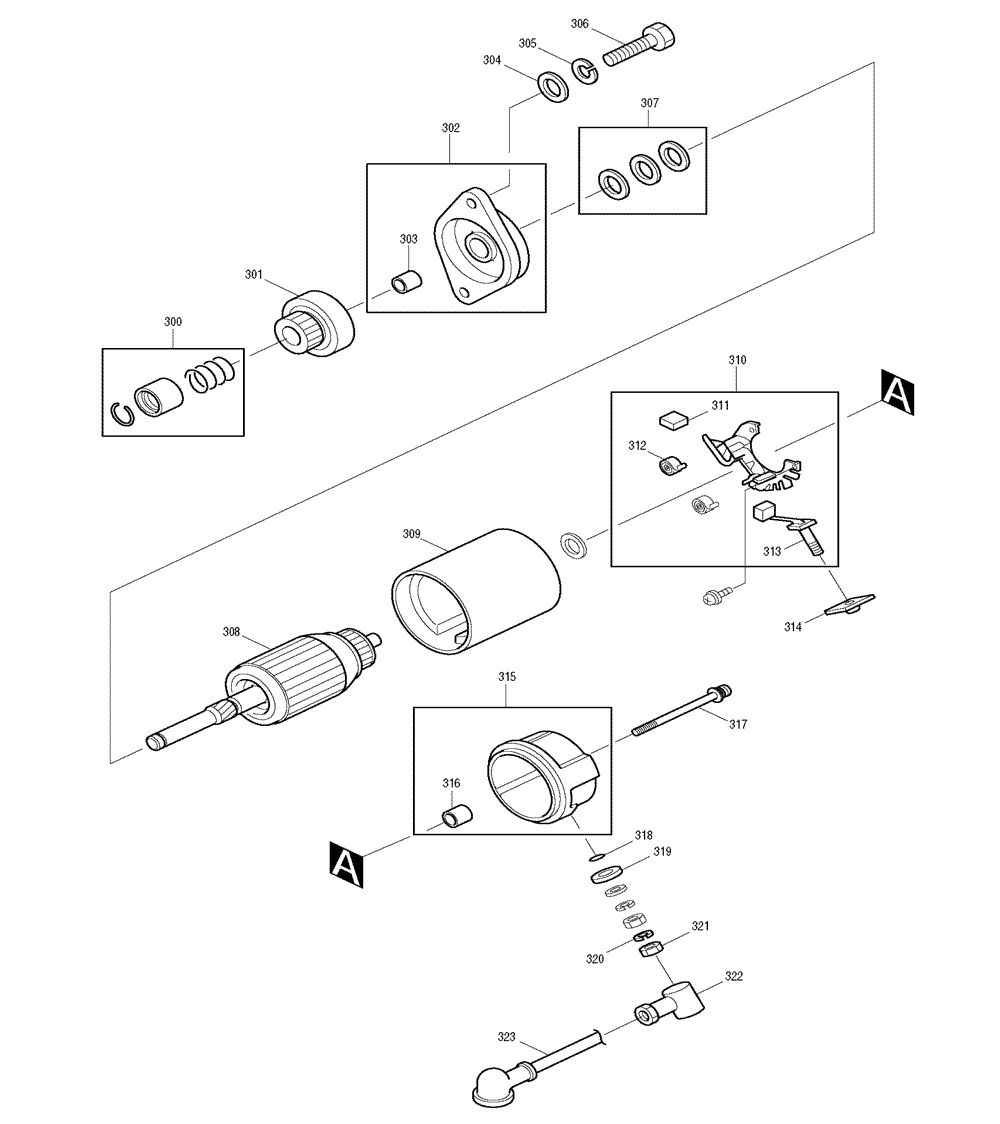

300 246-70571-08 STOPPER SET PINION, G5710R $23.96
301 246-70521-08 PINION ASS'Y, G5710R $73.80
302 246-70500-08 FRONT COVER ASS'Y, G5710R $45.79
303 214-70560-08 FRONT METAL, G5711R $9.77
304 003-10080-00 WASHER, G3501R $0.90
305 003-20080-00 SPRING WASHER, G2800R $1.34
306 214-79007-01 STARTER BOLT, G3501R $3.50
307 235-70555-08 WASHER, G5710R $5.26
308 235-70550-08 ARMATURE ASS'Y, G5710R $193.13
309 235-70560-08 YOKE ASS'Y, G5710R $155.40
310 235-70530-08 BRUSH HOLDER ASS'Y, G5710R $68.00
311 235-70535-08 BRUSH +, G5710R $9.77
312 235-70545-08 BRUSH SPRING, G5710R $5.26
313 235-70540-08 BRUSH (-), G5710R $9.77
314 235-70565-08 M BUSH (1), G5710R $4.93
315 246-70505-08 REAR COVER ASS'Y, G5710R $47.32
316 113-70510-08 METAL, G5710R $4.93
317 235-70575-08 THROUGH BOLT, G5710R $4.93
318 246-70580-08 O RING, G5710R $3.50
319 235-70566-08 M BUSH (2), G5710R $4.93
320 003-20060-00 SPRING WASHER, G2800R $1.34
321 002-27060-00 NUT, EM4251 $1.34
322 214-78501-03 WIRE CASING, G5710R $1.85
323 390-54455-08 BATTERY CORD (+), G5711R $37.63
