Makita G2410R Generator Parts

Makita G2410R Generator Parts Image

Makita G2410R Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Tool Diagram    (Click image to Zoom in) View larger Image

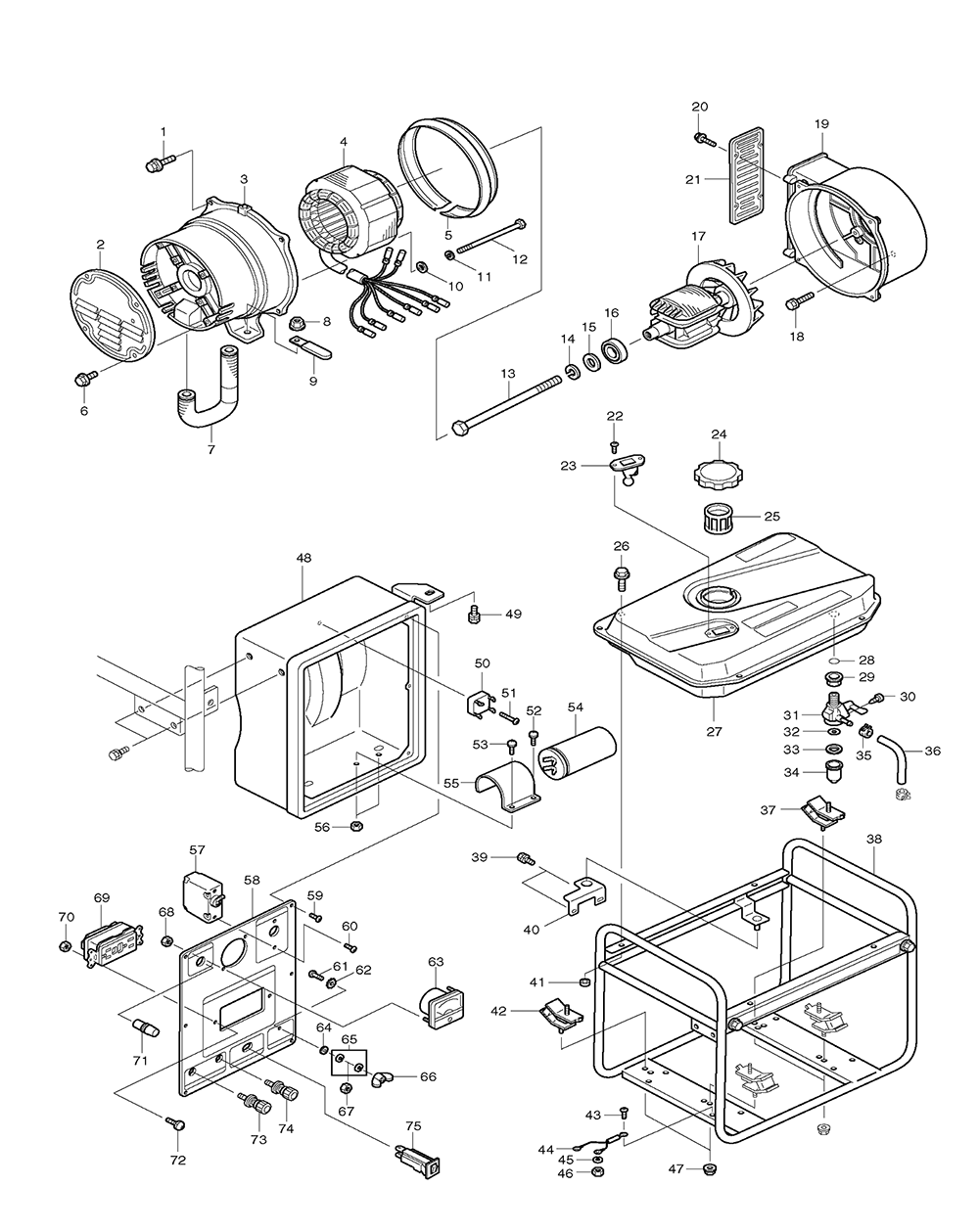

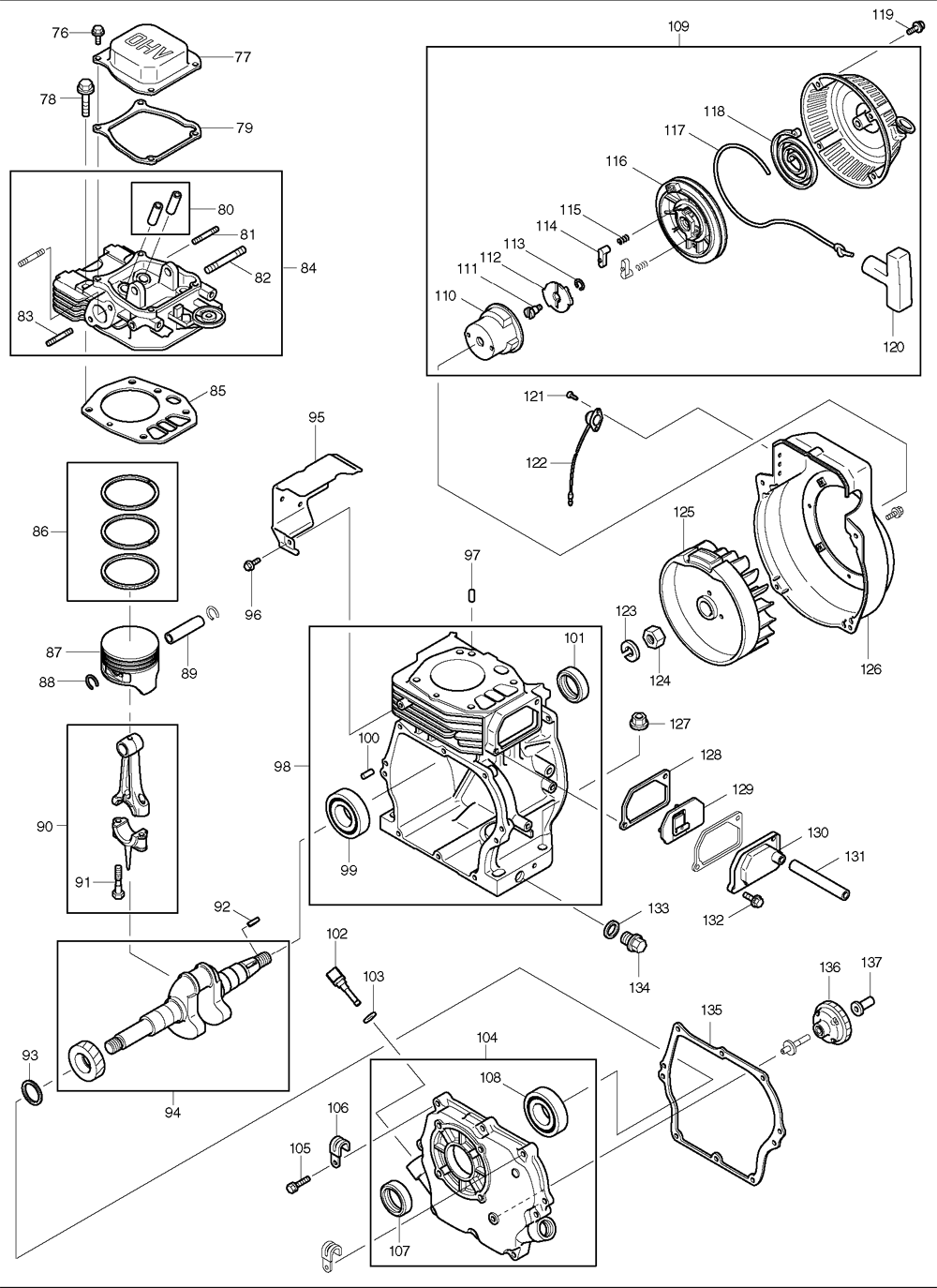

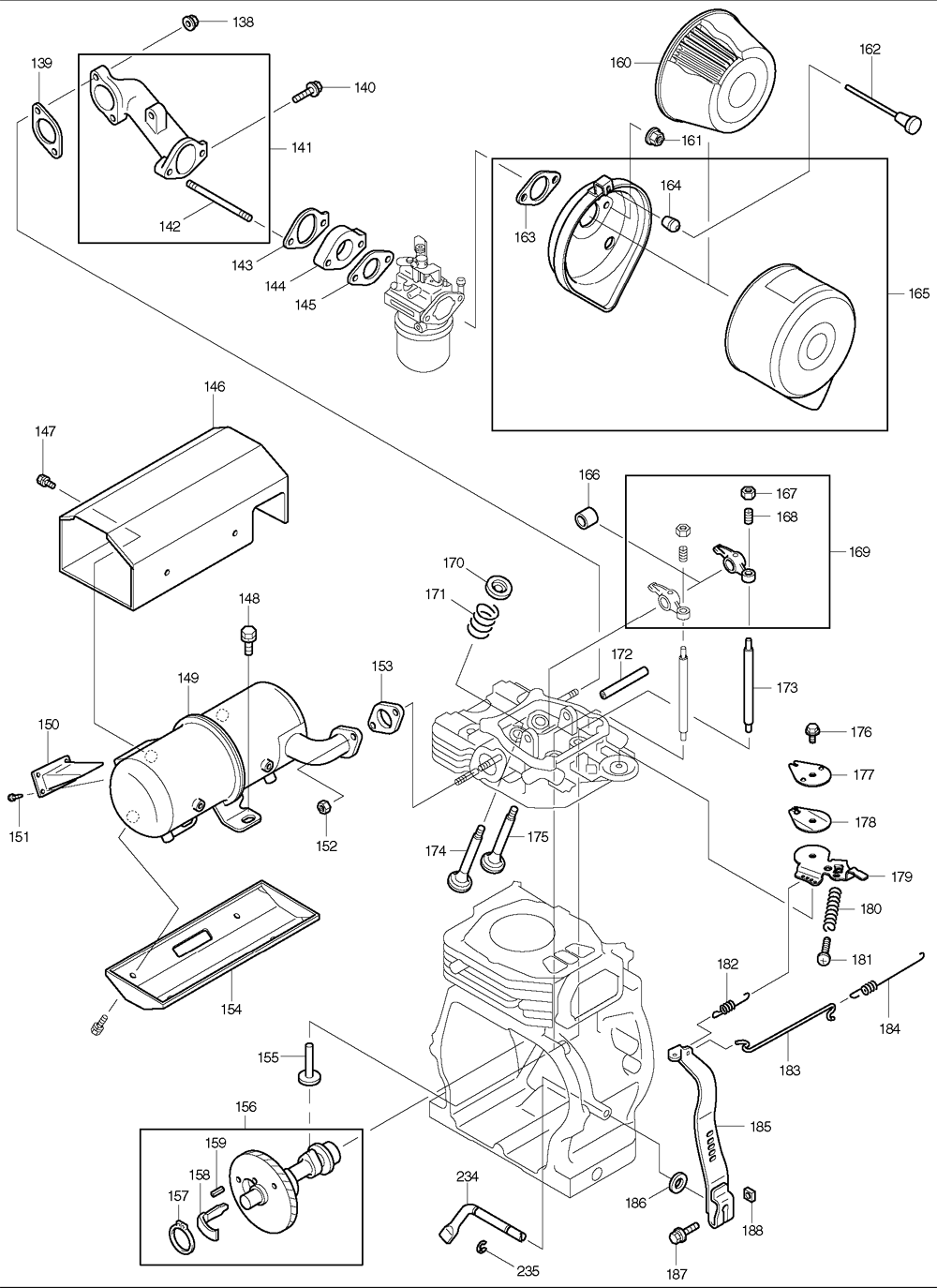

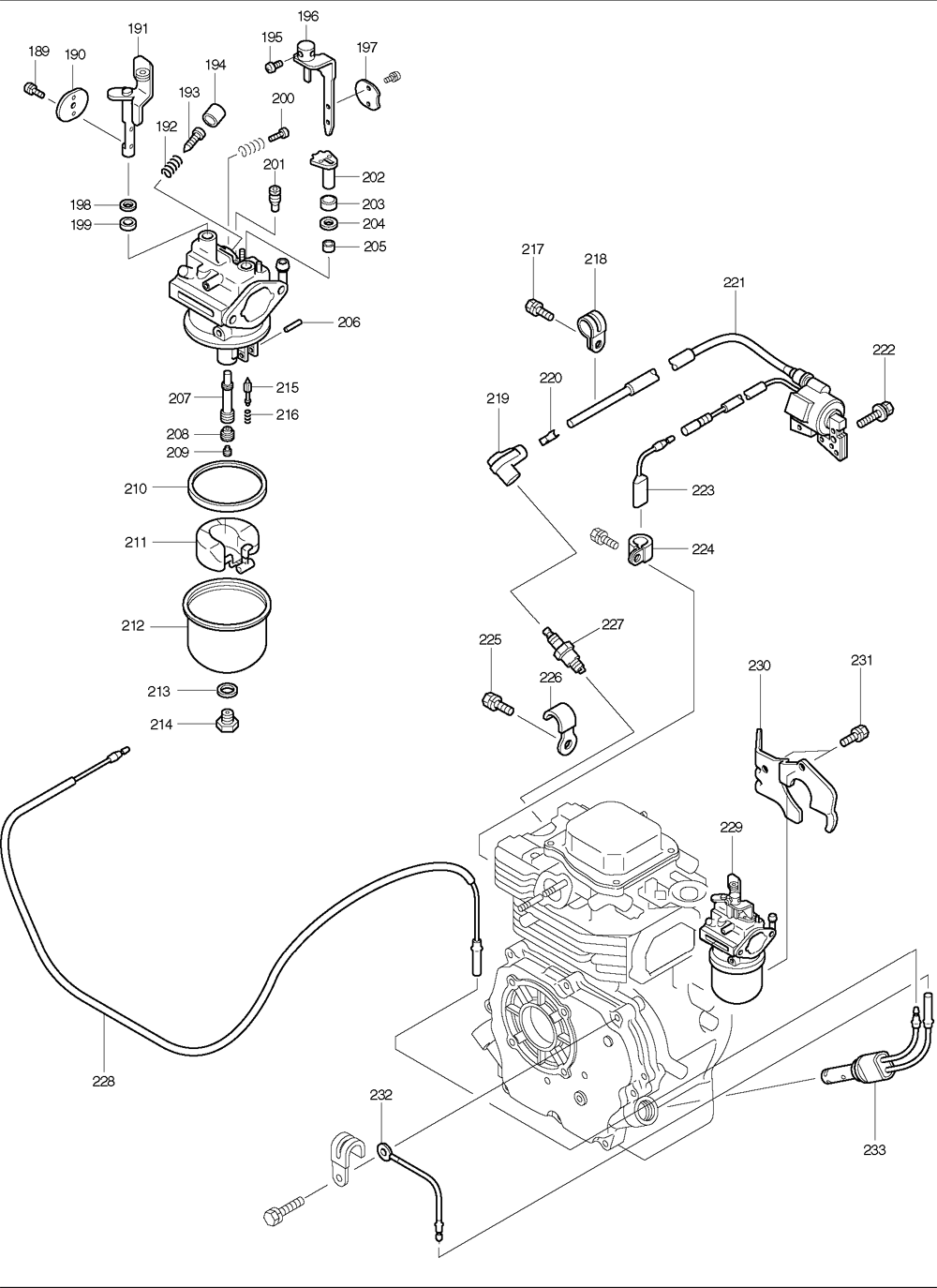

Makita G2410R Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
174 253-33501-13 EXHAUST VALVE, G2410R $15.16
1 001-14062-50 BOLT & WASHER, G2800R $1.34
2 388-55001-13 END COVER, G3511R $6.69
3 31B-26001-01 REAR COVER, G3510R $114.95
4 388-01300-21 STATOR ASS'Y, G2410R $449.02
5 388-54381-03 SUPPORT RING, G2410R $9.55
6 011-00600-10 FLANGE BOLT, G6100R $2.40
7 391-29000-13 BUSHING, G2800R $12.96
8 002-38080-00 FLANGE NUT, G6100R $2.40
9 056-60001-70 CLAMP, G2410R $1.41
10 003-10060-00 WASHER, G2410R $0.90
11 003-20060-00 SPRING WASHER, G2800R $1.34
12 001-65067-50 BOLT, G2410R $2.40
13 391-25100-03 THROUGH BOLT, G2410R $36.21
14 003-20080-00 SPRING WASHER, G2800R $1.34
15 003-12080-00 WASHER, G2410R $0.90
16 353-58208-08 BALL BEARING G2800R $16.04
17 388-21000-11 ROTOR ASS'Y, G2410R $458.82
18 001-13082-00 BOLT & WASHER, G2410R . $1.63
19 388-54101-13 FRONT COVER, G2410R $62.00
20 015-20500-10 TAPPING SCREW, G3511R $1.08
21 388-55101-03 FRONT PROTECTOR, G3511R $8.12
22 014-50500-40 COUNTER HEAD SCREW, G2800R $1.85
23 064-80005-00 FUEL GAUGE COMPLETE, G2800R $29.58
24 043-05900-11 FUEL TANK CAP COMPL., G2800R $28.76
25 064-15400-10 FUEL FILTER, G3510R $8.12
26 011-00602-20 FLANGE BOLT, G2800R $3.50
27 31B-36005-01 FUEL TANK, G2800R $170.82
28 243-66506-08 PACKING, G2800R $2.40
28 064-20003-30 O RING, G2400R $1.85
29 064-20042-60 NUT, G2800R $2.40
30 064-20047-90 P.H. SCREW, G2800R $1.41
30 064-20027-90 LOCK BOLT, EW310TR $1.34
31 064-20100-01 FUEL STRAINER, G2800R $17.80
32 064-20042-20 FILTER, G2800R $4.71
33 064-20064-10 RUBBER PACKING, G2800R $2.40
33 064-20014-30 PACKING, EW310TR $1.85
34 064-20014-10 CUP, EW310TR $3.50
34 064-20078-10 CUP, G2800R $4.93
35 056-11100-20 HOSE CLAMP, G2800R $1.41
36 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
37 31C-35002-01 RUBBER MOUNT UNIT, G2800R $36.21
38 31B-31201-01 PIPE FRAME, G2410R $201.57
39 011-00600-30 FLANGE BOLT, G2800R $1.85
40 31B-39101-13 STOPPER PLATE, G2800R $22.64
41 391-39000-13 RUBBER WASHER, G2800R $5.26
42 377-37000-11 RUBBER MOUNT UNIT, G2800R $36.21
43 376-39100-01 SCREW & WASHER, G2800R $1.34
44 390-54416-01 EARTH CORD, G5710R $11.42
45 003-20040-00 SPRING WASHER, G5711R $1.34
46 002-19040-00 NUT, G5710R $1.96
47 002-38080-00 FLANGE NUT, G6100R $2.40
48 31B-42101-01 CONTROL BOX, G2800R $60.00
49 001-14061-60 BOLT & WASHER, G2800R $1.34
50 353-45804-08 DIODE STACK, G2800R $35.90
51 015-00400-70 TAPPING SCREW, G2800R $1.41
52 004-35041-00 SCREW & WASHER, G2800R $0.90
53 389-59989-08 SCREW & WASHER, G5711R $1.34
54 389-05000-01 CONDENSER, G2410R $122.42
55 388-86001-01 CONDENSER BRACKET, G2800R $4.93
56 002-17040-00 NUT, G2800R $1.34
57 31B-43001-03 CIRCUIT BREAKER (18A), G2410R $50.28
58 388-81051-11 CONTROL PANEL, G2410R $42.94
59 353-49904-08 TAPPING SCREW, G2800R $1.08
60 004-35030-60 SCREW & WASHER, G2410R . $0.90
61 388-88001-03 SCREW (M5), G5711R $1.41
62 003-30050-00 LOCK WASHER, G2800R $0.90
63 391-47800-11 AC VOLT METER, G2410R $44.77
64 353-49903-08 WASHER, G2800R $1.63
65 332-00050-08 SPRING WASHER, G2800R $1.34
66 353-49901-08 WING NUT, G2800R $5.26
67 353-49902-08 NUT, G2800R $1.96
68 002-17030-00 NUT, G2800R $1.34
70 002-17040-00 NUT, G2800R $1.34
71 320-75173-08 NEON LAMP (RED), G2800R $16.70
72 004-35041-00 SCREW & WASHER, G2800R $0.90
73 363-45700-08 TERMINAL BOLT (BLK),G2800R $7.90
74 363-45701-08 TERMINAL BOLT(RED), G2800R $7.90
75 388-87002-01 CIRCUIT BREAKER (10A), G5710R $65.50
76 011-00600-20 FLANGE BOLT, G6100R $2.40
77 253-15501-03 ROCKER COVER, G2800R $6.69
78 011-00801-00 FLANGE BOLT, G2800R $4.93
79 253-16005-03 GASKET (ROCKER COVER), G2410R $6.14
80 237-14202-03 VALVE GUIDE(OVER SIZE), G2800R $9.77
81 010-50601-31 STUD, G2800R $1.85
82 001-39066-00 STUD, G2800R $3.50
83 010-50802-50 STUD G2410R $1.85
84 253-13012-01 CYLINDER HEAD COMPL., G2410R $106.51
85 253-15001-33 HEAD GASKET, G2800R $4.71
86 253-23501-27 PISTON RING SET (STD), G2800R $21.87
86 253-23503-27 PISTON RING SET (.50MM OS), G2800R $23.08
86 253-23501-17 PISTON RING SET (STD), G2800R $21.87
86 253-23502-27 PISTON RING SET (.25MM OS), G2800R $23.08
86 253-23503-17 PISTON RING SET (0.50MM), G2800R $23.08
86 253-23502-17 PISTON RING SET (0.25MM),G2800R $23.08
87 253-23401-03 PISTON (STD.), G2410R $28.25
87 253-23402-03 PISTON(0.25MM), G2410R $32.53
87 253-23403-03 PISTON (0.50MM), G2410R $32.53
88 056-51600-10 CLIP, G2800R $1.96
89 238-23301-03 PISTON PIN, G2410R $8.12
90 253-22501-00 CONNECTING ROD ASSY, G2410R $57.80
91 238-23001-03 CONNECTNG ROD BOLT, G2410R $3.50
92 032-30300-10 WOODRUFF KEY, 3X6MM, G2800R $3.50
93 023-02501-30 SPACER, (T=1.0), G2800R $3.50
93 023-02501-10 SPACER, (T=0.6), G2800R $3.50
93 023-02501-20 SPACER (T=0.8), G2800R $3.50
94 253-20701-01 CRANKSHAFT, COMPL., G2800R $151.23
95 253-52702-03 HEAD COVER, G2800R $10.43
96 011-00600-20 FLANGE BOLT, G6100R $2.40
97 031-00600-20 DOWEL PIN, G2800R $1.08
98 253-10201-01 CRANKCASE COMPLETE, G2410R $270.05
99 060-02500-10 BALL BEARING, G2800R $11.42
100 031-00600-20 DOWEL PIN, G2800R $1.08
101 044-02500-70 OIL SEAL, G2800R $6.69
103 021-31600-20 GASKET, G2800R $1.08
104 253-11013-01 MAIN BEARING COVER COMPL., G2800R $64.10
105 013-00600-40 BOLT & WASHER ASSY, G2800R $1.63
106 214-79006-01 CLAMP COMP., G2410R . $5.26
107 044-02501-60 OIL SEAL 25X41.24X7MM, G2800R $8.12
108 060-02500-10 BALL BEARING, G2800R $11.42
109 253-50201-00 RECOIL STARTER ASSY, G2410R $79.50
110 227-50149-18 STARTER PULLEY, G2410R $17.69
111 227-50152-08 SET SCREW, G2800R $4.93
112 161-50150-08 RACHET GUIDE, G3511R $6.69
113 227-50131-08 FRICTION SPRING, G2800R $5.26
114 161-50125-08 RATCHET, EW300TR $4.93
115 227-50135-08 RETURN SPRING, G2410R $5.26
116 252-50121-08 REEL, G2410R $28.25
117 226-50113-08 STARTER ROPE, G3510R $12.96
118 253-50115-08 SPIRAL SPRING, EW300TR $16.04
119 011-00600-10 FLANGE BOLT, G6100R $2.40
120 236-50101-08 STARTER KNOB, G2410R $11.20
121 015-00400-90 TAPPING SCREW, G3510R $1.41
123 003-20140-00 SPRING WASHER, 14MM, G2800R $1.63
124 002-18140-00 NUT, 14MM, G2800R $3.61
125 253-79340-01 FLYWHEEL COMPL., G2410R $132.99
126 253-51291-01 BLOWER HOUSING, G2800R $50.60
127 002-38080-00 FLANGE NUT, G6100R $2.40
128 253-16006-23 GASKET (BREATHER COVER), G2410R $1.85
129 253-14401-11 BREATHER PLATE, G2800R $4.93
130 253-14301-01 BREATHER COVER COMPL., G2410R $4.93
131 085-10800-00 RUBBER PIPE, G2800R $11.42
132 011-00600-30 FLANGE BOLT, G2800R $1.85
133 021-11400-20 GASKET, G2800R $1.08
134 040-11400-30 PLUG, G2800R $3.50
136 227-45003-01 GOVERNOR GEAR COMPLETE, G2800R $18.46
137 205-41901-03 GOVERNOR SLEEVE, G2800R $4.71
138 002-38060-00 FLANGE NUT, G6101R $2.40
139 282-35901-03 GASKET, G1100 $1.41
140 011-00601-30 FLANGE BOLT, G2800R $1.85
141 253-33001-01 INTAKE PIPE, G2800R $17.69
142 010-50602-30 STUD, G5710R $3.50
143 253-35901-03 GASKET 3 (INSULATOR), G2800R $1.08
144 253-32901-03 INSULATOR, G2800R $3.50
146 31B-12001-01 MUFFLER COVER 1, COMPL., G2800R $60.80
147 001-11061-20 BOLT & WASHER ASS'Y, G2400R $1.63
148 001-15082-00 BOLT & WASHER, G2800R $1.34
149 31B-11002-01 MUFFLER COMPL., G2800R $243.48
150 227-37602-11 SPARK ARRESTER, G2800R $20.88
151 015-00400-40 TAPPING SCREW, G2800R $0.82
152 017-00800-30 NUT, STAINLESS STEEL, G2800R $1.96
153 236-35201-01 GASKET(EXHAUST), G2800R $4.93
154 31B-13001-03 MUFFLER COVER 2, G2800R $17.69
155 239-33301-03 TAPPET, G2410R $9.77
156 253-31701-11 CAMSHAFT COMPLETE, G2800R $75.50
157 003-15220-00 SNAP RING, G2800R $1.85
158 227-36401-03 RELEASE LEVER, G2800R $12.96
159 005-19041-00 SPRING PIN, G5710R $1.34
160 227-32610-07 CLEANER ELEMENT SET, G2800R $27.26
161 226-39212-00 NUT & WASHER ASS'Y, G2800R $1.34
162 206-43901-01 KNOB CPL. G2800R $3.50
163 236-32630-08 PACKING, G2800R $1.41
164 207-32690-08 GROMMET, G2800R . $3.50
166 237-36120-13 SPACER, G2410R $3.50
167 017-00800-90 NUT, G5710R $5.26
168 014-90800-21 ADJUSTING SCREW, G5710R $4.93
169 253-36101-00 ROCKER ARM ASSY, G2410R $12.96
170 237-33701-23 SPRING RETAINR, G2410R $3.61
171 237-33601-03 VALVE SPRING, G2410R $3.61
172 237-35001-03 ROCKER SHAFT, G2410R $8.12
173 253-35301-01 PUSH ROD, COMPLETE, G2410R $6.69
174 238-33501-03 EXHAUST VALVE, G2410R $16.04
175 238-33401-33 INTAKE VALVE, G2410R $11.42
176 011-00600-30 FLANGE BOLT, G2800R $1.85
179 227-43301-01 SPEED CONTROL, G2410R $6.69
180 237-45004-23 SPRING (ADJUSTER), G2800R $1.96
181 004-31063-00 SCREW, EW210R $0.82
182 253-42501-23 GOVERNOR SPRING, G2800R $3.61
183 253-42701-01 GOVERNOR ROD, G2800R $4.93
184 253-42801-03 ROD SPRING, G2800R $5.26
185 253-42301-11 GOVERNOR LEVER, G2410R $10.65
186 003-11080-00 WASHER, G1300R $1.34
187 001-14063-00 BOLT & WASHER ASS'Y, G5710R $1.34
188 018-60600-20 NUT, G2800R . $1.34
190 220-62536-08 THROTTLE VALVE (#160), G2800R $11.42
191 253-62531-08 SHAFT ASSY, G2410R $22.53
192 209-62445-08 SPRING, G2800R $3.61
193 246-62436-08 PILOT SCREW, G5710R $20.88
194 246-62551-08 CAP, G5710R $4.93
195 242-62323-08 SCREW, G2800R $1.85
196 253-62520-08 CHOKE LEVER, G2410R $19.34
197 236-62528-08 VALVE (CHOKE), G2410R $6.69
198 236-62631-08 RING, G2410R $3.50
199 106-62392-18 SEAL, G6100R $3.50
200 246-62435-08 SCREW, G5710R $3.50
201 253-62420-08 PILOT JET (#52.5),G2800R $6.69
202 239-62560-08 RING (CHOKE), G5710R $4.93
203 247-62550-08 CAP, G5710R $4.93
204 236-62680-08 SEAL, G5710R $4.93
205 226-62550-08 RING, G2410R $3.50
206 236-62510-08 FLOAT PIN, G2800R $3.50
207 238-62440-08 MAIN NOZZLE, G2800R $14.61
208 235-62425-08 GUIDE HOLDER, G2800R $8.12
209 253-62401-08 MAIN JET (#73.8), G2800R $9.77
210 236-62540-08 PACKING (CHAMBER), G2800R $4.93
211 236-62505-08 FLOAT, G2800R $19.34
212 236-62551-08 FLOAT CHAMBER, G2800R $29.58
213 236-62450-08 PACKING, G2800R $1.85
214 236-62451-08 BOLT, G2800R $6.69
215 161-62352-08 NEEDLE VALVE, G2800R $45.08
216 236-62445-08 SPRING, G2800R $3.61
217 001-10081-60 BOLT & WASHER, G2800R $1.63
218 056-61200-50 CLAMP, G2410R $3.50
219 065-50001-40 SPARK PLUG CAP, G5710R $4.93
220 065-90000-10 PLUG TERMINAL, G5710R $3.50
221 253-79430-31 IGNITION COIL, G2410R $72.30
222 001-14062-50 BOLT & WASHER, G2800R $1.34
223 214-73122-01 WIRE 22, G2410R $3.50
224 206-75501-01 CLAMP COMP., G2410R $3.50
225 001-10081-60 BOLT & WASHER, G2800R $1.63
226 207-75001-01 CLAMP, G2410R $3.50
227 065-01401-50 SPARK PLUG BR6HS, G2800R $4.93
228 253-73102-01 WIRE 2, COMPL., G2410R $4.93
229 253-62409-00 CARBURETOR ASSY, G2410R $180.62
230 253-17501-13 SHELTER PLATE, G2800R $4.93
231 004-35051-00 SCREW & WASHER, G2800R $1.01
232 253-73103-01 WIRE 3 CPL., G5710R $4.93
233 KS3-11010-01 OIL SENSOR CPL., G2800R $136.00
234 227-42201-03 GOVERNOR SHAFT, G2800R $9.77
235 003-13060-00 CLIP, G2800R $1.34
236 064-20032-30 SPRING, EW310TR $1.96
