Makita G1300R Generator Parts

Makita G1300R Generator Parts Image

Makita G1300R Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Page-10
Page-11
Page-12
Page-13
Page-14
Page-15
Page-16
Page-17
Page-18
Page-19
Page-20
Page-21
Tool Diagram    (Click image to Zoom in) View larger Image

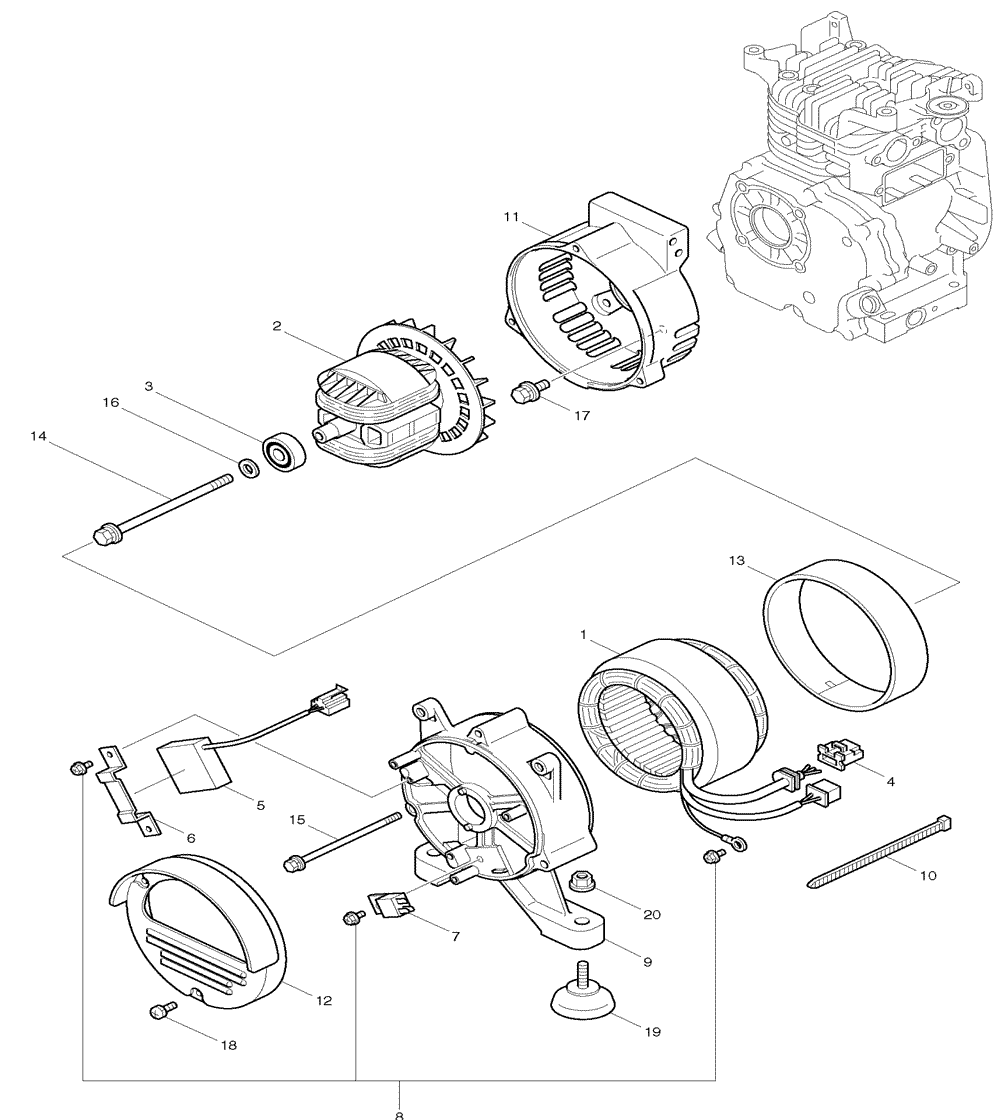

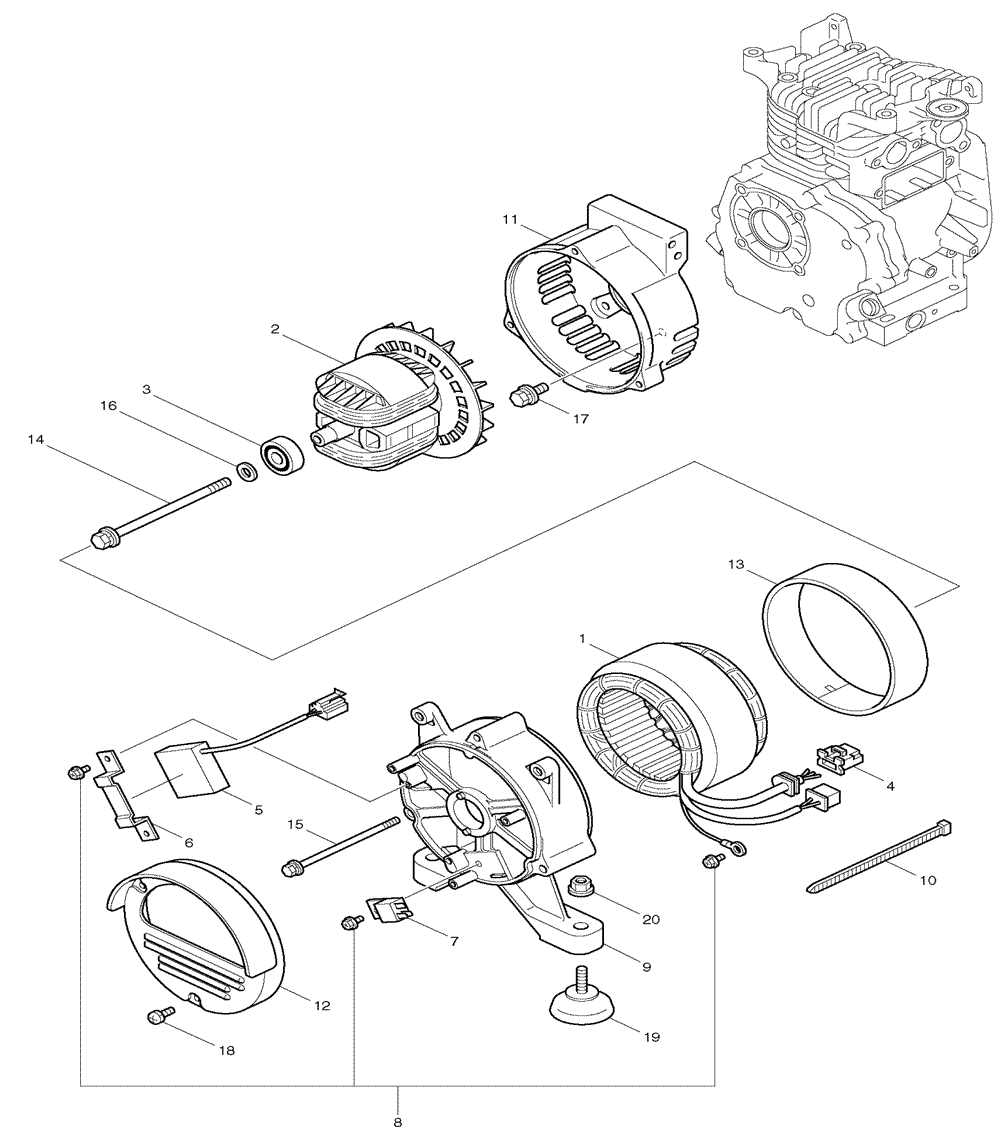

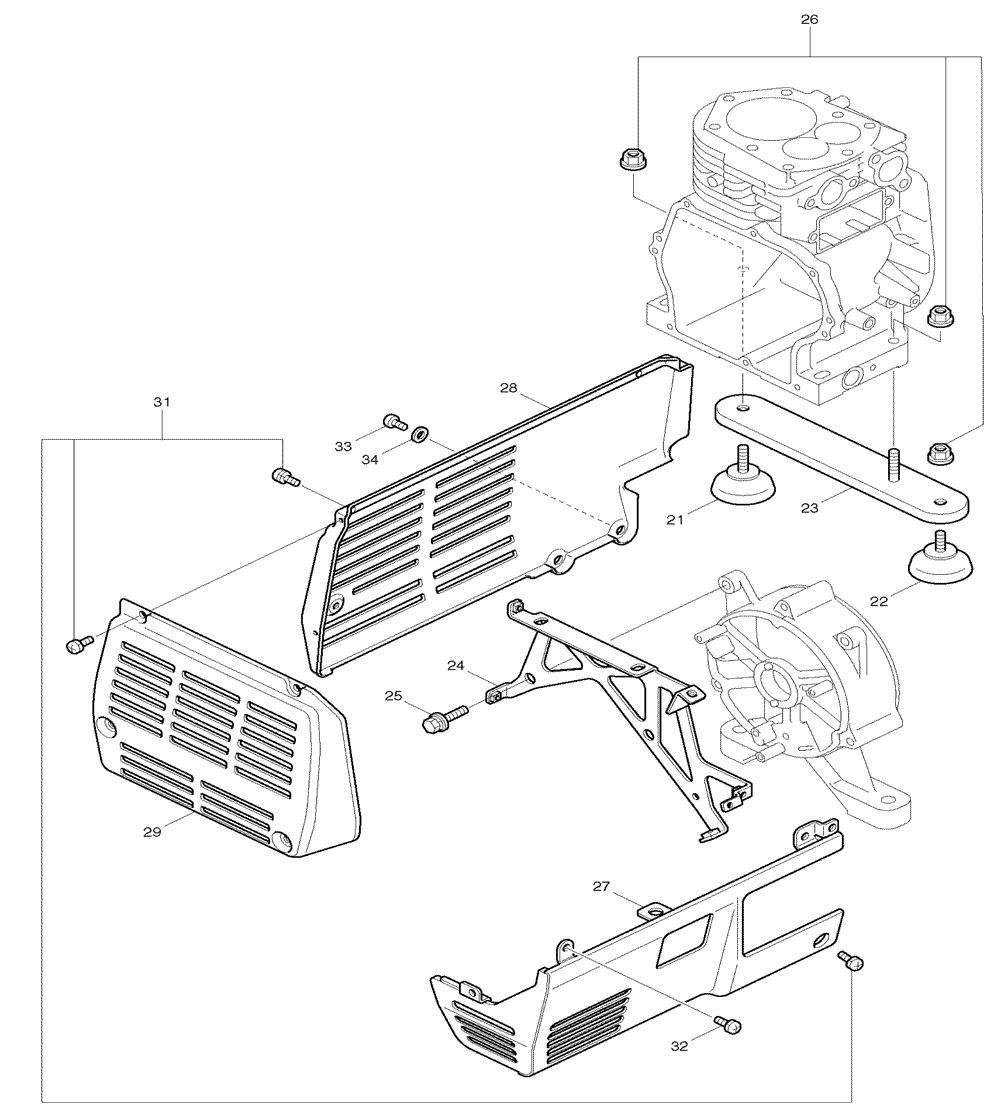

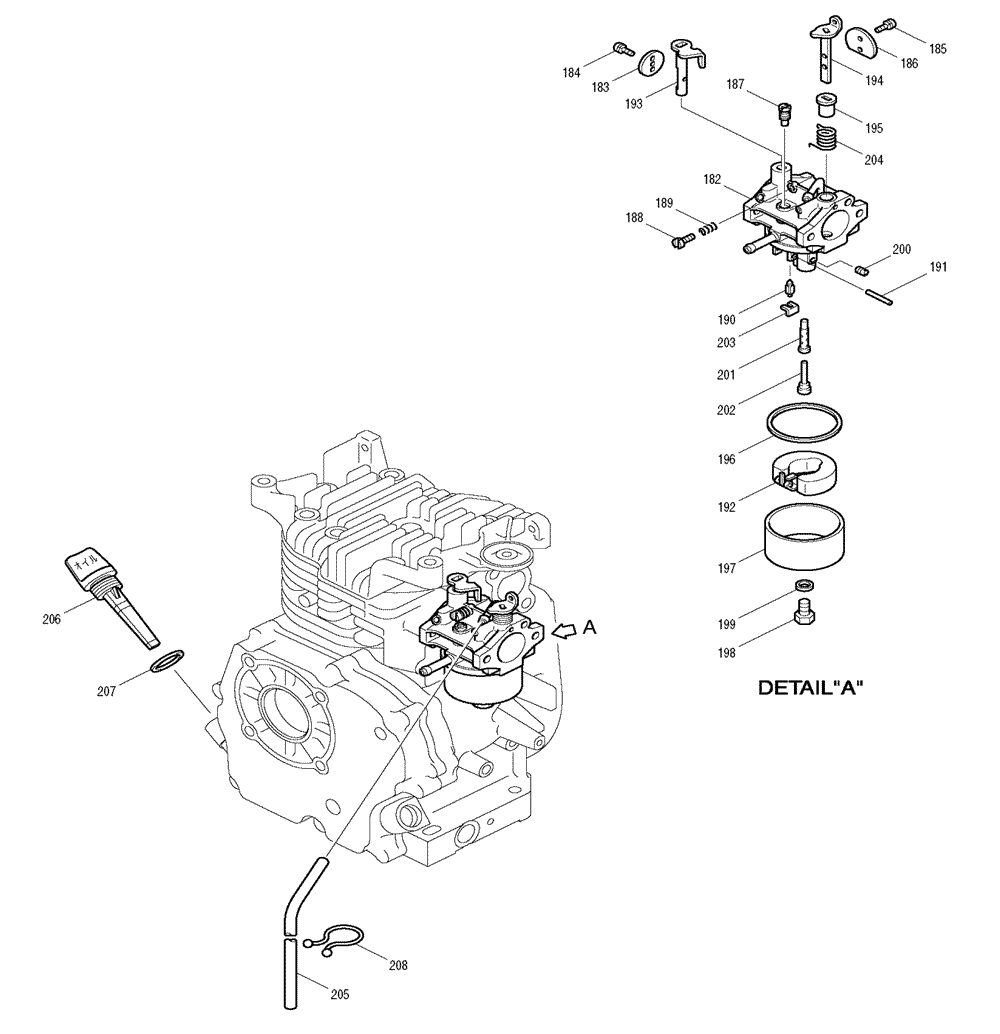

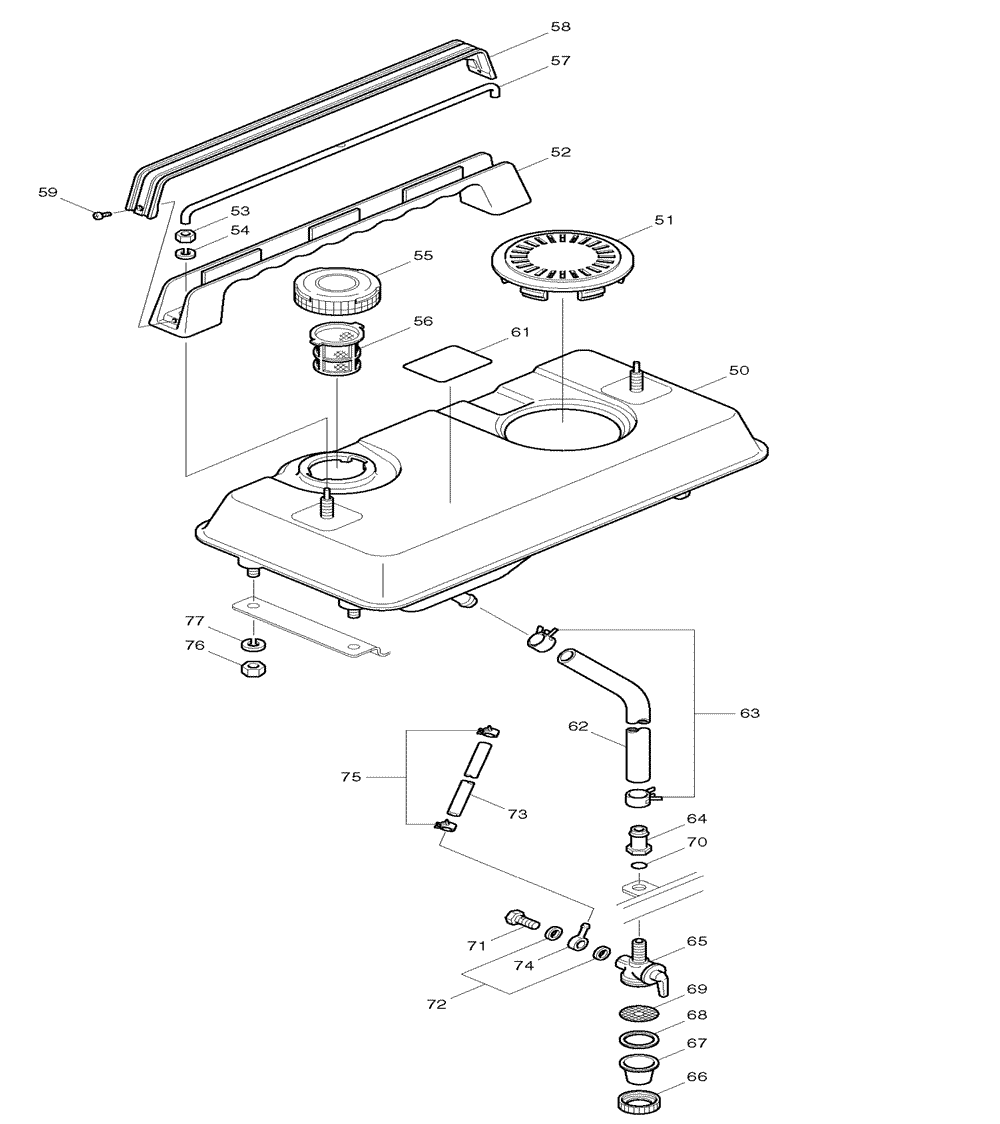

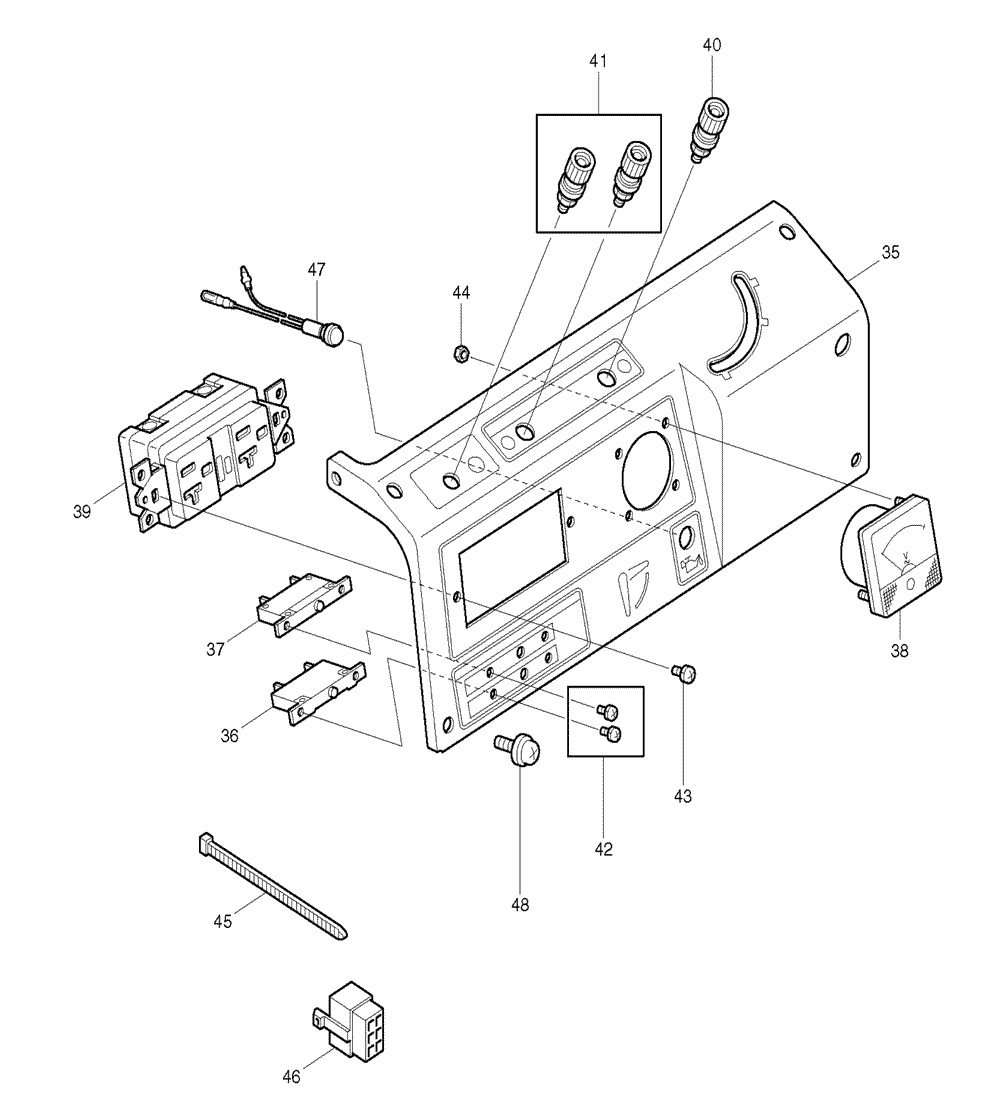

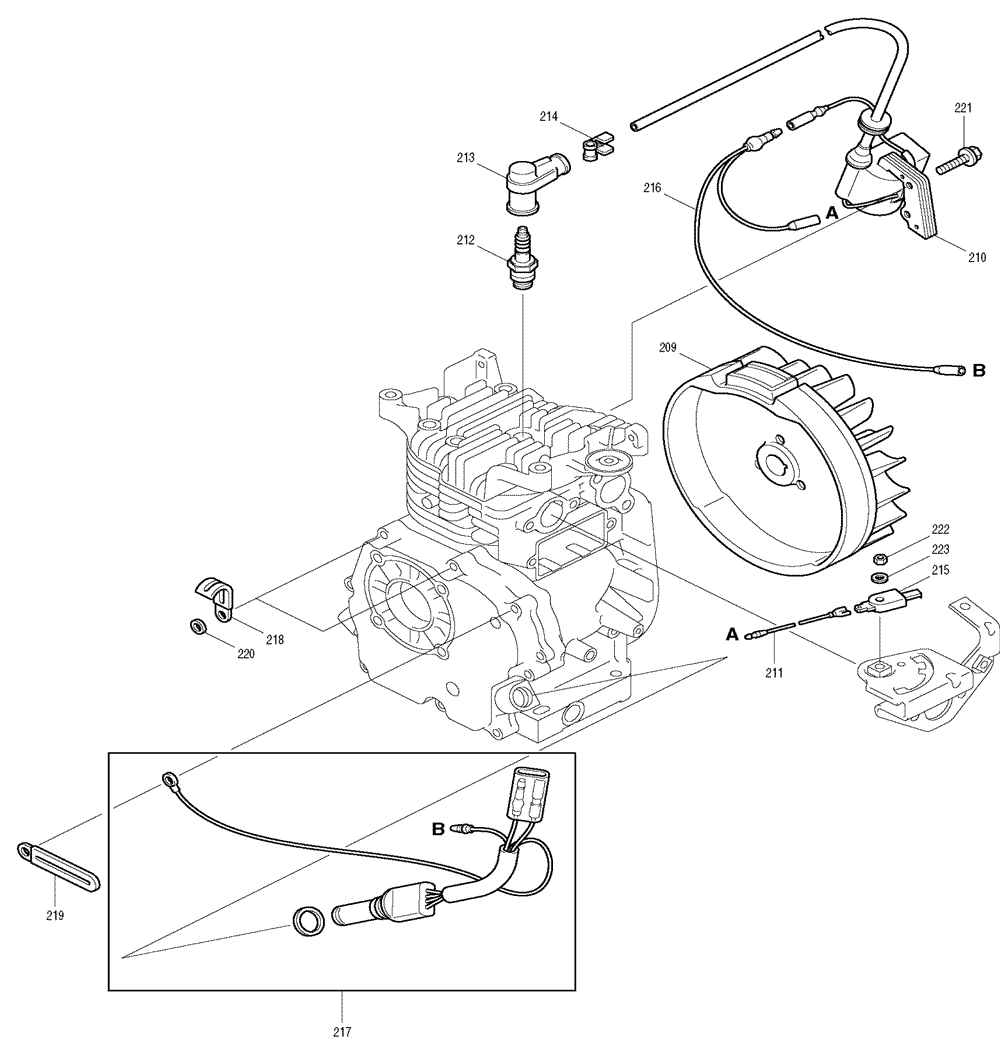

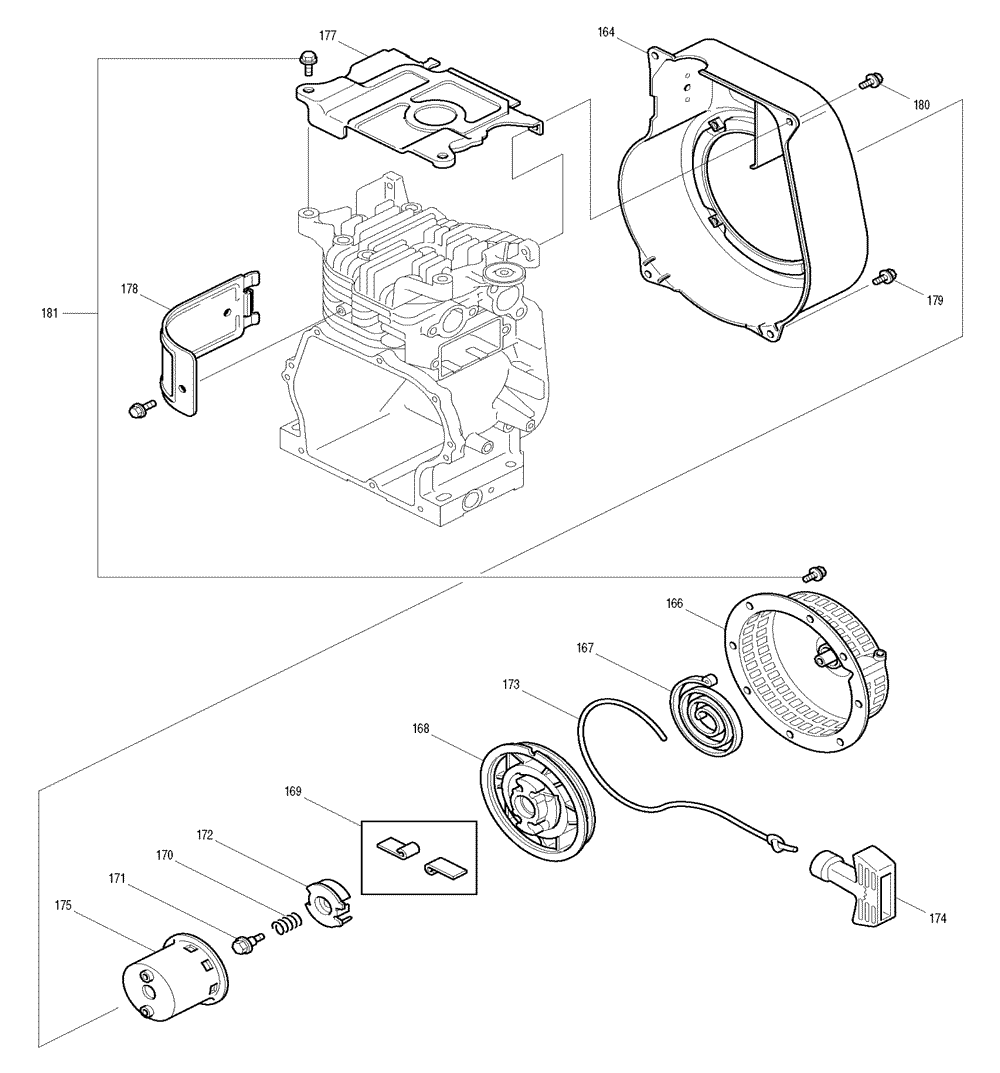

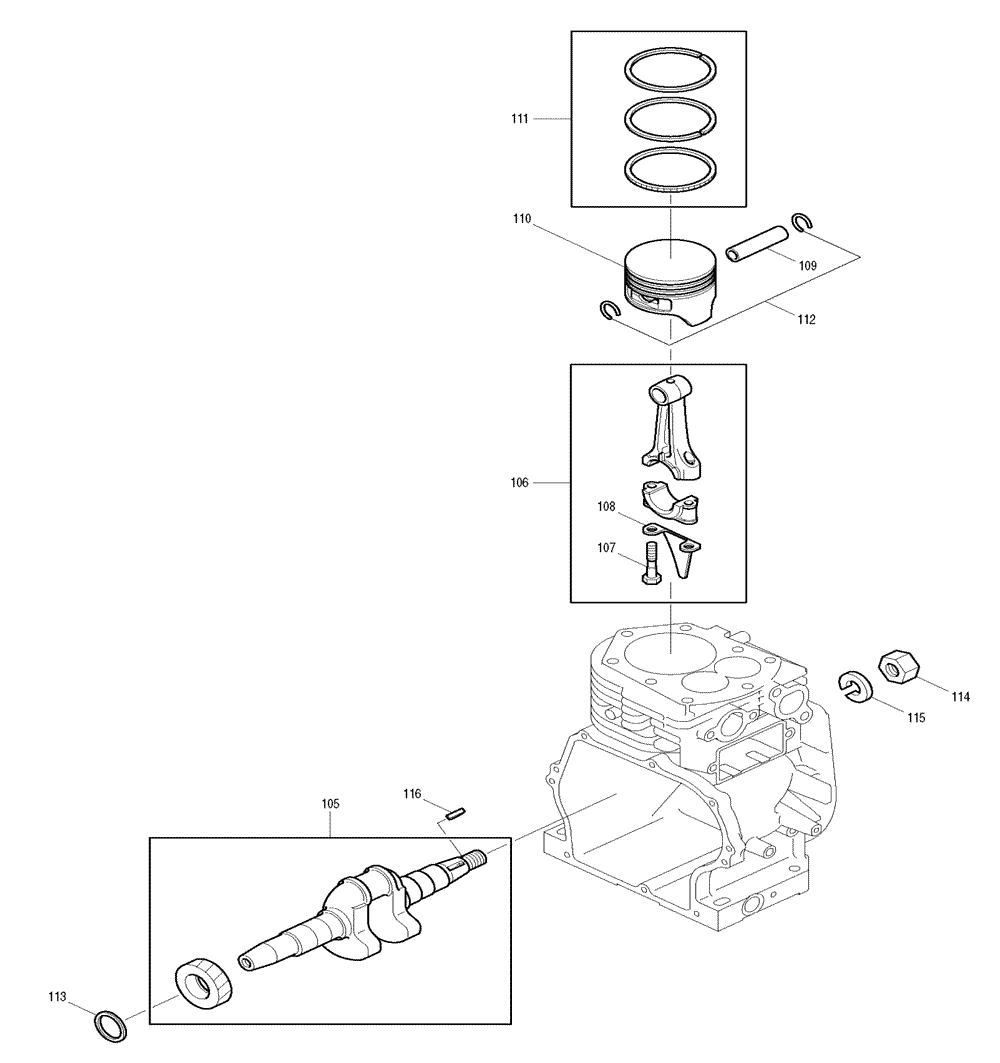

Makita G1300R Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 350-22808-11 STATOR CPL.,G1300R $345.91
2 350-24301-01 ROTOR CP., G1300R $284.99
3 358-21015-08 BALL BEARING, G1300R $10.65
4 358-21020-08 CONNECTOR(6P), G1300R . $6.14
5 350-21320-08 CONDENSER, G1300R $26.72
6 376-22100-03 CONDENCER BRACKET, G1300R $3.17
7 358-21006-08 RECTIFIER, G1300R $31.11
8 383-21051-08 SCREW, G1300R $6.91
9 350-21300-08 REAR BRACKET, G1300R $74.40
10 056-30000-20 WIRE BAND, G2400R $3.50
11 376-23000-03 FRONT COVER, G1300R $49.47
12 350-23501-01 END COVER COMPLETE, G1300R $37.63
13 377-24000-13 STATOR COVER, G1300R $11.09
14 377-25100-03 THROUGH BOLT, G1300R $5.26
15 377-25200-03 COVER BOLT, G1300R $1.85
16 003-11080-00 WASHER, G1300R $1.34
17 001-13082-00 BOLT & WASHER, G2410R . $1.63
18 004-36040-80 SCREW & WASHER ASS'Y, G1300R $1.01
19 350-30103-01 MOUNT COMPLETE, G1300R $11.42
20 002-38080-00 FLANGE NUT, G6100R $2.40
21 350-30103-01 MOUNT COMPLETE, G1300R $11.42
22 350-30104-01 MOUNT COMPL. G1300R $11.42
23 350-30701-21 MOUNT BRACKET COMPL. G1300R $9.77
24 350-35101-11 BRACKET COMPLETE, G1300R $27.94
25 001-13082-00 BOLT & WASHER, G2410R . $1.63
26 002-38080-00 FLANGE NUT, G6100R $2.40
27 350-50307-01 FRONT COVER, G1300R $69.40
28 350-50707-01 REAR COVER CPL.,G1300R $27.26
29 350-51707-01 SIDE COVER, G1300R $12.96
31 013-10500-20 SCREW & WASHER ASS'Y, G1300R $1.34
32 004-34051-00 SCREW & WASHER ASS'Y, G1300R $1.01
33 004-31081-00 PAN HEAD SCREW, G1300R $1.08
34 003-11080-00 WASHER, G1300R $1.34

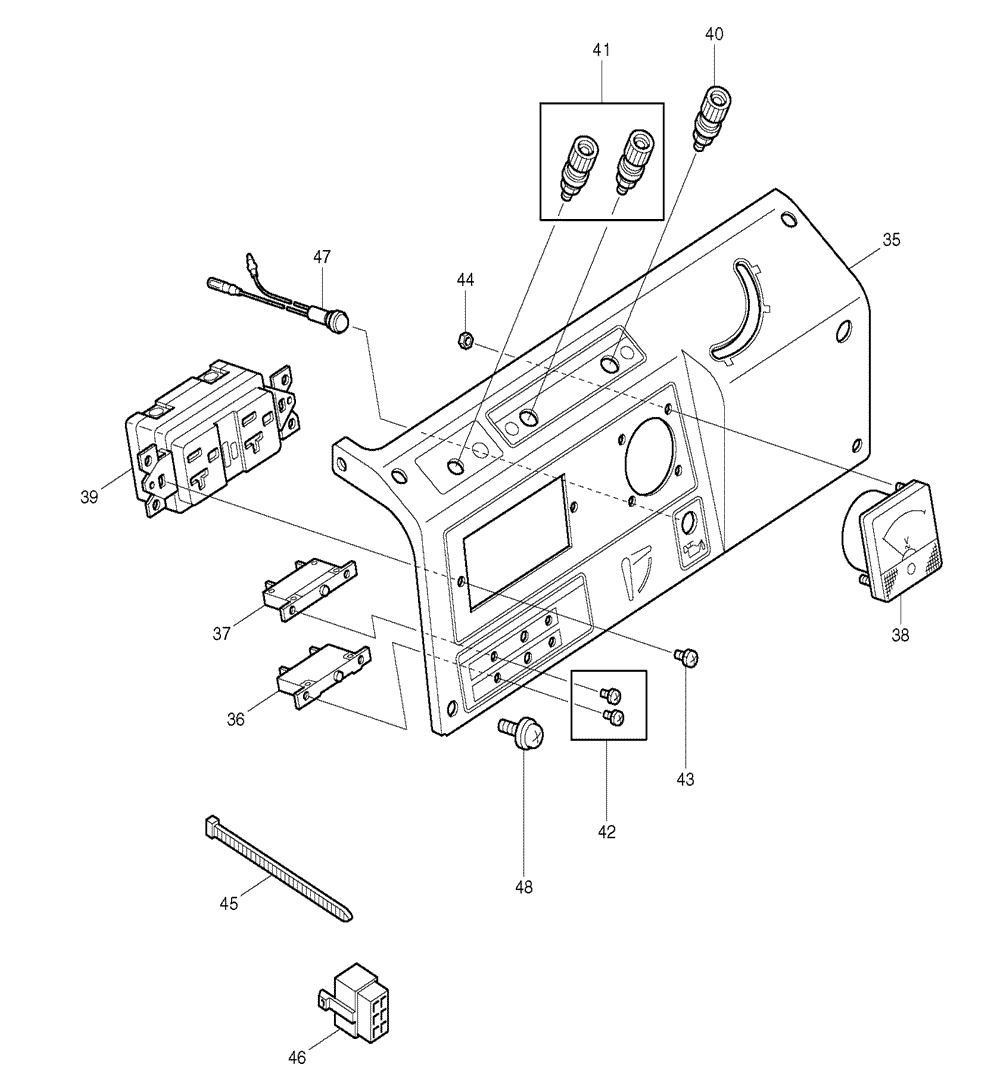

35 350-44113-01 CONTROL PANEL CPL.,G1300R $60.80
36 352-45620-08 CIRCUIT BREAKER (10A), G2400R $23.96
37 351-45624-08 CIRCUIT BREAKER AC, G1300R $24.18
38 391-47802-01 AC VOLTMETER CPL.,G1300R $99.20
39 33K-49951-01 AC RECEPTACLE GFCI (125V-20A),G6101R $98.20
40 363-45701-08 TERMINAL BOLT(RED), G2800R $7.90
41 363-45700-08 TERMINAL BOLT (BLK),G2800R $7.90
42 004-35030-60 SCREW & WASHER, G2410R . $0.90
43 004-35041-00 SCREW & WASHER, G2800R $0.90
44 002-17030-00 NUT, G2800R $1.34
45 056-30000-20 WIRE BAND, G2400R $3.50
46 353-54300-08 CONNECTOR(6P), G1300R $3.50
47 227-77002-00 LED LAMP ASSEMBLY, G1300R $15.60
48 013-10500-20 SCREW & WASHER ASS'Y, G1300R $1.34
50 350-60103-81 FUEL TANK CPL.,G1300R $179.46
51 227-66001-03 PLUG COVER, G1300R $7.68
52 350-65201-01 HANDLE, G1300R $31.11
53 002-18080-00 NUT, G1300R $1.34
54 003-20080-00 SPRING WASHER, G2800R $1.34
55 043-04300-41 FUEL TANK CAP COMPL., G1300R $6.69
56 064-13600-20 FUEL FILTER COMPL., G1300R $4.93
57 350-65501-03 BREATHER PIPE, G1300R $4.93
58 350-65401-13 HANDLE COVER, G1300R $6.69
59 004-31031-00 PAN HEAD SCREW, G1300R . $0.82
61 073-20026-31 CAUTION LABEL, G1300R $4.84
63 056-11700-10 HOSE CLAMP, G5711R $1.85
64 053-30900-20 NUT (JOINT), G2400R $6.69
65 064-20049-02 FUEL STRAINER ASS'Y, G1300R $26.72
66 064-20024-10 LOCK NUT, G2400R $7.68
67 064-20019-10 CUP, G2400R $4.93
68 064-20002-30 PACKING, G2400R $2.40
69 064-20002-20 FILTER, G2400R $2.40
70 064-20003-30 O RING, G2400R $1.85
71 064-20002-40 BANJO BOLT, G2400R $3.50
72 064-20002-50 FIBER PACKING, G2400R $1.08
73 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
74 052-10700-42 BANJO, G3500R $4.93
75 056-11100-20 HOSE CLAMP, G2800R $1.41
76 002-18080-00 NUT, G1300R $1.34
77 003-20080-00 SPRING WASHER, G2800R $1.34

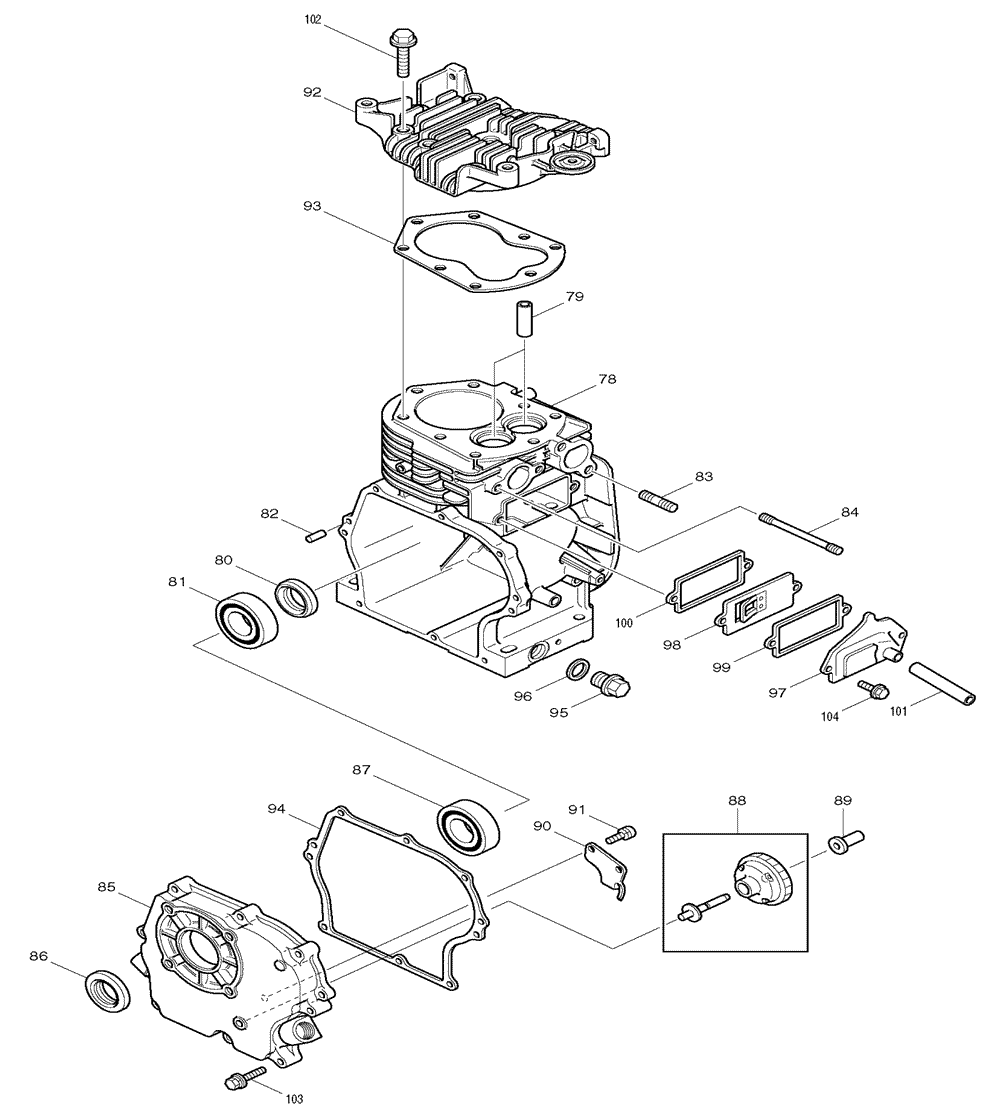

78 226-10101-21 CRANKCASE COMPLETE, EW200R $285.48
79 227-14202-03 VALVE GUIDE, OVERSIZE, G2400R $9.77
80 044-02501-50 OIL SEAL 25X38X7MM, G2400R $6.69
81 060-02500-10 BALL BEARING, G2800R $11.42
82 031-00600-20 DOWEL PIN, G2800R $1.08
83 010-50802-50 STUD G2410R $1.85
84 010-50601-20 STUD, G2400R $1.85
85 227-11006-11 MAIN BEARING COVER CPL.,G1300R $89.70
86 044-02501-60 OIL SEAL 25X41.24X7MM, G2800R $8.12
87 060-02500-10 BALL BEARING, G2800R $11.42
88 227-45003-01 GOVERNOR GEAR COMPLETE, G2800R $18.46
89 205-41901-03 GOVERNOR SLEEVE, G2800R $4.71
90 227-17501-03 OIL SHELTER, SENSOR G2400R $3.61
91 004-35040-80 SCREW & WASHER ASSY, G2400R $0.90
92 226-13101-13 CYLINDER HEAD, G1300R $44.26
93 281-15001-01 GASKET CPL., G1300R $6.80
94 227-16001-03 GASKET, BEARING COVER, G2400R $3.50
95 040-11400-30 PLUG, G2800R $3.50
96 021-11400-20 GASKET, G2800R $1.08
97 227-14301-01 TAPPET COVER, COMPLETE, G2400R $8.12
98 227-14401-01 BREATHER PLATE, COMPLETE, G2400R $12.96
99 282-16006-03 GASKET FOR TAPE COVER, G1300R $3.28
100 282-16007-23 GASKET FOR BREATHER PLATE, G1300R $3.17
101 085-10800-00 RUBBER PIPE, G2800R $11.42
102 011-00800-10 FLANGE BOLT, G2400R $3.50
103 013-00600-40 BOLT & WASHER ASSY, G2800R $1.63
104 011-00600-20 FLANGE BOLT, G6100R $2.40

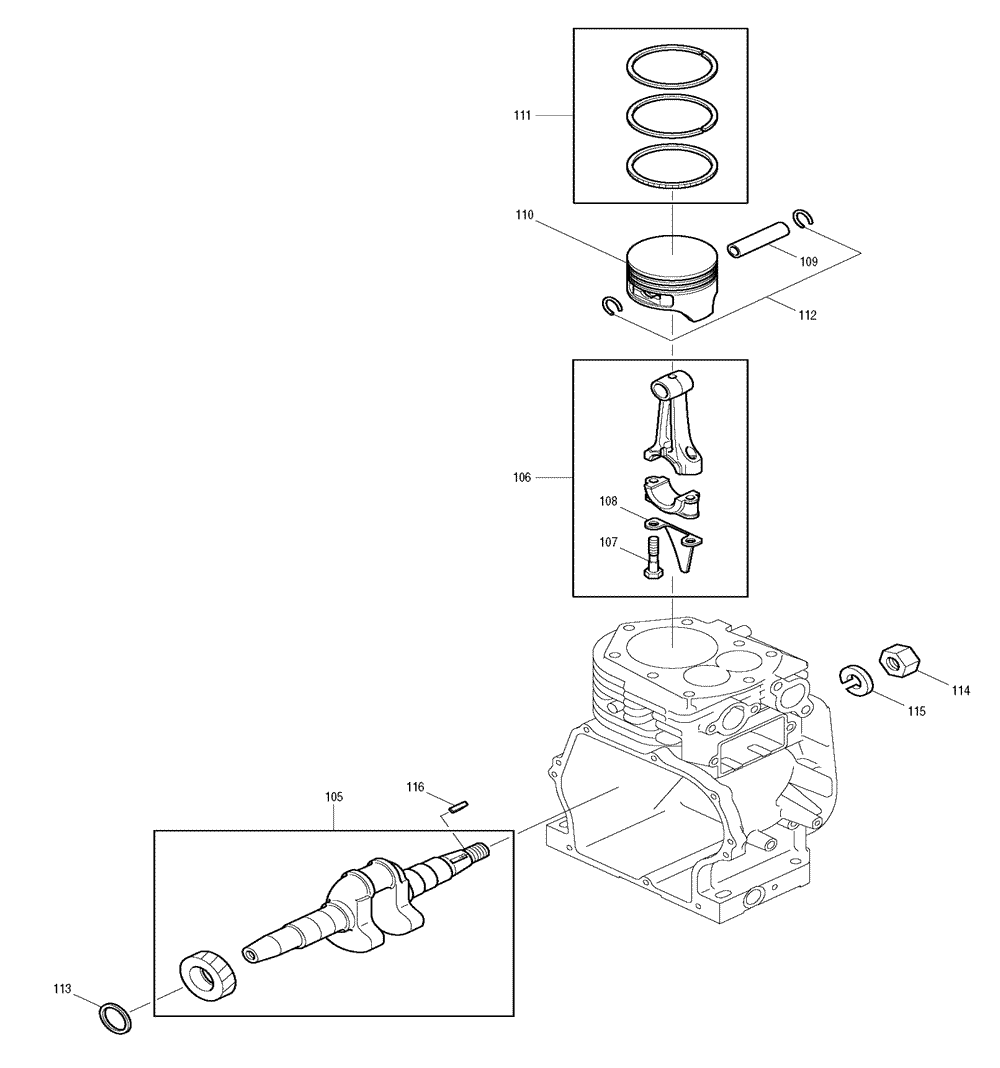

105 226-27001-01 CRANKSHAFT CPL.,G1300R $153.95
106 226-22520-00 CONNECTING ROD ASS'Y, G1300R $53.60
107 226-23001-13 CONNECTING ROD BOLT, G1300R $3.50
108 226-23101-03 OIL SCRAPER, G1300R $3.50
109 214-23301-13 PISTON PIN, G2400R $8.12
110 226-23411-03 PISTON (STD), G1300R $26.72
110 226-23412-03 PISTON (0.25MM), G1300R $29.58
110 226-23413-03 PISTON (0.50MM), G1300R $29.58
111 226-23511-07 PISTON RING SET (STD), G1300R $27.26
111 226-23512-07 PISTON RING SET (0.25MM),G1300R $26.72
111 226-23513-07 PISTON RING SET(0.50MM),G1300R $26.72
112 056-51400-10 CLIP, G2400R . $1.34
113 023-02501-10 SPACER, (T=0.6), G2800R $3.50
113 023-02501-20 SPACER (T=0.8), G2800R $3.50
113 023-02501-30 SPACER, (T=1.0), G2800R $3.50
114 002-18140-00 NUT, 14MM, G2800R $3.61
115 003-20140-00 SPRING WASHER, 14MM, G2800R $1.63
116 032-30300-10 WOODRUFF KEY, 3X6MM, G2800R $3.50
117 226-31710-03 CAMSHAFT, G1300R $73.80
118 226-33301-03 TAPPET, G1300R $9.77

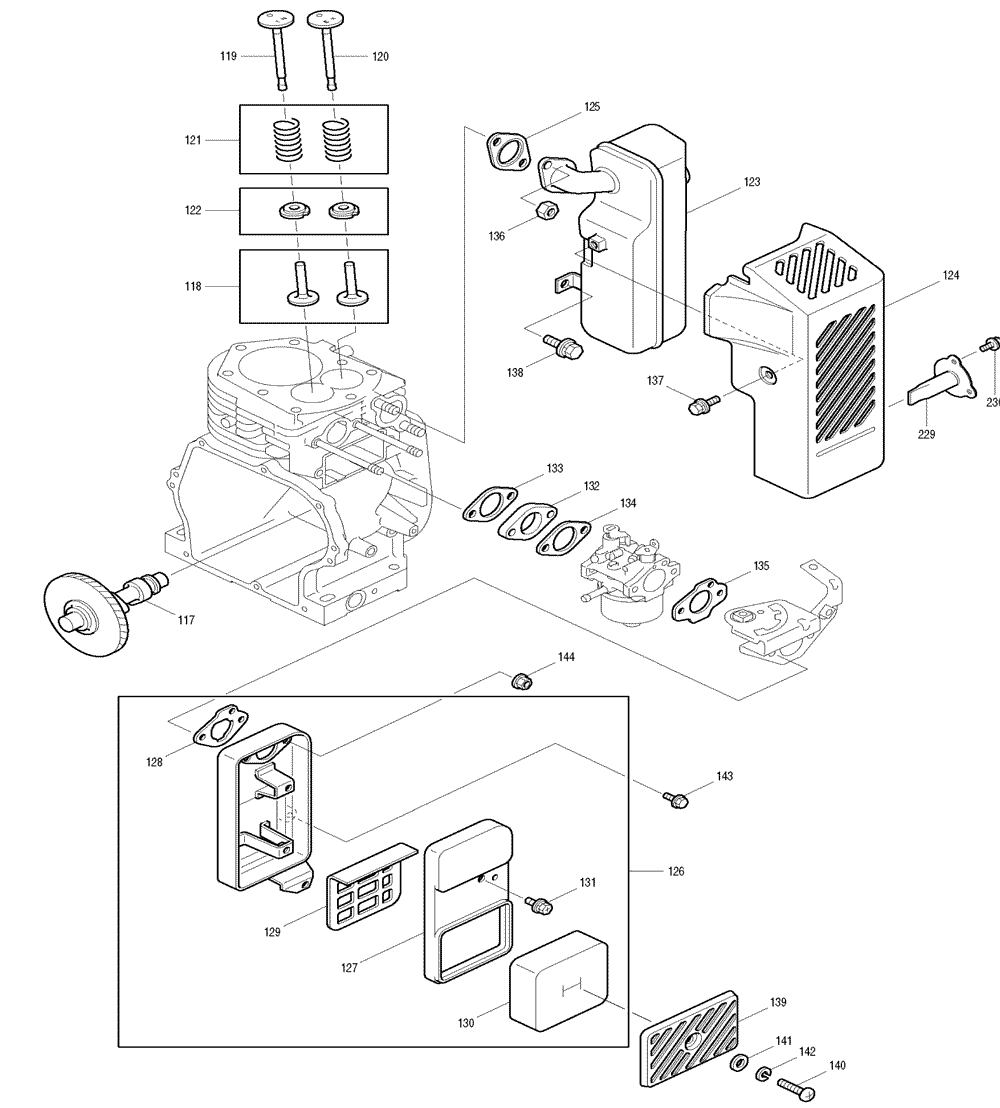

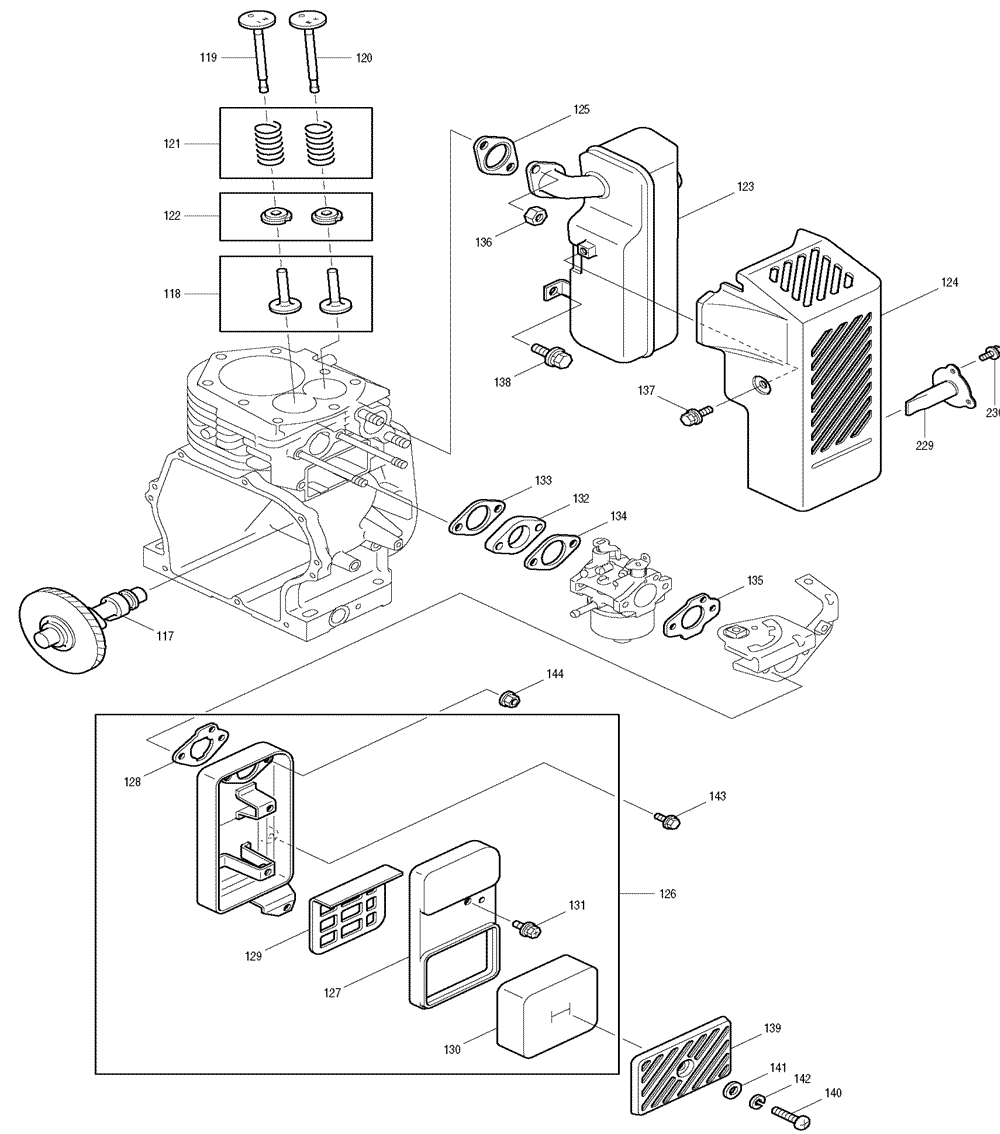

119 226-33401-03 INTAKE VALVE, G1300R $11.42
120 226-33501-13 EXHAUST VALVE, G1300R $17.69
121 227-33601-03 VALVE SPRING, G2400R $3.61
122 227-33701-03 SPRING RETAINER, G2400R $2.29
123 226-30302-11 MUFFLER CPL., G1300R $69.40
124 226-34206-11 MUFFLER COVER, G1300R $40.39
125 226-35201-01 GASKET COMPLETE, G1300R $4.93
126 226-32639-00 AIR CLEANER ASS'Y, G1300R $39.98
127 226-35010-11 CLEANER CASE, G1300R $8.12
128 227-36004-13 GASKET, G1300R $1.41
129 226-36003-03 ELEMENT RETAINER, G1300R $4.93
130 226-36004-03 ELEMENT, G1300R $5.70
131 004-35061-00 SCREW & WASHER, G1300R $0.90
132 227-32901-13 INSULATOR, G2400R $4.93
133 282-35901-03 GASKET, G1100 $1.41
134 227-35904-03 INSULATOR GASKET 2, G2400R $2.29
135 227-36003-13 GASKET, AIR CLEANER G2400R $1.41
136 002-19080-00 NUT, G2400R $4.16
137 011-00600-10 FLANGE BOLT, G6100R $2.40
138 013-50600-10 BOLT & WASHER, G1300R $1.34
139 226-35408-01 ELEMENT COVER, G1300R $9.22
140 014-10600-30 SCREW, G1300R $1.08
141 003-10060-00 WASHER, G2410R $0.90
142 003-20060-00 SPRING WASHER, G2800R $1.34
143 011-00600-30 FLANGE BOLT, G2800R $1.85
144 002-38060-00 FLANGE NUT, G6101R $2.40

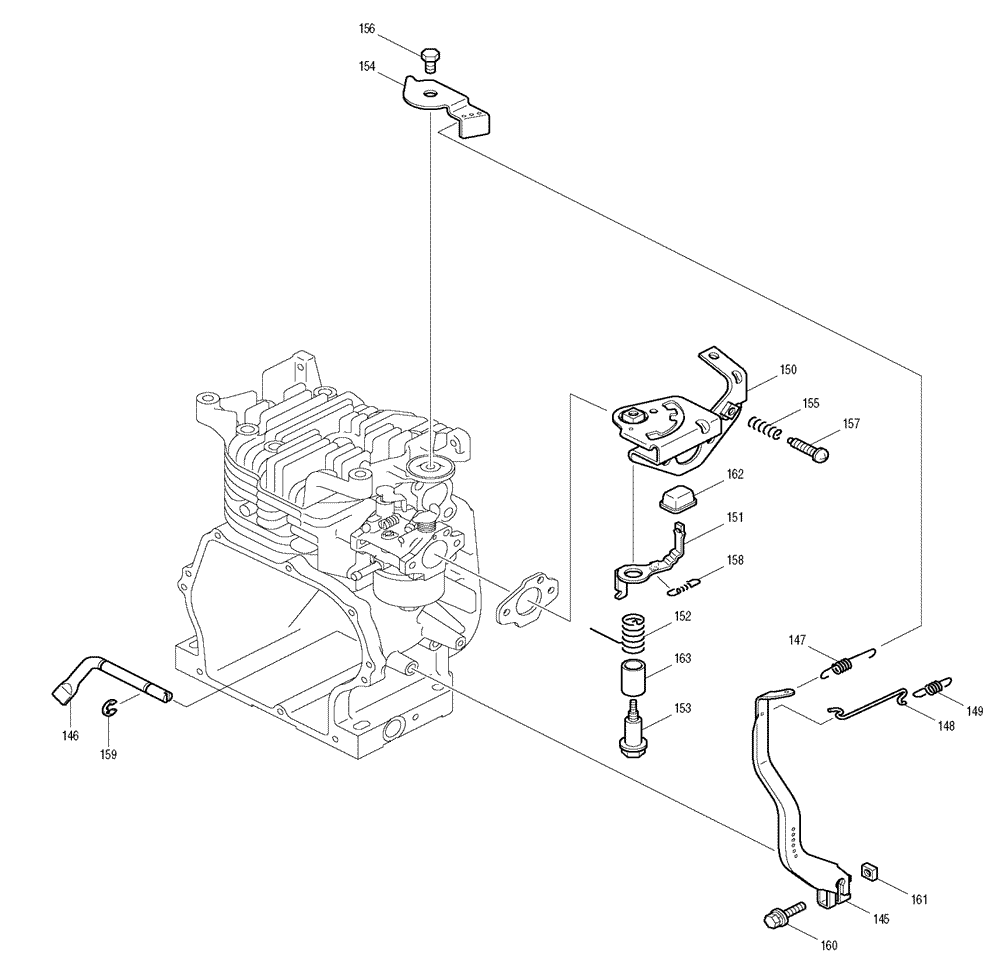

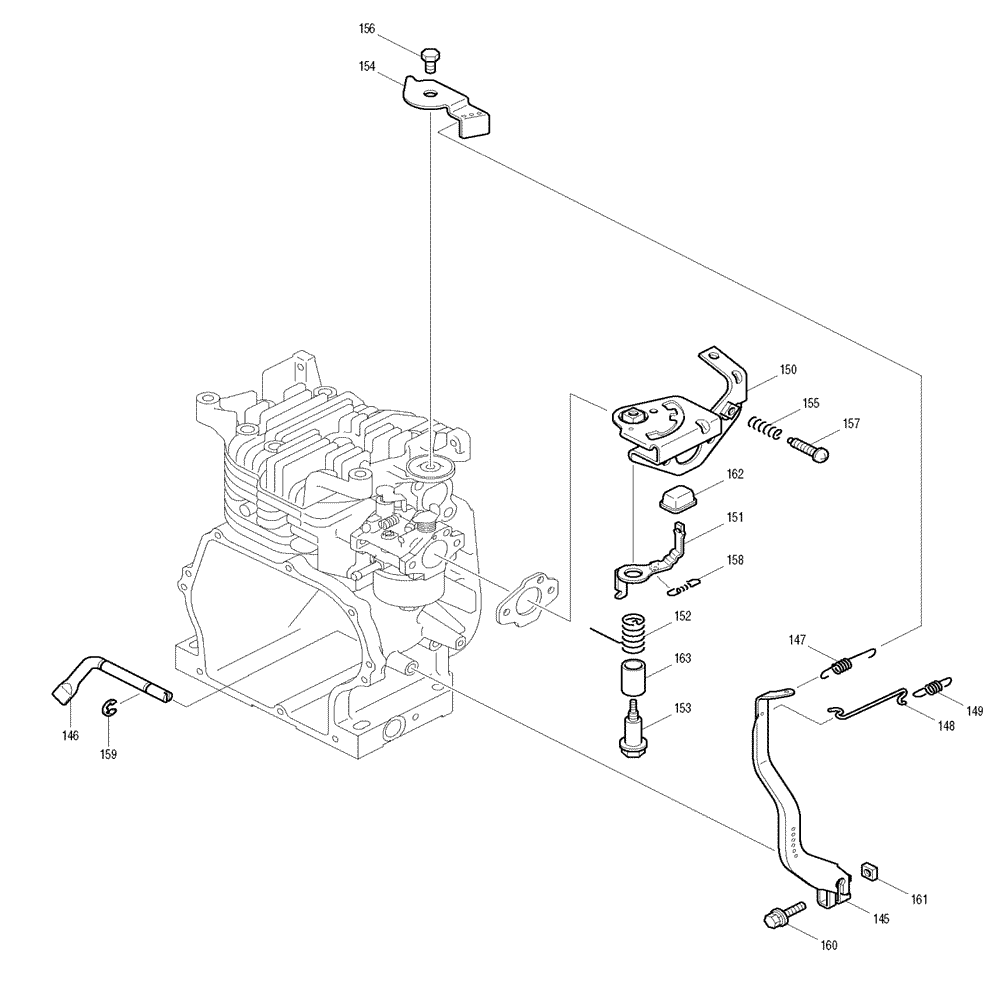

145 226-42301-11 GOVERNOR LEVER CPL.,G1300R $9.77
146 227-42201-03 GOVERNOR SHAFT, G2800R $9.77
147 226-42501-13 GOVERNOR SPRING, G1300R $3.61
148 227-42701-01 GOVERNOR ROD, G2400R $3.50
149 227-42801-03 ROD SPRING, G1100 $3.61
150 226-47101-11 CONTROL BRACKET, G1300R $9.77
151 226-45301-11 CONTROL LEVER, G1300R $4.93
152 226-45004-01 SPRING, G1300R $5.26
153 226-48001-11 BOLT, G1300R $7.68
154 226-43304-01 SPEED CONTROL, G1300R $11.42
155 226-48006-03 SPRING, G1300R $4.16
156 226-48003-01 BOLT, G1300R . $4.93
157 226-48004-01 SCREW, G1300R $3.61
158 226-48005-13 SPRING, G1300R . $3.61
159 003-13060-00 CLIP, G2800R $1.34
160 001-14062-50 BOLT & WASHER, G2800R $1.34
161 018-60600-20 NUT, G2800R . $1.34
162 226-43901-13 KNOB, G1300R $3.50
163 023-00801-60 SPACER, G1300R $3.50

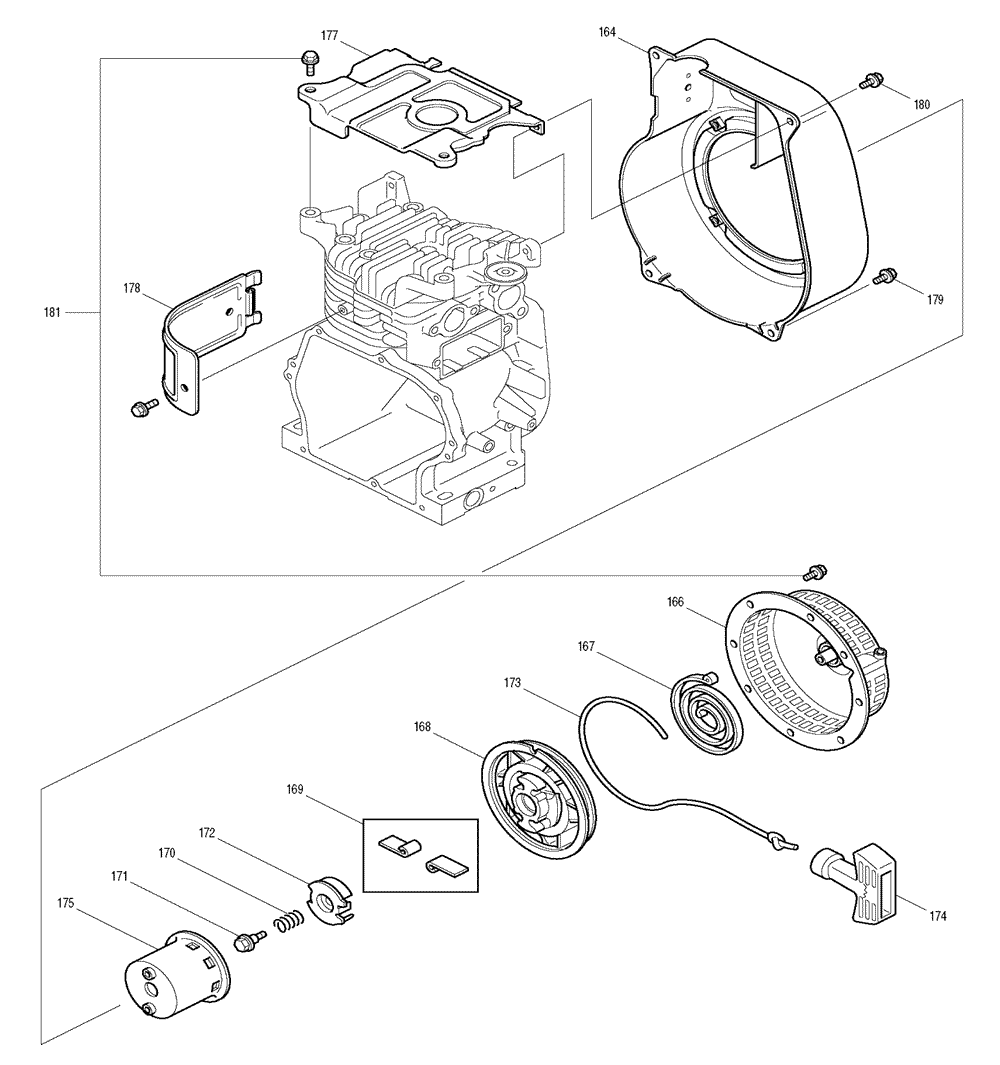

164 226-51240-06 BLOWER HOUSING, G1300R . $41.41
166 226-50711-20 RECOIL STARTER ASS'Y, G1300R $75.20
166 281-50311-00 RECOIL STARTER, G1200R $128.24
167 226-50716-08 SPIRAL SPRING, G1300R $23.96
168 226-50721-08 REEL, G1300R $22.53
169 226-50726-08 RATCHET, G1300R $4.93
170 226-50731-08 FRICTION SPRING, G1300R $3.61
171 226-50753-08 CENTER SCREW, G1300R $4.93
172 226-50741-08 FRICTION PLATE, G1300R $9.77
173 226-50710-18 STARTER ROPE, G1300R . $12.96
174 226-50701-08 STARTER KNOB, G1300R $6.69
175 226-50745-08 STARTING PULLEY, G1300R $19.34
178 226-52602-03 CYLINDER BAFFLE, G1300R $16.81
179 011-00600-20 FLANGE BOLT, G6100R $2.40
180 011-00600-30 FLANGE BOLT, G2800R $1.85
181 011-00600-10 FLANGE BOLT, G6100R $2.40
182 226-62480-00 CARBURETOR ASS'Y, G1300R $132.61
183 214-62535-08 THROTTLE VALVE, G1300R $9.77
184 209-62351-08 SCREW ASS'Y, G5711R $1.41
186 227-62527-08 CHOKE VALVE, G1300R $6.14
187 246-62420-08 PILOT JET (#40), G1300R $9.22
188 209-62352-08 SCREW, G1300R $1.41
189 209-62445-08 SPRING, G2800R $3.61
190 226-62502-08 NEEDLE VALVE ASS'Y, G1300R $33.45
191 214-62515-08 FLOAT PIN, G3510R $3.50
192 226-62506-08 FLOAT ASSEMBLY, G1200R $29.78
193 226-62530-08 SHAFT ASS'Y, THROTTLE, G2400R $27.26
194 226-62522-08 CHOKE LEVER, G1300R $26.41
195 226-62553-08 RING, G1300R $5.26
196 214-62540-08 FLOAT CHAMBER PACKING, G2400R $4.93
197 227-62558-08 FLOAT CHAMBER BODY, G1300R $29.58
199 214-62450-08 PACKING, G2400R $1.85
200 253-62401-08 MAIN JET (#73.8), G2800R $9.77
201 226-62456-08 MAIN NOZZLE, G1300R $22.64
202 227-62441-08 NOZZLE, G1300R $22.53
203 226-62701-08 CLIP, G1300R $3.61
204 226-62540-08 SPRING, G1300R $4.16
205 085-10400-00 RUBBER PIPE, G2400R $18.13
206 282-63601-H1 OIL GAUGE, G2800R $5.70
207 021-31600-20 GASKET, G2800R $1.08
208 217-75002-03 PURSE LOCK (B), G1300R $1.96
209 226-70120-18 FLYWHEEL, G1300R $131.64
210 226-79430-61 IGNITION COIL G1300R $73.60
211 226-73110-01 WIRE 10 COMP. G1300R $3.17
212 065-01401-50 SPARK PLUG BR6HS, G2800R $4.93
213 065-50001-40 SPARK PLUG CAP, G5710R $4.93
214 065-90000-10 PLUG TERMINAL, G5710R $3.50
215 226-72702-01 STOP SWITCH COMP., G1300R $4.93
216 227-73107-01 WIRE 7 CPL.,G1300R $4.93
218 214-79006-01 CLAMP COMP., G2410R . $5.26
219 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
220 003-10060-00 WASHER, G2410R $0.90
221 011-00601-21 FLANGE BOLT, G2400R $2.40
222 002-17040-00 NUT, G2800R $1.34
223 003-10040-00 WASHER, G6101R $0.97
229 226-36502-01 SPARK ARRESTER, G1300R $17.69
230 015-20500-20 TAPPING SCREW, G1300R $1.08
