Makita EH620 Trimmer Parts

Makita EH620 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

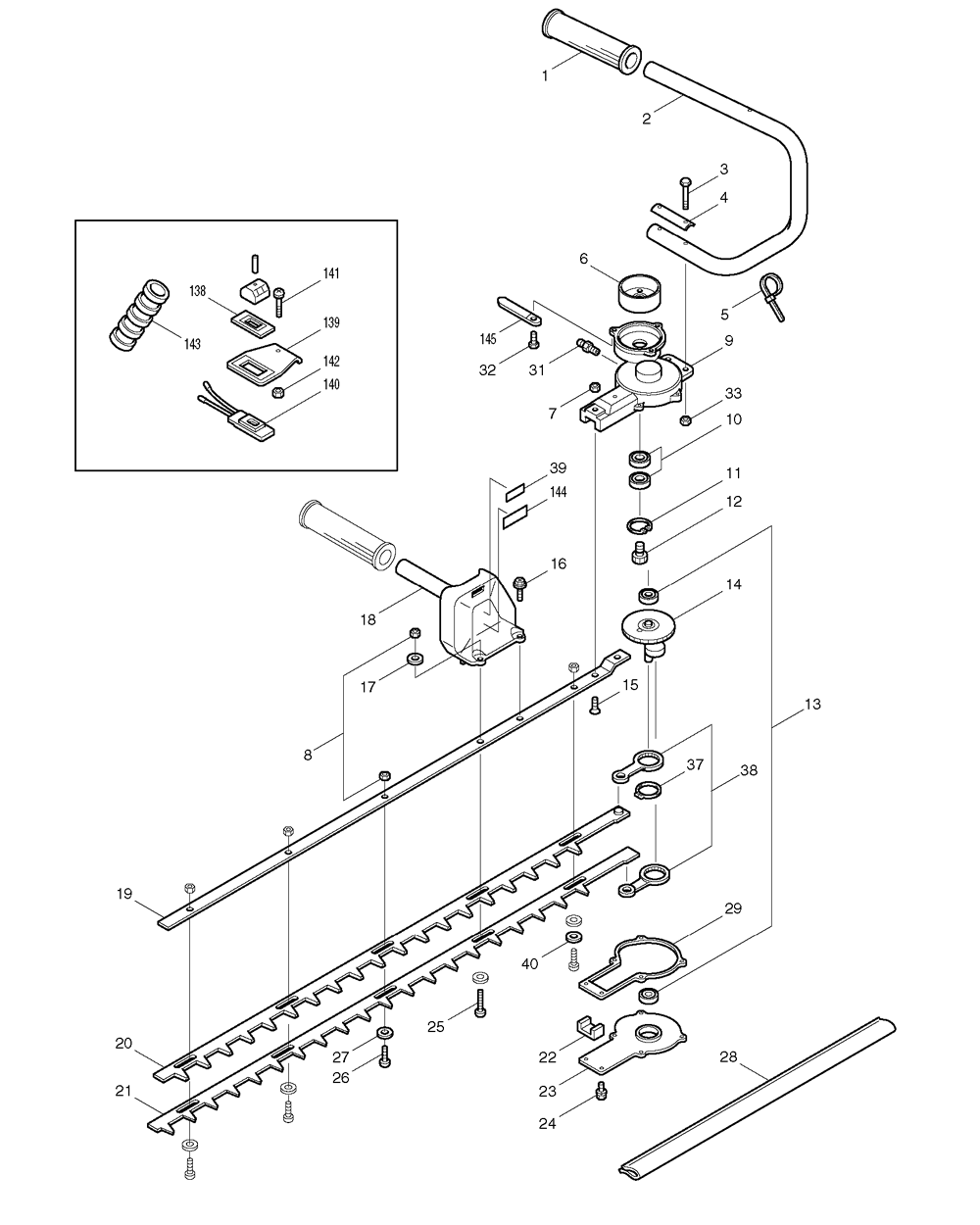

Page-1

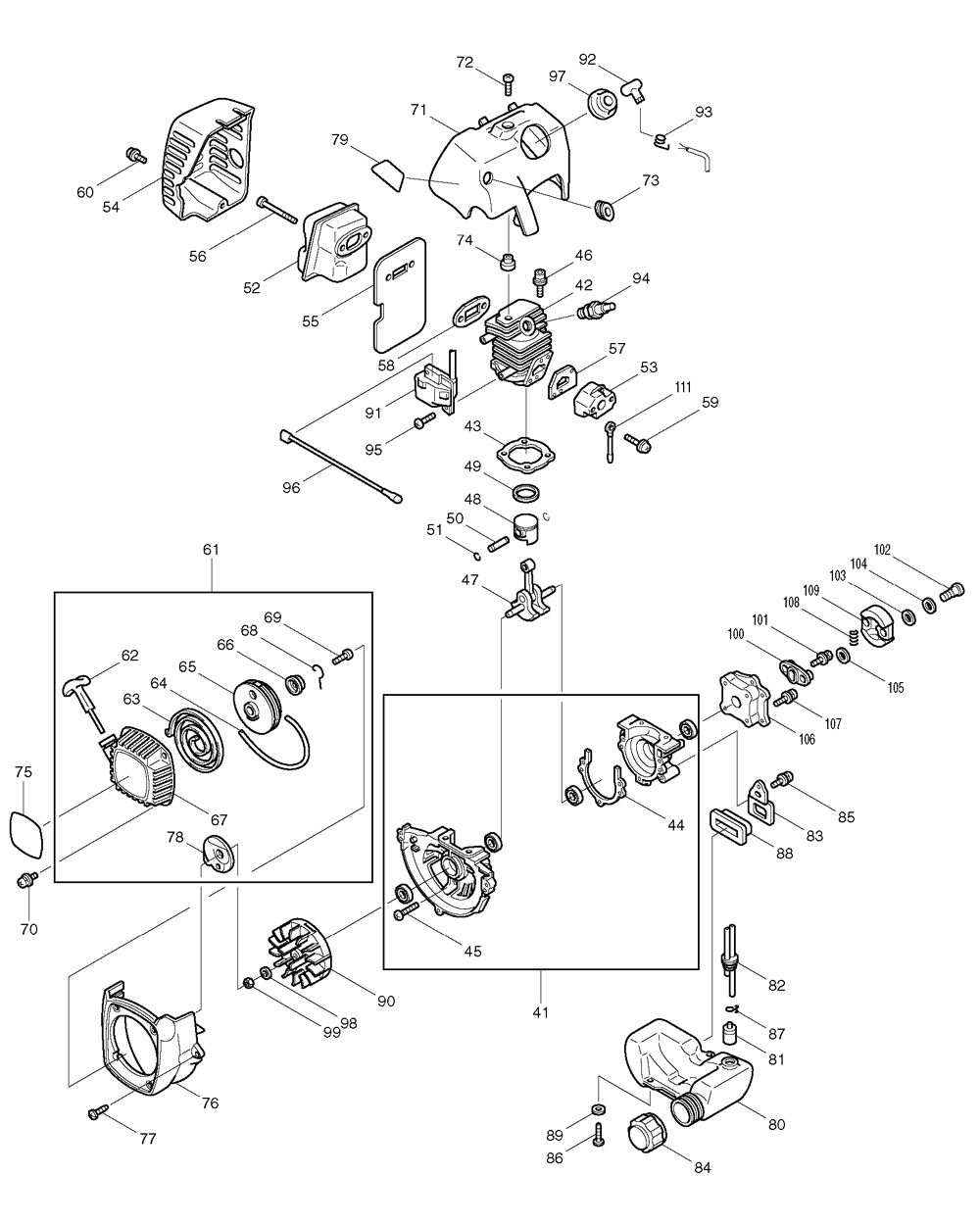

Page-2

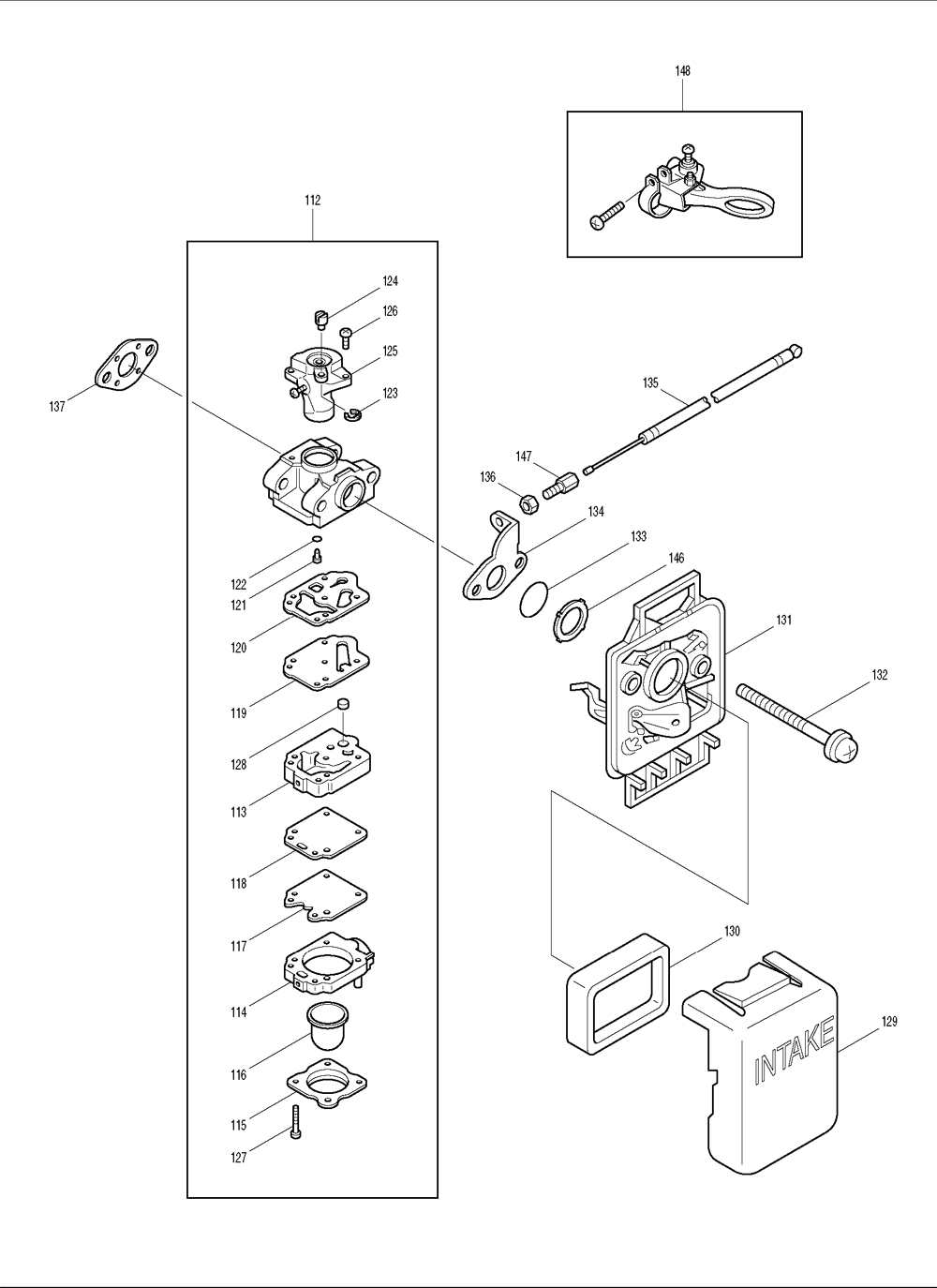

Page-3

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	008-34500-00	GRIP, EH760	$14.61
2	286-11400-3A	HANDLE (LEFT), EH620	$33.45
3	040-05025-1K	HEX BOLT, EH620	$3.50
4	136-10300-00	HANDLE FITTING, EH760	$7.68
5	610-55003-00	BAND, EH620	$1.74
6	136-14100-00	DRUM CPL., EH561	$38.65
7	164-05000-0K	HEX. U-NUT M5, EN5550SH	$3.61
8	164-06000-0K	HEX U-NUT M6, EN5550SH	$3.61
9	286-10000-2A	CRANK CASE, EH620	$109.62
10	354-06001-0K	BALL BEARING 6001 2RS, EN5550SH	$29.37
11	282-02800-0K	RETAINING RING RTW-28, EN5550SH	$3.50
12	286-10400-4A	PINION GEAR, EH450	$91.20
13	353-00608-0K	BEARING 608ZZ, EN5550SH	$18.13
14	286-10300-4A	GEAR CRANK ASS'Y, EN5550SH	$191.87
15	031-05016-0K	COUNTERSUNK HEAD SCREW, EH450	$1.85
16	055-06018-1K	(+)HEX BOLT, EH620	$3.50
17	207-06010-4A	WASHER, EH620	$1.85
18	136-19000-00	HANDLE (RIGHT), EH760	$29.58
19	286-10500-9A	BLADE SUPPORT BAR, EH620	$100.40
22	286-11200-4A	FELT, EN5550SH	$6.69
23	286-10100-3A	CASE LID, EH620	$29.58
24	054-05012-0K	HEX. BOLT M5X12, EN5550SH	$3.50
25	040-00400-9A	BLADE SLIDING SCREW, EH620	$4.93
26	040-00200-9A	BLADE SLIDING SCREW (L=19), EN5550SH	$4.93
27	008-25000-00	BLADE SLIDING WASHER, EN5550SH	$1.63
29	286-10200-3A	CASE PACKING, EH620	$8.12
30	286-10500-9A	BLADE SUPPORT BAR, EH620	$100.40
31	055-00010-0R	GREASE NIPPLE, EN5550SH	$5.26
32	054-06015-0K	HEX. BOLT M6X15, EH561	$2.40
33	150-05000-0K	NUT M5, EH760	$1.96
34	008-34500-00	GRIP, EH760	$14.61
35	286-11600-4A	BUSH, EH620	$3.61
37	283-02600-0K	RETAINING RING STW-26, EN5550SH	$3.50
38	286-11300-4A	ROD, EH450	$26.52
39	052-24600-4A	GREASE SEAL, EN5550SH	$1.96
40	221-06000-0K	WASHER, EH620	$1.85
41	519-10060-00	CRANK CASE ASS'Y, EH450	$125.52
42	519-15006-01	CYLINDER, EH450	$108.36
43	519-15003-01	CYLINDER GASKET, RBC201	$4.71
44	519-15004-00	CRANKCASE GASKET, RBC201	$3.50
45	014-00595-20	SCREW M5X25, RBL250	$1.48
46	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
47	519-20030-02	CRANK SHAFT CPLT., EH620	$143.57
47	519-20030-04	CRANKSHAFT CPL.,HT2162E	$109.13
48	519-25008-00	PISTON, RBC201	$29.37
49	519-25006-00	PISTON RING, RBC201	$6.14
50	519-25005-00	PISTON PIN, RBC201	$4.93
51	056-50899-70	CLIP, BBX2500	$1.96
52	519-30020-02	EXHAUST MUFFLER, EH450	$26.72
53	521-30010-00	INSULATOR COMPLETE, EH450	$6.91
54	519-35002-01	MUFFLER COVER, EH450	$10.65
55	519-35003-01	MUFFLER INSULATOR, EH450	$3.83
55	519-35003-02	MUFFLER INSULATOR, HT2045D	$4.71
56	011-90596-00	S.H. BOLT M5X45, RBE250	$3.61
57	523-35039-02	INSULATOR GASKET, RST250	$3.50
58	501-35002-00	GASKET (MUFFLER), RBC201	$3.17
59	014-00594-00	SCREW ASSEMBLY, EH450	$1.96
60	014-00595-50	SCREW M5X14, EH450	$1.96
61	519-50030-03	REWIND STARTER, EH450	$34.88
62	424319-7	STARTER KNOB, EM2650LH	$2.40
63	519-50020-50	SPIRAL SPRING, RBC201	$13.62
64	525-50160-20	STARTER ROPE, RBC201	$11.09
65	519-50020-30	REEL, RBC201	$7.68
66	451938-6	COLLAR, EM2650LH	$1.30
67	424359-5	DAMPER, EM2650LH	$1.30
68	325923-4	SWING ARM, EM2650LH	$1.08
69	266585-8	TAPPING SCREW 5X12, EM2650LH	$1.30
70	004-37041-20	SCREW ASSEMBLY, EH450	$1.41
71	519-55007-01	CYLINDER COVER, EH450	$14.61
72	014-00594-90	SCREW, EH561	$1.19
73	525-75003-00	GROMMET, EM4251	$3.61
74	550-35030-01	SPACER, EH561	$3.61
75	519-95009-01	LABEL	$5.70
76	519-55008-00	BLOWER HOUSING, EH450	$15.16
77	015-00599-80	TAPPING SCREW M5X20, RBC201	$1.08
78	168483-1	PULLEY, EM2650LH	$1.30
79	627-95057-00	"TRADE MARK LABEL ""MAKITA"", RBC2510"	$6.01
80	519-60110-00	FUEL TANK COMPLETE, EH450	$35.59
81	523-65039-00	FILTER, RBL500	$11.42
82	085-11499-50	TUBE, EH450	$9.55
83	519-65002-01	FUEL TANK PLATE, EH450	$7.68
84	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
84	531-60140-00	FUEL TANK CAP,RBL500	$13.51
84	531-60150-00	FUEL TANK CAP,	$8.67
85	004-36051-00	SCREW ASSEMBLY, EH620	$1.41
86	615-15007-00	TAPPING SCREW, EH450	$0.86
87	056-10599-90	HOSE CLAMP, EM4251	$1.41
88	519-65003-02	DAMPER, EH450	$4.71
89	003-10050-00	WASHER M5, EH760	$1.34
90	519-70030-14	FLYWHEEL, EH620	$76.30
91	519-70030-21	COIL, EH450	$118.93
92	065-50098-70	PLUG CAP, RBl500	$6.14
93	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
94	065-01497-50	SPARK PLUG BM4A, EH 450	$10.65
95	014-00499-20	SCREW M4X20, RST250	$1.41
96	525-70180-01	WIRE COMPLETE, EM4251	$4.93
97	519-75000-02	PLUG CAP COVER, EH450	$5.26
98	003-10080-00	WASHER, G3501R	$0.90
99	017-30899-90	LOCK NUT, EH450	$1.96
100	519-85001-00	HOLDER, EH450	$15.82
101	523-55047-00	BOLT, RBC251	$6.91
101	620-20060-00	BOLT ASSEMBLY, RBC310	$1.85
102	625-25004-00	CLUTCH BOLT, RBC260	$4.93
103	003-10080-00	WASHER, G3501R	$0.90
104	267817-6	WASHER 8, EM2650LH	$0.64
105	620-25006-00	WASHER, RBC260	$1.63
106	118-12400-00	SPACER, EH561	$22.64
107	014-00594-50	SCREW M5X18, EH760	$1.85
108	525-80010-10	CLUTCH SPRING, EH450	$5.92
109	525-80040-10	CLUTCH SHOE, EH450	$26.82
110	525-60670-00	STRAP, RBL500	$7.68
110	625-50210-02	STRAP UNIT, RBC201	$3.83
111	616-55002-01	WIRE, BBX7600	$3.61
112	519-60120-00	CARBURETOR, EH450	$128.92
113	523-60461-30	PUMP BODY ASSEMBLY, RBC230	$67.00
114	523-60460-60	AIR PURGE BODY ASS'Y, RST200	$23.63
115	346270-0	PRIMER PUMP COVER, EM2650LH	$3.50
116	424314-7	PRIMER PUMP, EM2650LH	$3.50
117	531-60052-50	METERING DIAPHRAGM ASS'Y,RBC260	$27.15
118	442154-1	METERING DIAPHRAGM GASKET, EM2650LH	$3.50
119	168575-6	PUMP DIAPHRAGM, EM2650LH	$4.60
120	524-60010-30	PUMP GASKET, RBC230	$6.14
121	525-60240-20	JET, EH450	$12.19
122	213538-8	O RING 2, EM2650LH	$2.40
123	257964-1	STOP RING E-3, EM2650LH	$2.40
124	325922-6	SWIVEL, EM2650LH	$3.50
126	266581-6	PAN HEAD SCREW M3X8, EM2650LH	$1.30
127	266582-4	TAPPING SCREW 3X24, EM2650LH	$1.30
128	352010-6	INLET SCREEN, EM2650LH	$2.40
129	520-30040-30	AIR CLEANER COVER, EH760	$12.96
130	520-30040-10	AIR FILTER, EH760	$6.69
131	525-30030-20	AIR CLEANER HOUSING CPL.,RST200	$18.13
132	004-33056-00	SCREW ASS'Y M5X60, EH450	$1.85
133	523-60610-00	O RING, RBC201	$3.17
134	525-65001-00	CABLE BRACKET, EH561	$5.26
135	063-00499-00	CONTROL CABLE, EH760	$11.42
136	531-60054-50	CABLE ADJUST NUT, BBX7600	$3.61
137	510-35028-01	SPACER GASKET, RBC281	$1.74
138	052-14500-4A	LABEL, EH620	$1.37
139	136-11500-00	SWITCH STAY, EH760	$10.21
140	008-37300-00	SWITCH ASS'Y, EH760	$27.26
141	010-05025-0K	SCREW M5X25, EH620	$1.74
142	150-05000-0K	NUT M5, EH760	$1.96
143	152-13700-4A	TUBE, EH620	$9.77
144	660-95086-00	CAUTION LABEL	$5.70
145	056-60599-80	CLAMP, EM4251	$3.50
146	525-65012-00	GASKET, EH561	$1.96
147	521-60080-10	CABLE ADJUST SCREW, RBL500	$4.93
148	625-50040-00	CONTROL LEVER, EH760	$16.70
