Makita DS4011 Electric Drill Parts

Makita DS4011 Electric Drill Parts Image

Makita DS4011 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita DS4011
1/2 Inch Spade Handl...
$164.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

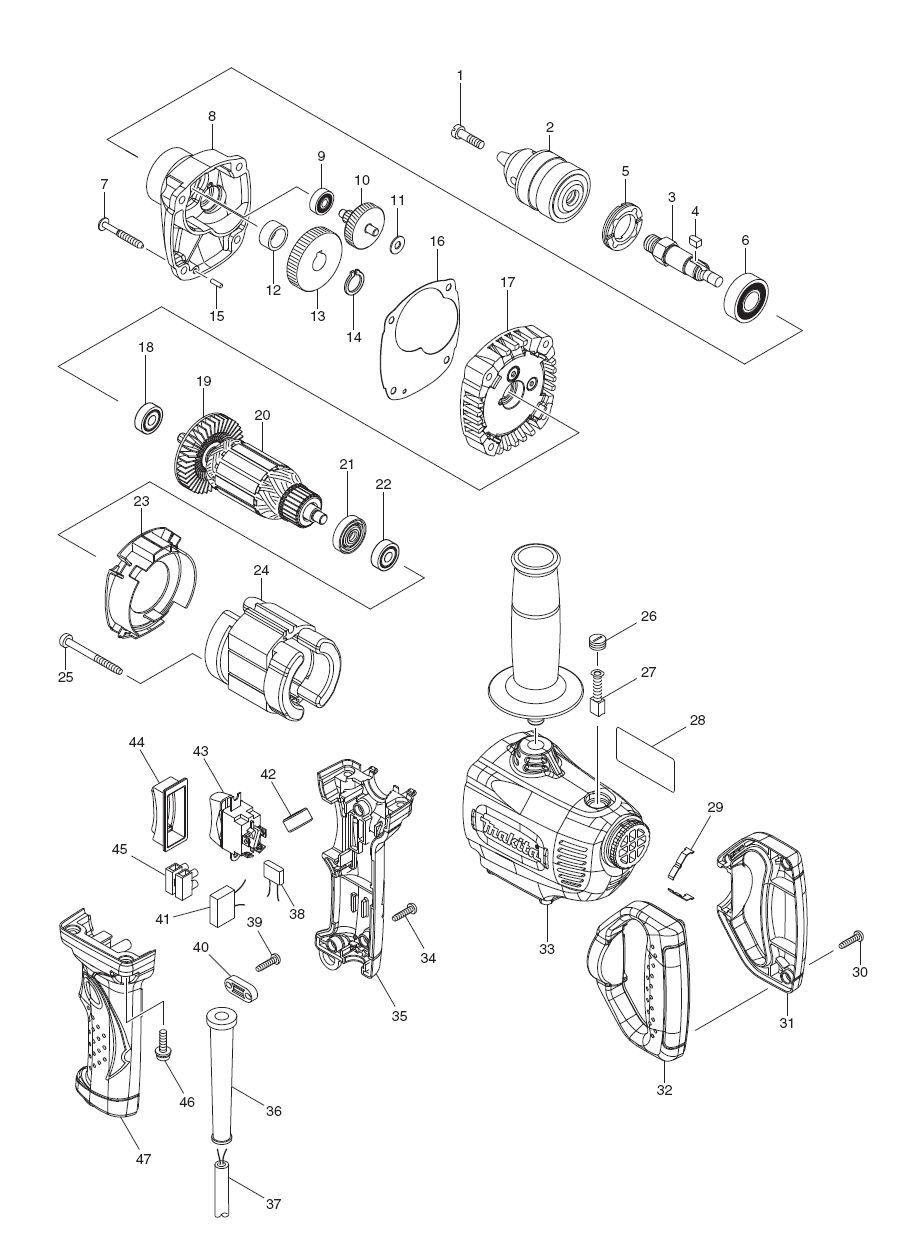

Makita DS4011 Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 251441-5 F.H. SCREW M6X22, 6302 $1.96
3 325494-1 SPINDLE, 6013BR $26.92
4 254211-1 KEY 5, 6300LR $1.26
5 285807-7 BEARING RETAINER 22-36, 5008FA $3.06
6 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
7 266211-9 TAPPING SCREW 5X40, DS4011 $1.19
8 140620-9 GEAR HOUSING CPL., DS4011 $9.22
9 211016-2 B. BEARING 626LLB, 6300LR $10.98
10 226028-2 GEAR 7-41, 6013BR $24.29
11 261008-1 FIBER WASHER 6, 6013BR $1.01
12 257018-4 RING 15, 6300LR $3.06
13 221261-1 S. GEAR 47, 6301LR $18.24
14 961054-1 RETAINING RING S-14, 6302 $0.86
15 256180-2 PIN 3, DS4011 $0.86
16 452066-0 GASKET, DS4011 $2.51
17 140619-4 GEAR HOUSING COVER CPL., DS4011 $16.04
18 211031-6 BALL BEARING 608LLB, 9227C $10.98
19 241850-6 FAN 60, BTW450 $4.16
20 518677-2 ARMATURE ASS'Y, DS4011 $31.72
21 681659-8 INSULATION WASHER, KP0810 $2.18
22 211031-6 BALL BEARING 608LLB, 9227C $10.98
23 452063-6 BAFFLE PLATE, DS4011 $1.34
24 520076-6 FIELD ASS'Y, DS4011 $20.55
24 654100-4 GARTER SPRING, N9501B $0.97
24 654555-3 CONNECTOR, 9528NB $0.75
25 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
26 643550-8 BRUSH CAP , 9031 $1.63
27 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
28 868446-4 NAME PLATE, DS4011 $1.08
29 232260-8 LEAF SPRING, DS4011 $0.66
30 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
31 188921-7 HANDLE SET, DS4011 $4.71
32 188921-7 HANDLE SET, DS4011 $4.71
33 140618-6 MOTOR HOUSING CPL., DS4011 $13.84
33 643455-2 BRUSH HOLDER 6X9, TW0350 $1.52
34 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
35 188920-9 SWITCH HANDLE COVER SET, DS4011 $8.12
36 682559-5 CORD GUARD 8, 6824 $2.51
36 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
37 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
37 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
39 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
40 687063-9 STRAIN RELIEF, 4323K $1.26
43 651564-3 SWITCH, DS4000 $31.00
44 421297-2 DUST COVER, 6013BR $4.49
46 911233-1 P.H. SCREW M5X20, TW1000 $0.86
47 188920-9 SWITCH HANDLE COVER SET, DS4011 $8.12
A01 152492-0 GRIP 36 COMP. 9005B-T2 $4.49
