Makita DPC6411 Electric Saw Parts

Makita DPC6411 Parts

Download Schematic

Time to buy a new tool?

Makita DPC6411

14 Inch 64cc Power C...

$839.99

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

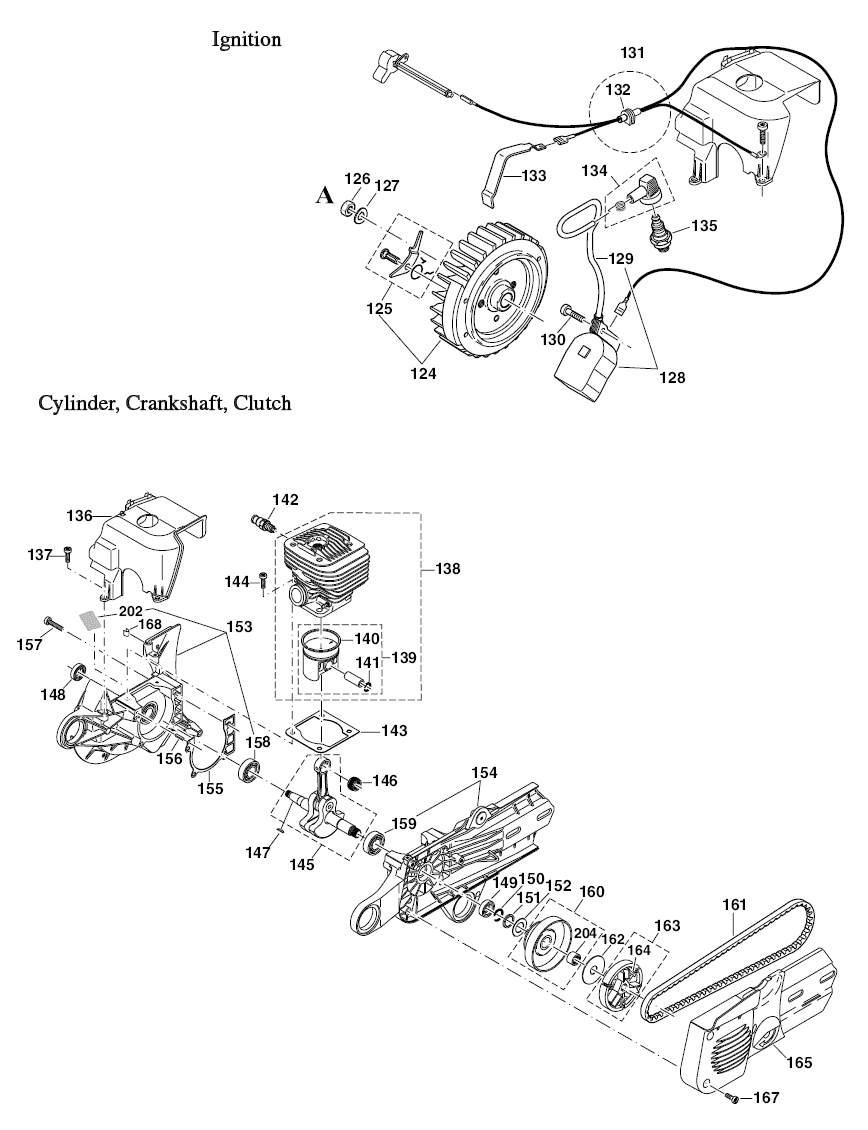

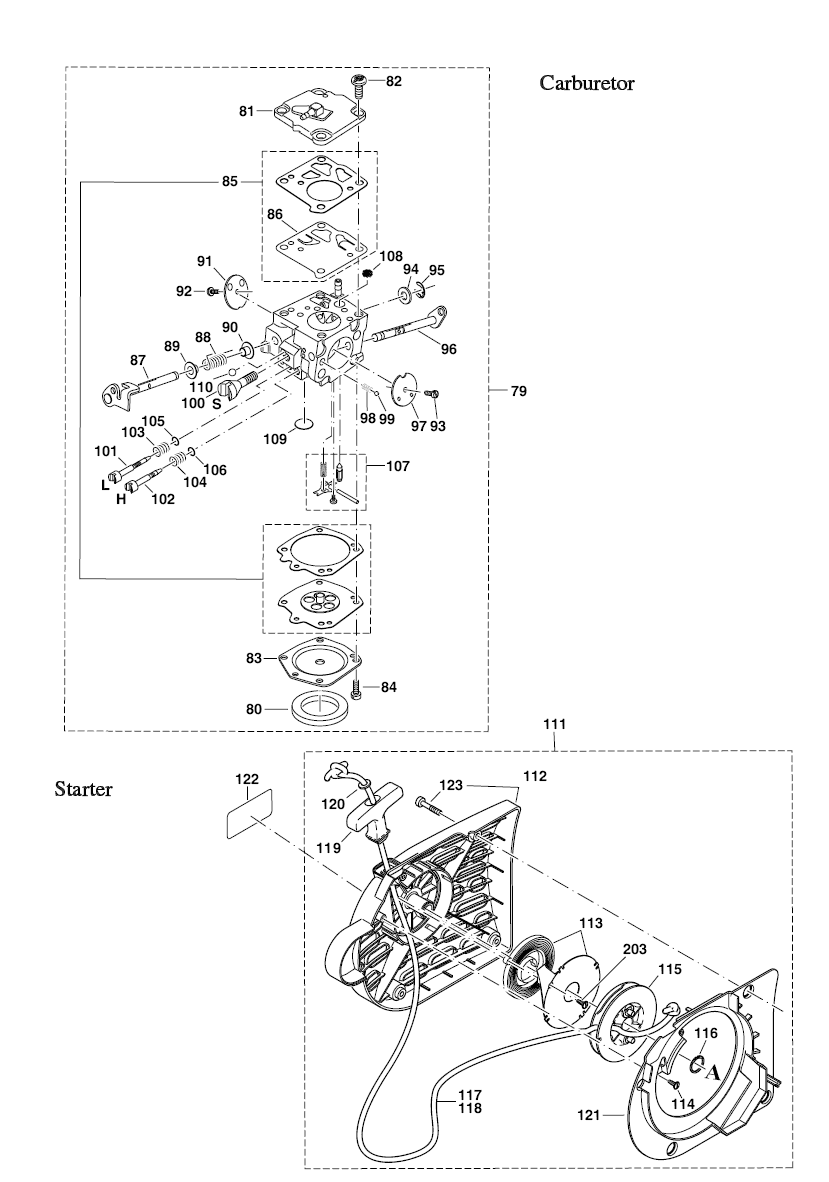

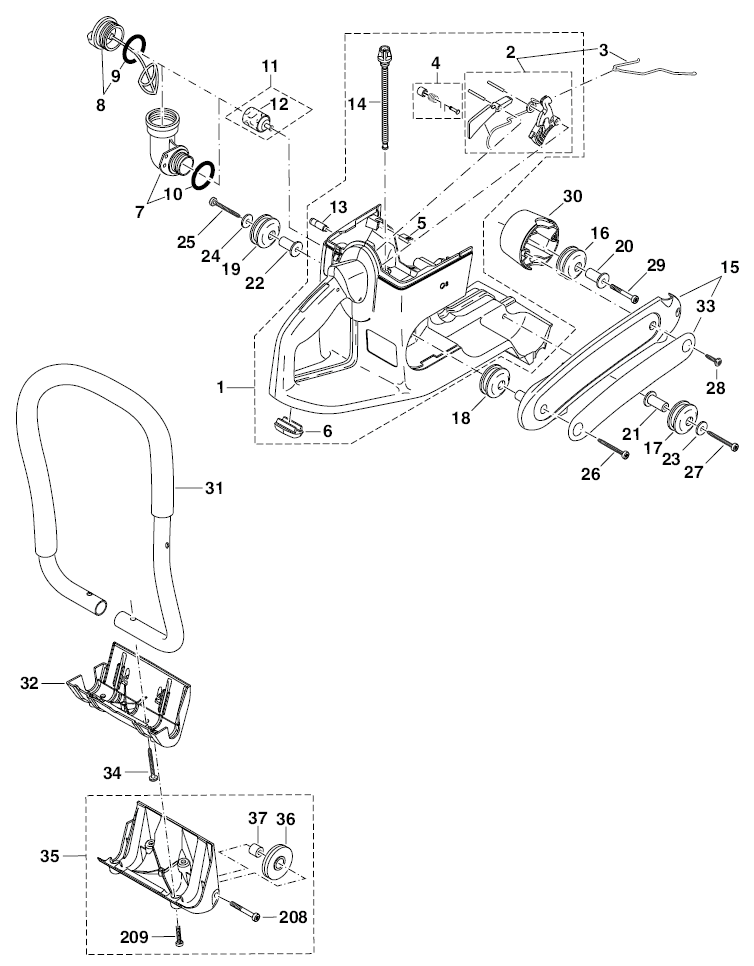

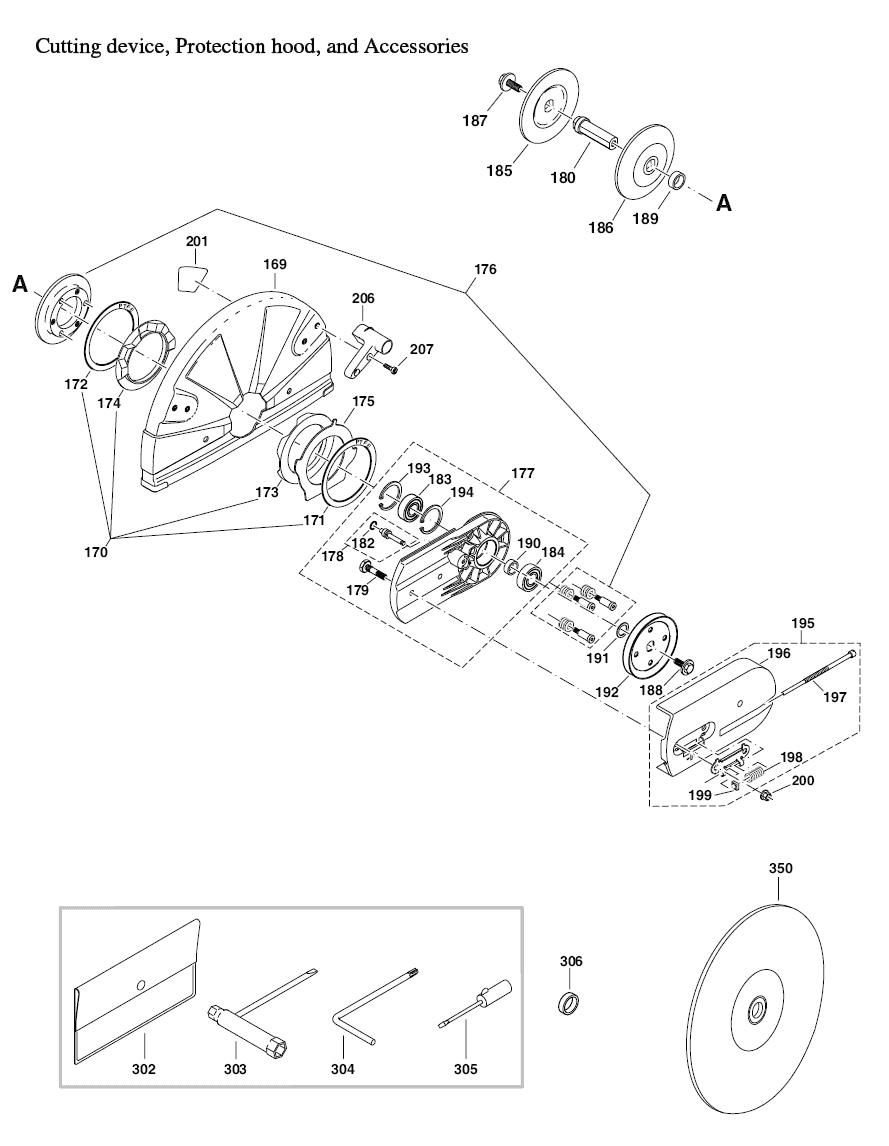

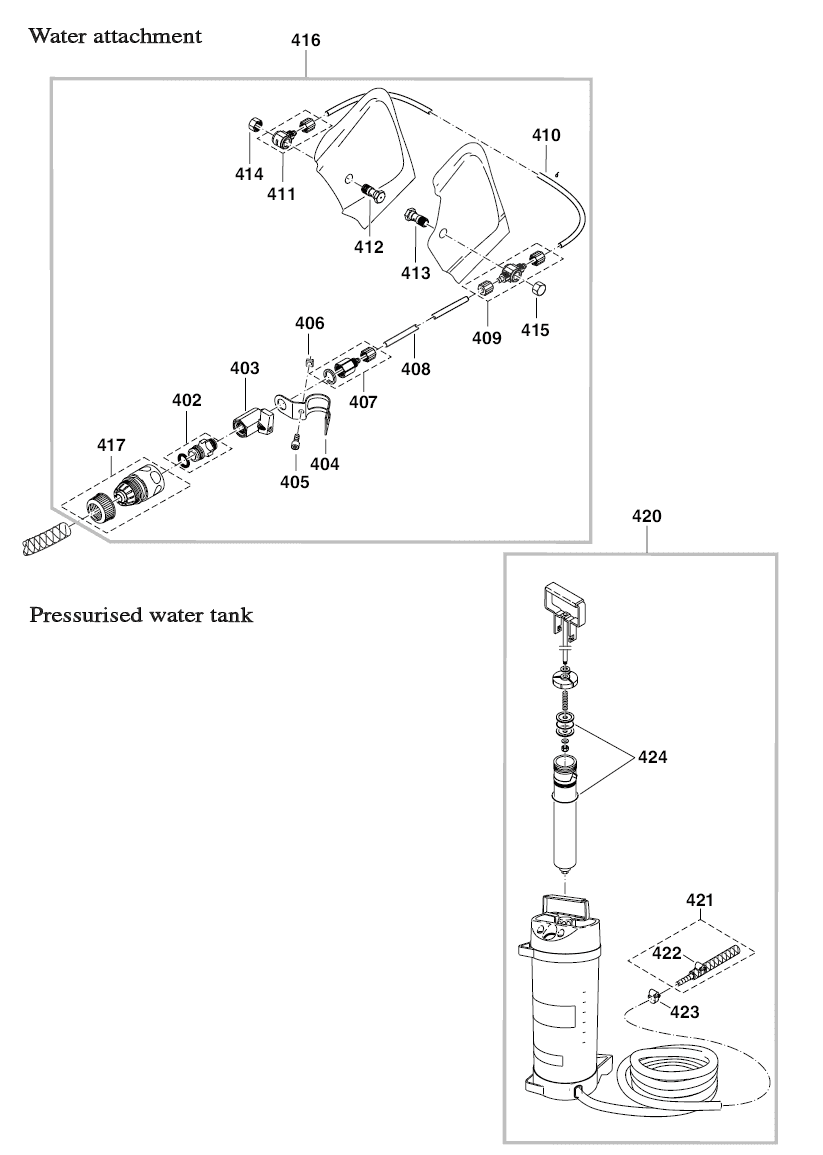

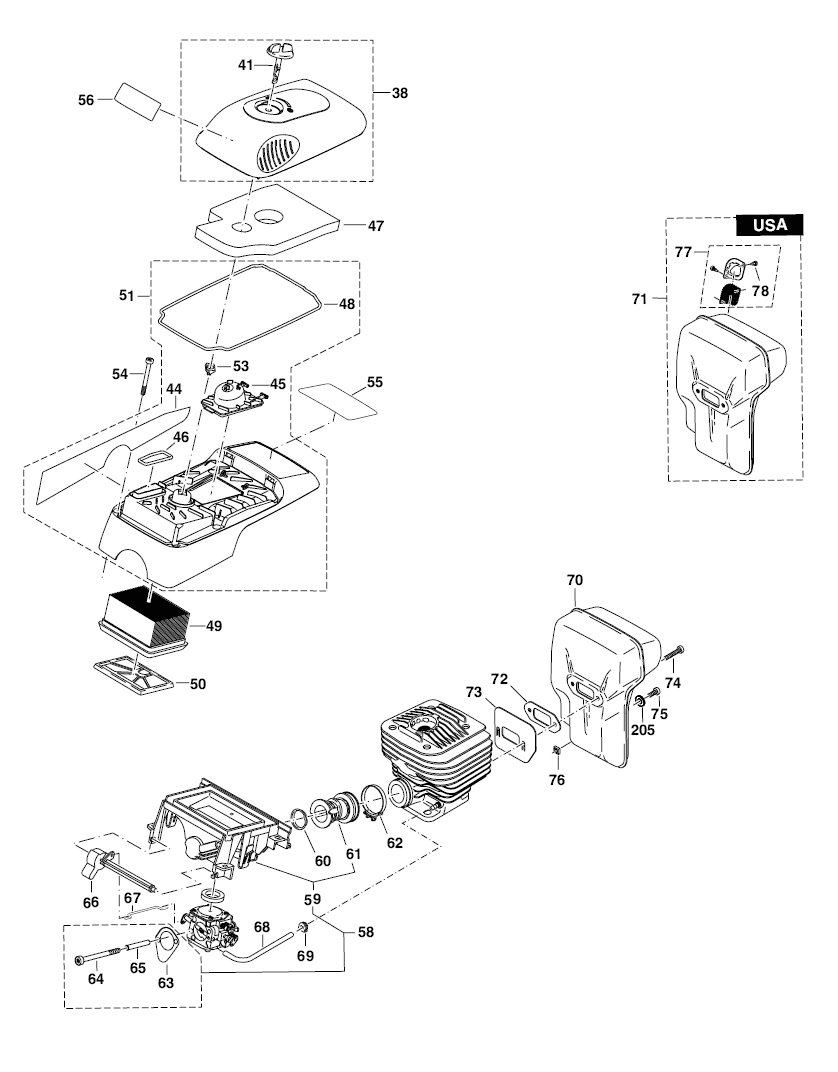

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	957-117-020	THROTTLE MECHANISM CPL., DPC7300	$22.53
3	394-117-011	THROTTLE LINKAGE, DPC6400	$6.69
4	957-117-030	HALF-THROTTLE LOCK, CPL.,DPC7300	$4.93
5	394-114-100	SCREW PLUG, DPC7300	$3.50
6	394-114-070	RUBBER FOOT, DPC7300	$6.69
7	010-114-081	ANGULAR UNION ASSY.	$17.87
8	010-114-091	FUEL TANK CAP CPL.,DPC6400	$7.68
9	963-230-031	O-RING, DPC6400, RED	$3.17
10	963-230-031	O-RING, DPC6400, RED	$3.17
12	963-601-240	FELT, DCS340	$4.93
13	010-175-050	AIR VALVE CPL., DPC6201	$16.04
14	965-404-911	FUEL LINE, DPC6400	$6.14
16	965-403-535	RUBBER BUFFER, DPC7331	$9.22
17	965-403-535	RUBBER BUFFER, DPC7331	$9.22
18	965-403-535	RUBBER BUFFER, DPC7331	$9.22
19	965-403-535	RUBBER BUFFER, DPC7331	$9.22
25	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
26	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
27	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
28	913-455-204	SCREW M5.5X20, DCS6800I	$1.85
29	908-305-405	FILLISTER H. SCREW, DPC9500	$3.17
32	394-114-190	FOOT, DPC6410	$25.61
34	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
36	394-114-230	ROLLER, DPC6410	$15.16
37	394-114-240	BUSHING,DPC6410	$3.50
208	908-006-355	FILLISTER H. SCREW, EK7301	$3.50
41	394-118-010	BAYONET, DPC6400	$4.93
44	980-114-971	LABEL, DPC6410	$5.48
45	326-118-070	SPARK PLUG COVER, DPC6410	$6.14
46	326-118-050	PACKING RING, DPC6410	$3.17
47	326-173-080	PRE-FILTER, DPC7311	$6.91
48	326-118-020	PACKING RING, DPC6410	$4.71
49	394-173-010	AIR FILTER, DPC7311	$9.22
50	394-173-020	INNER FILTER, DPC7311	$6.14
53	394-118-050	BAYONET LOCK, DPC6400	$1.74
54	908-605-505	SCREW M5X50, DPC7321	$1.74
55	980-114-967	LABEL, DPC6410	$5.48
55	980-114-968	LABEL, DPC6411	$6.01
56	980-114-999	LABEL MIX, EK7301	$3.10
58	957-171-394	MOD.SET CONNECT. SLEEVE, DPC6400	$44.57
59	394-171-051	CONNECTING SLEEVE CPL., DPC6200	$36.21
62	965-603-050	HOSE CLIP, DPC6410	$7.02
63	965-518-120	GASKET, DPC6200	$3.50
64	908-204-555	SCREW M4X55, DCS6421	$1.85
65	970-502-050	"INSULATING HOSE,DCS431 3.94"""	$4.93
66	394-150-030	CHOKE SHAFT, DPC7300	$6.69
67	394-150-042	CHOKE SHAFT, DPC6400	$3.17
69	965-401-016	RUBBER BUSH, DCS6800I	$3.50
74	908-405-205	SCREW M5X20, DPC6400	$1.85
75	908-005-125	F.H. SCREW M5X12, DCS431	$1.85
76	921-905-004	SQUARE NUT M5, DPC7300	$1.96
78	915-035-140	SCREW, DPC6410	$1.74
205	928-405-000	WASHER, DCS340	$1.85
80	965-402-970	GASKET, DPC7300	$1.85
81	394-150-160	PUMP COVER CPL., DPC7300	$19.67
82	394-150-170	FILLISTER HEAD SCREW, DPC7300	$4.93
83	394-150-120	DIAPHRAGM COVER, DPC7300	$8.12
84	001-150-520	SCREW, DCS6800I	$4.71
85	957-150-100	DIAPHRAGM & GASKET (TILLOTSON), DPC7311	$12.19
86	113-150-150	PUMP DIAPHRAGM (237-144), DPC7311	$4.93
87	394-150-300	THROTTLE SHAFT, DPC7300	$26.16
88	394-150-310	SPRING, DPC7300	$6.47
89	144-151-315	BUSHING, DCS6000I21	$4.93
90	144-151-315	BUSHING, DCS6000I21	$4.93
91	144-151-320	THROTTLE SHUTTER, DPC7000	$8.12
92	001-150-650	SCREW, DCS520I	$4.27
93	001-150-650	SCREW, DCS520I	$4.27
94	122-151-400	DISC, DCS6000I21 .	$3.50
95	100-150-350	SAFETY WASHER, DCS6000I21	$5.26
96	394-150-250	CHOKE SHAFT, DPC7300	$21.10
97	113-150-261	CHOKE SHUTTER, DPC7000	$4.93
98	101-150-080	LOCKING SPRING, DPC7000	$5.26
99	113-150-380	LOCKING BALL, DPC7000	$3.50
100	394-150-570	IDLE STOP SCREW, DPC7300	$8.01
101	394-150-470	IDLE ADJUSTMENT SCREW, DPC7300	$21.10
102	394-150-510	MAIN ADJUSTMENT SCREW, DPC7300	$21.10
103	144-151-480	SPRING(L), DCS6000I21	$5.26
104	144-151-480	SPRING(L), DCS6000I21	$5.26
105	394-150-500	PACKING RING, DPC7300	$4.93
106	394-150-500	PACKING RING, DPC7300	$4.93
107	957-150-160	SET OF CONTROL PARTS (TILLOTSON), DPC7311	$22.64
108	394-150-180	SCREEN, DPC7300	$4.93
109	113-150-040	COVER DISC, DPC7311	$3.50
110	001-150-510	FRICTION BALL, DCS6800I	$3.50
112	394-112-621	FAN HOUSING (GRAY), DPC7301	$39.06
113	394-163-020	REWIND SPRING, DPC6400	$10.65
114	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
116	929-314-100	SNAP RING, 14 X 1, DCS6000I21	$1.85
117	122-164-010	START ROPE 1000MM, DCS6800I	$4.93
117	394-164-020	STARTER ROPE BLACK, DPC6410	$7.68
118	122-164-010	START ROPE 1000MM, DCS6800I	$4.93
119	001-161-020	STARTER GRIP, DPC6410	$6.14
120	928-405-000	WASHER, DCS340	$1.85
121	394-112-141	AIR GUIDE PLATE, DPC7301	$4.71
123	908-605-205	F.H. SCREW M5X20, DCS9000	$1.85
124	394-141-030	FLYWHEEL ASS'Y, DPC7300	$132.12
125	031-166-010	STARTER RATCHET, DCS6000I21	$12.96
126	920-208-024	HEXAGONAL NUT M8X1, DCS6401	$1.96
127	926-208-001	SPRING WASHER 8, DPC7000	$2.51
128	394-143-013	IGNITION COIL, DPC7301	$146.38
129	970-310-200	IGNITION CABLE(150 MM), DCS6401	$8.12
130	908-605-205	F.H. SCREW M5X20, DCS9000	$1.85
131	965-605-433	CABLE WITH PLUG, DPC6401	$9.22
132	965-401-016	RUBBER BUSH, DCS6800I	$3.50
134	957-604-240	SPARK PLUG CAP, DPC7000	$9.77
135	965-603-021	SPARK PLUG,WSR5F DPC6200	$6.14
203	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
137	908-005-165	HEAD SCREW M5X16, DCS340	$1.85
140	325-132-050	PISTON RING, DPC6410	$19.67
141	119-132-060	SPRING RING, DCS6000I21	$1.96
142	001-131-150	DECOMPRESSION VALVE, DCS431	$23.96
143	965-531-160	GASKET, DPC7331	$3.17
144	908-005-205	SCREW M5X20, DCS460	$1.85
147	939-630-370	KEY, DPC7000	$1.85
148	962-900-052	RADIAL RING, DCS431	$8.12
149	962-900-052	RADIAL RING, DCS431	$8.12
150	930-916-160	SPRING RING, DCS431	$1.96
151	394-245-010	STOP RING, PC6212	$4.71
152	394-182-020	GUIDE DISC, DPC7300	$3.50
155	965-531-111	GASKET, DPC7331	$4.71
156	936-430-160	SPIRAL PIN 3X16, DCS460	$1.85
157	908-005-305	TORX SCREW 5X30, DCS340	$1.85
158	960-102-159	BALL BEARING, DCS6800I	$19.34
159	960-102-159	BALL BEARING, DCS6800I	$19.34
161	965-300-470	V-BELT, DPC7300	$29.58
164	024-184-021	TENSION SPRING, DC6401	$3.61
167	908-605-145	F.H. SCREW M5X14, DCS9000	$1.85
168	965-402-870	RUBBER PLATE SET, DPC6400	$10.65
202	980-600-130	INSULATING SHEET, DPC6400	$1.74
204	962-300-017	NEEDLE CAGE, DPC6410	$16.70
169	325-341-611	"12"" PROTECTION HOOD, DPC6410"	$125.52
170	957-342-011	PROTECTING HOOD, DPC6200	$22.64
171	394-342-180	SLIDING DISC, DPC6410	$6.91
172	394-342-180	SLIDING DISC, DPC6410	$6.91
173	965-404-900	RUBBER RING EXT.,DPC6400	$7.68
174	965-404-920	RUBBER RING INT.,DPC6400	$7.68
175	394-342-160	IMPACT PLATE, DPC6410	$15.16
176	394-342-211	PRESSURE RING CPL., DPC8112	$40.39
177	394-211-740	CUTTING DEVICE BLACK, DPC6410	$211.17
178	394-342-190	BOLT CPL.,DPC6410	$6.91
179	394-211-090	SCREW, DPC7300	$4.93
182	963-209-020	PACKING RING, DPC7331	$1.59
183	960-102-176	BALL BEARING 6203 LLU, DPC6400	$19.67
184	960-102-176	BALL BEARING 6203 LLU, DPC6400	$19.67
187	994-280-250	HEX SCREW M8X25, DPC7300	$6.69
188	994-280-250	HEX SCREW M8X25, DPC7300	$6.69
191	900-006-179	DISC, DPC7300	$1.85
193	929-240-180	SNAP RING, DPC6400	$3.50
194	929-240-180	SNAP RING, DPC6400	$3.50
197	394-213-031	TENSIONING SCREW, DPC6400	$4.71
198	394-342-120	PRESSURE SPRING, DPC7300	$5.26
199	921-906-004	NUT M6, EHW120	$1.96
200	923-208-004	HEX NUT, DCS341	$4.16
201	980-114-972	SAFETY LABEL, DPC6410	$4.56
201	980-114-974	SAFETY LABEL, EK7301	$4.56
206	326-341-300	GRIP, DPC7331	$7.68
207	908-605-165	SCREW M5X16, DPC7331	$1.74
405	908-006-105	FILLISTER H. SCREW, DPC9500 .	$1.85
406	921-906-004	NUT M6, EHW120	$1.96
411	964-802-340	CONNECTING PIECE, DT2000	$6.14
420	957-802-600	PRESSURE TANK, EK7301	$385.29
421	394-365-180	CONNECTING REDUCER, DT2000	$12.74
422	964-802-250	CLAMP, DT2000	$4.71
423	964-802-250	CLAMP, DT2000	$4.71
424	957-963-200	GASKET SET, DPC8112	$15.16
303	941-719-140	UNIVERSAL WRENCH	$13.88
304	940827000	WRENCH TORX DCS431	$7.99
305	944340001	CARBURETOR SCREWDRIVER DCS6800I	$4.19
306	394-228-121	"ADAPTER RING, DPC7331, 20mm to 1"""	$10.65
350	965-210-611	'12'' ABRASIVE WHEEL DPC6410'	$96.15
350	965-210-222	"BLADE, STONE, 14"" EHC-140"	$154.86
416	394-365-630	WATER ATTACHMENT KIT	$98.05
417	964-802-400	COUPLING SLEEVE STOP, DPC6410	$11.97
