Makita DPC6401 Electric Saw Parts

Makita DPC6401 Electric Saw Parts Image

Makita DPC6401 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Tool Diagram    (Click image to Zoom in) View larger Image

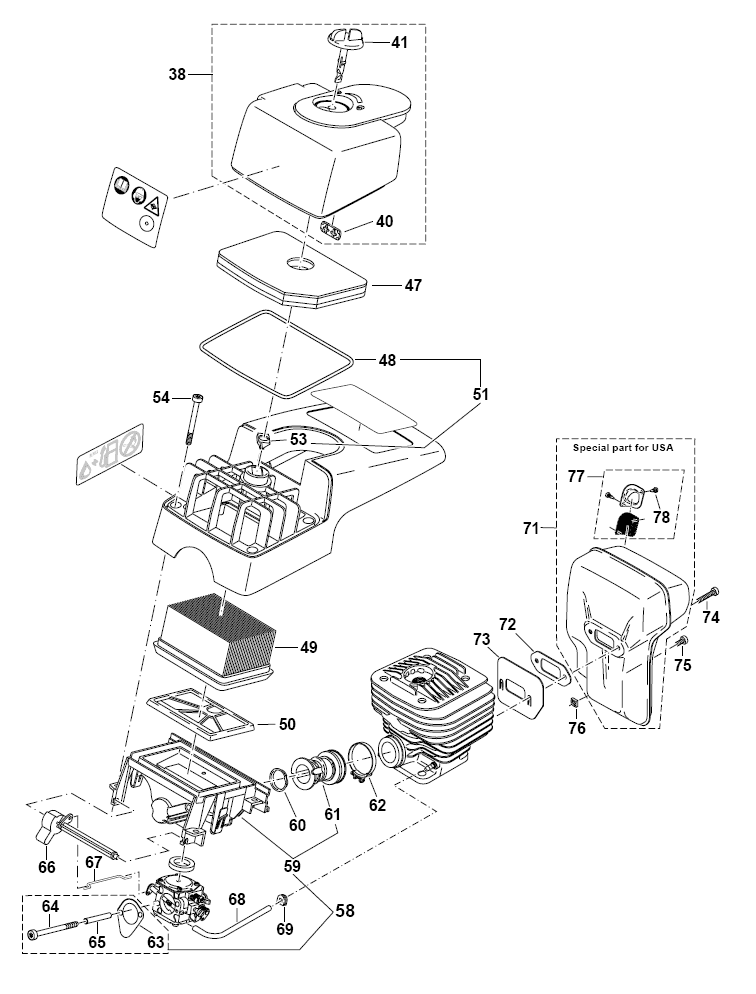

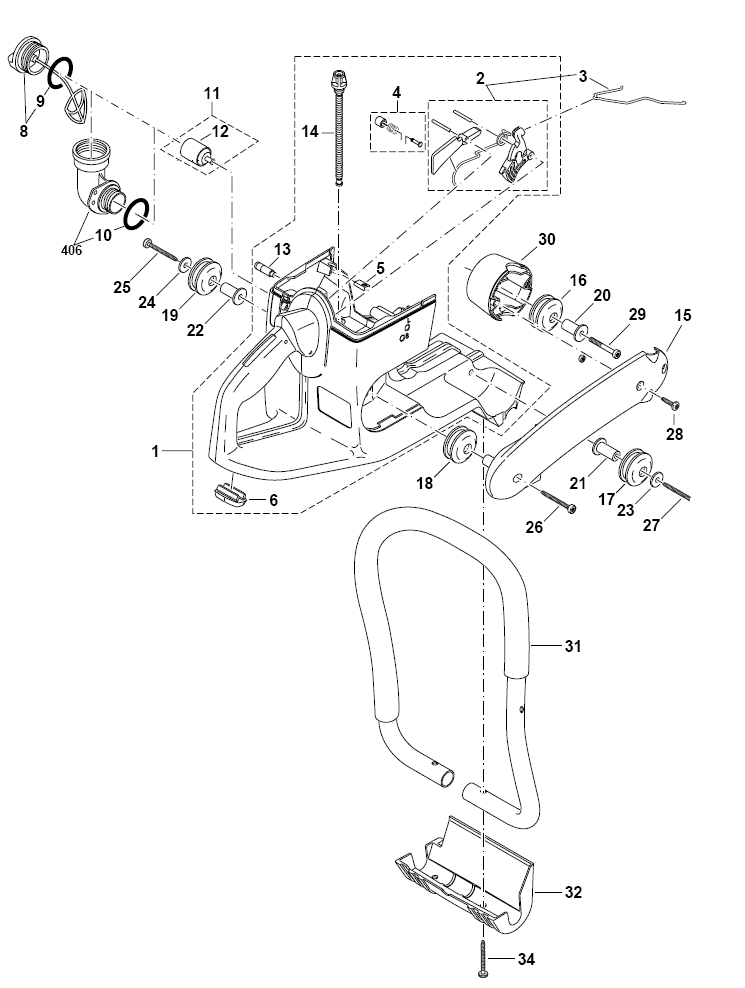

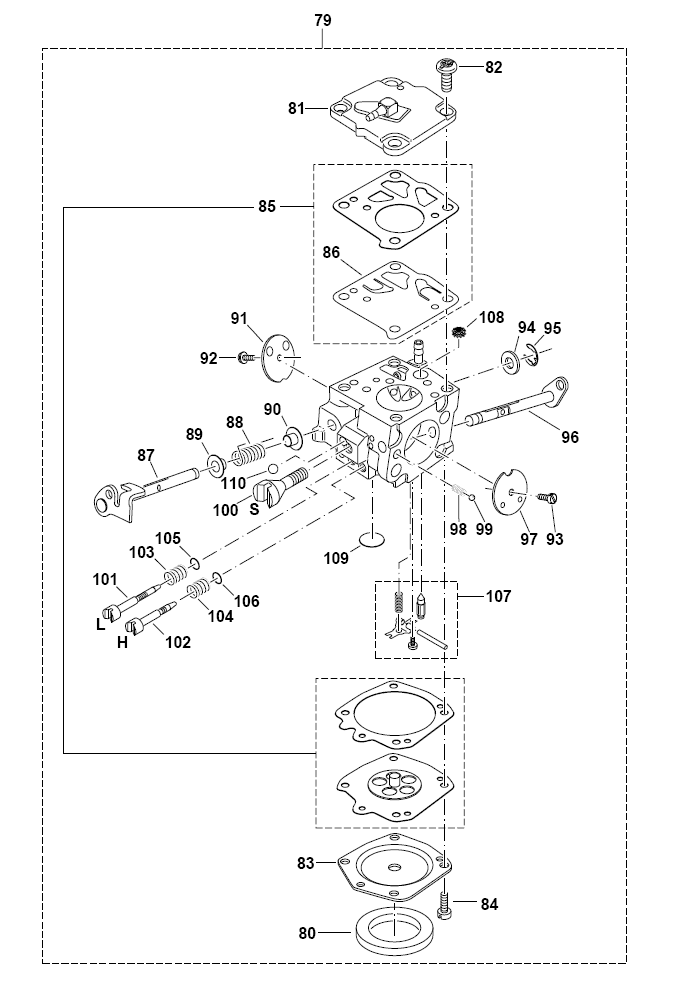

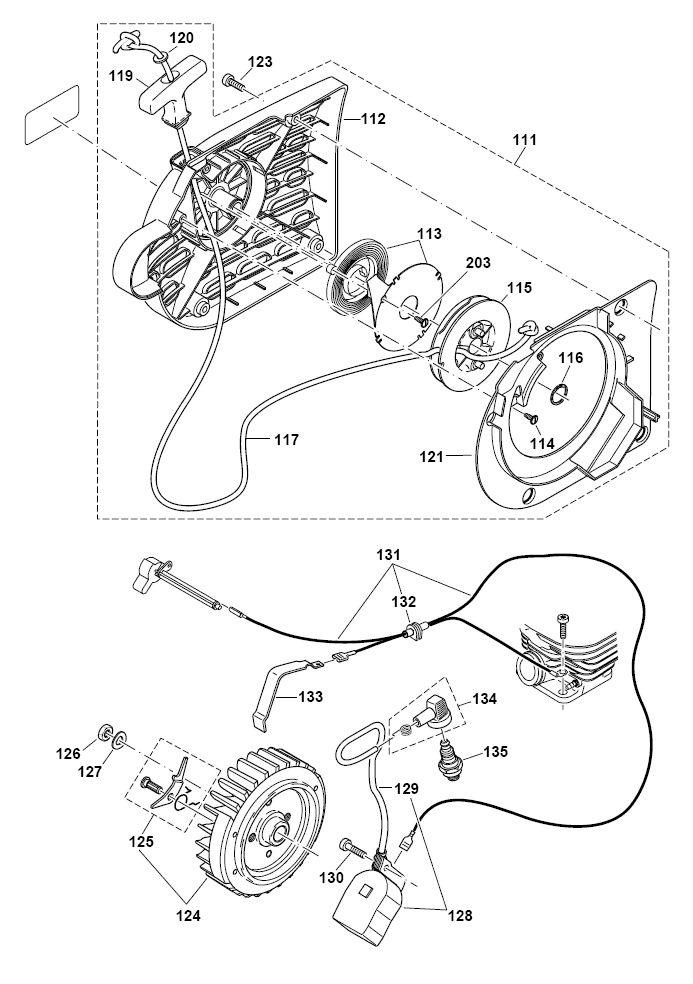

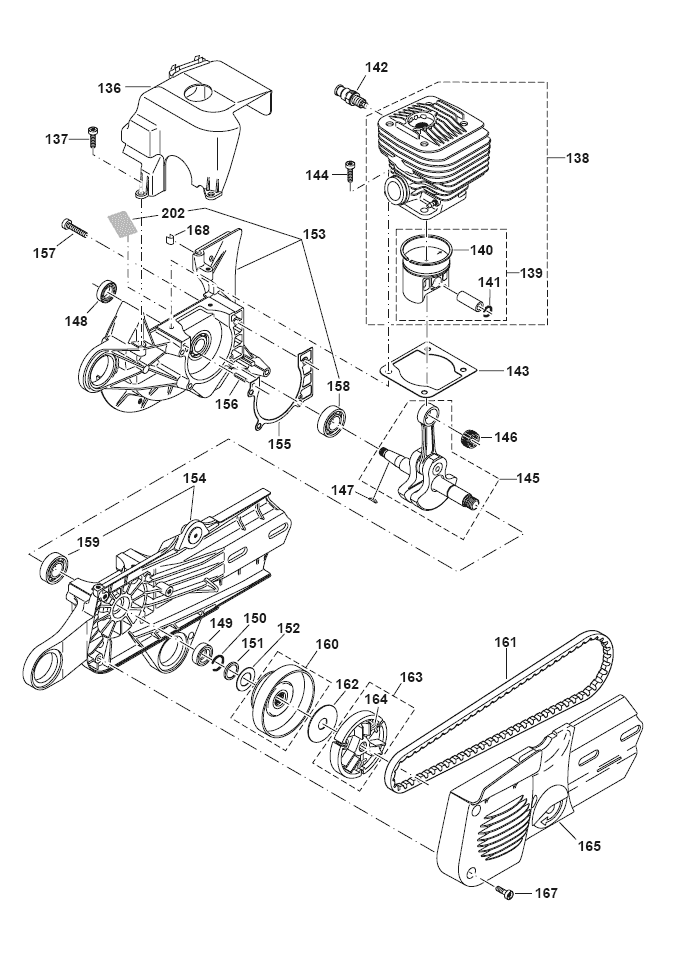

Makita DPC6401 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
2 957-117-020 THROTTLE MECHANISM CPL., DPC7300 $22.53
3 394-117-011 THROTTLE LINKAGE, DPC6400 $6.69
4 957-117-030 HALF-THROTTLE LOCK, CPL.,DPC7300 $4.93
5 394-114-100 SCREW PLUG, DPC7300 $3.50
6 394-114-070 RUBBER FOOT, DPC7300 $6.69
8 010-114-091 FUEL TANK CAP CPL.,DPC6400 $7.68
9 963-230-031 O-RING, DPC6400, RED $3.17
10 963-230-031 O-RING, DPC6400, RED $3.17
12 963-601-240 FELT, DCS340 $4.93
13 010-175-050 AIR VALVE CPL., DPC6201 $16.04
14 965-404-911 FUEL LINE, DPC6400 $6.14
25 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
26 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
27 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
28 913-455-204 SCREW M5.5X20, DCS6800I $1.85
29 908-305-405 FILLISTER H. SCREW, DPC9500 $3.17
34 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
38 326-118-070 SPARK PLUG COVER, DPC6410 $6.14
40 394-118-060 INSERT, DPC7300 $3.50
41 394-118-010 BAYONET, DPC6400 $4.93
48 326-118-020 PACKING RING, DPC6410 $4.71
49 394-173-010 AIR FILTER, DPC7311 $9.22
50 394-173-020 INNER FILTER, DPC7311 $6.14
51 394-118-041 HOOD CPL.,GREY, DPC6400 $30.70
53 394-118-050 BAYONET LOCK, DPC6400 $1.74
54 908-505-555 TORX SCREW 5X55, EHW120 $3.50
58 957-171-394 MOD.SET CONNECT. SLEEVE, DPC6400 $44.57
62 965-603-050 HOSE CLIP, DPC6410 $7.02
63 965-518-120 GASKET, DPC6200 $3.50
64 908-204-555 SCREW M4X55, DCS6421 $1.85
65 970-502-050 "INSULATING HOSE,DCS431 3.94""" $4.93
66 394-150-030 CHOKE SHAFT, DPC7300 $6.69
67 394-150-042 CHOKE SHAFT, DPC6400 $3.17
69 965-401-016 RUBBER BUSH, DCS6800I $3.50
74 908-405-205 SCREW M5X20, DPC6400 $1.85
75 908-005-095 SCREW M5X9, DCS5200I $1.85
76 921-905-004 SQUARE NUT M5, DPC7300 $1.96
80 965-402-970 GASKET, DPC7300 $1.85
81 394-150-160 PUMP COVER CPL., DPC7300 $19.67
82 394-150-170 FILLISTER HEAD SCREW, DPC7300 $4.93
83 394-150-120 DIAPHRAGM COVER, DPC7300 $8.12
84 001-150-520 SCREW, DCS6800I $4.71
85 957-150-100 DIAPHRAGM & GASKET (TILLOTSON), DPC7311 $12.19
86 113-150-150 PUMP DIAPHRAGM (237-144), DPC7311 $4.93
87 394-150-300 THROTTLE SHAFT, DPC7300 $26.16
88 394-150-310 SPRING, DPC7300 $6.47
89 144-151-315 BUSHING, DCS6000I21 $4.93
90 144-151-315 BUSHING, DCS6000I21 $4.93
91 144-151-320 THROTTLE SHUTTER, DPC7000 $8.12
92 001-150-650 SCREW, DCS520I $4.27
93 001-150-650 SCREW, DCS520I $4.27
94 122-151-400 DISC, DCS6000I21 . $3.50
95 100-150-350 SAFETY WASHER, DCS6000I21 $5.26
96 394-150-250 CHOKE SHAFT, DPC7300 $21.10
97 113-150-261 CHOKE SHUTTER, DPC7000 $4.93
98 101-150-080 LOCKING SPRING, DPC7000 $5.26
99 113-150-380 LOCKING BALL, DPC7000 $3.50
100 394-150-570 IDLE STOP SCREW, DPC7300 $8.01
101 394-150-470 IDLE ADJUSTMENT SCREW, DPC7300 $21.10
102 394-150-510 MAIN ADJUSTMENT SCREW, DPC7300 $21.10
103 144-151-480 SPRING(L), DCS6000I21 $5.26
104 144-151-480 SPRING(L), DCS6000I21 $5.26
105 394-150-500 PACKING RING, DPC7300 $4.93
106 394-150-500 PACKING RING, DPC7300 $4.93
107 957-150-160 SET OF CONTROL PARTS (TILLOTSON), DPC7311 $22.64
108 394-150-180 SCREEN, DPC7300 $4.93
109 113-150-040 COVER DISC, DPC7311 $3.50
110 001-150-510 FRICTION BALL, DCS6800I $3.50
113 394-163-020 REWIND SPRING, DPC6400 $10.65
114 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
116 929-314-100 SNAP RING, 14 X 1, DCS6000I21 $1.85
117 122-164-010 START ROPE 1000MM, DCS6800I $4.93
120 928-405-000 WASHER, DCS340 $1.85
121 394-112-141 AIR GUIDE PLATE, DPC7301 $4.71
123 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
124 394-141-030 FLYWHEEL ASS'Y, DPC7300 $132.12
125 031-166-010 STARTER RATCHET, DCS6000I21 $12.96
126 920-308-024 HEX NUT M8X1, DCS34 $1.96
127 926-208-001 SPRING WASHER 8, DPC7000 $2.51
129 970-310-200 IGNITION CABLE(150 MM), DCS6401 $8.12
130 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
131 965-605-433 CABLE WITH PLUG, DPC6401 $9.22
132 965-401-016 RUBBER BUSH, DCS6800I $3.50
134 957-604-240 SPARK PLUG CAP, DPC7000 $9.77
135 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
137 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
140 325-132-050 PISTON RING, DPC6410 $19.67
141 119-132-060 SPRING RING, DCS6000I21 $1.96
142 001-131-150 DECOMPRESSION VALVE, DCS431 $23.96
143 965-531-121 GASKET, DCS6401 $3.17
144 908-005-205 SCREW M5X20, DCS460 $1.85
147 939-630-370 KEY, DPC7000 $1.85
148 962-900-052 RADIAL RING, DCS431 $8.12
149 962-900-052 RADIAL RING, DCS431 $8.12
150 930-916-160 SPRING RING, DCS431 $1.96
151 394-245-010 STOP RING, PC6212 $4.71
152 394-182-020 GUIDE DISC, DPC7300 $3.50
155 965-531-111 GASKET, DPC7331 $4.71
156 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
157 908-005-305 TORX SCREW 5X30, DCS340 $1.85
158 960-102-159 BALL BEARING, DCS6800I $19.34
159 960-102-159 BALL BEARING, DCS6800I $19.34
161 965-300-470 V-BELT, DPC7300 $29.58
164 024-184-021 TENSION SPRING, DC6401 $3.61
167 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
168 965-402-870 RUBBER PLATE SET, DPC6400 $10.65
169 325-341-610 PROTECTION HOOD, DPC7300 $105.06
170 957-342-011 PROTECTING HOOD, DPC6200 $22.64
173 965-404-900 RUBBER RING EXT.,DPC6400 $7.68
174 965-404-920 RUBBER RING INT.,DPC6400 $7.68
175 394-342-011 LOCKING PLATE, DPC6200 $14.61
178 957-211-020 BOLT CPL., DPC7300 $10.65
179 394-211-090 SCREW, DPC7300 $4.93
183 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
184 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
187 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
188 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
191 900-006-179 DISC, DPC7300 $1.85
193 929-240-180 SNAP RING, DPC6400 $3.50
194 929-240-180 SNAP RING, DPC6400 $3.50
196 394-211-020 COVER,GREY, DPC6400 $33.45
197 394-213-031 TENSIONING SCREW, DPC6400 $4.71
198 394-342-120 PRESSURE SPRING, DPC7300 $5.26
199 921-906-004 NUT M6, EHW120 $1.96
200 923-208-004 HEX NUT, DCS341 $4.16
202 980-600-130 INSULATING SHEET, DPC6400 $1.74
203 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
400 965-210-621 CUTTING DISK FOR STEEL $96.15
400 965-210-611 '12'' ABRASIVE WHEEL DPC6410' $96.15
401 965-210-222 "BLADE, STONE, 14"" EHC-140" $154.86
401 965-210-212 ABRAS. BLADE, STEEL $154.86
402 941-719-140 UNIVERSAL WRENCH $13.88
403 940827000 WRENCH TORX DCS431 $7.99
404 944340001 CARBURETOR SCREWDRIVER DCS6800I $4.19
405 394-228-121 "ADAPTER RING, DPC7331, 20mm to 1""" $10.65
406 010-114-081 ANGULAR UNION ASSY. $17.87
