Makita DPC6201 Electric Saw Parts

Makita DPC6201 Electric Saw Parts Image

Makita DPC6201 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com

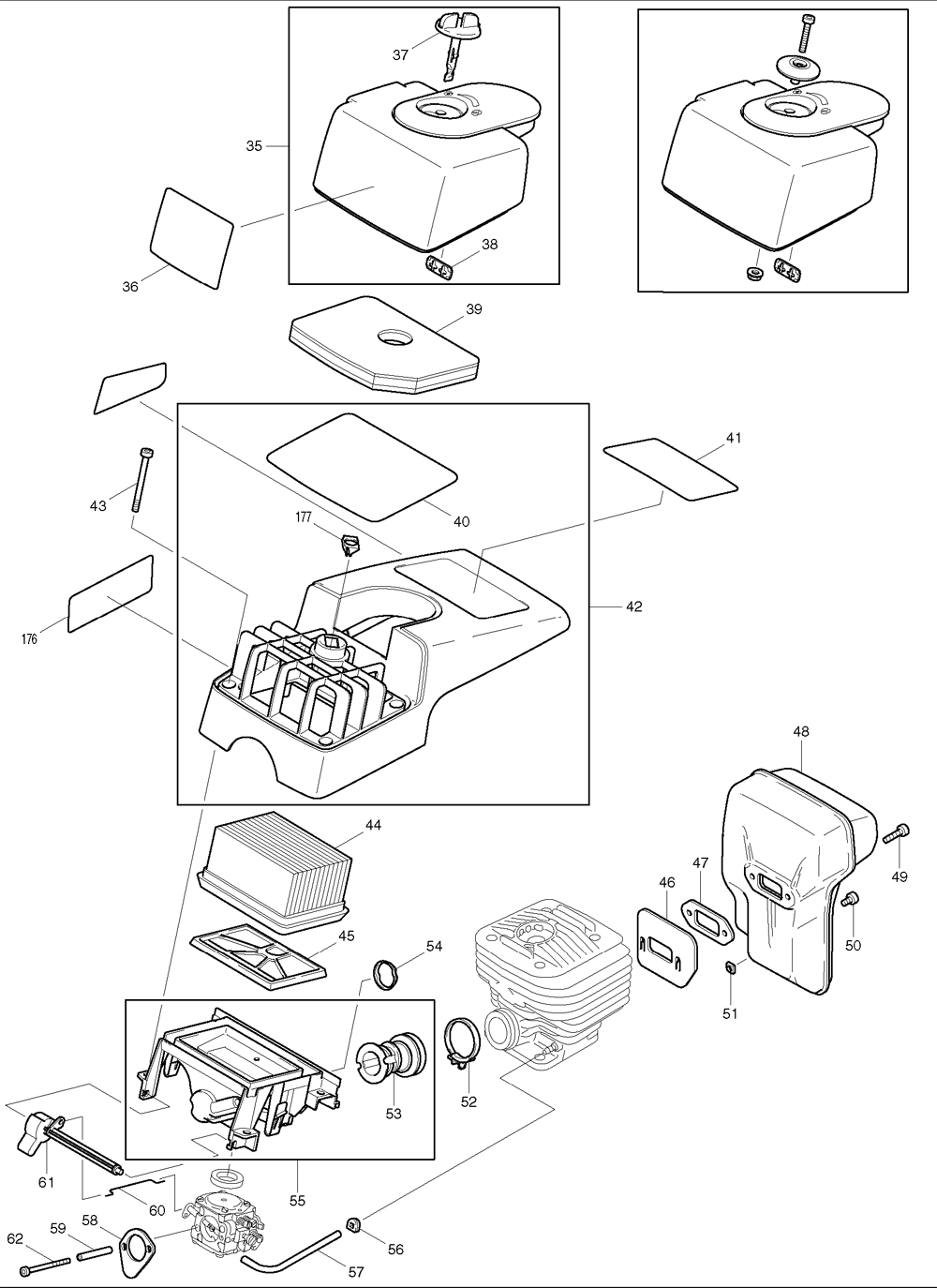

Page-1

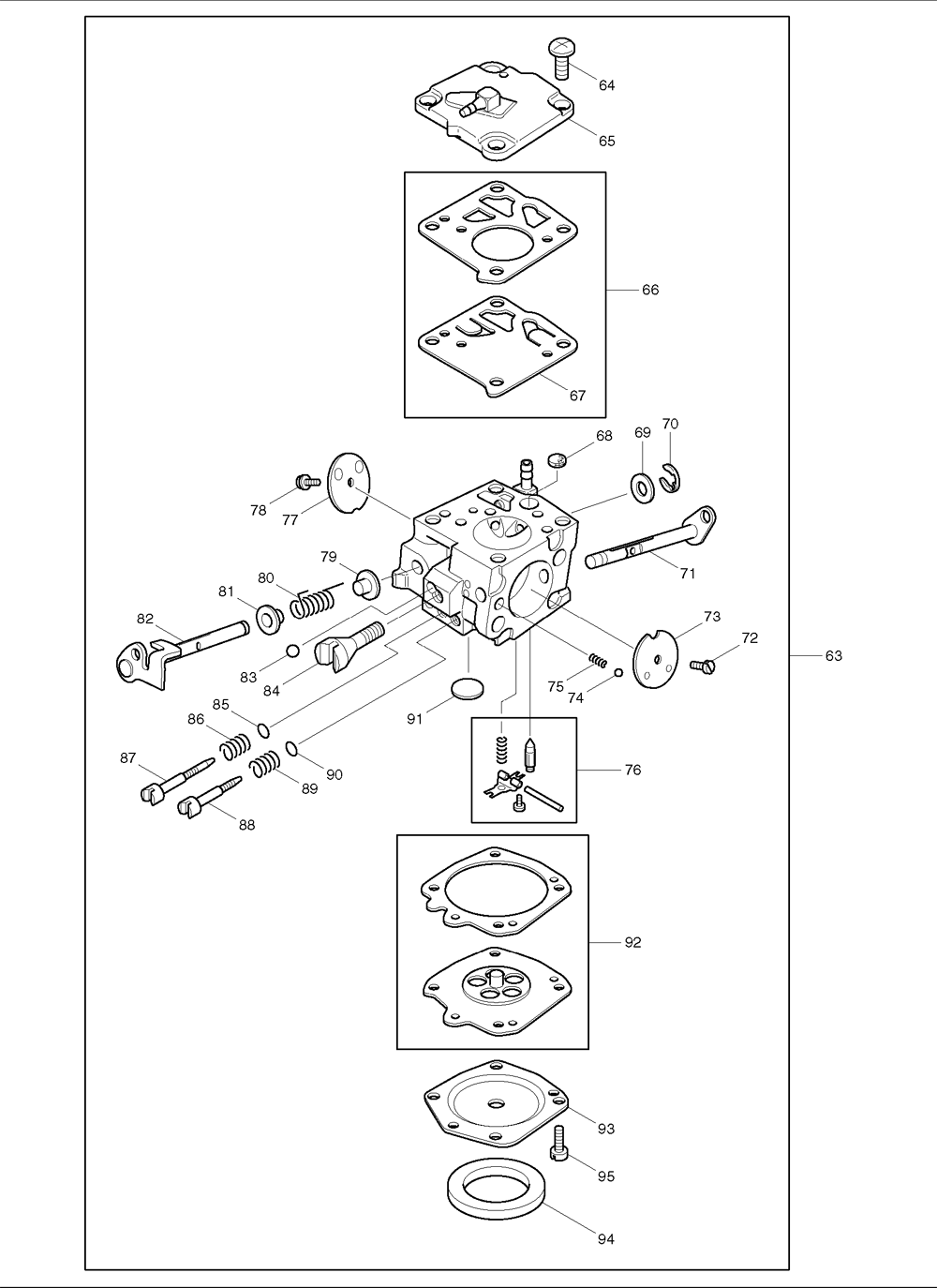

Page-2

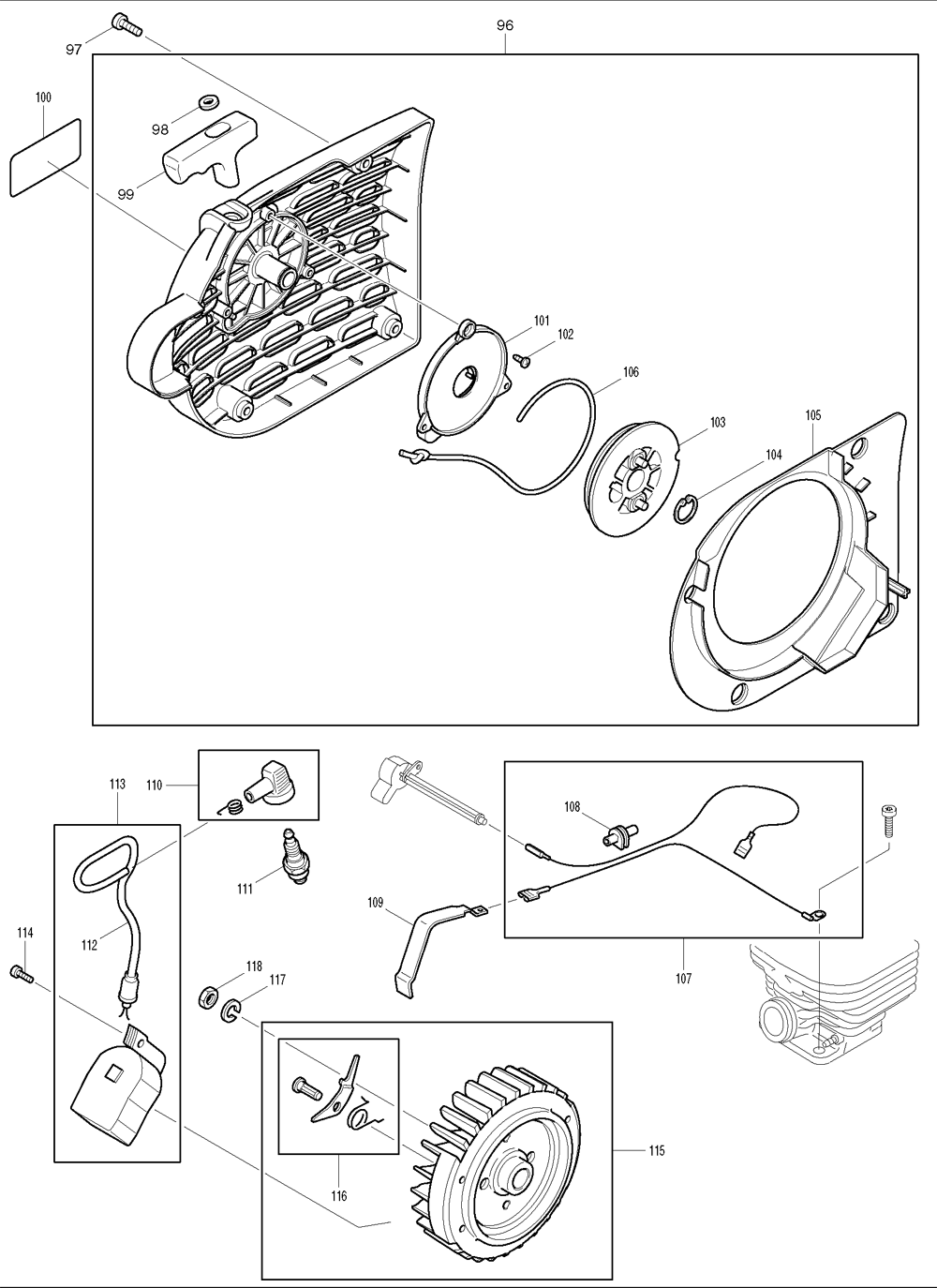

Page-3

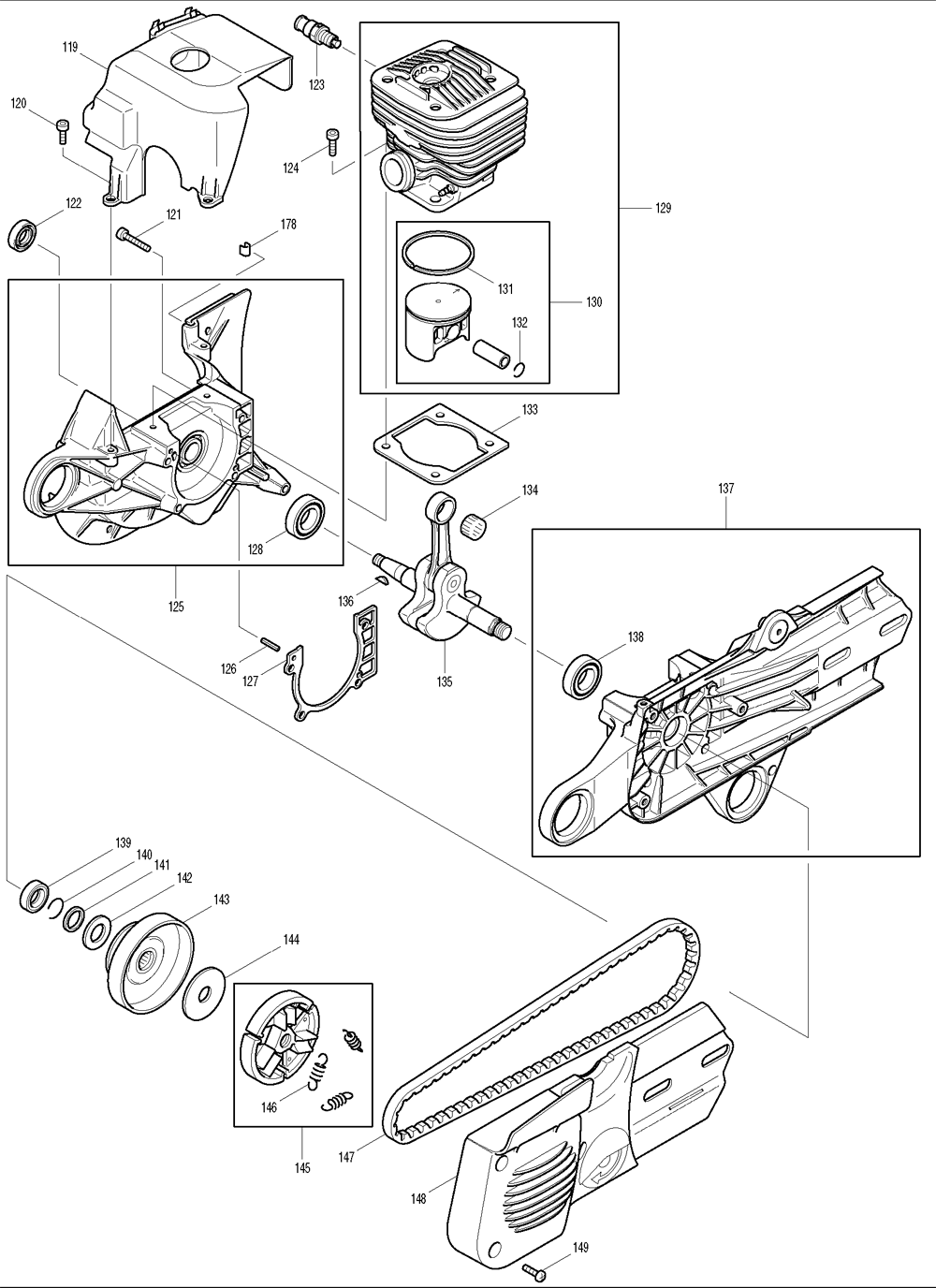

Page-4

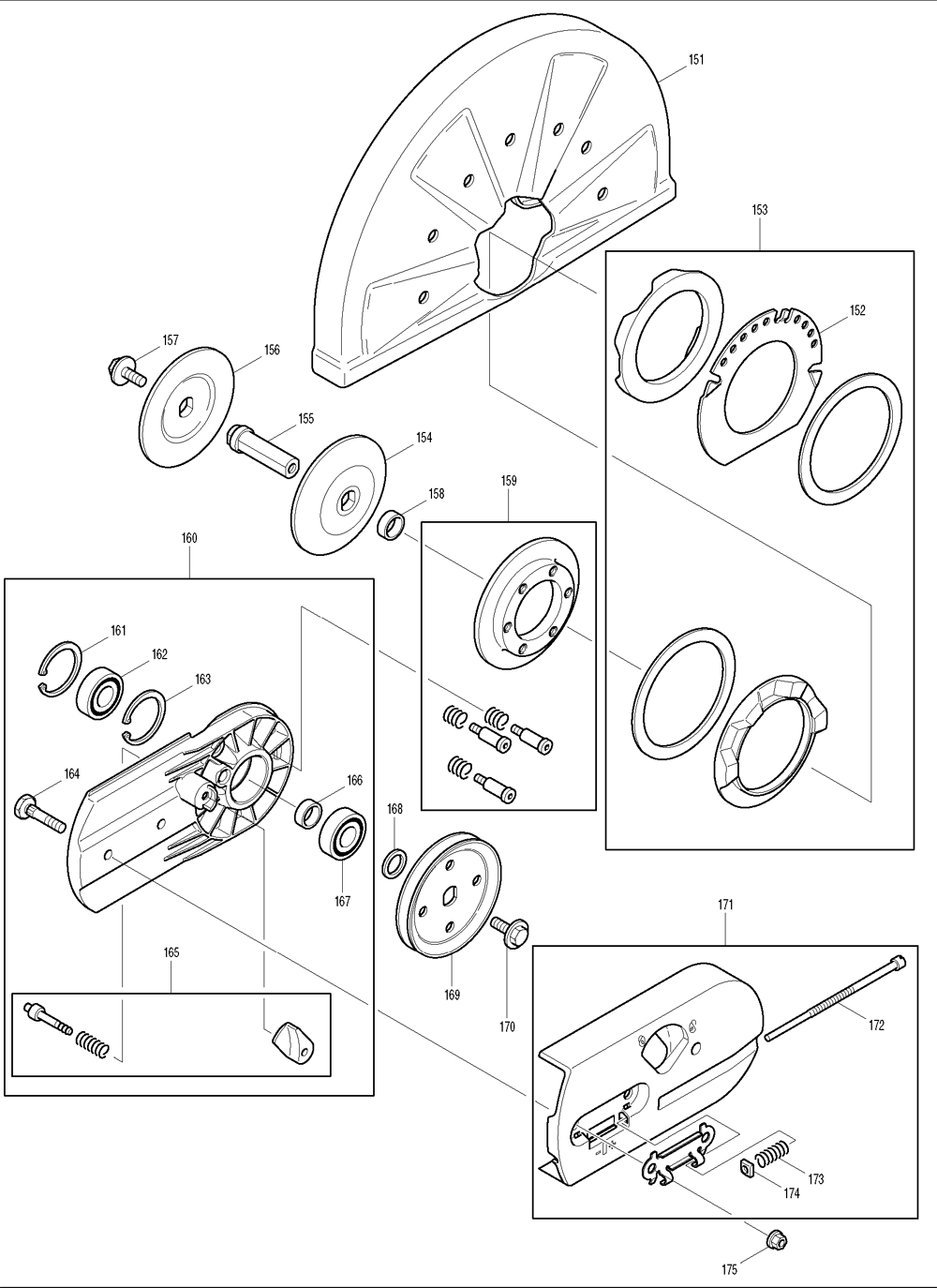

Page-5
Page-6
Tool Diagram    (Click image to Zoom in) View larger Image

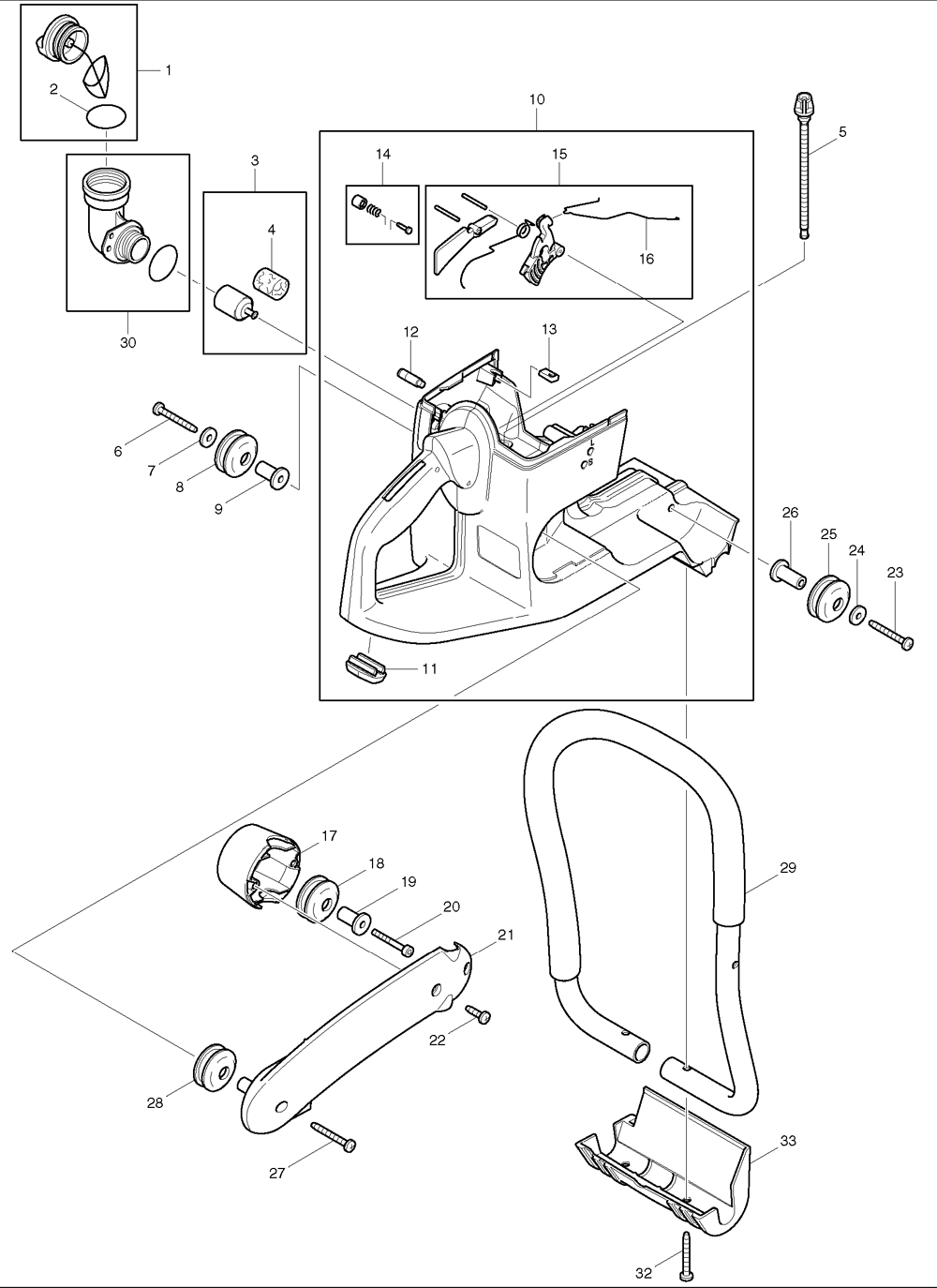

Makita DPC6201 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 010-114-091 FUEL TANK CAP CPL.,DPC6400 $7.68
2 963-230-031 O-RING, DPC6400, RED $3.17
4 963-601-240 FELT, DCS340 $4.93
5 965-404-911 FUEL LINE, DPC6400 $6.14
6 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
7 900-005-078 WASHER 5.8, DPC7301 $1.34
8 965-403-535 RUBBER BUFFER, DPC7331 $9.22
11 394-114-070 RUBBER FOOT, DPC7300 $6.69
12 010-175-050 AIR VALVE CPL., DPC6201 $16.04
13 394-114-100 SCREW PLUG, DPC7300 $3.50
14 957-117-030 HALF-THROTTLE LOCK, CPL.,DPC7300 $4.93
15 957-117-020 THROTTLE MECHANISM CPL., DPC7300 $22.53
16 394-117-011 THROTTLE LINKAGE, DPC6400 $6.69
17 394-114-051 POT, DPC6200 $10.65
18 965-403-535 RUBBER BUFFER, DPC7331 $9.22
20 908-305-405 FILLISTER H. SCREW, DPC9500 $3.17
22 913-455-204 SCREW M5.5X20, DCS6800I $1.85
23 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
24 900-005-078 WASHER 5.8, DPC7301 $1.34
25 965-403-535 RUBBER BUFFER, DPC7331 $9.22
27 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
28 965-403-535 RUBBER BUFFER, DPC7331 $9.22
32 913-455-454 F. SCREW M5.5X45, DCS341 $1.85
33 394-114-190 FOOT, DPC6410 $25.61
35 394-118-070 FILTER COVER ASSY, DPC7300 $28.25
36 980-114-755 SAFETY LABEL, PC6414 $4.60
37 394-118-010 BAYONET, DPC6400 $4.93
38 394-118-060 INSERT, DPC7300 $3.50
39 394-173-030 PREFILTER, DPC7300 $6.69
40 394-118-020 PACKING RING, DPC7300 $4.71
41 980-114-609 LABEL, DPC6201 $4.60
42 394-118-041 HOOD CPL.,GREY, DPC6400 $30.70
43 908-505-555 TORX SCREW 5X55, EHW120 $3.50
44 394-173-010 AIR FILTER, DPC7311 $9.22
45 394-173-020 INNER FILTER, DPC7311 $6.14
46 395-174-110 COOLING PLATE, DPC7331 $4.56
47 965-531-131 GASKET, DPC8112 $4.71
49 908-405-205 SCREW M5X20, DPC6400 $1.85
50 908-005-095 SCREW M5X9, DCS5200I $1.85
51 921-905-004 SQUARE NUT M5, DPC7300 $1.96
52 965-603-050 HOSE CLIP, DPC6410 $7.02
54 024-131-032 INSERT(SUCTION HOSE),DCS9000 $9.22
55 394-171-051 CONNECTING SLEEVE CPL., DPC6200 $36.21
56 965-401-016 RUBBER BUSH, DCS6800I $3.50
57 965-452-382 TUBE, DCS340 $12.54
58 965-518-120 GASKET, DPC6200 $3.50
59 970-502-050 "INSULATING HOSE,DCS431 3.94""" $4.93
60 394-150-042 CHOKE SHAFT, DPC6400 $3.17
61 394-150-030 CHOKE SHAFT, DPC7300 $6.69
62 908-204-555 SCREW M4X55, DCS6421 $1.85
64 394-150-170 FILLISTER HEAD SCREW, DPC7300 $4.93
65 394-150-160 PUMP COVER CPL., DPC7300 $19.67
67 113-150-150 PUMP DIAPHRAGM (237-144), DPC7311 $4.93
68 394-150-180 SCREEN, DPC7300 $4.93
69 122-151-400 DISC, DCS6000I21 . $3.50
70 100-150-350 SAFETY WASHER, DCS6000I21 $5.26
71 394-150-250 CHOKE SHAFT, DPC7300 $21.10
72 001-150-650 SCREW, DCS520I $4.27
73 113-150-261 CHOKE SHUTTER, DPC7000 $4.93
74 113-150-380 LOCKING BALL, DPC7000 $3.50
75 101-150-080 LOCKING SPRING, DPC7000 $5.26
76 957-150-160 SET OF CONTROL PARTS (TILLOTSON), DPC7311 $22.64
77 144-151-320 THROTTLE SHUTTER, DPC7000 $8.12
78 001-150-650 SCREW, DCS520I $4.27
79 144-151-315 BUSHING, DCS6000I21 $4.93
80 394-150-310 SPRING, DPC7300 $6.47
81 144-151-315 BUSHING, DCS6000I21 $4.93
82 394-150-300 THROTTLE SHAFT, DPC7300 $26.16
83 001-150-510 FRICTION BALL, DCS6800I $3.50
84 394-150-570 IDLE STOP SCREW, DPC7300 $8.01
85 394-150-500 PACKING RING, DPC7300 $4.93
86 144-151-480 SPRING(L), DCS6000I21 $5.26
87 394-150-470 IDLE ADJUSTMENT SCREW, DPC7300 $21.10
88 394-150-510 MAIN ADJUSTMENT SCREW, DPC7300 $21.10
89 144-151-480 SPRING(L), DCS6000I21 $5.26
90 394-150-500 PACKING RING, DPC7300 $4.93
91 113-150-040 COVER DISC, DPC7311 $3.50
92 957-150-100 DIAPHRAGM & GASKET (TILLOTSON), DPC7311 $12.19
93 394-150-120 DIAPHRAGM COVER, DPC7300 $8.12
94 965-402-970 GASKET, DPC7300 $1.85
95 001-150-520 SCREW, DCS6800I $4.71
97 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
98 928-405-000 WASHER, DCS340 $1.85
99 965-402-262 STARTER GRIP, DCS6800I $6.69
100 980-114-217 LABEL, DPC6400 $3.10
101 020-163-031 REWIND SPRING CPL, DCS9000 $10.65
102 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
103 024-162-084 CABLE DRUM, DCS9000 $23.43
104 929-314-100 SNAP RING, 14 X 1, DCS6000I21 $1.85
105 394-112-020 AIR GUIDE PLATE, DPC7300 $4.93
106 108-164-020 STARTER ROPE 980MM,DCS431 $6.14
107 965-605-433 CABLE WITH PLUG, DPC6401 $9.22
108 965-401-016 RUBBER BUSH, DCS6800I $3.50
110 957-604-240 SPARK PLUG CAP, DPC7000 $9.77
111 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
112 970-310-200 IGNITION CABLE(150 MM), DCS6401 $8.12
114 908-605-205 F.H. SCREW M5X20, DCS9000 $1.85
115 394-141-030 FLYWHEEL ASS'Y, DPC7300 $132.12
116 031-166-010 STARTER RATCHET, DCS6000I21 $12.96
117 920-308-024 HEX NUT M8X1, DCS34 $1.96
118 926-208-001 SPRING WASHER 8, DPC7000 $2.51
120 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
121 908-005-305 TORX SCREW 5X30, DCS340 $1.85
122 962-900-052 RADIAL RING, DCS431 $8.12
123 001-131-150 DECOMPRESSION VALVE, DCS431 $23.96
124 908-005-205 SCREW M5X20, DCS460 $1.85
126 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
127 965-531-111 GASKET, DPC7331 $4.71
128 960-102-159 BALL BEARING, DCS6800I $19.34
130 325-132-110 PISTON 46 CPL., DPC6200 $89.90
131 325-132-020 PISTON RING 46, DPC6200 $19.67
132 119-132-060 SPRING RING, DCS6000I21 $1.96
133 965-531-121 GASKET, DCS6401 $3.17
135 394-120-011 CRANKSHAFT, DPC7311 $234.55
136 939-630-370 KEY, DPC7000 $1.85
139 962-900-052 RADIAL RING, DCS431 $8.12
140 930-916-160 SPRING RING, DCS431 $1.96
142 394-182-020 GUIDE DISC, DPC7300 $3.50
146 024-184-021 TENSION SPRING, DC6401 $3.61
147 965-300-470 V-BELT, DPC7300 $29.58
148 394-213-010 COVER (GREY), DPC7300 $18.24
149 908-605-145 F.H. SCREW M5X14, DCS9000 $1.85
152 394-342-011 LOCKING PLATE, DPC6200 $14.61
153 957-342-011 PROTECTING HOOD, DPC6200 $22.64
155 394-228-101 20MM AXLE, DPC POWER CUTTERS $57.30
157 994-280-250 HEX SCREW M8X25, DPC7300 $6.69
158 394-228-021 SPACER, DPC8112 $4.71
159 394-342-211 PRESSURE RING CPL., DPC8112 $40.39
160 394-211-730 CUTTING DEVICE ASS'Y DPC7300 $212.82
161 929-240-180 SNAP RING, DPC6400 $3.50
162 960-102-176 BALL BEARING 6203 LLU, DPC6400 $19.67
164 394-211-090 SCREW, DPC7300 $4.93
165 957-211-020 BOLT CPL., DPC7300 $10.65
168 900-006-179 DISC, DPC7300 $1.85
169 394-221-050 V-BELT PULLEY, DPC7321 $39.47
172 394-213-031 TENSIONING SCREW, DPC6400 $4.71
173 394-342-120 PRESSURE SPRING, DPC7300 $5.26
174 921-906-004 NUT M6, EHW120 $1.96
175 923-208-004 HEX NUT, DCS341 $4.16
176 965-402-870 RUBBER PLATE SET, DPC6400 $10.65
177 980-114-762 LABEL MIX, DPC6400 $3.10
178 394-118-050 BAYONET LOCK, DPC6400 $1.74
