Makita DCS6000I Electric Saw Parts

Makita DCS6000I Electric Saw Parts Image

Makita DCS6000I Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Tool Diagram    (Click image to Zoom in) View larger Image

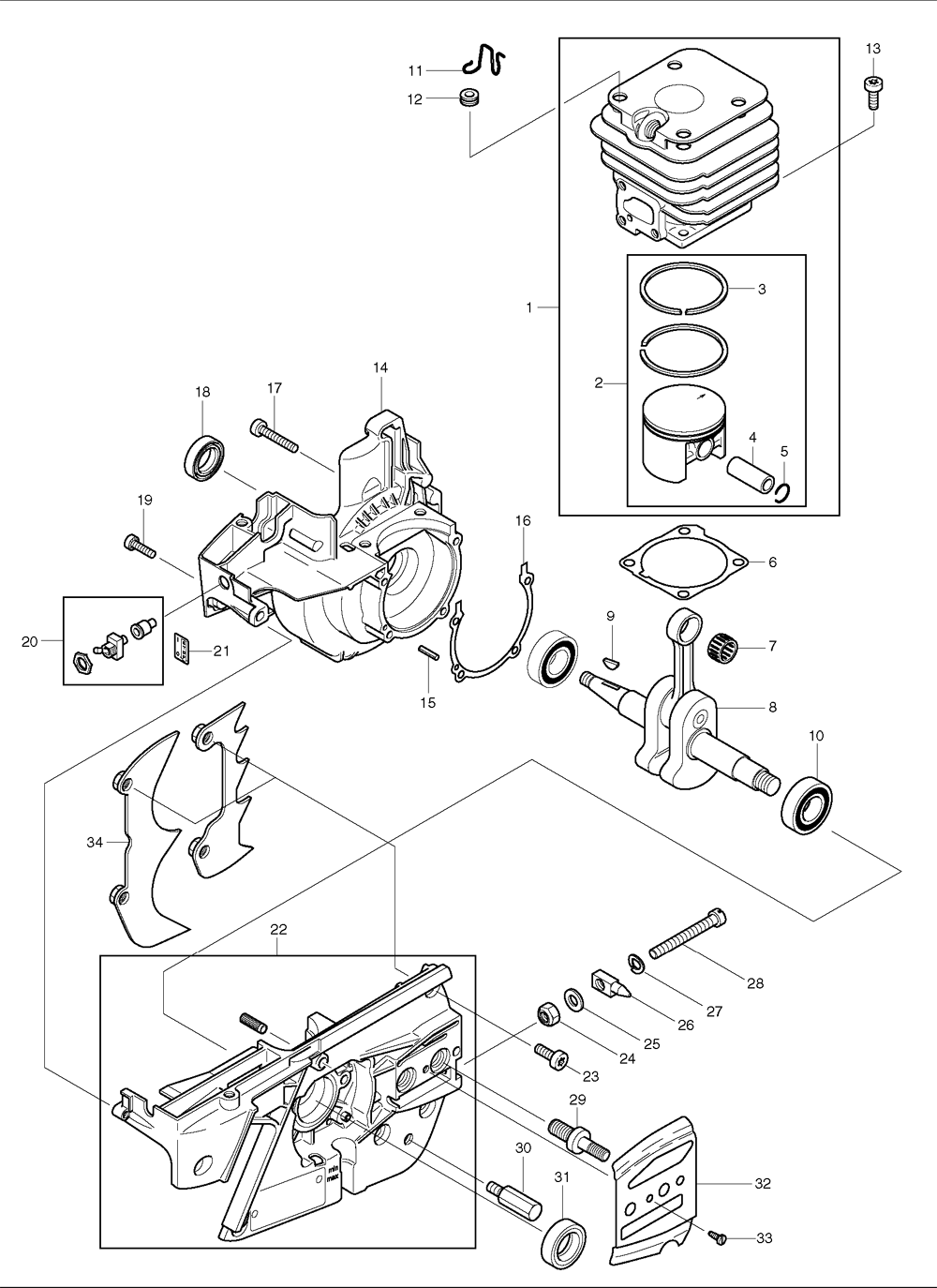

Makita DCS6000I Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
2 029-132-000 PISTON ASSY., DCS6000I21 $95.40
3 029-132-020 PISTON RING, DCS6800I $22.64
4 119-132-030 PISTON PIN, DCS6421 $19.67
5 119-132-060 SPRING RING, DCS6000I21 $1.96
6 965-517-131 GASKET- DCS6800I $3.50
8 030-120-010 CRANKSHAFT, DCS6800I $226.79
9 939-620-371 KEY , DCS431 $1.85

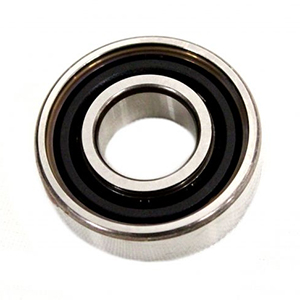

10 960-102-159 BALL BEARING, DCS6800I $19.34
11 001-142-012 CRAMP, DCS431 $3.50
12 965-401-011 RUBBER BUSH, DCS340 $3.50
13 908-006-205 F.H.SCREW, DCS460 $1.85
14 030-111-660 CRANKCASE MAG. SIDE, DCS6000I-21 $100.40
15 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
16 965-517-141 GASKET, DCS6800I $3.50
17 908-005-305 TORX SCREW 5X30, DCS340 $1.85
18 962-900-052 RADIAL RING, DCS431 $8.12
19 908-405-145 TORX SCREW 5X14, DPC7301 $1.85
20 957-605-112 SHORT C.SWITCH ASSY, DCS431 $12.19
21 980-113-841 LABEL, DCS430 $1.65
22 030-111-630 CRANKCASE CL.SI, DCS6800I $103.02
23 908-006-145 SCREW M6X14, DCS6800I $1.85
24 922-606-000 HEX NUT M6, DCS6000I21 $1.96
25 924-306-400 DISC, DCS6000I21 $1.41
26 030-111-040 NUT WITH PIVOT, DCS6800I $7.68
27 926-206-000 SPRING WASHER 6, DCS6800I $1.96
28 901-506-654 F.H.SCREW, DCS6800I $3.50
29 030-232-010 BOLT, DCS6800I $8.12
30 166-111-071 CHAIN CATCH BOLT, DCS6800I $6.14
31 962-900-053 RADIAL RING, DCS6800I $8.12
32 030-111-021 GUIDE PLATE, DCS6000I-21 $3.17
33 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
34 030-250-010 SPIKE BAR, DCS6800I $21.10

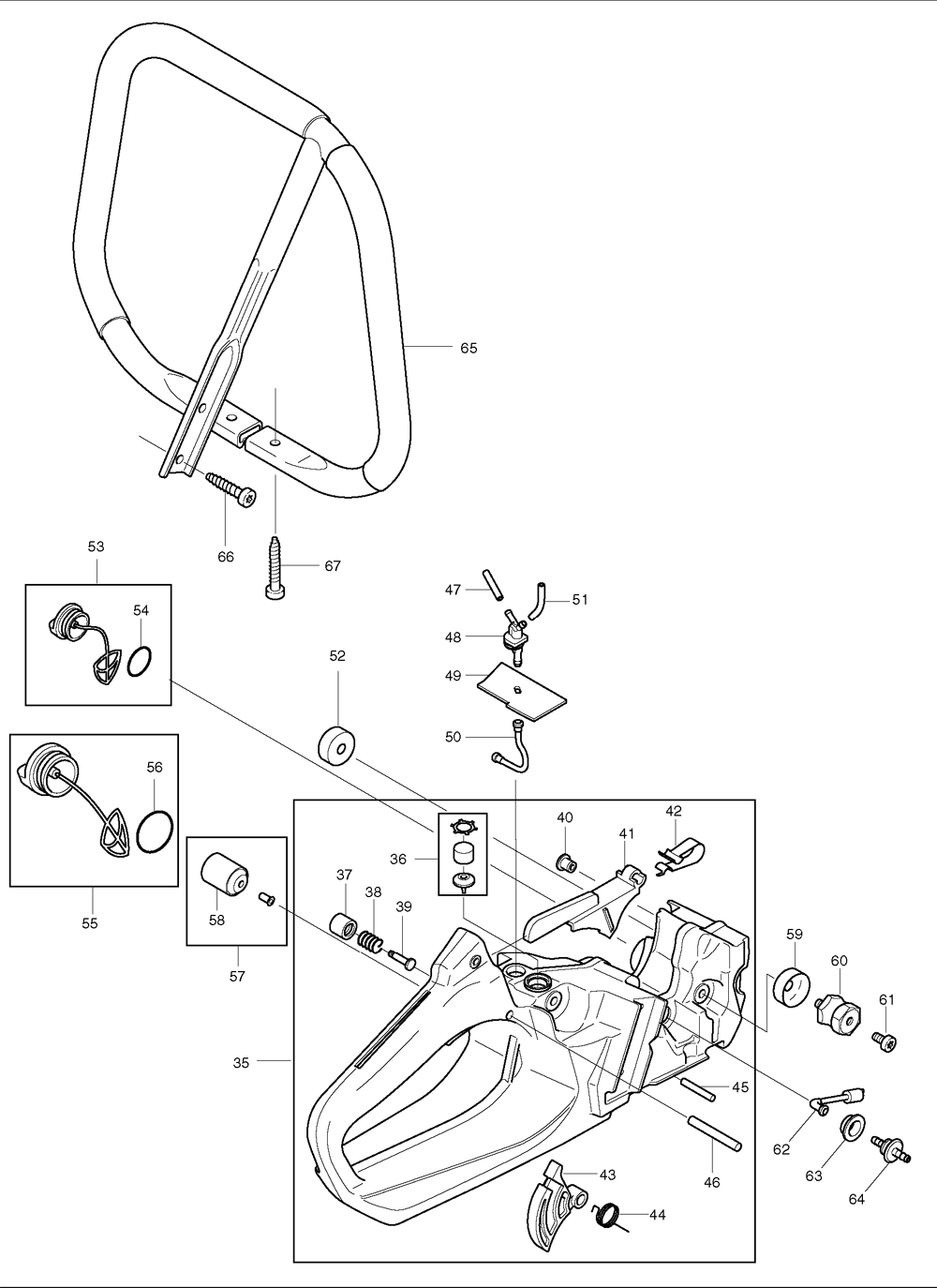

36 957-114-010 VENT VALVE ASS'Y, DCS6000I21 $3.50
37 965-451-750 BUTTON, DCS6000I21 $1.85
38 965-551-160 PRESSURE SPRING, DCS6000I21 $1.96
39 965-551-150 STOP PIN, DCS6000I21 $4.60
40 010-245-010 VENT VALVE, DCS431 $6.69
41 119-117-031 CATCH LEVER, DCS6800I $9.22
42 119-117-052 SPRING, DCS6800I $4.71
43 030-117-010 THROTTLE LEVER, DCS6800I $3.17
44 119-117-041 SPRING, DCS6000I21 $1.96
45 935-940-240 CYL.PIN 4M 6X24, DCS6000I21 $1.74
46 935-950-400 CYL.PIN 5M 6X40, DCS6000I21 $3.17
47 965-452-382 TUBE, DCS340 $12.54
48 965-451-185 FUEL NIPPLE, DCS6800I $3.50
49 965-404-850 GASKET, DCS6800I $1.85
50 965-402-402 SUCTION LINE, DCS6000I21 $8.12
51 965-452-470 FUEL LINE (105MM), DCS6800I $11.42
52 965-551-202 POT, DCS6800I $8.12
53 010-114-032 OIL TANK PLUG, DCS431 $6.47
54 963-100-051 GASKET, DCS431 $1.74
55 965-451-901 FUEL TANK PLUG AY, DCS540 REPLACES 965-450-301 $8.12
56 963-232-045 PACKING RING 32X4.5, DCS431 $3.17
58 963-601-240 FELT, DCS340 $4.93
59 965-551-202 POT, DCS6800I $8.12
60 965-403-430 RUBBER BUFFER, DCS520I $9.77
61 908-005-095 SCREW M5X9, DCS5200I $1.85
62 965-451-350 SUCTION LINE, DCS6800I $17.69
63 965-402-910 RUBBER BUSH, DCS6800I $3.50
64 965-451-500 HOSE STEM, DCS6800I $3.17
65 030-310-170 WRAP AROUND HANDLE, DCS6800I $77.50
66 913-455-204 SCREW M5.5X20, DCS6800I $1.85
67 913-455-304 SCREW M5.5X30, DCS6000I21 $1.85

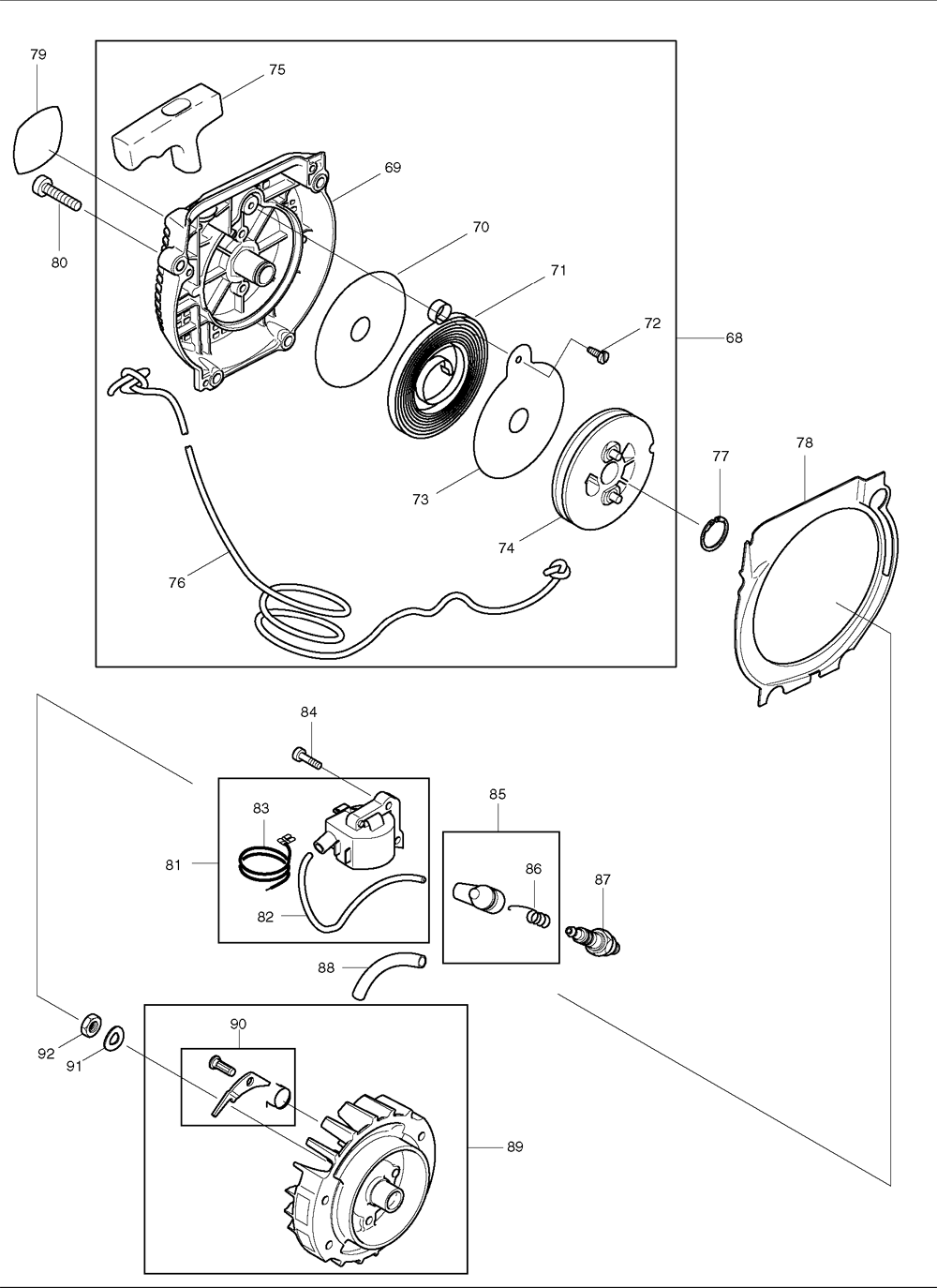

68 114-112-660 STARTER ASS'Y, DCS6800I $66.60
69 112-112-640 FAN HOUSING, DCS6800I $31.11
70 900-004-363 SPACER, DCS6000I21 $3.50
71 123-163-013 REWIND SPRING, DCS6000I21 $15.16
72 907-204-102 THREAD FORMING SCREW, DCS6000I21 $3.50
73 123-163-020 SPRING COVER, DCS6000I21 $1.96
75 965-402-262 STARTER GRIP, DCS6800I $6.69
76 122-164-010 START ROPE 1000MM, DCS6800I $4.93
77 929-314-100 SNAP RING, 14 X 1, DCS6000I21 $1.85
78 112-112-331 AIR DUCT, DCS6800I $4.93
79 980-114-094 LABEL, DCS6000I-21 $3.10
80 908-005-205 SCREW M5X20, DCS460 $1.85
82 970-310-200 IGNITION CABLE(150 MM), DCS6401 $8.12
83 001-147-000 SHORT-CIRCUIT CABLE, DCS5200I $9.77
84 908-304-205 F.H.SCREW DCS6800I $1.85
85 957-604-260 PLUG CAP ASSY, DPC7331 $6.14
86 965-604-180 SPRING, DCS431 $3.61
87 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
88 970-502-110 INSULATING HOSE (43 MM), DCS340 $8.12
89 030-141-020 FLYWHEEL CPL. DCS6800I $128.92
90 031-166-010 STARTER RATCHET, DCS6000I21 $12.96
91 926-208-001 SPRING WASHER 8, DPC7000 $2.51
92 920-308-024 HEX NUT M8X1, DCS34 $1.96

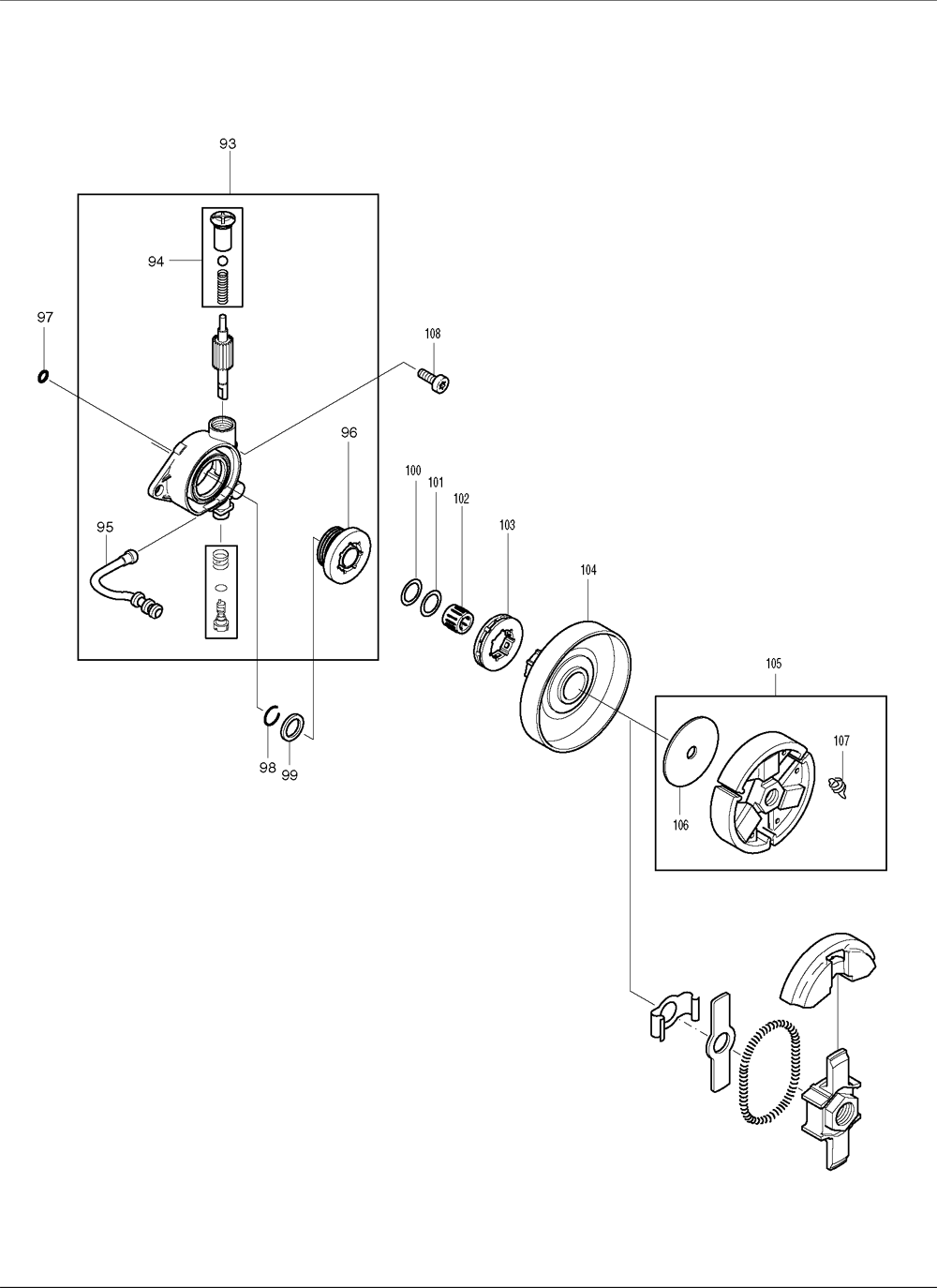

93 030-245-100 OIL PUMP, DCS6000I21 $53.20
94 030-245-070 REPAIR KIT, DCS6000I21 $13.62
95 965-402-402 SUCTION LINE, DCS6000I21 $8.12
96 030-245-051 PUMP DRIVE GEAR, DCS6800I $12.74
97 963-204-015 PACKING RING (4X1.5), DCS6800I $1.74
98 930-916-160 SPRING RING, DCS431 $1.96
100 030-224-010 THRUST WASHER .3MM, DCS6800I $3.72
101 030-224-020 STOP DISC 0.8MM, DCS6800I $3.17
102 962-210-026 NEEDLE CAGE, DCS6800I $8.12
103 119-224-070 RIM SPROCKET 3/8, DCS6800I $9.77
104 030-223-100 CLUTCH DRUM, DCS6800I $13.62
105 957-180-060 CLUTCH ASS'Y, DCS6000I-21 $29.37
107 024-184-021 TENSION SPRING, DC6401 $3.61
108 908-005-125 F.H. SCREW M5X12, DCS431 $1.85

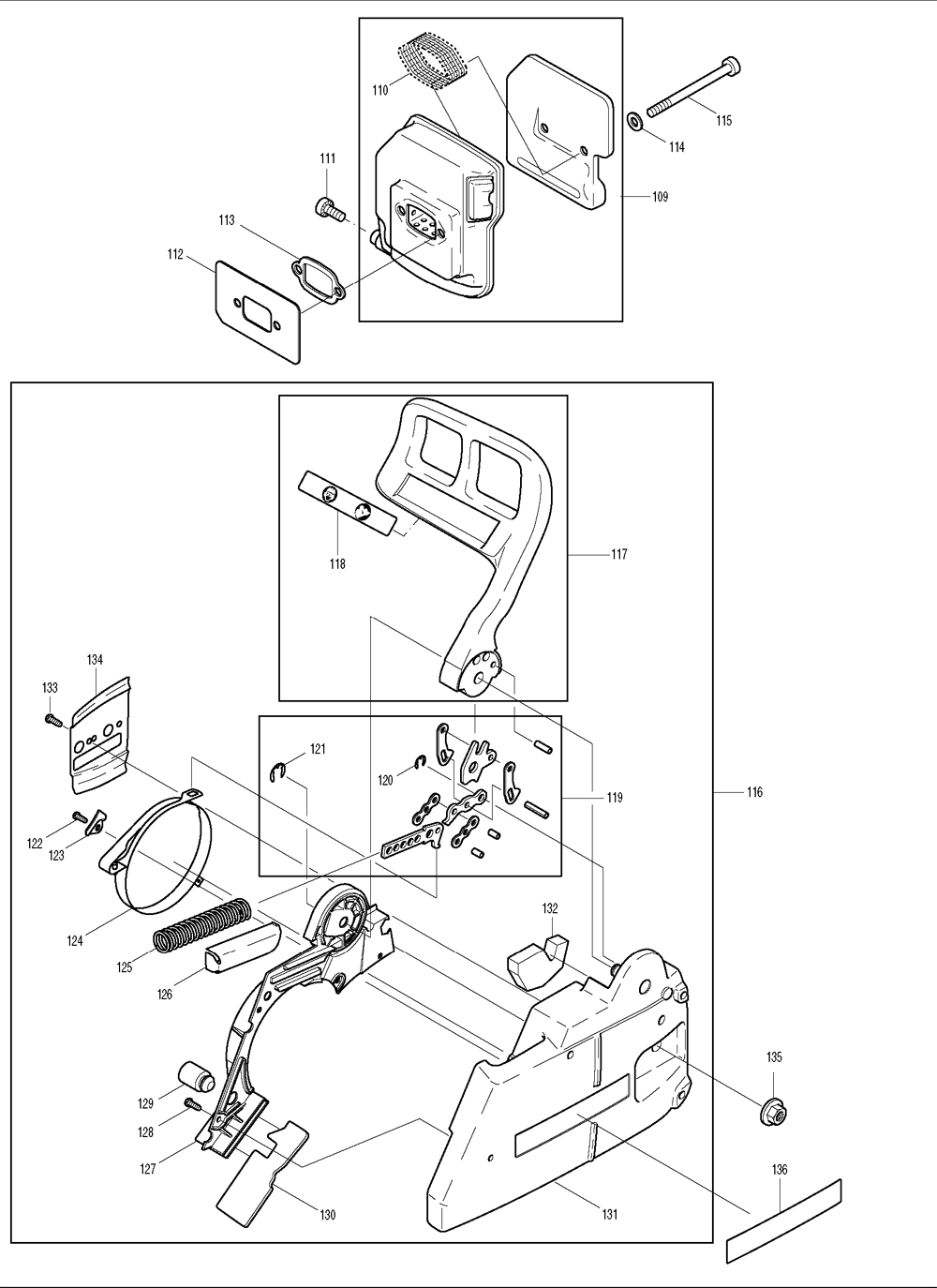

109 119-174-241 MUFFLER COMPLETE, DCS6800I $68.00
110 112-174-130 SPARK ARREST SCREEN, DCS6800I $6.69
111 908-005-095 SCREW M5X9, DCS5200I $1.85
112 030-174-031 COVER PLATE ,DCS6800I $4.93
113 965-517-031 GASKET, DCS6800I $3.50
114 928-406-000 DISC, DPC9500 $3.17
115 908-206-558 SCREW 6X55, DCS6800I $3.50
116 030-213-660 CHAIN BRAKE ASSY, DCS6800I $110.68
117 030-213-110 HAND GUARD, DCS6800I $22.64
118 980-114-237 LABEL (SAFETY), DCS430 $1.80
119 010-213-021 BRAKING MECHANISM, DCS6800I $45.79
120 927-304-000 SAFETY WASHER , DCS431 $1.63
121 927-306-000 SAFETY WASHER , DCS34 $1.63
122 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
123 027-213-350 BRAKE BAND HOLDER, DCS540 $3.50
124 030-213-160 BRAKE SPRING, DCS6800I $19.67
125 024-213-321 PRESSURE SPRING, DCS6800I $5.26
126 030-213-190 SPRING GUIDE, DCS6800I $4.93
127 030-213-182 COVER PLATE, DCS6000I-21 $6.14
128 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
129 965-403-370 RUBBER BUFFER, DCS6800I $3.50
130 965-404-761 RUBBER PLATE, DCS9010 $4.93
131 030-213-655 SPROCKET GUARD, DCS6800I $63.70
132 965-404-800 COVER,FOAM PLATE, DCS6800I $3.50
133 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
134 030-111-030 GUIDE PLATE, DCS6800I $3.50
135 923-208-004 HEX NUT, DCS341 $4.16
136 980-114-259 LABEL, DCS6800I $3.54

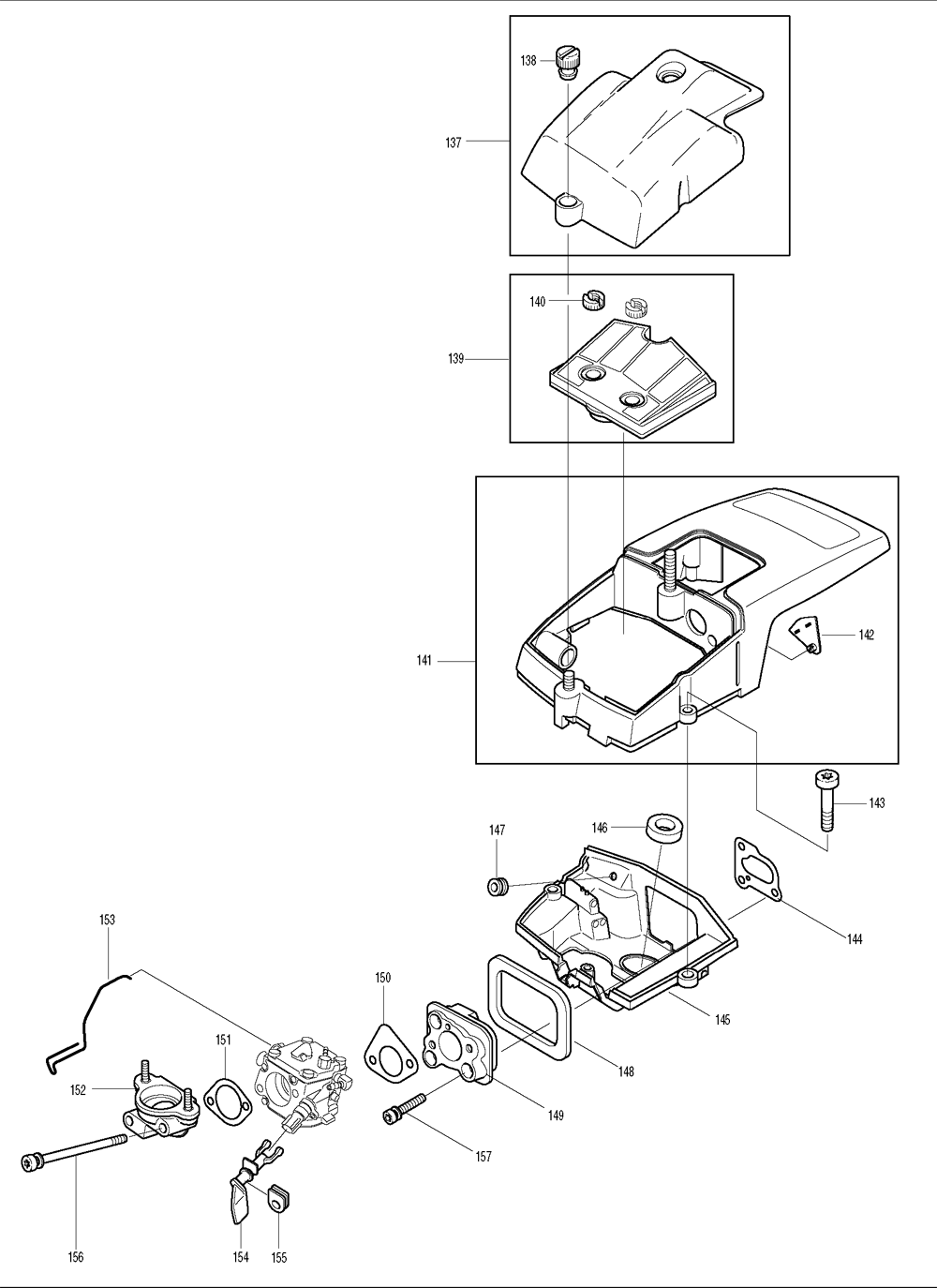

137 030-118-070 COVER CPL., DCS6800I $12.19
138 001-118-062 NUT M5,DCS340 $5.26
139 121-173-151 AIR FILTER ROBKOFLOK, DCS6800I $22.53
140 001-118-040 NUT M5, DCS6800I $3.61
141 030-118-060 HOOD CPL.,DCS6800I $35.59
142 030-118-131 SHUTTER, DCS6800I $1.85
143 908-305-255 TORX SCREW T-27, DCS6000I21 $1.85
144 965-517-122 GASKET, DCS6800I $3.50
145 030-118-082 BOTTOM, DCS6800I $12.19
146 030-404-460 GASKET, DCS430 $3.50
147 965-401-014 RUBBER BUSH, DCS6800I $3.50
148 030-131-020 GASKET, DCS6800I $1.85
149 030-131-012 INTERMEDIATE FLANGE, DCS6800I $15.16
150 965-517-101 GASKET, DCS6800I $1.85
151 965-518-120 GASKET, DPC6200 $3.50
152 121-171-020 CONNECTING MUFF, DCS6800I $16.04
153 030-117-032 THROTTLE LINKAGE, DCS6800I $4.93
154 030-150-030 CHOKE LEVER, DCS6800I $3.50
155 965-401-016 RUBBER BUSH, DCS6800I $3.50
156 908-205-755 SCREW M5X75, DCS6800I $3.50
157 908-405-255 SCREW M5X25, DCS340 $3.50

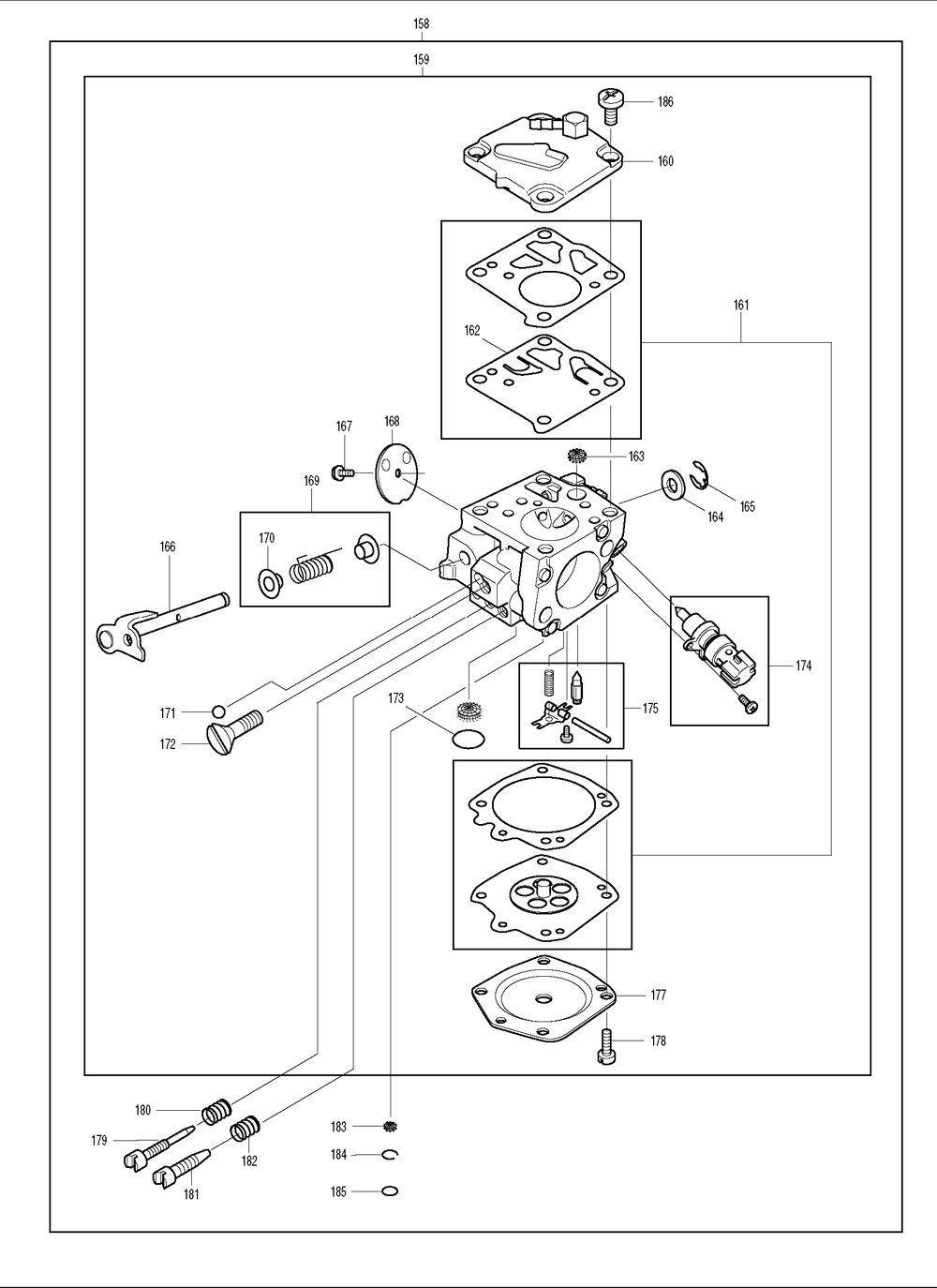

159 030-150-170 CARBURETOR CPL., DCS6000I-21 $116.50
160 030-150-160 PUMP COVER, DCS6800I $18.46
161 957-150-100 DIAPHRAGM & GASKET (TILLOTSON), DPC7311 $12.19
162 113-150-150 PUMP DIAPHRAGM (237-144), DPC7311 $4.93
163 020-150-180 SCREEN, DCS6000I21 $4.71
164 122-151-400 DISC, DCS6000I21 . $3.50
165 100-150-350 SAFETY WASHER, DCS6000I21 $5.26
166 133-150-300 THROTTLE SHAFT, DCS6800I $19.34
167 001-150-650 SCREW, DCS520I $4.27
168 001-150-320 THROTTLE SHUTTER, DCS6800I $6.69
169 957-150-110 SPRING CPL. DCS6800I $12.96
170 144-151-315 BUSHING, DCS6000I21 $4.93
171 001-150-510 FRICTION BALL, DCS6800I $3.50
172 001-150-270 IDLE STOP SCREW, DCS6000I-21 $6.14
173 113-150-040 COVER DISC, DPC7311 $3.50
174 030-150-141 INJECTION VALVE CPL. DCS6800I $27.26
177 113-150-120 DIAPHRAGM COVER, DCS6800I $6.69
178 001-150-520 SCREW, DCS6800I $4.71
179 122-151-470 IDLE ADJ.SCREW(L), DCS6000I21 $22.53
180 144-151-480 SPRING(L), DCS6000I21 $5.26
181 122-151-510 MAIN ADJ.SCREW(H), DCS6000I21 $14.61
182 101-150-480 SPRING(H), DCS6000I21 $3.61
183 107-150-230 SCREEN FOR NOZZLE, DCS6000I21 $3.50
184 107-150-240 SPRING RING, DCS6000I21 $3.17
185 113-150-030 COVER DISC, DCS6000I21 $3.50
186 113-150-170 SCREW ,DCS6800I $3.50

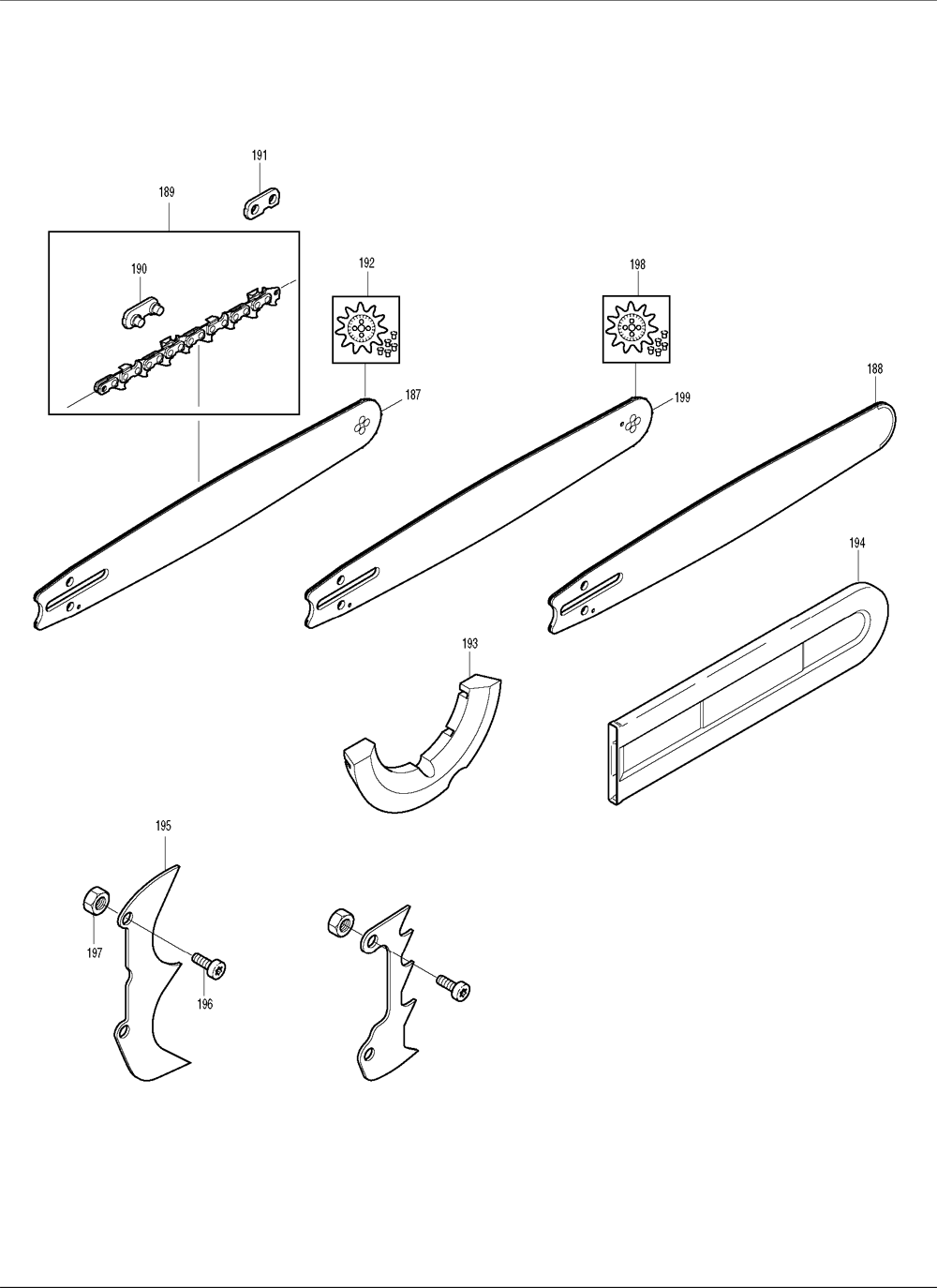

187 443053661 20 GUIDE BAR DCS510-20 $51.12
193 965-451-890 INSERT FOR FAN HOUSING $13.84
195 030-250-030 SPIKE BAR $16.04
196 908-006-145 SCREW M6X14, DCS6800I $1.85
197 920-406-000 HEXAGONAL NUT M6, DPC7000 $1.96
