Makita DCS401 Electric Saw Parts

Makita DCS401 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

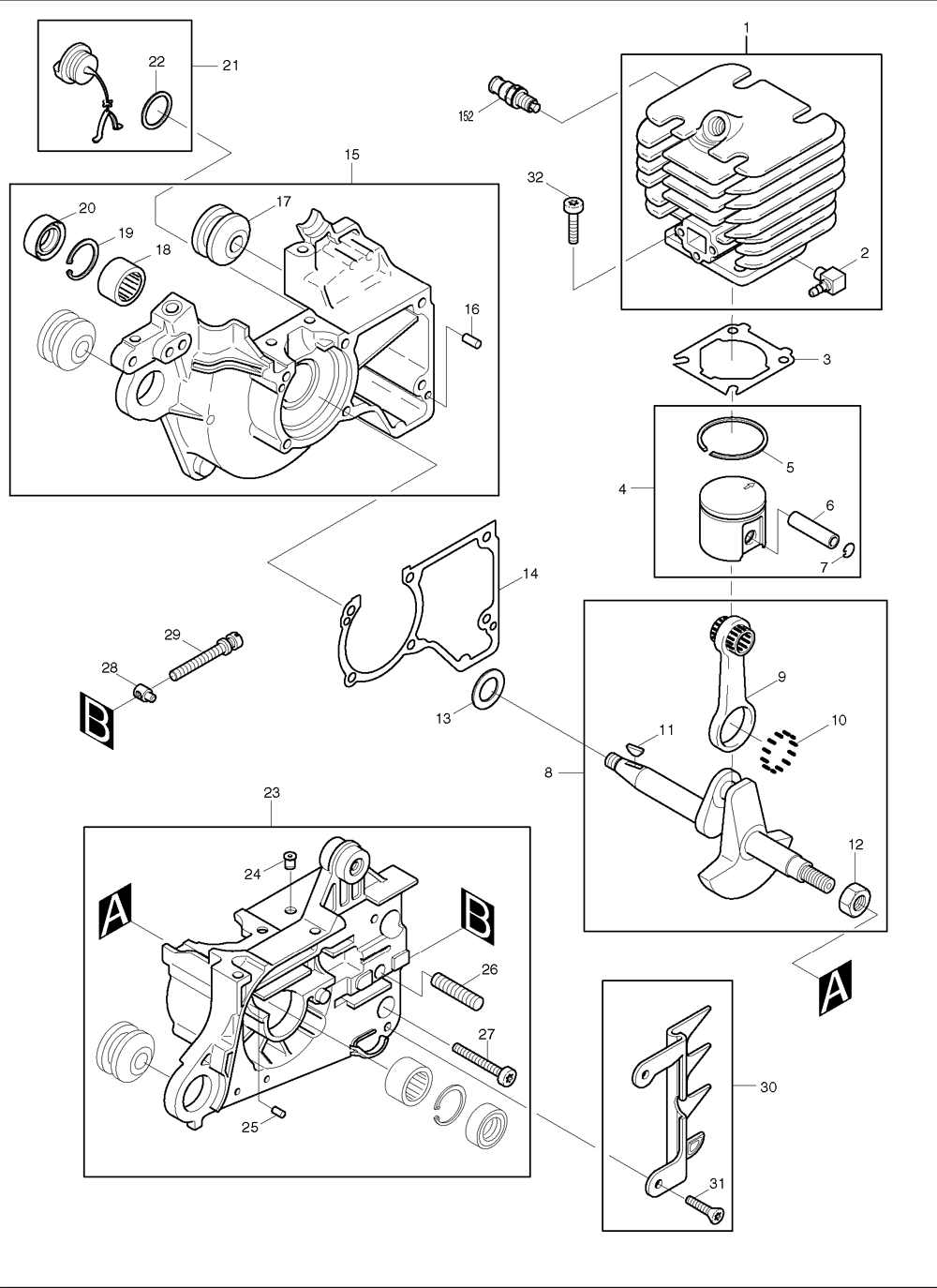

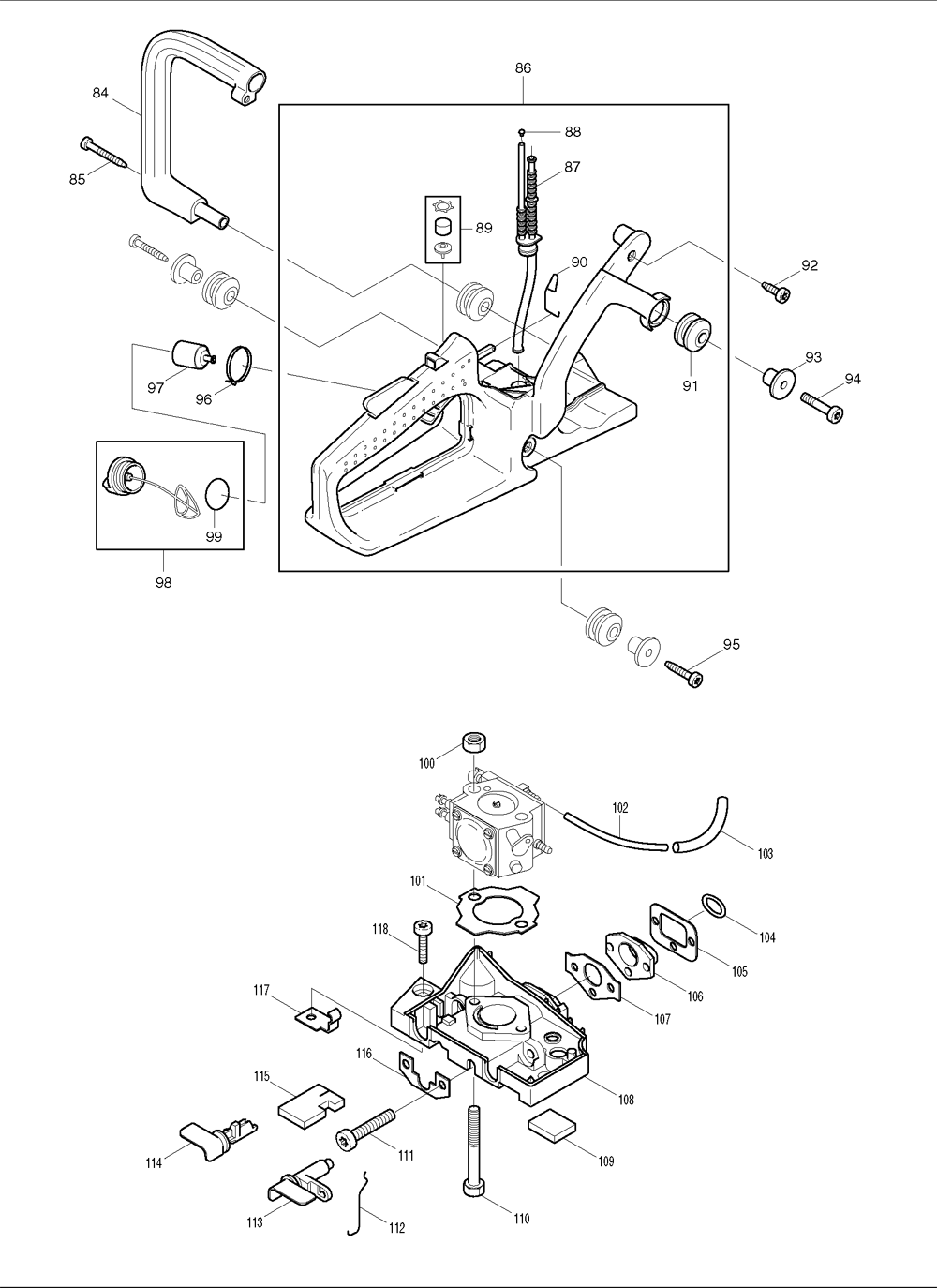

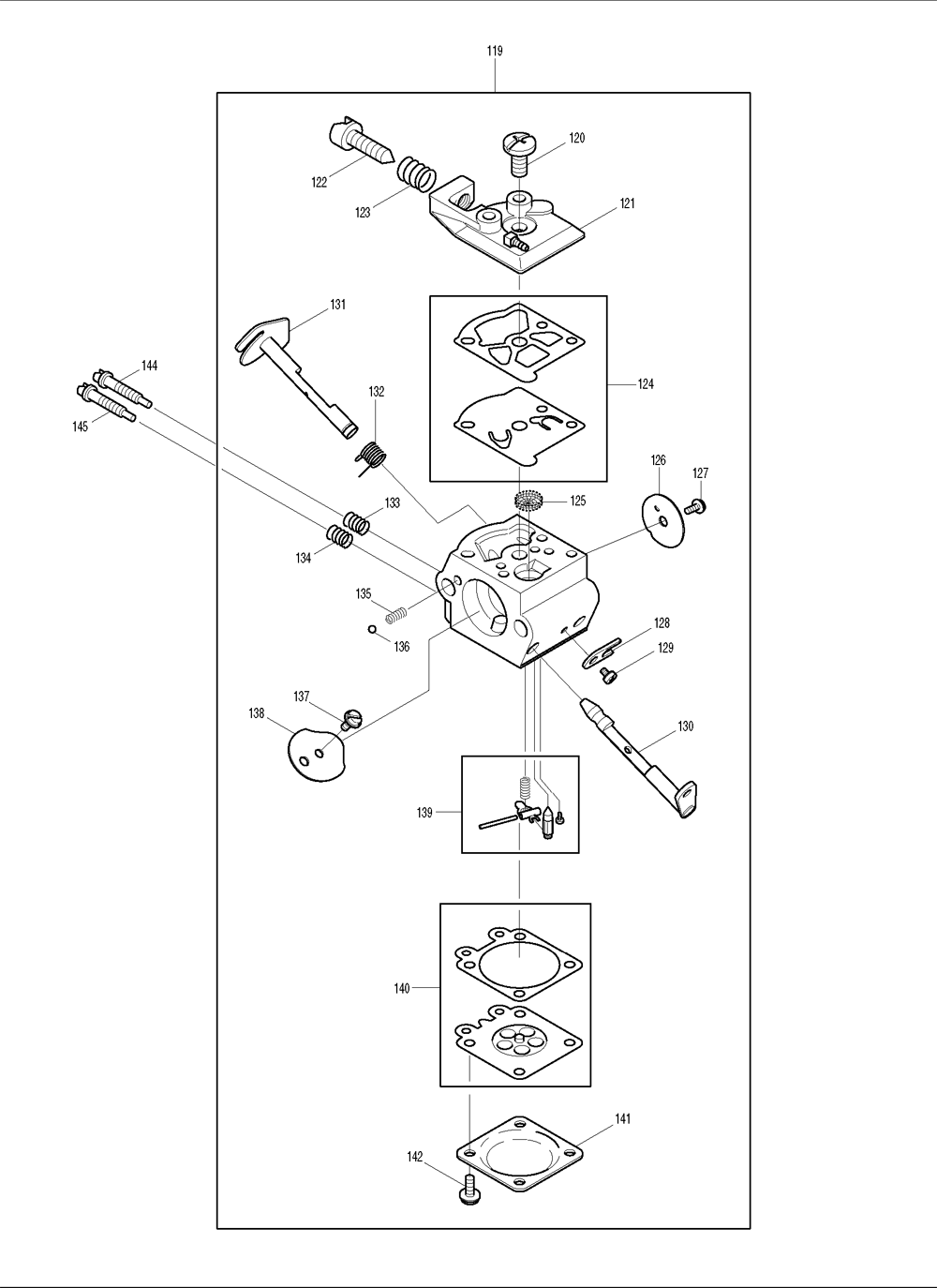

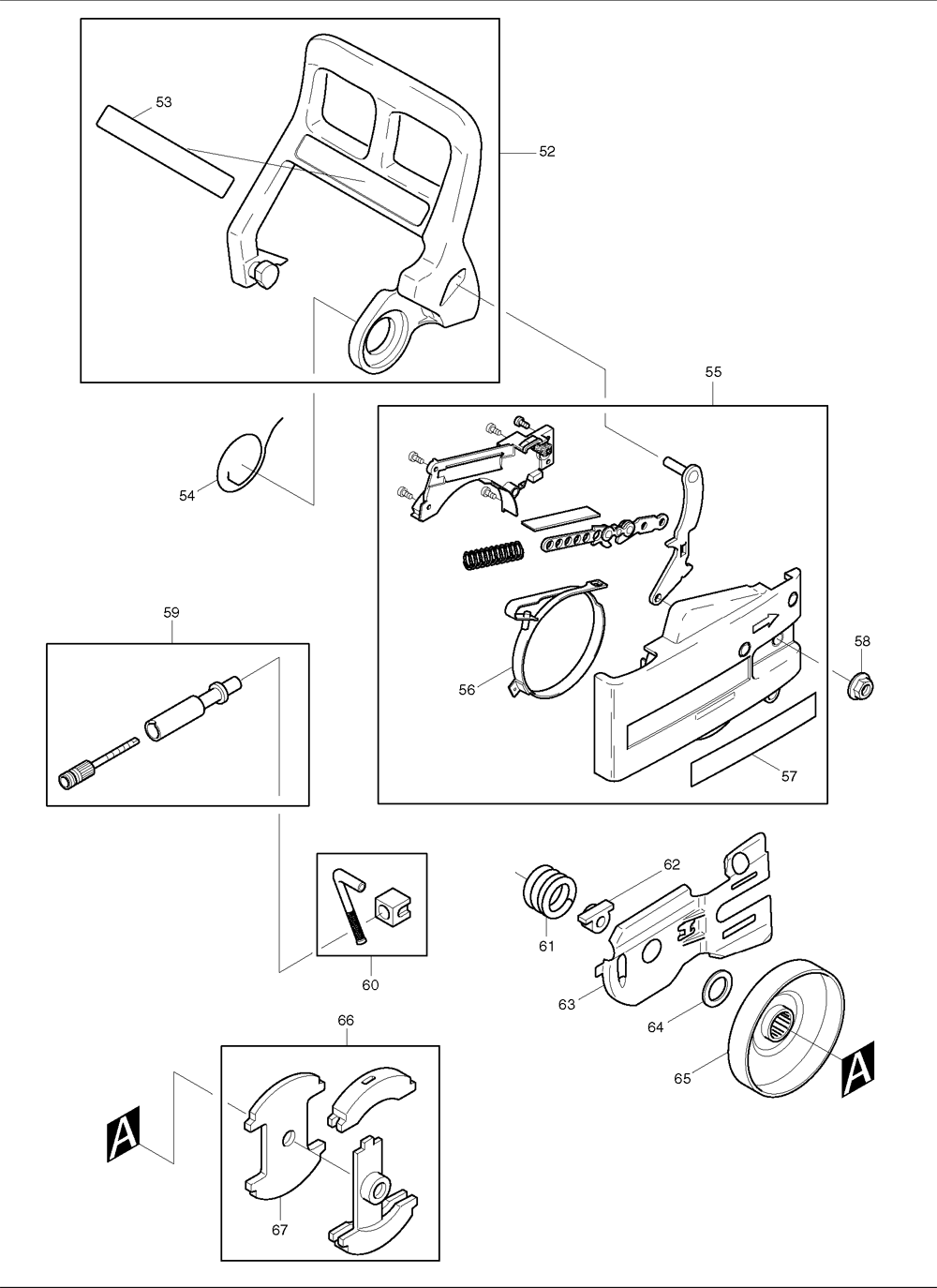

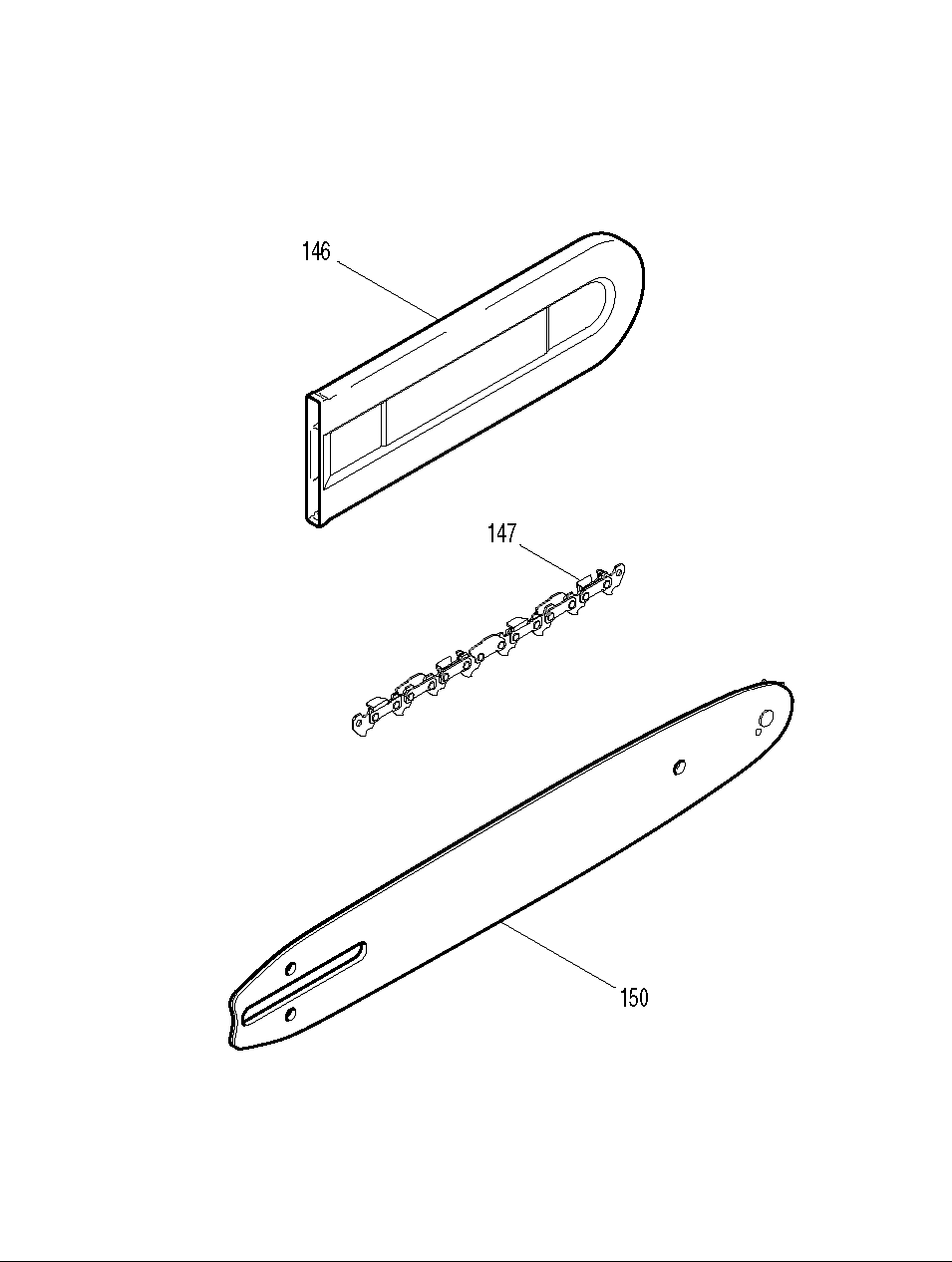

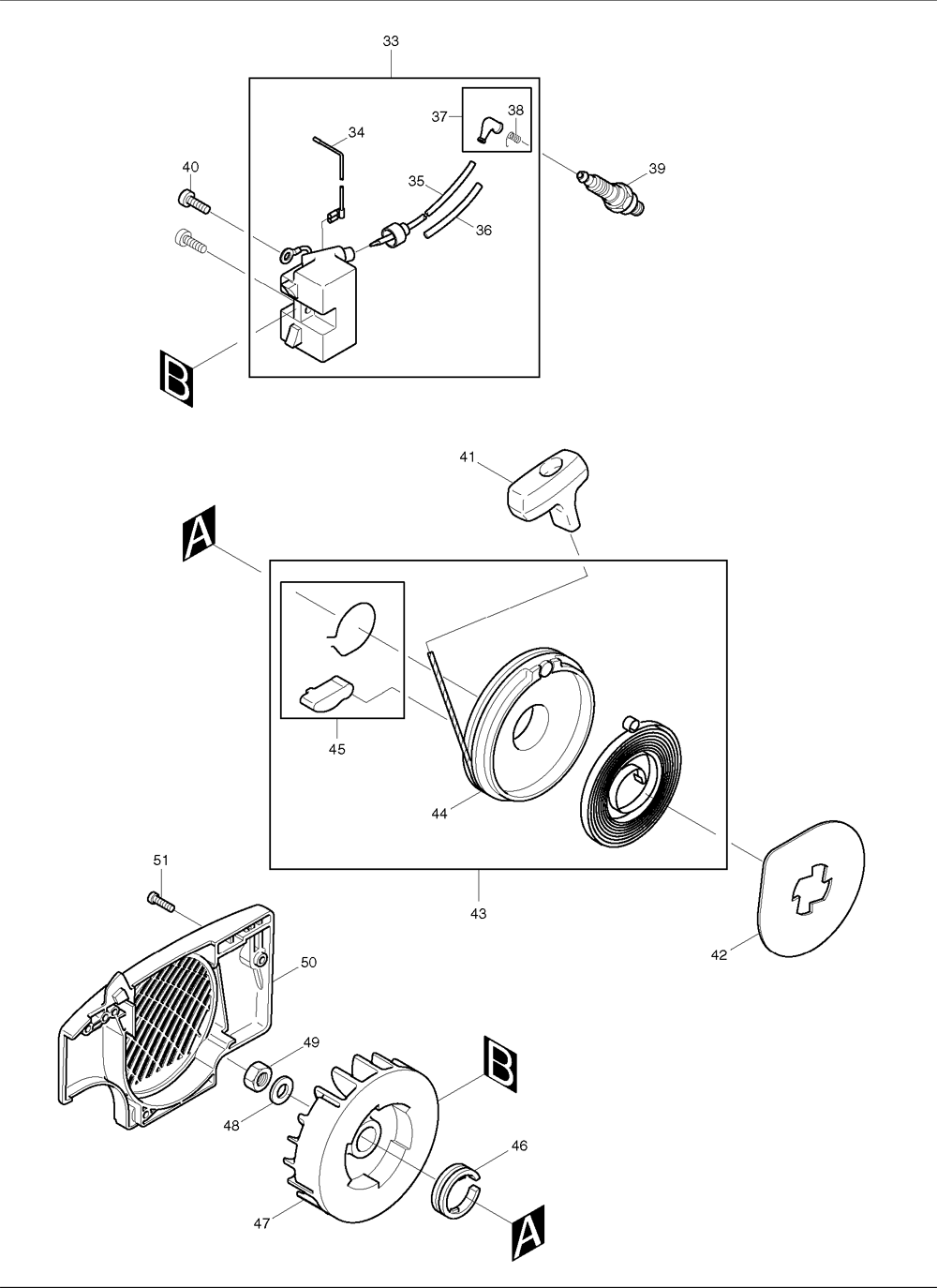

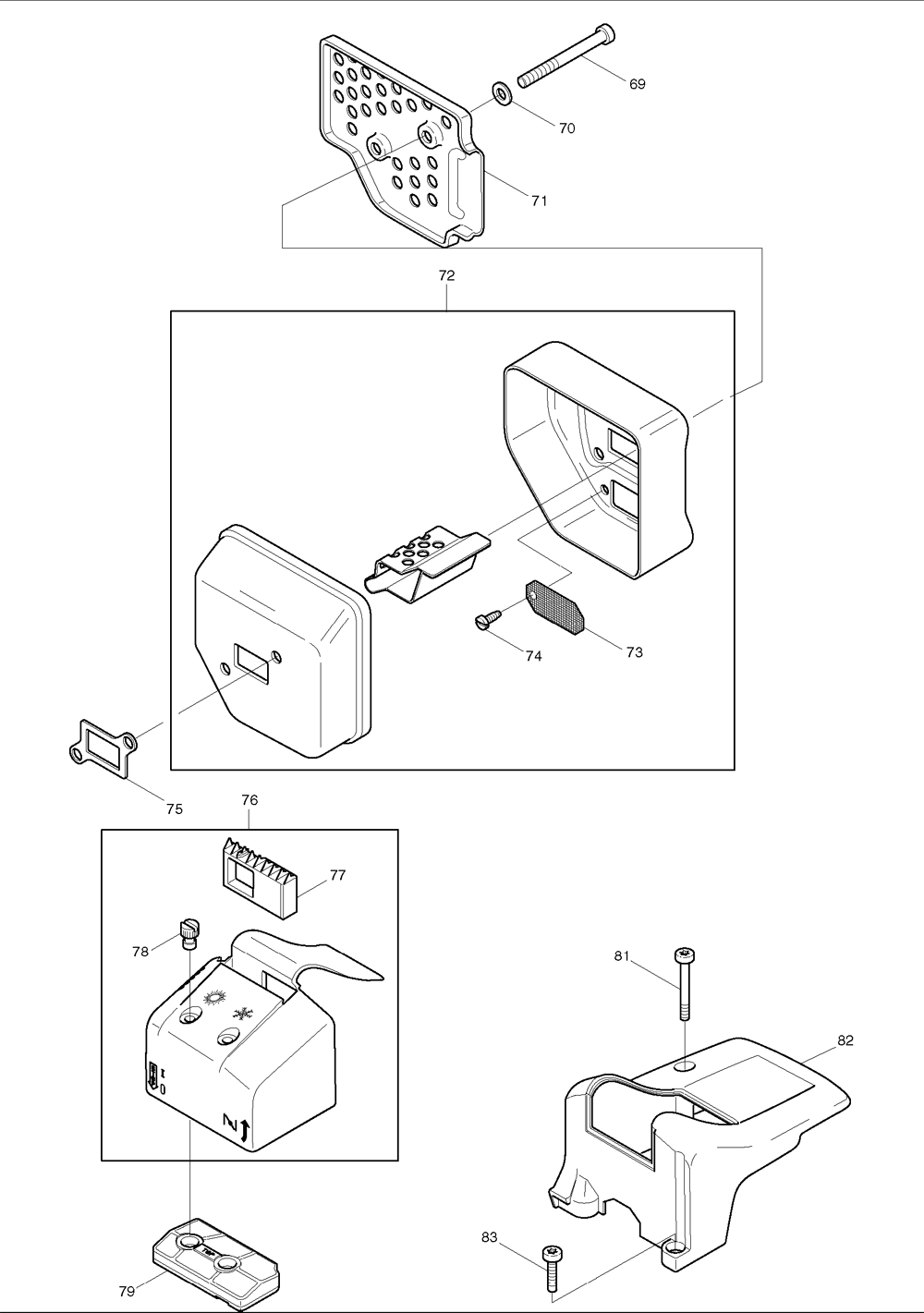

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	028-131-160	"CYLINDER ""DUPLEX"", DCS401"	$144.24
2	001-151-670	ANGULAR NIPPLE,DCS340	$4.93
3	965-524-042	GASKET, DCS341	$3.50
4	028-132-110	PISTON ASS'Y, DCS401	$53.20
5	021-132-230	PISTON RING, DCS430	$8.12
6	021-132-020	PISTON PIN, DCS340	$11.75
7	108-132-050	SPRING RING, DCS34	$1.96
8	957-120-028	CRANKSHAFT CPL., DCS341	$163.84
9	021-123-010	CON-ROD CPL.,DCS340	$25.61
10	962-640-061	ROLLER 4X6, DCS340	$1.85
11	939-615-260	KEY, DCS340	$1.85
12	920-108-044	HEXAGONAL NUT,DCS340	$1.96
13	108-121-010	STOP DISC, DCS340	$3.61
14	965-524-011	GASKET, DCS330S	$4.93
15	028-111-640	CRANKCASE, DCS341	$92.50
16	936-430-160	SPIRAL PIN 3X16, DCS460	$1.85
17	965-403-491	RUBBER BUFFER, DCS341	$7.68
18	962-300-011	NEEDLE BUSH, DCS340	$6.69
19	929-319-101	SNAP RING 19X1, DCS340	$1.96
20	962-900-049	RADIAL RING, DCS330S, T1	$7.68
21	965-450-042	OIL TANK PLUG CPL., DCS400	$4.71
22	963-100-043	GASKET OIL CAP DCS340	$1.74
23	028-111-630	CRANKCASE, DCS341	$92.50
24	010-245-010	VENT VALVE, DCS431	$6.69
25	021-245-070	GUIDE PIN, DCS340	$1.85
26	905-808-254	FAST BOLT M8X25, DCS340	$3.50
27	908-005-305	TORX SCREW 5X30, DCS340	$1.85
28	001-213-042	NUT WITH PIVOT, DCS341	$4.71
29	389-213-080	STRAINING SCREW, DCS340	$3.50
30	957-250-015	SPIKE BAR ASS'Y, DCS341	$11.42
31	908-105-124	C. SCREW M5X12,DCS340	$1.85
32	908-405-255	SCREW M5X25, DCS340	$3.50
33	028-142-021	IGNITION ELECTRONIC, DCS341	$78.10
34	028-147-000	S.CIRCUIT CABLE,DCS340	$4.93
35	970-310-200	IGNITION CABLE(150 MM), DCS6401	$8.12
36	970-502-110	INSULATING HOSE (43 MM), DCS340	$8.12
37	957-604-260	PLUG CAP ASSY, DPC7331	$6.14
38	965-604-180	SPRING, DCS431	$3.61
39	965-603-018	SPARK PLUG, BPMR6F, DCS340	$4.93
40	908-605-145	F.H. SCREW M5X14, DCS9000	$1.85
41	965-404-031	STARTER GRIP, DCS34	$6.69
42	900-004-375	DISC SPACER, DCS340	$3.17
43	021-160-001	STARTER ASS'Y DCS340	$26.16
44	985-000-150	STARTER ROPE 3.0MM 100M, DCS330S	$63.60
45	028-166-030	STARTER SPRING, DCS340	$7.68
46	021-166-040	SNAP RING, DCS340	$1.85
47	201-141-012	FLYWHEEL, DCS401	$61.40
48	926-208-001	SPRING WASHER 8, DPC7000	$2.51
49	920-308-024	HEX NUT M8X1, DCS34	$1.96
50	028-112-630	FAN HOUSING, DCS341	$15.16
51	908-005-165	HEAD SCREW M5X16, DCS340	$1.85
52	028-213-615	HAND PROTECT, DCS341	$18.13
53	980-114-237	LABEL (SAFETY), DCS430	$1.80
54	028-213-560	SPRING, DCS341	$3.61
55	028-213-600	CHAIN BRAKE CPL., DCS341	$50.50
57	980-114-251	LABEL, DCS341	$2.40
58	923-208-004	HEX NUT, DCS341	$4.16
60	965-451-962	SUCTION LINE ASSY, DCS340	$9.77
61	021-245-040	WORM, DCS340	$3.17
62	021-245-080	SEALING CAP, DCS340	$1.74
63	021-111-037	GUIDE PLATE, DCS340	$6.69
64	021-224-011	DISC, DCS340	$2.73
65	028-223-316	CLUTCH DRUM CPL., DCS340	$19.45
67	028-184-020	FLAT SPRING,DCS340	$5.26
69	908-205-605	LENS HEAD SCREW, DCS340	$3.50
70	928-405-000	WASHER, DCS340	$1.85
71	021-174-111	HEAT SHIELD, PS401	$3.83
72	021-174-321	MUFFLER, DCS330S	$37.63
73	021-174-340	SPARK SCREEN,DCS340	$4.93
74	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
75	965-524-062	GASKET, DCS341	$3.50
76	028-118-050	COVER ASS'Y, PS401	$12.19
77	028-118-180	INSERT, DCS400	$3.17
78	001-118-062	NUT M5,DCS340	$5.26
81	908-205-605	LENS HEAD SCREW, DCS340	$3.50
82	028-118-150	HOOD, DCS341	$19.34
83	908-005-165	HEAD SCREW M5X16, DCS340	$1.85
84	028-310-050	TUBULAR HANDLE, DCS330S	$36.92
85	913-455-454	F. SCREW M5.5X45, DCS341	$1.85
86	028-114-692	TANK ASS'Y, DCS341	$48.55
88	937-130-120	RIVET, PS401	$1.12
89	957-114-010	VENT VALVE ASS'Y, DCS6000I21	$3.50
90	028-117-245	THROTTLE LINKAGE, DCS401	$2.95
91	965-403-491	RUBBER BUFFER, DCS341	$7.68
92	913-455-204	SCREW M5.5X20, DCS6800I	$1.85
93	021-114-051	FIXING BUSH, DCS431	$1.74
94	908-005-305	TORX SCREW 5X30, DCS340	$1.85
95	913-455-304	SCREW M5.5X30, DCS6000I21	$1.85
96	980-003-583	CABLE STRAP, DCS341	$1.06
98	010-114-050	OIL TANK PLUG, COMP., DCS9000	$6.69
99	963-228-030	GASKET, DCS9000	$3.50
100	920-205-000	HEX NUT M5, DCS340	$1.96
101	965-524-120	GASKET, DCS340	$3.50
103	970-502-110	INSULATING HOSE (43 MM), DCS340	$8.12
105	965-524-131	GASKET, DCS341	$3.50
106	028-131-061	INTERMED.FLANGE, DCS340	$3.50
107	965-524-082	GASKET, DCS341	$4.93
108	028-118-271	BOTTOM, PS401	$7.46
109	965-404-430	GASKET, DCS340	$1.85
110	900-205-554	HEX SCREW M5X55, DCS340	$1.74
111	908-005-305	TORX SCREW 5X30, DCS340	$1.85
112	028-150-750	CHOKE LINKAGE, DCS340	$4.71
113	028-150-740	CHOKE LEVER,DCS340	$3.50
115	965-404-421	GASKET, DCS340	$1.85
116	028-118-160	PLATE, DCS340	$1.85
117	028-118-113	CONTACT PLATE, DCS340	$4.93
118	908-005-165	HEAD SCREW M5X16, DCS340	$1.85
119	028-151-711	CARBURETOR WT 466, DCS340	$116.21
120	118-151-190	SCREW, DCS340	$3.17
121	001-151-140	PUMP COVER,DCS340	$13.84
122	021-151-240	ADJUSTING SCREW, DCS340	$6.03
123	021-151-230	PRESSURE SPRING, DCS340	$5.26
124	021-151-540	GASKET SET, DCS340	$8.12
125	021-151-180	SCREEN, EK7301	$4.93
126	108-151-320	THROTTLE SHUTTER,DCS340	$4.93
127	118-151-060	SCREW, DCS340	$3.50
128	108-151-350	SAFETY WASHER, EK7301	$4.60
129	118-151-020	SCREW, DCS340	$3.17
130	001-151-255	CHOKE SHAFT, DCS340	$13.29
131	001-151-320	THROTTLE SHAFT, DCS341	$13.84
132	001-151-310	SPRING, DCS340	$2.07
133	021-151-480	SPRING, EK7301	$5.26
134	021-151-530	SPRING, DCS340	$5.26
135	118-151-160	FRICTION SPRING,DPC7331	$4.60
136	118-151-170	FRICTION BALL, DPC7331	$3.17
137	118-151-060	SCREW, DCS340	$3.50
138	001-151-350	CHOKE SHUTTER (62-175), EHW120	$1.85
139	957-150-040	CTRL.PARTS(CARB.),DCS340	$14.61
140	021-151-540	GASKET SET, DCS340	$8.12
141	021-151-120	DIAPHRAGM COVER, DCS340	$11.09
142	118-151-020	SCREW, DCS340	$3.17
144	021-151-470	IDLE ADJ.SCREW, DCS340	$11.09
145	001-151-515	MAIN ADJ.SCREW, DCS340	$11.09
150	442035661	GUIDE BAR 14 DCS34 & UC3530A	$30.60
152	001-131-150	DECOMPRESSION VALVE, DCS431	$23.96
