Makita DCS3416 Electric Saw Parts

Makita DCS3416 Electric Saw Parts Image

Makita DCS3416 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita DCS3416
16 Inch, 33cc. Chain...
$247.99
Free Shipping
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Tool Diagram    (Click image to Zoom in) View larger Image

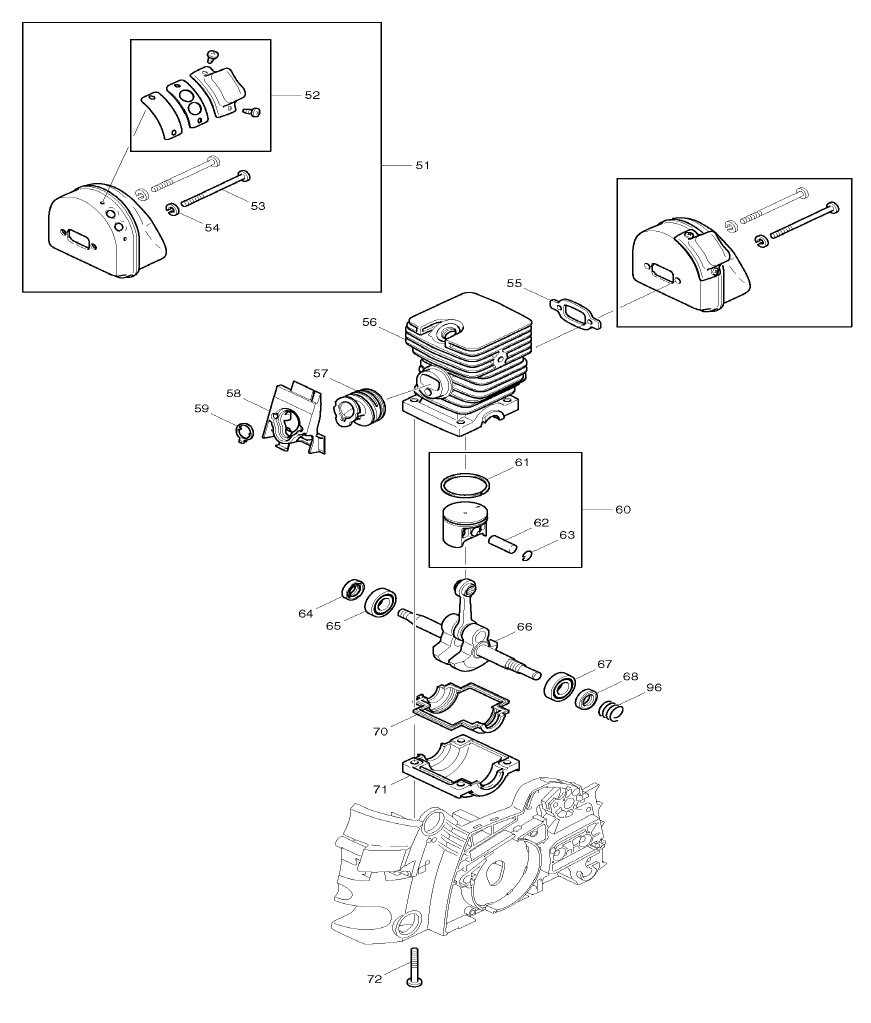

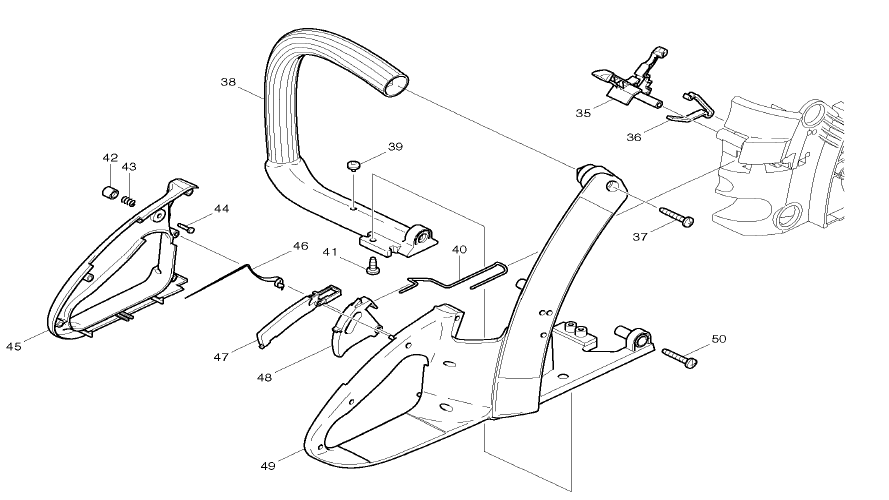

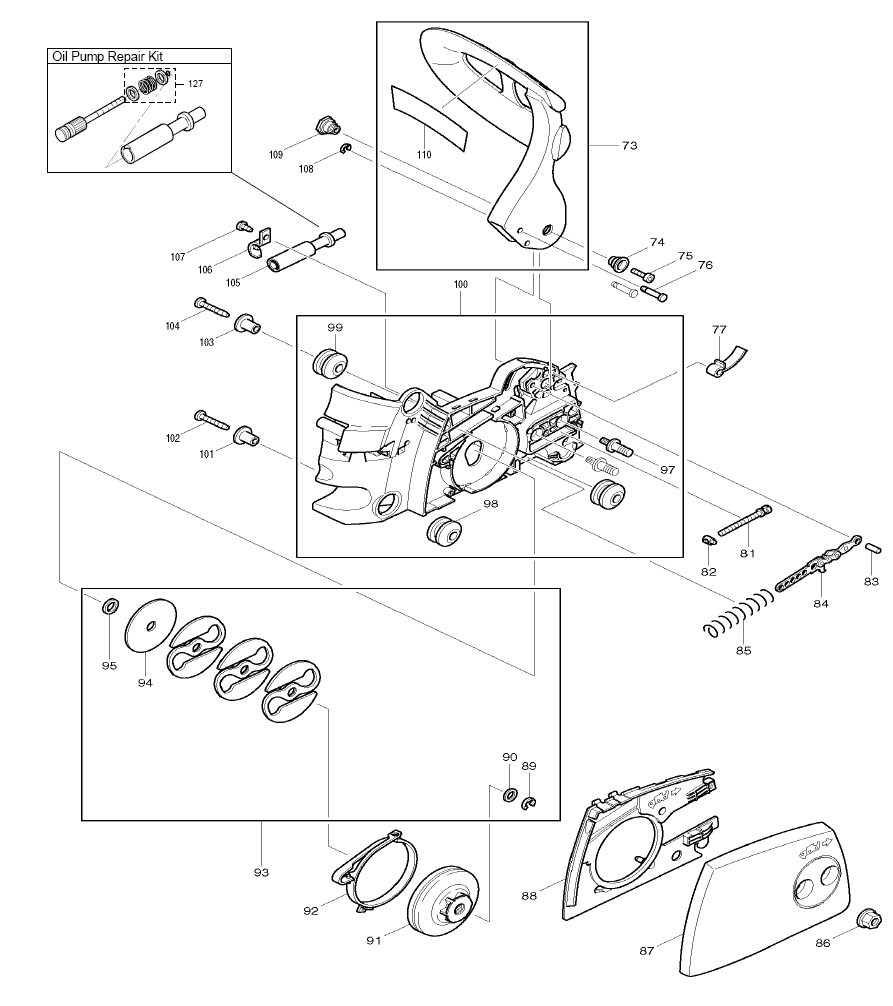

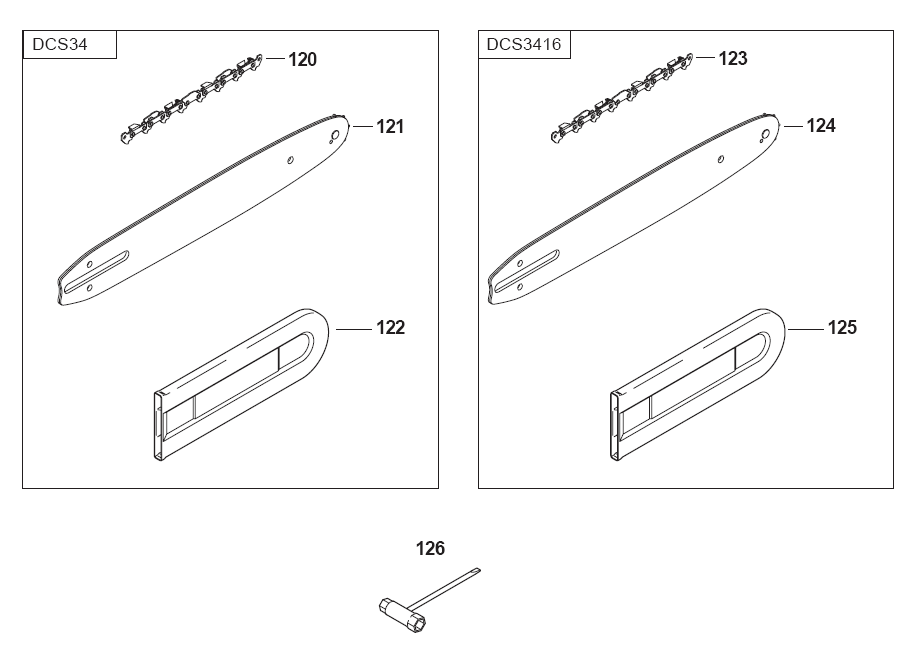

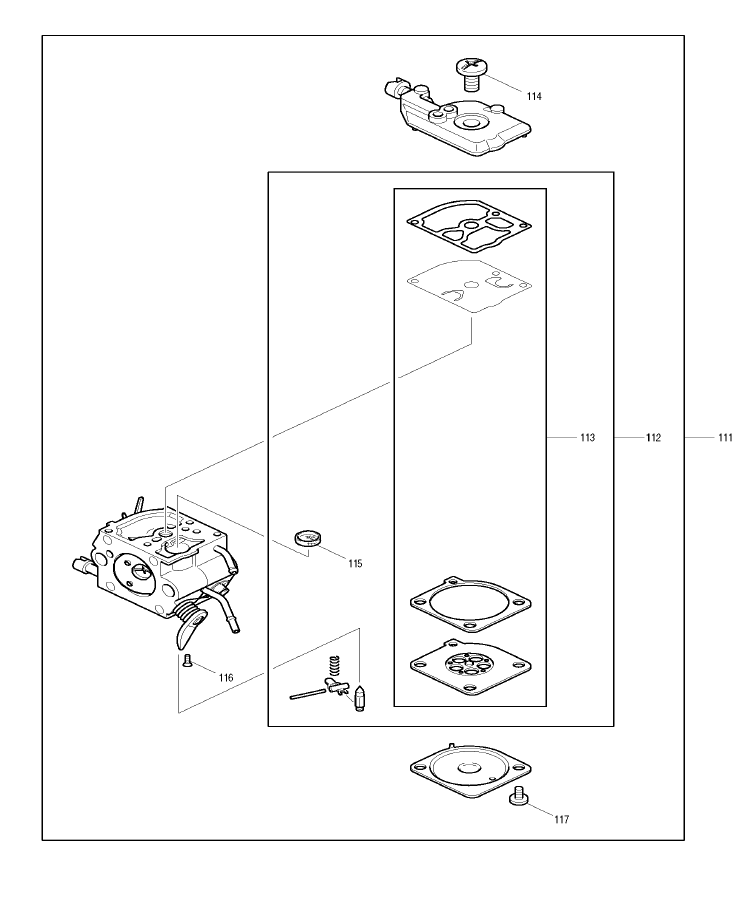

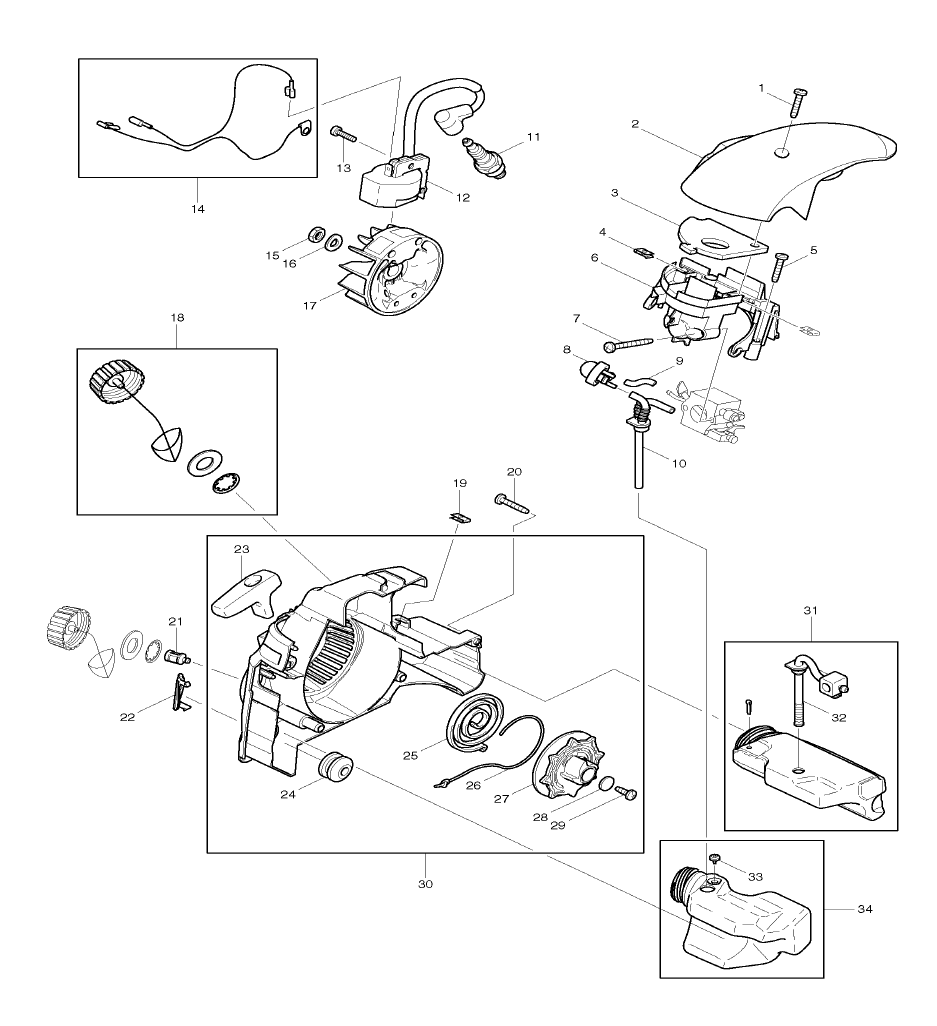

Makita DCS3416 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 913-650-304 SCREW 5X30, DCS34 $1.85
3 036-173-011 AIR FILTER, DCS34 $4.71
4 923-750-340 NUT, DCS34 $1.96
5 913-650-304 SCREW 5X30, DCS34 $1.85
7 913-650-504 SCREW 5X50, DCS34 $1.74
8 369-155-010 PRIMER, DCS34 $8.12
10 965-404-980 FUEL LINE, DCS34 $9.77
11 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
12 036-140-020 IGNITION ELECTRONIC CPL., DCS34 $60.00
12 036-143-020 IGNITION COIL, DCS34 $34.27
12 036-140-010 IGNITION ELECTRONIC CPL., DCS34 $30.39
13 913-340-204 SCREW 4X20, DCS6401 $1.30
14 970-311-490 SHORT-CIRCUIT CABLE, DCS34 $5.26
15 920-308-024 HEX NUT M8X1, DCS34 $1.96
16 926-208-001 SPRING WASHER 8, DPC7000 $2.51
17 036-140-020 IGNITION ELECTRONIC CPL., DCS34 $60.00
17 036-141-120 FLYWHEEL, DCS34 $38.04
17 036-141-102 FLYWHEEL W/STARTER RATCH CPL $32.33
18 010-114-063 TANK PLUG CPL., DCS34 $7.68
19 923-750-340 NUT, DCS34 $1.96
20 913-650-304 SCREW 5X30, DCS34 $1.85
21 963-601-380 SUCTION HEAD, DCS34 $4.93
22 036-112-631 COVER BLUE, DCS34 $2.84
23 965-404-031 STARTER GRIP, DCS34 $6.69
24 965-403-491 RUBBER BUFFER, DCS341 $7.68
25 036-163-010 REWIND SPRING. DCS34 $11.42
26 985-000-155 STARTER ROPE 100 METER,DCS34 $81.00
27 036-162-010 CABLE DRUM, DCS34 $10.65
28 924-805-310 DISC (WASHER), DCS34 $2.18
29 913-650-154 SCREW 5X15, DCS34 $1.41
30 036-112-652 STARTER CPL., DCS34 $41.82
31 036-114-102 OIL TANK CPL., DCS34 $18.13
32 965-402-490 SUCTION LINE ASSY FOR OIL, DCS34 $9.77
33 965-404-220 VENT VALVE, DCS330S,430 $3.50
34 036-114-151 FUEL TANK CPL., DCS34 $13.62
35 036-155-020 CHOKE LEVER, DCS34 $5.26
36 036-155-032 CONTACT SPRING, DCS34 $5.26
37 913-650-304 SCREW 5X30, DCS34 $1.85
38 036-310-012 TUBULAR HANDLE, DCS34 $36.21
39 965-402-360 RUBBER BUFFER, DPC7000 $3.17
40 036-117-020 THROTTLE LINKAGE, DCS34 $4.93
41 913-650-154 SCREW 5X15, DCS34 $1.41
42 965-451-750 BUTTON, DCS6000I21 $1.85
43 965-551-160 PRESSURE SPRING, DCS6000I21 $1.96
44 965-551-150 STOP PIN, DCS6000I21 $4.60
46 036-117-051 SPRING, DCS34 $2.51
47 036-117-040 CATCH LEVER, DCS34 $4.93
48 036-117-030 THROTTLE LEVER, DCS34 $3.50
49 036-117-611 HANDLE HALF, DCS34 $22.09
50 913-650-304 SCREW 5X30, DCS34 $1.85
51 036-174-110 SPARK ARREST. MUFFLER ASSY., DCS34 $41.41
52 036-174-200 SPARK ARRESTER SCREEN CPL., DCS34 $11.42
53 913-350-654 SCREW 5X65, DCS34 $1.85
54 928-405-000 WASHER, DCS340 $1.85
55 965-522-032 GASKET, DCS5200I $3.50
56 036-131-013 CYLINDER, DCS34 $113.59
57 036-131-023 SUCTION HOSE, DCS34 $16.70
58 036-171-020 CLAMP, DCS34 $4.93
59 036-131-030 INSERT FOR SUCTION HOSE, DCS34 $1.41
60 021-132-110 PISTON ASS'Y, DCS34 $53.60
61 021-132-030 PISTON RING, DS340 $9.77
62 021-132-020 PISTON PIN, DCS340 $11.75
63 108-132-050 SPRING RING, DCS34 $1.96
64 962-900-057 RADIAL RING, DCS34 $6.69
65 960-102-129 BALL BEARING, DCS431 $17.69
66 036-120-021 CRANKSHAFT ASS'Y, DCS34 $124.17
67 960-102-129 BALL BEARING, DCS431 $17.69
68 962-900-057 RADIAL RING, DCS34 $6.69
70 965-531-020 GASKET, DCS34 $6.14
71 036-111-020 CRANKCASE LOWER PART,DCS34 $20.55
72 913-350-404 SCREW 5X40/20, DCS34 $1.85
73 036-213-051 HAND GUARD COMPLETE, DCS34 $19.67
74 036-213-070 BUSH, DCS34 $3.17
75 908-005-165 HEAD SCREW M5X16, DCS340 $1.85
76 934-150-200 BOLT 5X22, DCS34 $3.50
77 036-213-030 SPRING, DCS34 $3.61
81 036-213-090 STRAINING SCREW, DCS34 $4.71
82 001-213-042 NUT WITH PIVOT, DCS341 $4.71
83 962-650-128 CYLINDRICAL PIN, DCS34 $1.30
84 036-213-020 BREAK SPRING HOLDER CPL., DCS34 $11.42
85 028-213-201 SPRING $2.95
86 923-208-004 HEX NUT, DCS341 $4.16
87 036-213-651 SPROCKET GUARD CPL., DCS34 $12.19
88 036-213-040 COVER PLATE, DCS34 $6.69
89 927-306-000 SAFETY WASHER , DCS34 $1.63
90 900-006-065 SPACER, DCS6800I $1.85
91 036-223-115 CLUTCH DRUM CPL., DCS34 $26.52
93 036-114-020 FIXING BUSH, DCS34 $1.41
94 027-182-031 STOP DISC, DCS5200I $4.71
95 036-224-010 WASHER 10/16X2.5, DCS34 $1.74
96 036-245-020 WORM, DCS34 $1.74
97 036-110-020 BOLT, DCS34 $3.50
98 965-403-491 RUBBER BUFFER, DCS341 $7.68
99 965-403-491 RUBBER BUFFER, DCS341 $7.68
100 036-110-603 MOTOR HOUSING CPL., DCS34 $46.00
101 036-114-020 FIXING BUSH, DCS34 $1.41
102 913-650-304 SCREW 5X30, DCS34 $1.85
103 036-114-020 FIXING BUSH, DCS34 $1.41
104 913-650-304 SCREW 5X30, DCS34 $1.85
105 021-245-007 OIL PUMP CPL., UC4000 $27.15
106 203-245-002 OIL PUMP HOLDER, UC3500 $2.51
107 915-035-060 SCREW 3.5X6.5, DCS330S $1.74
108 927-304-000 SAFETY WASHER , DCS431 $1.63
109 036-213-080 BUSH, DCS34 $3.61
110 980-114-674 LABEL, DCS34 $3.50
111 036-153-150 CARBURETOR COMPLETE, DCS34 $85.90
112 036-153-100 REPAIR KIT, DCS34 $31.11
113 036-153-110 GASKET-DIAPHRAGM KIT, DCS34 $20.55
114 036-153-080 SCREW, DCS34 $3.17
115 036-153-040 SCREEN, DCS34 $5.26
116 036-153-120 SCREW, DCS34 $3.61
117 001-153-020 SCREW, DCS460 $3.17
120 195399-7 14 CHAIN, DCS34 $19.19
121 442035661 GUIDE BAR 14 DCS34 & UC3530A $30.60
123 195400-8 16 SAW CHAIN, DCS34-16 (Replacement of 528-092-6... $17.20
124 442-040-661 '16'' GUIDE BAR DCS34-16' $43.33
125 952-010-640 "16"" CHAIN PROTECTION COVER, DCS3416" $11.98
126 941719131 UNIVERSAL WRENCH DCS431 $13.88
127 957-245-270 OIL PUMP KIT, DCS340 $9.22
