Makita DA392D Cordless Drill Parts

Makita DA392D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

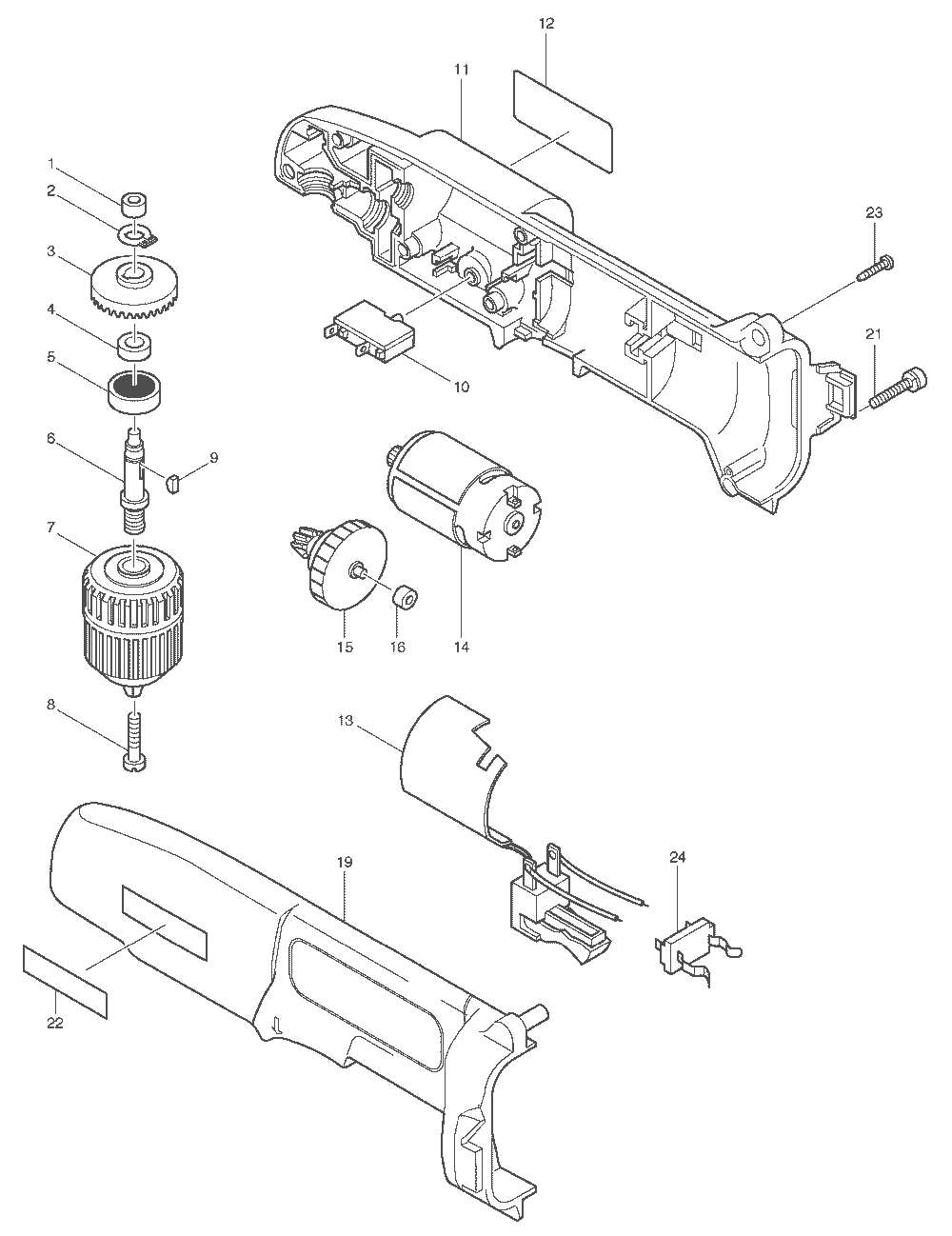

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	214017-9	P. BEARING 5, 6043D	$1.26
2	961004-6	RETAINING RING S-8, DA391D	$0.53
3	221387-9	SPIRAL B. GEAR 36, DA391DW	$25.83
4	257106-7	RING 8, DA391DW	$1.63
5	211031-6	BALL BEARING 608LLB, 9227C	$10.98
6	322278-8	SPINDLE, DA391DW	$17.47
8	251451-2	P.H. SCREW M5X22, DA391DW	$1.96
9	254031-3	WOODRUFF KEY 3, 6801DBV	$1.26
10	652532-9	OVERLOAD PROTECTOR, DA391D	$7.46
11	183331-3	HOUSING SET, DA392DWD	$25.06
12	852737-3	NAME PLATE, DA392D	$1.12
13	650504-8	SWITCH TG55B-142, DA312DWD	$37.53
14	629769-3	DC MOTOR, DA392DWD	$18.13
15	153193-3	GEAR, DA391DW	$33.66
16	214019-5	P. BEARING 4, 6043D	$1.26
19	183331-3	HOUSING SET, DA392DWD	$25.06
21	911143-2	P.H. SCREW M4X22, 6211D	$0.86
22	819063-3	MAKITA LABEL, DA3010F	$0.96
23	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
24	643909-9	BATTERY HOLDER, DA392D	$4.49
1001	414938-7	BATTERY COVER, 6222DWE	$2.20
1002	193156-7	9.6V 2.6AR NIMH BATTERY 9134	$114.20
