Makita DA3000R Electric Drill Parts

Makita DA3000R Electric Drill Parts Image

Makita DA3000R Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

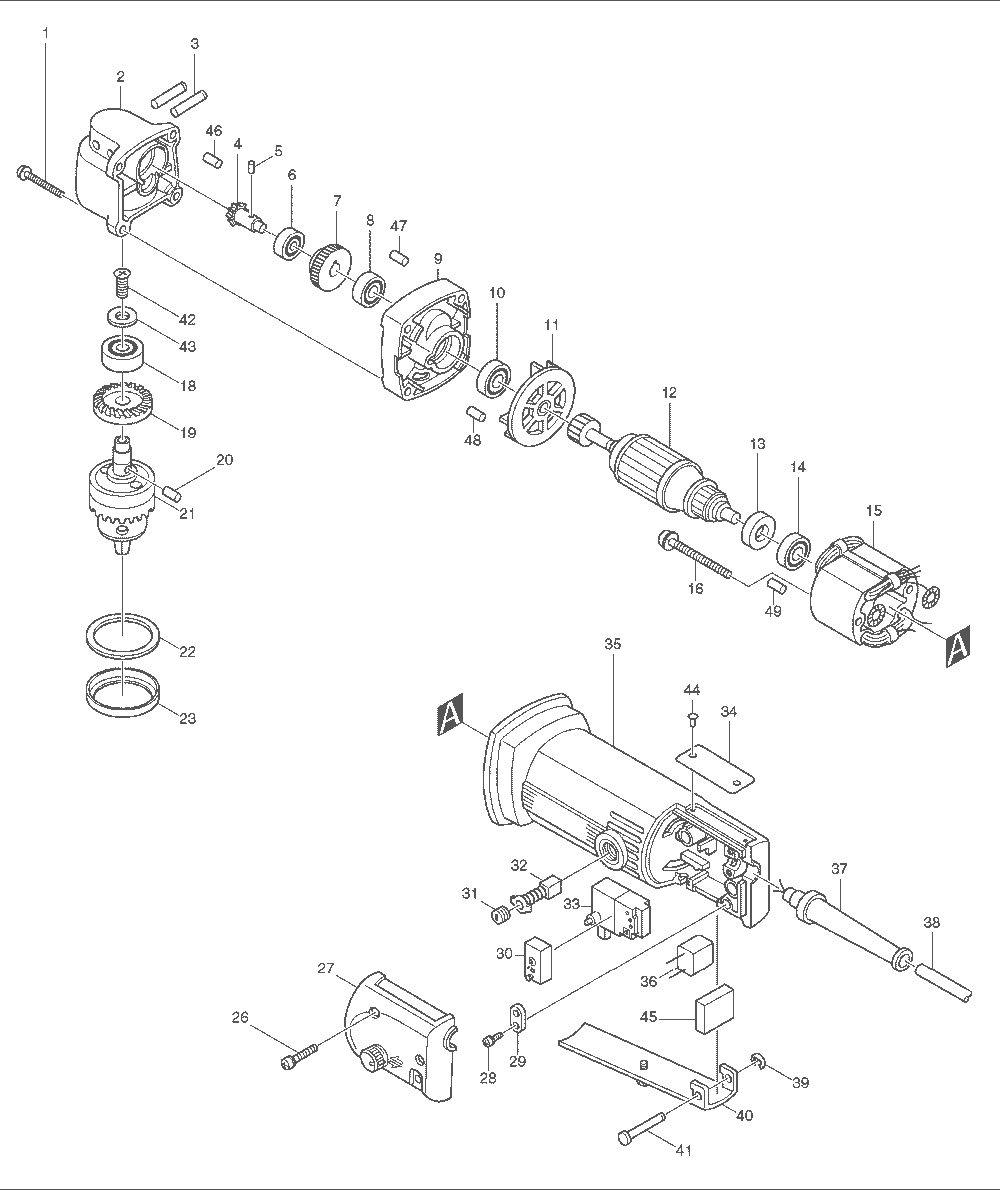

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	911161-0	P.H. SCREW M4X35, 9218SB	$0.86
3	256745-0	PIN 4 DA3000R	$1.96
9	156951-6	GEAR HOUSING COVER, DA3000	$15.27
12	511821-0	ARMATURE, DA3000R	$77.10
2	159272-5	GEAR HOUSING, DA3000R (T2)	$28.15
3	256745-0	PIN 4 DA3000R	$1.96
00	410059-3	KNOB, DA3000R	$3.06
4	221342-1	SPIRAL B. GEAR 10, DA3000R,T1	$18.35
4	226751-9	SPIRAL BEVEL GEAR 7, DA3000R,T2	$15.27
00	410060-8	SLIDE LEVER, DA3000R	$3.06
15	521476-3	FIELD, DA3000R	$49.98
5	256014-9	PIN 3, DA3000(R)	$1.19
6	211051-0	BALL BEARING 609LLB HR2400	$15.27
7	221682-7	H. GEAR 32, DA3000R	$15.27
8	211014-6	B. BEARING 606, 6826	$13.07
9	156951-6	GEAR HOUSING COVER, DA3000	$15.27
10	211033-2	B. BEARING 608LB, 5091D	$8.78
11	241822-1	FAN 58, DA3000R	$5.92
12	511821-0	ARMATURE, DA3000R	$77.10
14	211028-5	B. BEARING 627LB, 6510LVR	$8.78
15	521476-3	FIELD, DA3000R	$49.98
16	265891-8	TAPPING SCREW M4X55, DA3000R	$1.19
16	266147-2	TAPPING SCREW 4X55, 6824	$1.96
18	211051-0	BALL BEARING 609LLB HR2400	$15.27
19	226752-7	SPIRAL BEVEL GEAR 24, DA3000R, T2	$21.32
20	256023-8	PIN 5, DA3000R,T1	$1.19
21	193443-4	DRILL CHUCK, DA3000R	$74.40
22	443049-1	FELT RING 38, DA3000R	$1.63
23	286216-3	CAP 46, DA3000(R)	$3.06
26	911168-6	P.H. SCREW M4X40, 6905B	$0.86
27	155502-2	SWITCH COVER, DA3000R	$11.75
28	911133-5	P.H. SCREW M4X18, N9501B	$0.86
29	687001-1	STRAIN RELIEF, 6013BR	$0.97
31	643550-8	BRUSH CAP , 9031	$1.63
32	194972-0	CARBON BRUSH 76, 6905B	$8.12
33	651936-2	SWITCH, DA3000R	$37.53
34	854740-0	NAME PLATE, DA3000R	$1.36
35	157722-4	MOTOR HOUSING, DA3000R (T2)	$44.26
37	682500-8	CORD GUARD, DA3000R	$2.51
37	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
38	664002-6	CORD	$9.22
38	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
39	961017-7	STOP RING E-3, 4304, SH01	$0.53
40	158011-0	SWITCH LEVER, DA3000R	$8.78
41	256626-8	PIN 4, LS1221	$1.96
42	251304-5	C.H. SCREW M4X12, DA3000R	$1.19
43	253969-9	WASHER 4, DA3000R	$1.63
44	953106-2	RIVET 0-5, HM1500	$0.49
46	263002-9	RUBBER PIN 4, 5007NK	$0.86
47	263002-9	RUBBER PIN 4, 5007NK	$0.86
48	263002-9	RUBBER PIN 4, 5007NK	$0.86
49	263002-9	RUBBER PIN 4, 5007NK	$0.86
400	763414-1	CHUCK KEY, DA3000, DA3000R,	$7.80
401	411780-7	KEY HOLDER,6402	$1.26
