Makita BTD145 Impact Wrench & Driver Parts

Makita BTD145 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

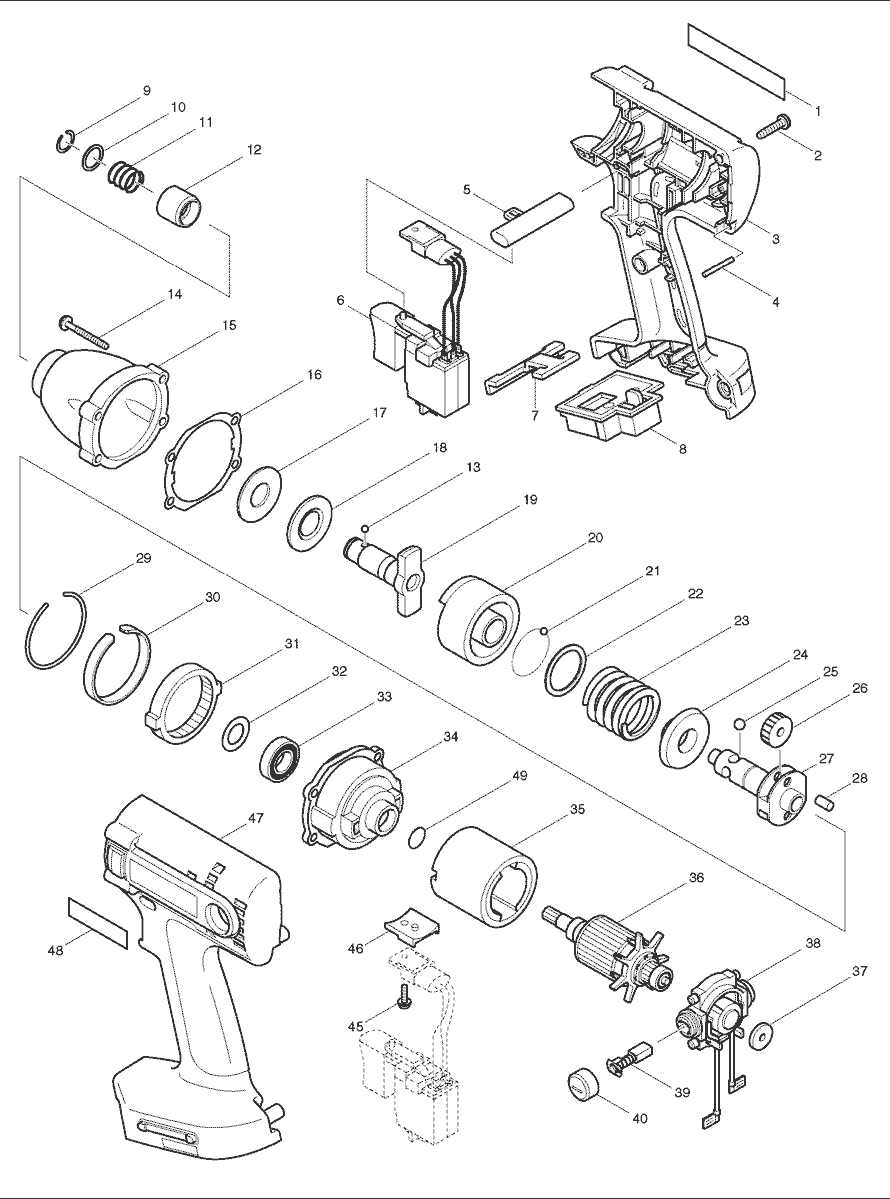

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	188922-5	HOUSING SET, LXDT01	$36.92
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	419041-9	F/R CHANGE LEVER, BTD140	$1.52
5	650632-9	SWITCH, LXDT01	$15.60
6	619239-0	ROTOR, BTD144	$48.55
7	638723-6	STATOR UNIT, LXDT01	$103.02
8	631829-9	LED CIRCUIT, BTD144	$7.02
9	643833-6	TERMINAL, BTD144	$3.61
10	231951-8	RING SPRING 11, 6903VDW	$1.48
11	267085-1	FLAT WASHER 12, 6903VDW	$1.63
12	233005-7	COMP.SPRING 13,6903VDW	$1.48
13	324878-0	SLEEVE, BTD144	$3.61
14	424362-6	BUMPER, BTD144	$2.40
15	452294-7	HAMMER CASE COVER, LXDT01	$3.50
16	154590-6	HAMMER CASE, BTD141	$19.78
17	261108-7	NYLON WASHER 14, 6908DWA	$1.63
18	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
19	325975-5	ANVIL M, LXDT01	$6.80
20	325671-5	HAMMER, BTD144	$21.76
21	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
22	267175-0	FLAT WASHER 24, 6914DWA	$1.63
23	234082-2	COMP. SPRING 25, BTW251	$3.61
24	267766-7	CUP WASHER 14, BTW121SA	$1.63
25	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
26	227233-4	SPUR GEAR 22, BTW251	$3.61
27	324552-0	SPINDLE, BTD130F	$17.25
28	256253-1	PIN 5, 6908DWA	$1.19
29	267212-0	FLAT WASHER 12, 6918DWD	$1.34
30	227150-8	INTERNAL GEAR 51, BTD130F	$4.27
31	211140-1	BALL BEARING 6901LLB, 6918DWD	$9.99
32	213507-9	O RING 40, HR1821	$1.96
33	158145-9	BEARING BOX, BTW251	$13.84
35	188922-5	HOUSING SET, LXDT01	$36.92
36	140574-0	SWITCH PLATE CPL., LXDT01	$4.60
1001	266622-8	+ TRUSS HEAD SCREW M4X12, LXDT01	$0.64
1002	346449-3	BELT HOOK SILM & SHORT FOR CORDLESS TOOLS	$2.40
5001	891014-8	CAUTION LABEL, LXDT01	$1.30
