Makita BTD061 Impact Wrench & Driver Parts

Makita BTD061 Impact Wrench & Driver Parts Image

Makita BTD061 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

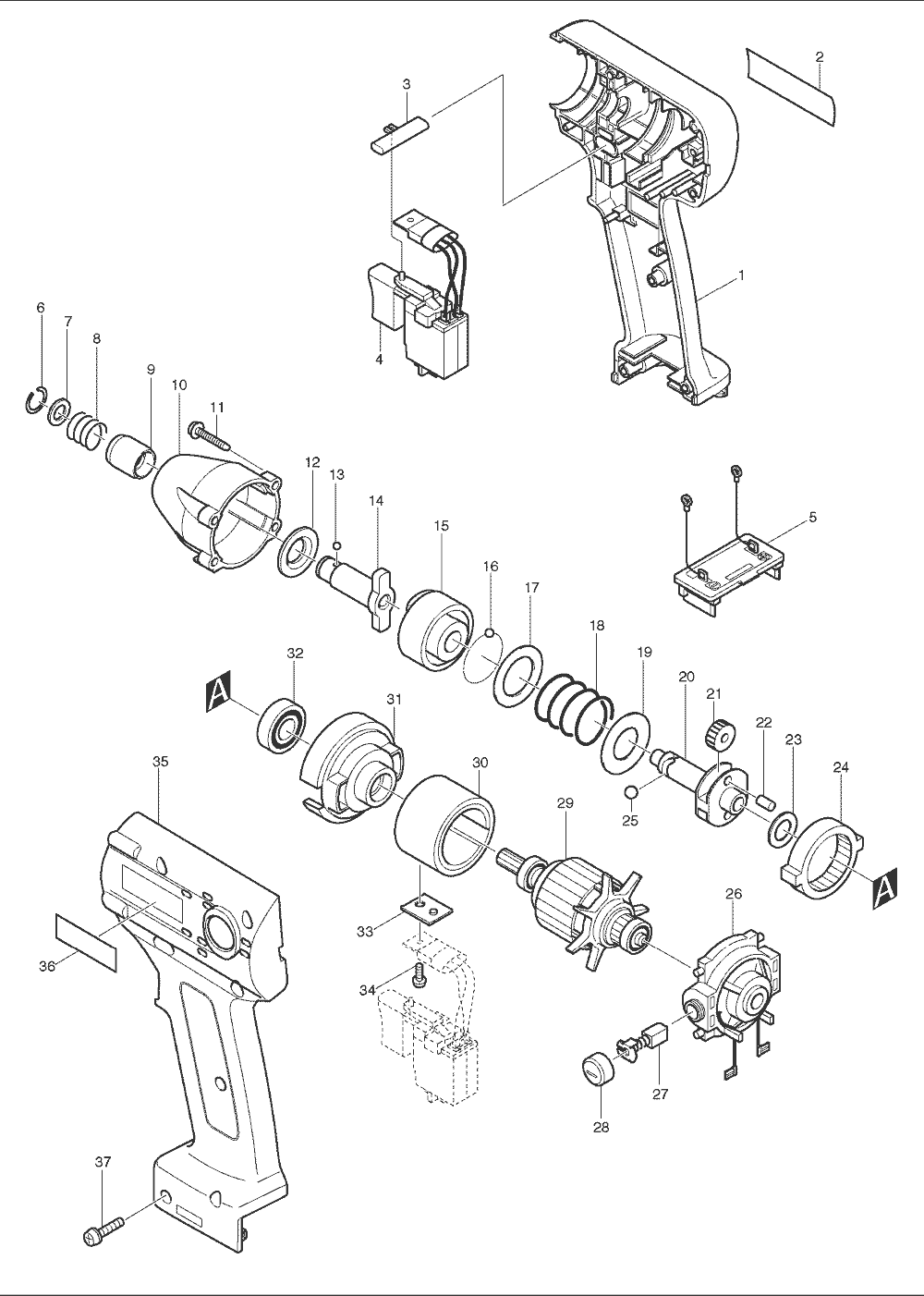

Makita BTD061 Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 183256-1 HOUSING SET, BTD060Z $22.42
2 853158-2 NAME PLATE, BTD061 $2.74
3 417283-9 F/R CHANGE LEVER, 8390D $2.84
4 651989-1 SWITCH, 6226DWE $41.51

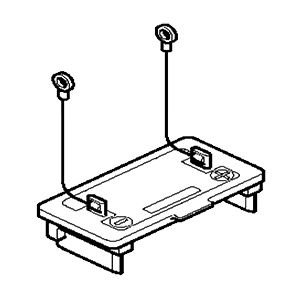

5 638060-8 TERMINAL UNIT, BTD061Z $9.33
6 231965-7 RING SPRING 10, DF030DW $0.86
7 267143-3 FLAT WASHER 11, BTD060Z $1.63
8 233005-7 COMP.SPRING 13,6903VDW $1.48
9 162218-2 SLEEVE, BTD060Z $6.80
10 152661-3 HAMMER CASE CPL., BTD060Z $30.49
11 911138-5 P.H. SCREW M4X20, 9218SB $0.86
11 911536-3 PAN HEAD SCREW M4X20, 6904VH $1.19
12 261117-6 NYLON WASHER 12, BTD060Z $2.18
13 216019-1 STEEL BALL 3, BTD060Z $0.53
14 324054-6 ANVIL M, BTD060Z $29.37
15 324033-4 HAMMER B, BTD060Z $26.92
16 216019-1 STEEL BALL 3, BTD060Z $0.53
17 267175-0 FLAT WASHER 24, 6914DWA $1.63
18 233296-0 COMPRESSION SPRING 24, BTD060Z $3.61
19 344907-3 SPRING HOLDER, BTD060Z $3.06
20 324051-2 SPINDLE B, BTD060Z $37.02
21 227009-9 SPUR GEAR 16, BTD060Z $7.02
22 268064-2 PIN 3.5, BTD060Z $1.10
23 267104-3 FLAT WASHER 12, HR2400 $2.16
24 152772-4 INTERNAL GEAR CASE CPL., BTD060Z $7.02
24 227107-9 INTERNAL GEAR 39, BTD061 $5.70
25 216011-7 STEEL BALL 5.6, 6222DWE $0.86
26 638104-4 ENDBELL, BTD060 $6.80
27 195020-8 CARBON BRUSH CB-434 SET, BTW121SA $5.92
28 643933-2 HOLDER CAP, 6908DWA $1.63
29 619058-4 ARMATURE, BTD060Z $50.69
30 632966-2 YOKE UNIT, BTD060Z $43.65
31 152772-4 INTERNAL GEAR CASE CPL., BTD060Z $7.02
31 417346-1 INTERNAL GEAR CASE, BTD061 $4.27
32 211136-2 BALL BEARING 6801LLB, SC190DWDE $9.99
33 689096-0 FET SPACER, 6918DWD $1.52
34 266170-7 TAPPING SCREW ST3X8, 6918DWD $0.53
35 183256-1 HOUSING SET, BTD060Z $22.42
36 819063-3 MAKITA LABEL, DA3010F $0.96
37 265095-2 PAN HEAD SCREW M3X20, BTD040Z $1.19
1001 193531-7 BATTERY BH9020A,9.6V,2.0AH,BTD040 $244.20
1002 824681-4 PLASTIC TOOL CASE, BTD061 $50.20
