Makita BSS501 Cordless Saw Parts

Makita BSS501 Cordless Saw Parts Image

Makita BSS501 Parts
5-3/8 Inch 18V LXT Lithium-Ion Cordless Circular Trim Saw Kit

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BSS501
5-3/8 Inch 18V LXT L...
$349.00
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

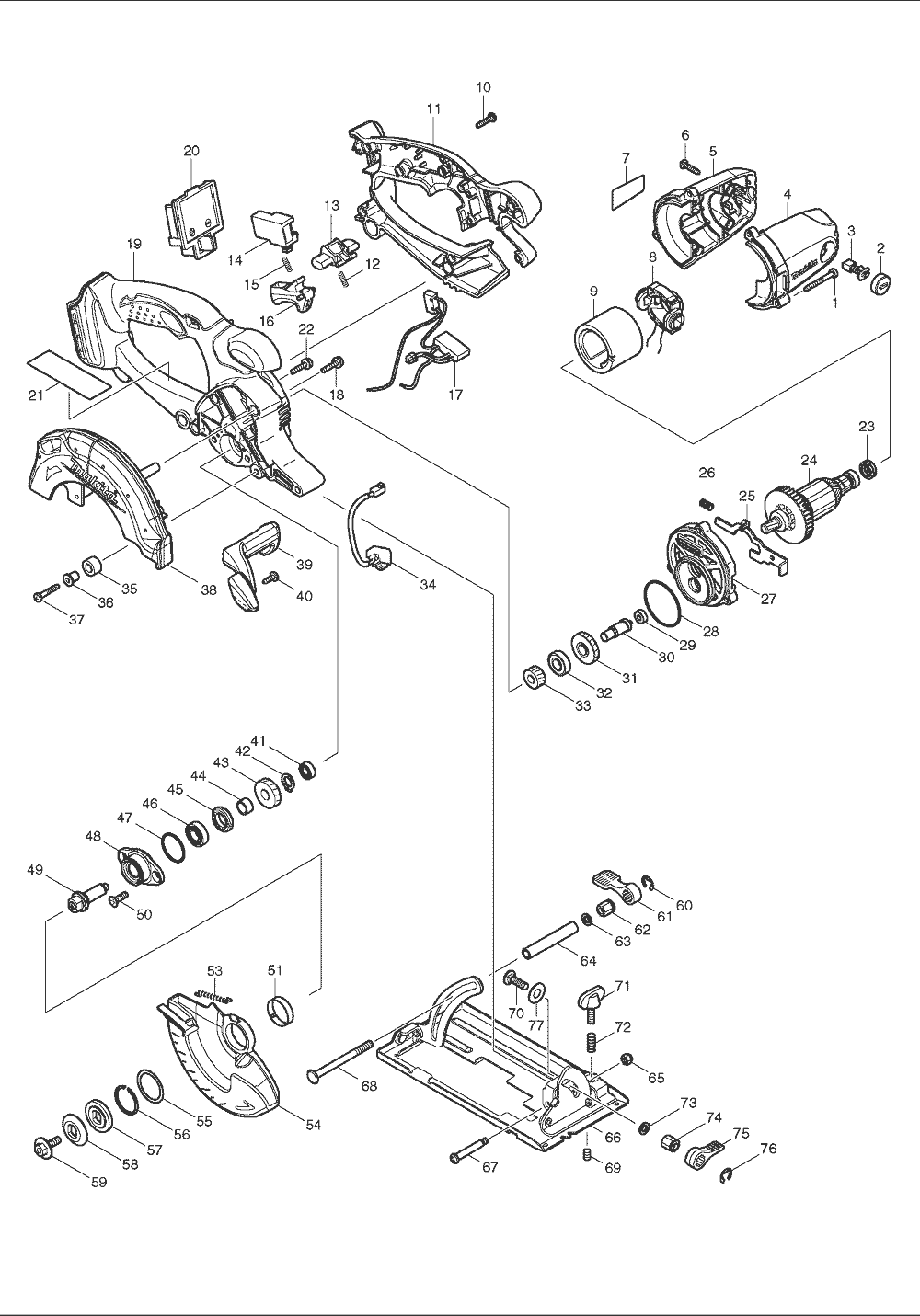

Makita BSS501 Cordless Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266053-1 P.T. SCREW 4X35, 4304 $1.48
2 643807-7 BRUSH HOLDER CAP, 6339DWDE $1.26
4 188209-5 HOUSING SET, BCS550/Z $16.04
5 188209-5 HOUSING SET, BCS550/Z $16.04
6 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
7 863423-1 NAME PLATE, BSS501 $0.89
8 638502-2 ENDBELL COMP.,BCS550/Z $4.16
9 638420-4 YOKE UNIT, BPB180 $40.18
10 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
11 419661-9 HANDLE L, BCS550/Z $15.27
12 231469-9 COMP. SPRING 4, SH01W $0.86
13 419664-3 LOCK OFF LEVER, BCS550/Z $1.63
14 651956-6 SWITCH, BSS501 $17.25
15 231469-9 COMP. SPRING 4, SH01W $0.86
16 419665-1 SWITCH LEVER, BCS550/Z $1.63
17 631743-9 POWER SUPPLY CIRCUIT, BCS550/Z $7.02
18 911133-5 P.H. SCREW M4X18, N9501B $0.86
19 450065-6 HANDLE R, BSS501 $15.93
20 643838-6 TERMINAL, BTD140 $5.92
21 810299-7 CAUTION LABEL, BCS550 $0.73
22 911133-5 P.H. SCREW M4X18, N9501B $0.86
23 421977-0 RUBBER RING 13, BGA452 $1.30
24 619202-3 ARMATURE, BSS501 $23.63
25 345643-4 SHAFT LOCK, BCS550/Z $1.63
26 233117-6 COMPRESSION SPRING, AF502,SH01W $0.90
27 419656-2 GEAR HOUSING, BCS550/Z $4.27
28 213560-5 O RING 44, HK0500 $3.61
29 210036-3 BALL BEARING 604ZZ, BCS550 $3.50
30 324729-7 GEAR SHAFT, BCS550/Z $2.95
31 226643-2 HELICAL GEAR 35, BSS501 $4.49
32 210080-0 BALL BEARING 6900ZZ, BCS550/Z $6.69
33 226635-1 HELICAL GEAR 15, BCS550/Z $4.49
34 631550-0 LED CIRCUIT, BCS550/Z $8.45
35 262566-0 RUBBER SLEEVE 6, BCS550 $0.75
36 262563-6 SLEEVE 4, BCS550/Z $1.06
38 318152-6 BLADE CASE, BSS501 $9.33
39 419935-8 BLOWER NOZZLE, BSS501 $4.16
40 266026-4 TAPPING SCREW 4X12,5477NB $0.86
41 210026-6 BALL BEARING 696ZZ,DA3010F $6.03
42 961006-2 RETAINING RING S-10, N9501B $0.86
43 226640-8 HELICAL GEAR 23, BCS550/Z $4.49
44 257760-7 SLEEVE 10, BCS550/Z $1.30
45 285847-5 BEARING RETAINER 14-23,BCS550/Z $4.16
46 210069-8 BALL BEARING 6900DDW, BCS550/Z $6.69
47 213435-8 O RING 26, SH01W $1.19
48 318087-1 BEARING BOX, BCS550/Z $4.16
49 324730-2 SPINDLE, BCS550/Z $4.16
50 265034-2 C.S.H. SCREW, BCS550 $1.19
51 345470-9 THICKNESS RING, BCS550/Z $1.06
53 231835-0 TENSION SPRING 4, BSS501 $3.61
54 419934-0 SAFETY COVER, BSS501 $4.16
55 267127-1 FLAT WASHER 26, 9046,SH01W $2.18
56 257938-2 RETAINING RING,WR-26, BCS550/Z $1.06
57 224408-6 INNER FLANGE 30, BCS550/Z $2.84
58 224404-4 OUTER FLANGE, BCS550/Z $4.16
59 266458-5 HEX. SOCKET HEAD BOLT M6X18, BCS550 $1.85
60 961014-3 STOP RING E-8, 3901 $0.86
61 272229-0 LEVER 40, BCS550 $5.92
62 252159-1 HEX. NUT M6, 5036DWB $4.16
63 941151-9 F. WASHER 6, 5007NB $0.75
64 331733-9 PIPE 6, BCS550/Z $1.52
65 252103-8 HEX. LOCK NUT M5-8, 5007FK $2.29
66 158253-6 BASE CPL., BSS501 $17.25
67 265056-2 PAN HEAD SCREW M5, 5620DWA,SH01W $3.61
68 266405-6 F.H.S.N. BOLT M6X75, BCS550/Z $1.08
69 266225-8 H.S.H.S.SCREW M6X8, BSS501 $0.86
70 251919-8 C.S.N. BOLT M6X20, 5402NA $1.34
71 251896-4 SCREW M5X20, BSS611Z $3.61
72 231007-7 COMPRESSION SPRING 6, BSS610 $0.86
73 941151-9 F. WASHER 6, 5007NB $0.75
74 252133-9 HEX NUT M6, BSS611Z $4.71
75 272251-7 LEVER 30, BSS610 $1.52
76 961014-3 STOP RING E-8, 3901 $0.86
77 267231-6 FLAT WASHER 9, HR2450F $1.01
1001 164095-8 GUIDE RULE, 4200H $12.60
1002 783203-8 HEX WRENCH 5, 2708 $3.24
1006 805280-1 MODEL NO. LABEL, BSS501 $0.45
1007 450128-8 BATTERY COVER FOR 18V/14.4V LI-ION BATTERY $2.40
1008 A-94904 TCT SAW BLADE 5-3/8X16T, BSS501 $26.20
