Makita BO5012 Sander & Polisher Parts

Makita BO5012 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

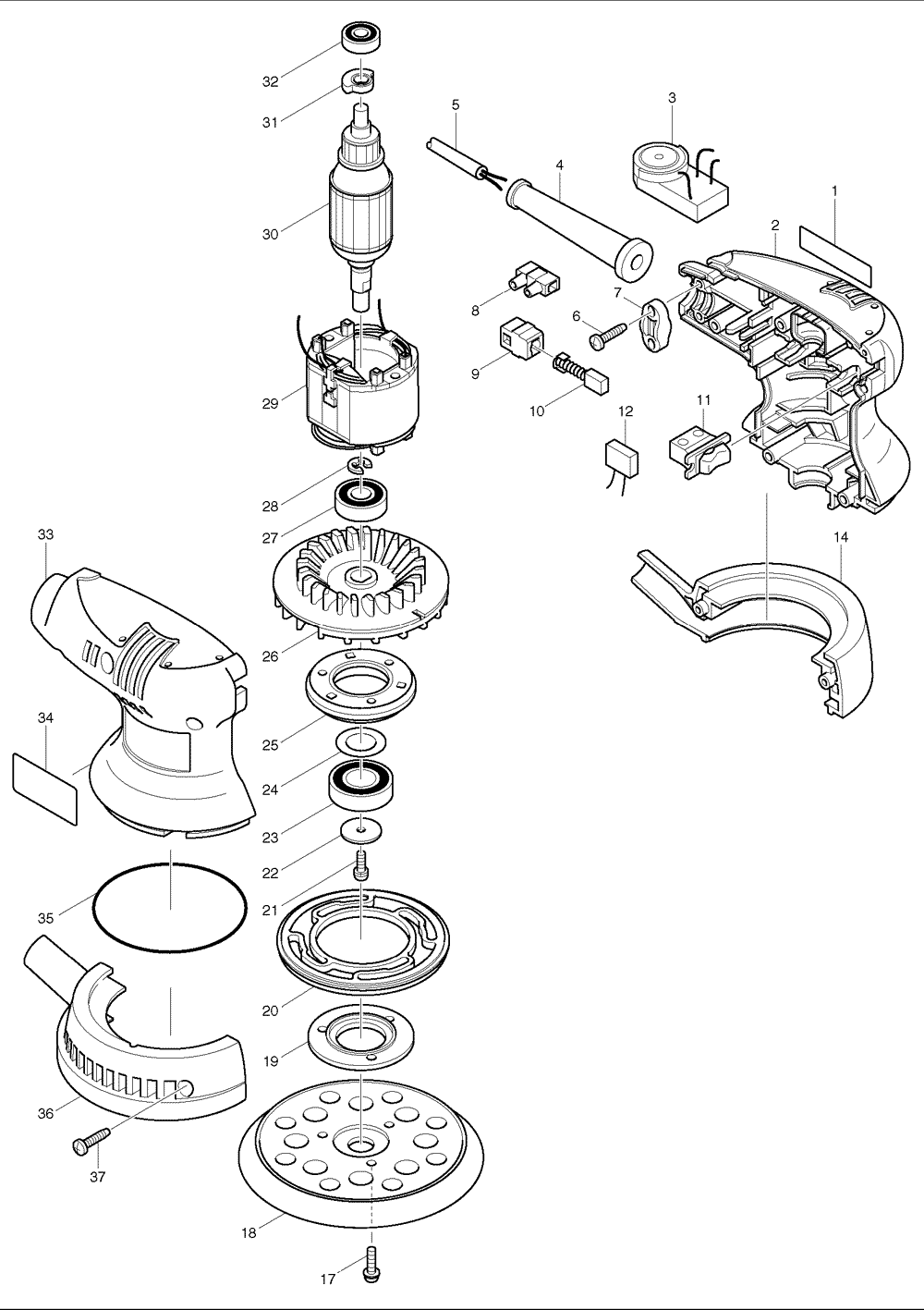

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	819063-3	MAKITA LABEL, DA3010F	$0.96
2	183561-6	HOUSING SET,BO5012K	$17.91
3	539182-6	LEAD WIRE CONTROLLER ASS'Y, BO5012K	$28.15
4	682502-4	CORD GUARD 8-85, HP2010N	$2.51
4	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
5	664002-6	CORD	$9.22
5	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
6	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
7	687063-9	STRAIN RELIEF, 4323K	$1.26
9	643552-4	BRUSH HOLDER, BO5012K	$1.63
14	183088-6	SKIRT SET, B05010,T2	$6.80
17	911128-8	P.H. SCREW M4X16, 1902	$1.48
18	743081-8	BASE/PAD , BO5010	$31.20
18	RSP27	5 Inch Sander Pad - Hook and Loop Replaces Makit...	$9.99
19	316834-4	BEARING BOX COVER, BO5010	$4.49
20	421866-9	BRAKE RING, BO5010	$6.80
21	911116-5	P.H. SCREW M4X12, 4301BV	$0.53
22	253739-6	FLAT WASHER 4, BO5010	$1.63
23	211236-8	BALL BEARING 6002DDW, 5007NK	$13.07
24	253315-6	THIN WASHER 15, UM401DW	$1.34
25	316835-2	BEARING BOX, BO5021K	$5.92
26	241896-2	FAN 88, BO5010	$10.32
27	210020-8	BALL BEARING 6000DDU, BO5010	$8.78
28	961015-1	STOP RING E-9, BO5021	$0.86
29	633551-4	FIELD 115V, BO5012K	$10.43
30	517231-9	ARMATURE ASS'Y 115V, BO5010	$42.22
31	313080-0	COUNTER WEIGHT, BO5010	$3.06
32	210017-7	BALL BEARING 607DDW, 420S,T2	$10.98
33	183561-6	HOUSING SET,BO5012K	$17.91
34	850395-9	NAME PLATE, BO5012K	$1.21
35	213755-0	O RING 75, HM1500	$3.61
36	183088-6	SKIRT SET, B05010,T2	$6.80
37	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
1002	257202-1	RING 25, BO4556	$3.06
1003	416063-0	DUST BAG NOZZLE, BO5010	$4.40
1004	416064-8	DUST NOZZLE, BO4556	$4.49
1006	183782-0	PLASTIC TOOL CASE, BO4552K	$30.20
5001	810134-9	CAUTION LABEL, 3709	$0.93
