Makita BO4900V Sander & Polisher Parts

Makita BO4900V Sander & Polisher Parts Image

Makita BO4900V Parts
Half Sheet Finishing Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BO4900V
Half Sheet Finishing...
$187.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

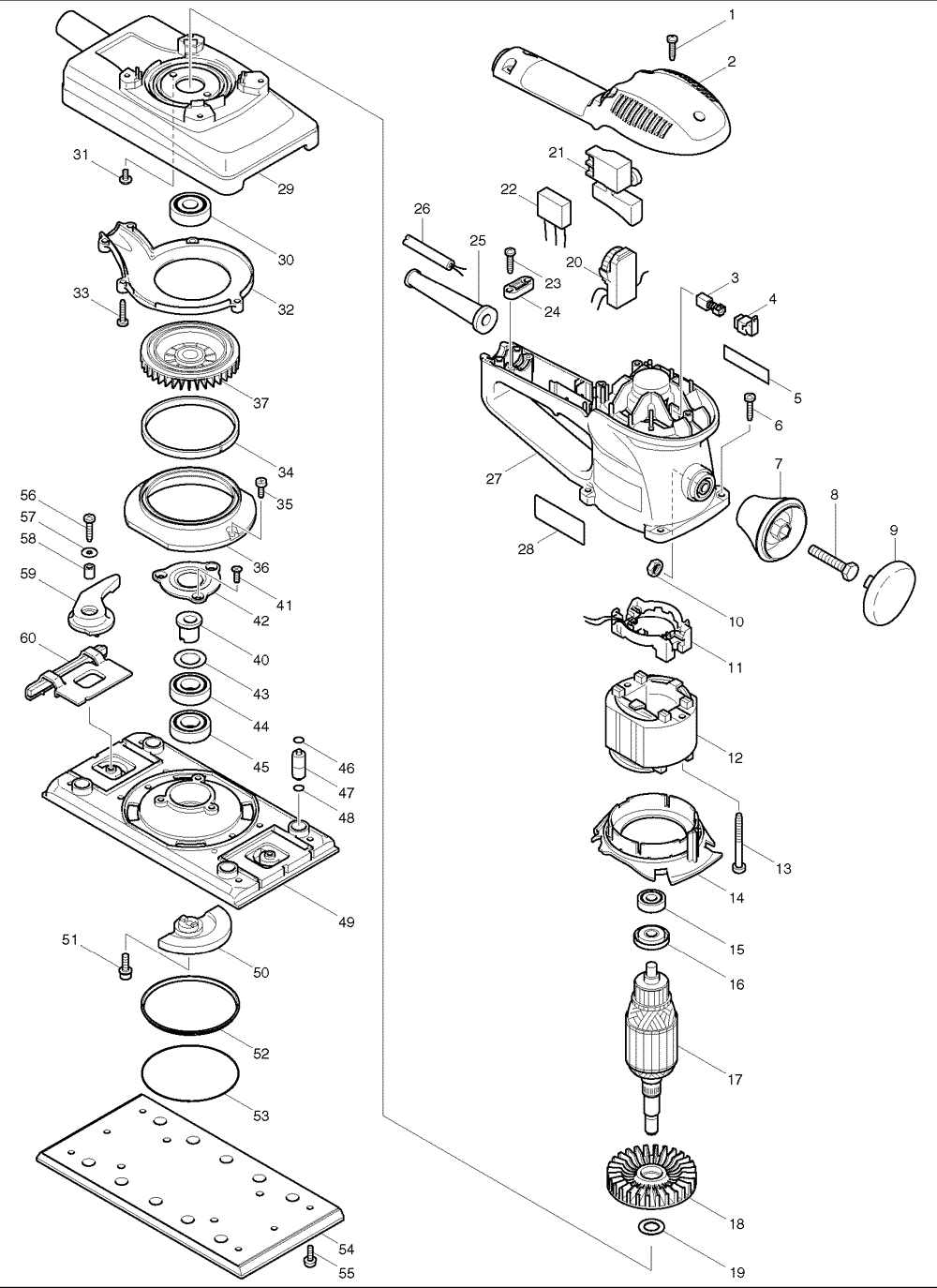

Makita BO4900V Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
2 417778-2 TOP COVER, BO4900V $13.29
3 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
4 643923-5 BRUSH HOLDER, HR2410 $1.63
5 819063-3 MAKITA LABEL, DA3010F $0.96
6 266042-6 TAPPING SCREW BIND CT 4X20, 9046 $0.86
7 417774-0 KNOB, BO4900V $2.84
8 921467-8 HEX BOLT M8X45, LS1013 $1.96
9 417775-8 KNOB COVER, BO4900V $2.84
10 931403-6 HEX NUT M8, 406 $1.34
11 638134-5 SUPPORT CPL., BO4900V $5.48
12 634461-8 FIELD 115V, BO4900V $17.03
13 266046-8 T. SCREW FLANGE PT5X50,HR2010 $1.96
14 417777-4 BAFFLE PLATE, BO4900V $2.84
15 210005-4 BALL BEARING 608DDW, 9031 $13.07
16 681644-1 INSULATED WASHER, 9227C $1.63
17 513501-4 ARMATURE ASS'Y 115V, BO4900V $68.40
18 240043-2 FAN 70, BO6030 $4.16
19 253744-3 F. WASHER 12, HR2410 $1.34
20 631481-3 CONTROLLER, BO4900V $26.92
21 651286-5 SWITCH, BO5021 $9.22
23 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
24 687063-9 STRAIN RELIEF, 4323K $1.26
25 682502-4 CORD GUARD 8-85, HP2010N $2.51
25 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
26 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
26 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
27 183419-9 MOTOR HOUSING,BO4900V $17.25
28 853497-0 NAME PLATE, BO4900V $1.21
29 317538-1 FRAME, BO4900V $25.06
30 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
31 251291-8 SCREW M4X8, BO6030 $0.86
32 417773-2 SCROLL COVER $4.16
33 266042-6 TAPPING SCREW BIND CT 4X20, 9046 $0.86
34 443108-1 FELT 6X22X3, BO3700 $1.52
35 266026-4 TAPPING SCREW 4X12,5477NB $0.86
36 417772-4 DUST GUIDE, BO4900V $2.84
37 240051-3 FAN 78, BO4900V $6.80
40 313104-2 SLEEVE, BO4900V $1.52
41 266058-1 TAPPING SCREW CT4X12, 9031 $0.86
42 162171-2 BEARING RETAINER 24, BO4900V $7.46
43 253315-6 THIN WASHER 15, UM401DW $1.34
44 211201-7 B. BEARING 6002LLB, 6510LVR $13.07
45 211201-7 B. BEARING 6002LLB, 6510LVR $13.07
46 213047-7 O RING 4, BO3700 $1.74
47 317535-7 FOOT, BO4900V $1.52
48 213047-7 O RING 4, BO3700 $1.74
49 317537-3 BASE, BO4900V $23.74
50 317536-5 BALANCER, BO4900V $5.48
51 266071-9 HSH BOLT M5X16, 9046 $2.40
52 345211-3 UNDER COVER, BO4900V $2.84
53 213755-0 O RING 75, HM1500 $3.61
54 193522-8 PAD, BO4900V $49.60
55 911118-1 P.H. SCREW M4X12, 6221D $0.86
56 266042-6 TAPPING SCREW BIND CT 4X20, 9046 $0.86
57 253874-0 F. WASHER 4, LS1016L $1.34
58 257659-6 SLEEVE 4, 9046 $1.63
59 153361-8 CLAMP LEVER CPL., BO4900V $4.16
60 153362-6 PAPER CLAMP CPL., BO4900V $5.48
1001 193525-2 PAPER DUST BAG HOLDER,BO4990V $20.80
1002 193526-0 PAPER DUST BAG SET,BO4900V $14.60
5001 810134-9 CAUTION LABEL, 3709 $0.93
