Makita BO4530 Sander & Polisher Parts

Makita BO4530 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

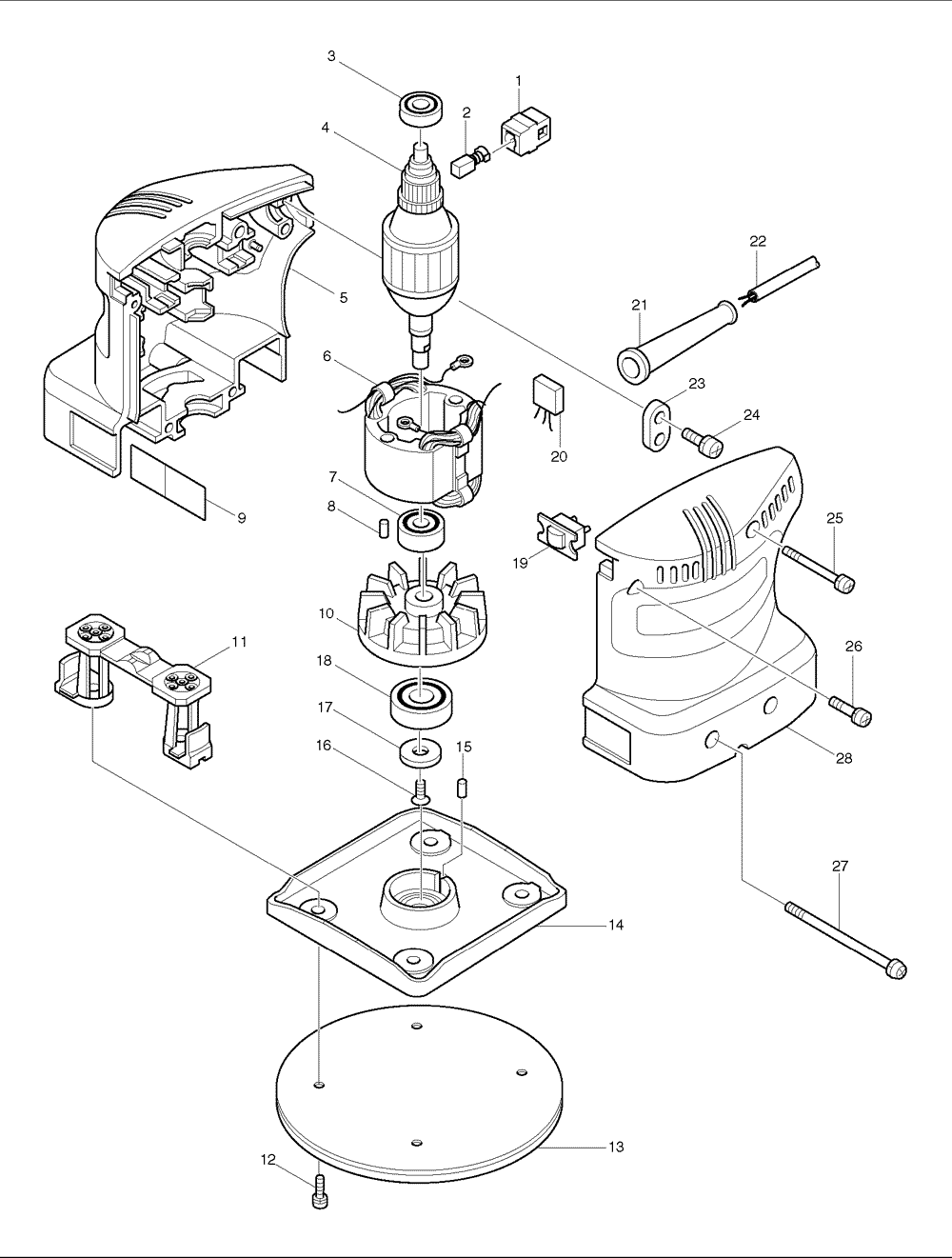

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	643552-4	BRUSH HOLDER, BO5012K	$1.63
3	211026-9	B. BEARING 627LLB, N9514B	$8.78
5	181831-7	HOUSING SET, BO4510	$21.76
7	211092-6	B. BEARING 629DDW, BO4556	$10.98
8	263002-9	RUBBER PIN 4, 5007NK	$0.86
9	855020-7	NAME PLATE, BO4530	$1.12
10	241652-0	FAN 65, BO4510	$8.78
11	410918-1	FOOT,BO4510	$4.49
12	911111-5	P.H. SCREW M4X10, LS1011	$0.53
13	743032-1	6 ROUND PAD, BO4530	$29.00
14	152210-6	BASE, B04530	$14.61
15	263002-9	RUBBER PIN 4, 5007NK	$0.86
16	912112-6	.C.S.H. SCREW M4X10, 3700B	$0.53
17	253949-5	F. WASHER 6, BO4530	$1.63
18	211066-7	B. BEARING 6200LLB, BO4552	$10.98
19	651606-3	SWITCH, GE0600	$13.84
21	682502-4	CORD GUARD 8-85, HP2010N	$2.51
21	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
23	687001-1	STRAIN RELIEF, 6013BR	$0.97
24	911133-5	P.H. SCREW M4X18, N9501B	$0.86
25	911188-0	P.H. SCREW M4X60, N9501B	$1.19
26	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
27	911198-7	P.H. SCREW M4X70, BO4510	$1.48
28	181831-7	HOUSING SET, BO4510	$21.76
