Makita BO3700 Sander & Polisher Parts

Makita BO3700 Sander & Polisher Parts Image

Makita BO3700 Parts
10,000 OPM, Finishing Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BO3700
10,000 OPM, Finishin...
$49.99
Tool Diagram    (Click image to Zoom in) View larger Image

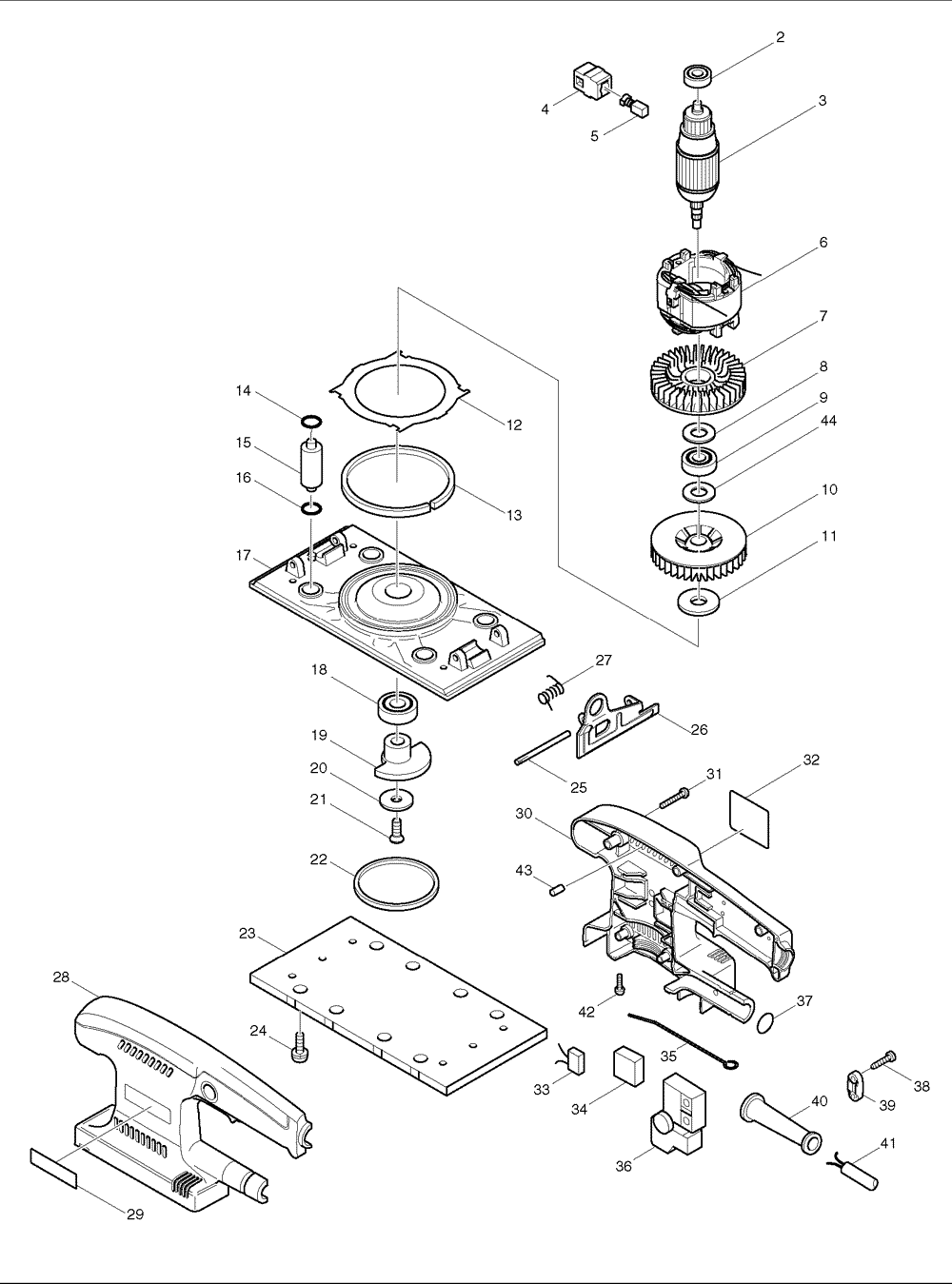

Makita BO3700 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
3 517336-5 ARMATURE ASS'Y 115V, BO3700 $37.02
4 643552-4 BRUSH HOLDER, BO5012K $1.63
5 K28 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-75), 191956... $8.50
6 593456-9 FIELD ASS'Y, BO3700 $17.03
7 240038-5 FAN 65, BO3700 $2.84
8 253311-4 WASHER 10, 2030S $1.63
10 240029-6 FAN 68, BO3700 $2.84
11 267216-2 FLAT WASHER 8, BO3700 $1.34
12 344832-8 PLATE, BO3700 $1.52
13 443108-1 FELT 6X22X3, BO3700 $1.52
14 213047-7 O RING 4, BO3700 $1.74
15 324031-8 FOOT, BO3700 $1.52
16 213047-7 O RING 4, BO3700 $1.74
17 317285-4 BASE, BO3700 $31.72
18 211236-8 BALL BEARING 6002DDW, 5007NK $13.07
19 317284-6 BALANCER, BO3700 $11.97
20 267001-3 F. WASHER 7, BO3700 $1.63
21 912222-9 C.S.H. SCREW M5X16, BO3710 $0.86
22 261114-2 SPONGE WASHER 53, BO3700 $1.34
23 140441-9 PAD CPL,. BO3700 $5.48
24 911111-5 P.H. SCREW M4X10, LS1011 $0.53
25 256739-5 PIN 4-55, 9036 $1.74
26 345342-8 PAPER CLAMP, BO3700 $1.52
27 231647-1 TORSION SPRING 4, BO3700 $1.48
28 183232-5 HOUSING SET, BO3700 $25.06
29 819063-3 MAKITA LABEL, DA3010F $0.96
30 183232-5 HOUSING SET, BO3700 $25.06
31 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
32 852707-2 NAME PLATE, BO3700 $1.21
35 323947-4 EARTH WIRE, BO3700 $1.52
36 651286-5 SWITCH, BO5021 $9.22
37 213315-8 O RING 19, AN611 $0.82
38 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
39 687063-9 STRAIN RELIEF, 4323K $1.26
40 682502-4 CORD GUARD 8-85, HP2010N $2.51
40 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
41 664002-6 CORD $9.22
41 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
42 266007-8 TAPPING SCREW 3X10, 9557NB $0.53
43 263002-9 RUBBER PIN 4, 5007NK $0.86
44 253311-4 WASHER 10, 2030S $1.63
45 424056-3 SPONGE SLEEVE 9, BO3700 $0.75
1003 192945-7 PUNCH PLATE, BO3700 $12.20
5001 810134-9 CAUTION LABEL, 3709 $0.93
