Makita BLS712 Electric Saw Parts

Makita BLS712 Electric Saw Parts Image

Makita BLS712 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

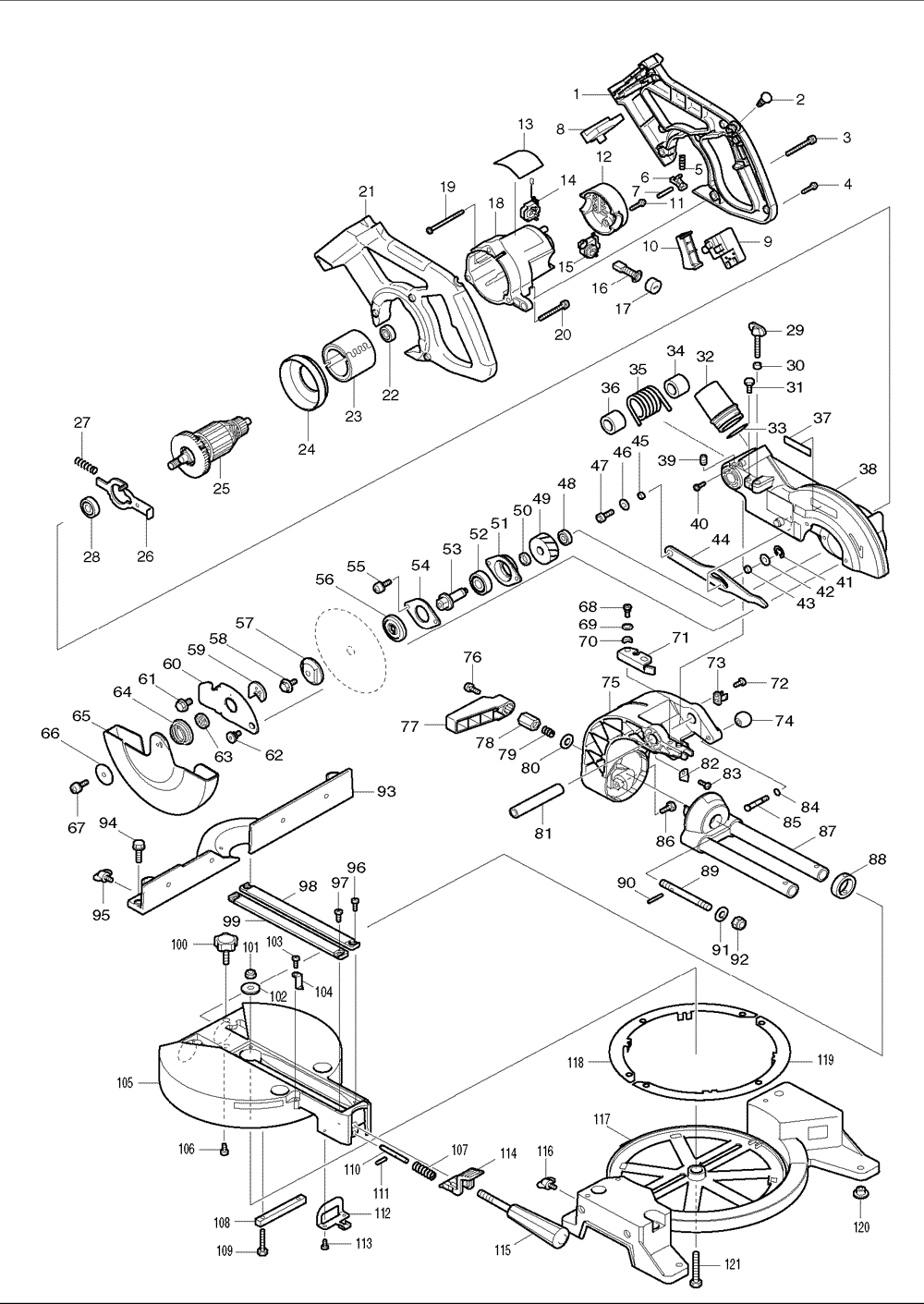

Makita BLS712 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 183260-0 HANDLE SET, BLS712SFK $56.90
2 411478-6 SWITCH BUTTON, LS1011 $1.63
3 911268-2 P.H. SCREW M5X45, 5007NK $1.19
4 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
5 231026-3 COMP. SPRING 4, LS1016L $0.79
6 416533-9 LOCK OFF LEVER, LS711DWBEK $3.06
7 256098-7 PIN 5, LC1230 $1.96
8 643955-2 TERMINAL, BDF460SH $4.16
8 643983-7 TERMINAL,BFT123F $4.16
9 651988-3 SWITCH, BLS712SFK $13.18
10 416534-7 SWITCH LEVER, LS711DWBEK $3.06
11 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
12 416639-3 REAR COVER, 5620DWA $4.49
13 851943-7 NAME PLATE, BLS712 $1.36
14 643946-3 BRUSH HOLDER, LS711DWBEK $4.49
15 643945-5 BRUSH HOLDER, LS711DWBEK $4.49
16 195022-4 CARBON BRUSH SET CB-441, BJR181 $4.71
17 643941-3 HOLDER CAP, BJR181 $4.49
18 416909-0 MOTOR HOUSING, LS711DWBEK $10.32
19 266209-6 TAPPING SCREW MT 4X60, 5620DWA $1.96
20 911268-2 P.H. SCREW M5X45, 5007NK $1.19
21 183260-0 HANDLE SET, BLS712SFK $56.90
22 210023-2 BALL BEARING 627DDW, 9910 $6.69
23 632828-4 YOKE UNIT, 5620DWA $34.98
24 416907-4 BAFFLE PLATE, LS711DWBEK $3.06
25 519059-1 ARMATURE ASS'Y, BLS712SFK $68.40
26 344681-3 SHAFT LOCK, LS711DWBEK $4.49
27 233092-6 COMP. SPRING 5, 5740NB $0.86
28 211088-7 BALL BEARING 6000DDW, 9005B $13.07
29 265710-8 THUMB SCREW M6X33, LS711DWBEK $3.61
30 262001-8 RING 5, 6906 $3.61
31 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
32 419277-0 DUST NOZZLE, LS1013 $2.84
33 213460-9 O RING 35, HM1500 $1.19
34 416535-5 SLEEVE 17, LS711DWBEK $3.06
35 231638-2 TORSION SPRING 28, LS711DWBEK $7.02
36 416535-5 SLEEVE 17, LS711DWBEK $3.06
37 819063-3 MAKITA LABEL, DA3010F $0.96
38 151838-7 BLADE CASE COMPLETE, BLS712SFK $56.90
39 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
40 266061-2 T. SCREW BIND CT4X8, JN1601 $0.53
41 961018-5 STOP RING E-5, LS1011 $0.53
42 253804-1 F. WASHER 6, 6012HDW $1.34
43 257163-5 RING 6, LS1011 $1.63
44 345411-5 LINK PLATE, BLS712SFK $6.80
45 257163-5 RING 6, LS1011 $1.63
46 253804-1 F. WASHER 6, 6012HDW $1.34
47 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
48 211021-9 BALL BEARING 607LLB, LS1013 $8.78
49 226512-7 HELICAL GEAR 60, LS711DWBEK $11.20
50 257011-8 RING 12, LS711DWBEK $1.26
51 317193-9 HOUSING W/O BEARING, LS711DWBEK $8.78
52 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
53 323798-5 SPINDLE, LS711DWBEK $14.61
54 285694-4 BEARING RETAINER 58, LS711DWBEK $3.06
55 911223-4 P.H. SCREW M5X16, 5007NK $0.86
56 224151-7 INNER FLANGE, 5007FK $7.46
57 224275-9 OUTER FLANGE, 5620DWA $5.92
58 265461-3 HEX. BOLT M6X18, LS711DWBEK $5.37
60 344641-5 .CENTER COVER, LS711DWBEK $4.49
61 265473-6 HEX BOLT M6X14, LS0711Z $1.48
62 265985-9 HEX.SOCKET HEAD BOLT M6, LS1211 $2.40
63 344639-2 CENTER WASHER, LS711DWBEK $2.18
64 231934-8 SPIRAL SPRING 26, LS711DWBEK $5.37
65 416540-2 SAFETY COVER, LS711DWBEK $10.32
66 267136-0 FLAT WASHER 5, 9046 $2.18
67 911228-4 P.H. SCREW M5X18, 5377MG $0.86
68 251267-5 P.H. SCREW M6, LS1013 $1.96
69 253835-0 F. WASHER 8, LS1016L $1.34
70 253948-7 W. WASHER 8, UM140D $0.90
71 344643-1 STOPPER ARM, LS711DWBEK $3.06
72 266026-4 TAPPING SCREW 4X12,5477NB $0.86
73 416536-3 WRENCH HOLDER, LS711DWBEK $2.84
74 271601-3 KNOB 20,LS1030 $1.63
75 151677-5 ARM COMPLETE, LS711DWBEK $100.20
76 911113-1 P.H. SCREW M4X10, 4301BV $0.86
77 416006-2 LEVER 100, LS1040 $5.92
78 252144-4 HEX. NUT M10-17, LS1013 $5.92
79 231266-3 COMP. SPRING 5, LS711DWBEK $1.48
80 253024-7 F. WASHER 10, LS0714 $1.34
81 331350-5 PIPE 16-90, LS1030 $5.92
82 343678-9 INDICATION PLATE, LS1011 $1.63
83 266026-4 TAPPING SCREW 4X12,5477NB $0.86
84 213021-5 O RING 5, JR3070CT $0.53
85 322338-6 STOPPER PIN, LS1030 $3.06
86 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
87 151678-3 ARM HOLDER CPL., LS711DWBEK $68.30
88 257214-4 RING 26, LS711DWBEK $7.46
89 266320-4 SCREW M10, BLS712SFK $4.93
90 256100-6 PIN 5, LS711DWBEK $1.96
91 253024-7 F. WASHER 10, LS0714 $1.34
92 252130-5 HEX LOCK NUT M10 LS1211 $4.16
93 317235-9 GUIDE FENCE, LS711DWBEK $45.59
94 921341-0 HEX BOLT M6X25, LS711DWBEK $1.34
95 251887-5 SCREW M6X10, LS1030 $3.61
96 266026-4 TAPPING SCREW 4X12,5477NB $0.86
97 266026-4 TAPPING SCREW 4X12,5477NB $0.86
98 416539-7 KERF BOARD, LS711DWBEK $4.49
99 416539-7 KERF BOARD, LS711DWBEK $4.49
100 251897-2 SCREW M6X33, LS1211 $7.13
101 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
102 253731-2 F. WASHER 8, 2414B $1.63
103 266026-4 TAPPING SCREW 4X12,5477NB $0.86
104 416355-7 INDICATION PLATE, LS1220 $1.26
105 151839-5 TURN BASE CPL., LS711DWBEK $129.70
106 922111-0 H.S.H. BOLT M4X10, LS1011 $1.34
107 231325-3 COMPRESSION SPRING 6, LS1220 $1.48
108 152593-4 SQUARE ROD CPL., LS711DWBEK $6.80
109 925251-3 HEX. BOLT M5X30, LS711DWBEK $2.40
110 323741-4 LOCK PIN, LS1220 $3.06
111 256158-5 PIN 3, BJR181 $1.19
112 344601-7 LOCK PLATE, LXSL01 $1.63
113 266026-4 TAPPING SCREW 4X12,5477NB $0.86
114 416450-3 LOCK LEVER, LS1045 $3.06
115 273515-2 GRIP 32, LS711DWBEK $4.49
117 152642-7 BASE COMPLETE, BLS712SFK $54.90
118 344646-5 SLIDE PLATE, LS711DWBEK $4.49
119 344646-5 SLIDE PLATE, LS711DWBEK $4.49
120 286212-1 CAP 20, LS1013FL $0.97
121 921472-5 HEX BOLT M8X50,8401 $1.48
1001 782223-9 BOX WRENCH, LS0714 $6.40
1002 411478-6 SWITCH BUTTON, LS1011 $1.63
1005 122571-8 .VICE ASS'Y, LS711DWBEK $72.40
1007 193740-8 24V,3.3AH, BATTERY BH2433, BLS820 $358.20
1008 A-90912 7-1/2 C.T.BLADE, 40T,LS711DW $43.40
