Makita BJR240SH Cordless Saw Parts

Makita BJR240SH Cordless Saw Parts Image

Makita BJR240SH Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

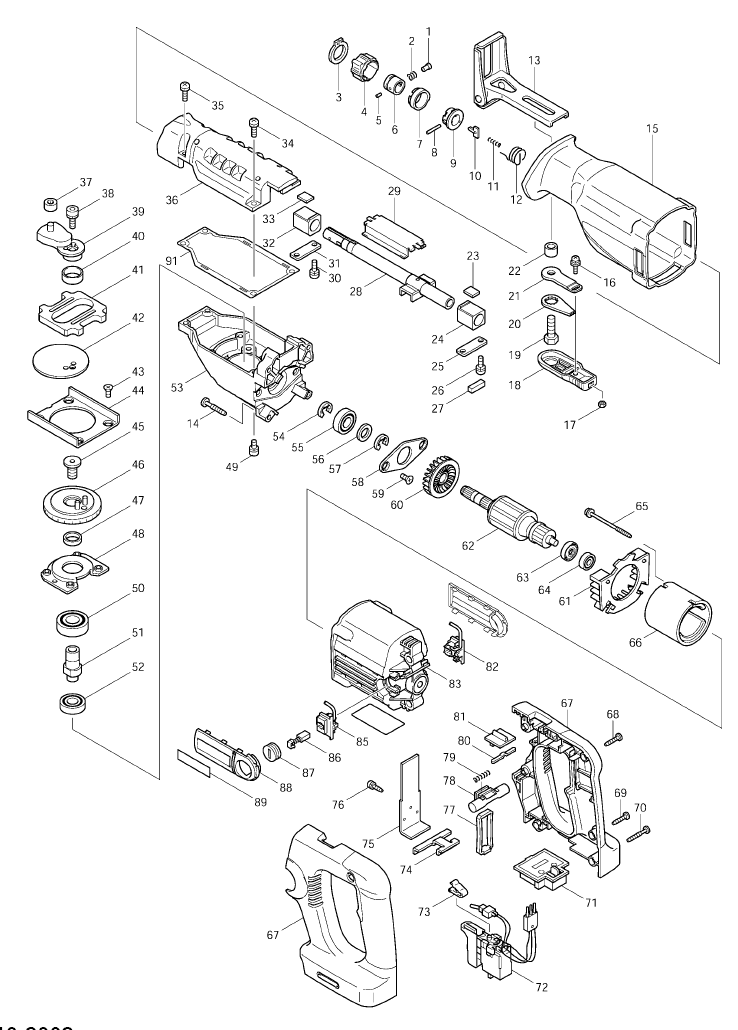

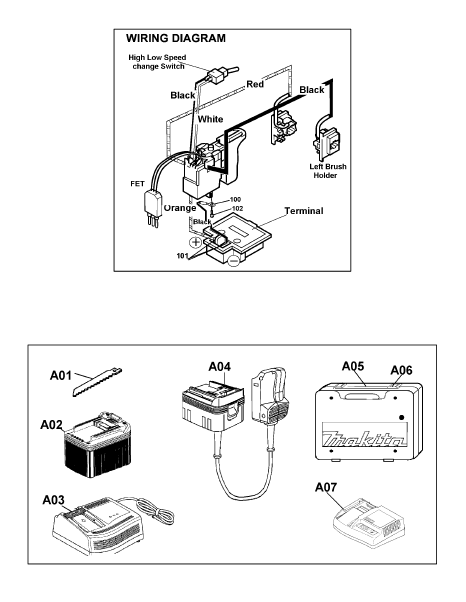

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	233345-3	COMPRESSION SPRING 6, JR3050T	$1.63
3	961078-7	RETAINING RING S-18,BHR200SH	$1.19

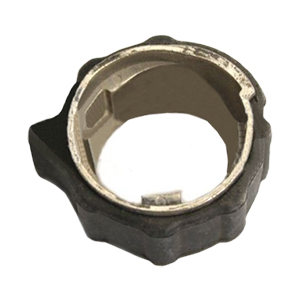

4	162228-9	DRIVING SLEEVE. BJR240SH	$28.15
5	268094-3	PIN 3, JR3050T	$3.28
6	331639-1	GUIDE SLEEVE, JR180D	$6.80
7	417791-0	DRIVING SLEEVE GUIDE, JR3050T	$2.84
10	345214-7	PUSH PLATE, BJR240SH	$1.52
11	233025-1	COMPRESSION SPRING 2, JR3050T	$2.07
13	163433-1	SHOE, BJR240SH	$14.61
14	266173-1	T. SCREW FLANGE PT5X3, GA7011c	$1.19
15	421809-1	INSULATION COVER, BJR240SH	$26.92
16	911114-9	P.H. SCREW M4X10, LS1013FL	$0.86
17	931102-0	HEX NUT M4, 2711	$0.79
18	152904-3	LEVER 60 COMPLETE, JR3000V	$1.52
19	921442-4	HEX BOLT M8X25,JR3030T	$1.34
20	344733-0	LOCK PLATE, JR3030	$1.63
21	344732-2	INNER PLATE, JR3030	$1.63
22	257558-2	SLEEVE 9, BJR240	$1.63
23	443070-0	FELT PAD, JR3000V	$1.26
24	214169-6	PLANE BEARING 14, JR3030	$2.84
25	341462-6	PLATE, JR3000V	$0.97
26	911225-0	PAN HEAD SCREW M5X16, JR3050T	$1.19
27	443117-0	FELT 6X20, BJR240SH	$0.97
28	168361-5	SLIDER, BJR240SH	$45.08
29	345213-9	SLIDE PLATE, BJR240SH	$4.16
30	911225-0	PAN HEAD SCREW M5X16, JR3050T	$1.19
31	341462-6	PLATE, JR3000V	$0.97
32	214169-6	PLANE BEARING 14, JR3030	$2.84
33	443070-0	FELT PAD, JR3000V	$1.26
34	911228-4	P.H. SCREW M5X18, 5377MG	$0.86
35	911228-4	P.H. SCREW M5X18, 5377MG	$0.86
36	153371-5	GEAR HOUSING COVER CPL., BJR240SH	$34.47
37	212001-8	N. BEARING 708, JR3000V	$14.61
38	265906-1	H.S.H. BOLT M6X18, BJR240SH	$1.96
39	153373-1	CRANKSHAFT CPL., BJR240SH	$28.15
40	257251-8	RING 21, BJR240SH	$14.61
41	313109-2	COUNTER WEIGHT, BJR240SH	$8.01
42	345215-5	PLATE, BJR240SH	$2.84
43	251372-8	C.SCREW M5X12, 9035, 9035SB	$1.48
44	345216-3	GUIDE PLATE, BJR240SH	$6.80
45	266210-1	H.S.H.BOLT M10X18, JR3030	$3.61
46	153372-3	GEAR CPL., BJR240SH	$33.15
47	257053-2	RING 15, 6510LVR	$1.63
48	285705-5	BEARING RETAINER 58, BJR240SH	$6.80
49	265976-0	H.S.H. BOLT M5X10,9040L	$3.61
50	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
51	324251-4	GEAR SHAFT, BJR240SH	$15.27
52	211101-1	BALL BEARING 6001LLB,9218PB	$13.07
53	317539-9	GEAR HOUSING, BJR240SH	$30.60
54	961016-9	STOP RING E-10, BJR182	$0.86
55	211131-2	BALL BEARING 6001DDW,BO4556	$13.07
56	253744-3	F. WASHER 12, HR2410	$1.34
57	961016-9	STOP RING E-10, BJR182	$0.86
58	285706-3	BEARING RETAINER 58, BJR240SH	$5.48
59	251372-8	C.SCREW M5X12, 9035, 9035SB	$1.48
60	240052-1	FAN 46, LXPK01	$4.16
61	417792-8	BAFFLE PLATE, BJR240SH	$4.16
62	519074-5	ARMATURE ASS'Y 24V, BJR240SH	$80.40
63	681652-2	INSULATION WASHER, BO4556	$1.34
64	210017-7	BALL BEARING 607DDW, 420S,T2	$10.98
65	266292-3	TAPPING SCREW 4X65, 5402NA	$1.74
66	638107-8	YOKE UNIT, BSS610	$34.98
67	183421-2	HANDLE SET,BJR240SH	$42.63
68	266045-0	TAPPING SCREW 4X20, 9046	$1.19
69	266045-0	TAPPING SCREW 4X20, 9046	$1.19
70	266050-7	P.T. SCREW 4X30, 4304	$1.19
71	643983-7	TERMINAL,BFT123F	$4.16
72	650519-5	SWITCH C3LA-2A-L2SM	$48.14
73	232205-6	LEAF SPRING, BJR240SH	$3.61
74	344898-8	SUPPORT PLATE, BDF460SH	$2.84
75	689116-0	HEAT SINK, BJR240SH	$4.16
76	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
77	417790-2	STOPPER, BJR240SH	$2.84
78	417789-7	LOCK OFF BUTTON, BJR240SH	$2.84
79	231469-9	COMP. SPRING 4, SH01W	$0.86
80	232198-7	LEAF SPRING, BTD200SH	$3.61
81	417788-9	SPEED CHANGE LEVER, BJR240SH	$2.84
82	643990-0	BRUSH HOLDER, BJR240SH	$4.16
83	417783-9	MOTOR HOUSING, BJR240SH	$22.42
85	643949-7	BRUSH HOLDER R, BJR181	$4.49
87	643941-3	HOLDER CAP, BJR181	$4.49
88	417787-1	BUMPER, BJR240SH	$2.84
89	819063-3	MAKITA LABEL, DA3010F	$0.96
91	417921-3	GASKET, BJR240SH	$4.16
100	654037-5	INSULATED TERMINAL, RP0900K	$0.75
101	654208-4	RECEPTACLE, BTW120SA	$0.97
102	652038-7	P.H. SCREW M3X8, 6343DWA	$0.49
A05	824659-7	PLASTIC CARRYING CASE,BJR240SH	$60.20
A06	417075-6	LATCH, 6835DWA	$8.01
