Tool Diagram    (Click image to Zoom in) View larger Image

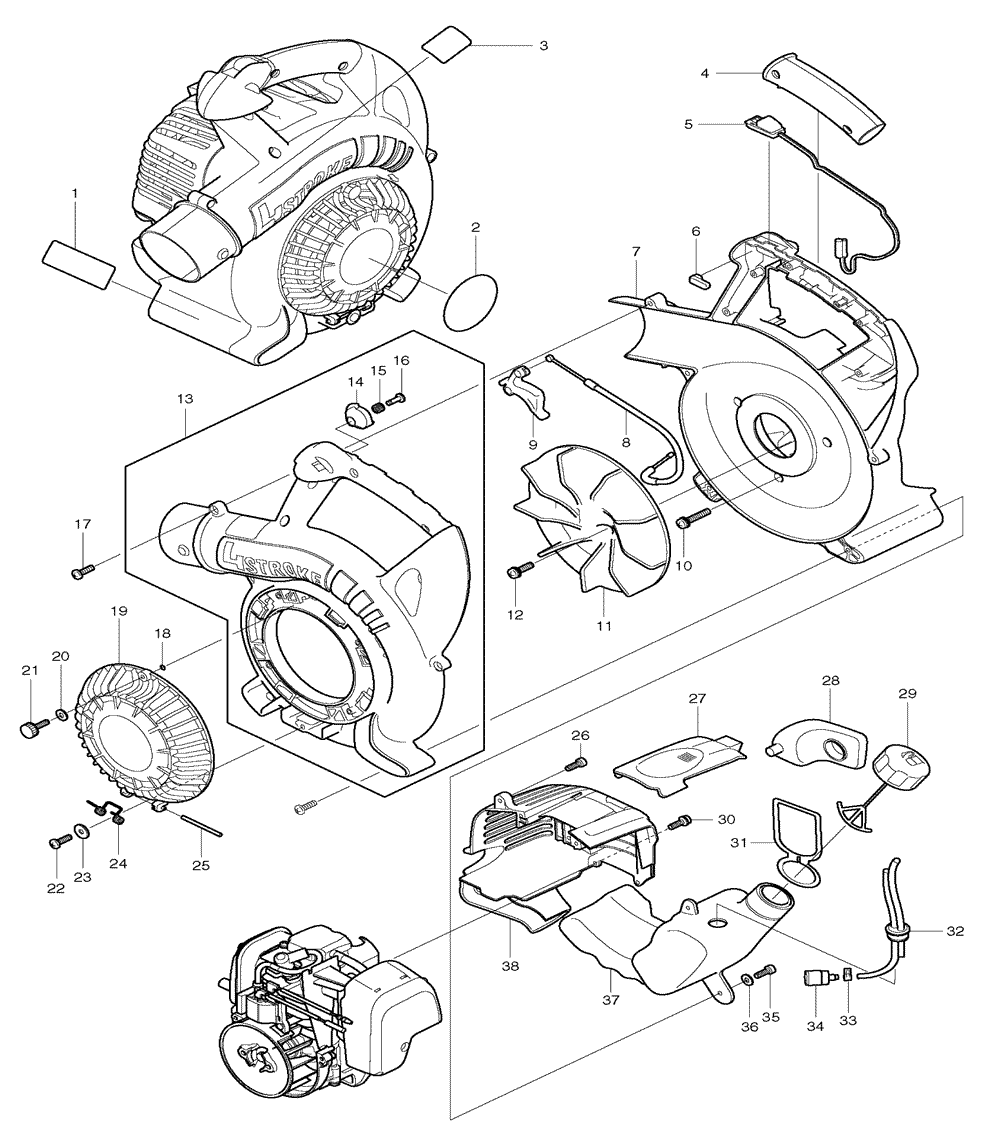

Makita BHX2500 Electric Blower Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 073-62899-80 CAUTION LABEL, BHX2500 $3.50
94 819328-3 MAKITA LOGO LABEL, BHX2500 $6.80
2 808140-6 MODEL LABEL, BHX2500CA $2.40
3 810450-9 CAUTION LABEL, BHX2500 $6.01
100 413138-6 CARBURETOR GASKET, BHX2500 $6.14
4 273665-3 GRIP BHX2500 $10.65
5 638640-0 SWITCH CPL. $12.19
6 424182-8 FRICTION RUBBER $4.71
8 168518-8 CONTROL CABLE $12.19
9 450960-0 THROTTLE LEVER $4.71
10 911253-5 P.H. SCREW M5X30, 2030S $1.19
11 240113-7 IMPELLER CPL. $26.52
12 004-36062-00 SCREW ASSEMBLY, RBL500 $1.41
14 665-55001-00 CRUISE LEVER, BHX2500 $4.71
15 665-55002-00 SPRING, BHX2500 $3.61
16 015-00498-40 TAPPING SCREW 4X16, BHX2500 $1.08
17 265878-0 TAPPING SCREW BT 5X16, N1900B $0.86
18 660-15034-00 OUTER SNAP RING, RBL250 $3.50
19 660-15027-04 PROTECTOR, BHX2500 $18.13
20 660-15035-00 RUBBER WASHER, RBL250 $1.85
21 660-15032-01 SCREW, RBL250 $4.93
22 265878-0 TAPPING SCREW BT 5X16, N1900B $0.86
23 267394-8 WASHER BHX2500 $1.63
24 660-15030-01 SPRING, RBL250 $4.93
25 660-15031-00 SHAFT, RBL250 $3.61
26 265878-0 TAPPING SCREW BT 5X16, N1900B $0.86
27 665-65001-00 PLUG COVER, BHX2500 $4.71
28 424181-0 OIL GUARD $7.68
30 911128-8 P.H. SCREW M4X16, 1902 $1.48
31 810455-9 CAUTION PLATE, EM2650LH $1.30
32 158911-4 TUBE BHX2500 $18.13
33 056-10599-90 HOSE CLAMP, EM4251 $1.41
34 523-65039-00 FILTER, RBL500 $11.42
35 265878-0 TAPPING SCREW BT 5X16, N1900B $0.86
36 267394-8 WASHER BHX2500 $1.63
37 450987-0 FUEL TANK BHX2500CA $18.35
38 665-65003-00 ENGINE COVER, BHX2500 $29.37
39 004-36051-60 SCREW ASS'Y M5X16(W,SW), EM4251 $1.41

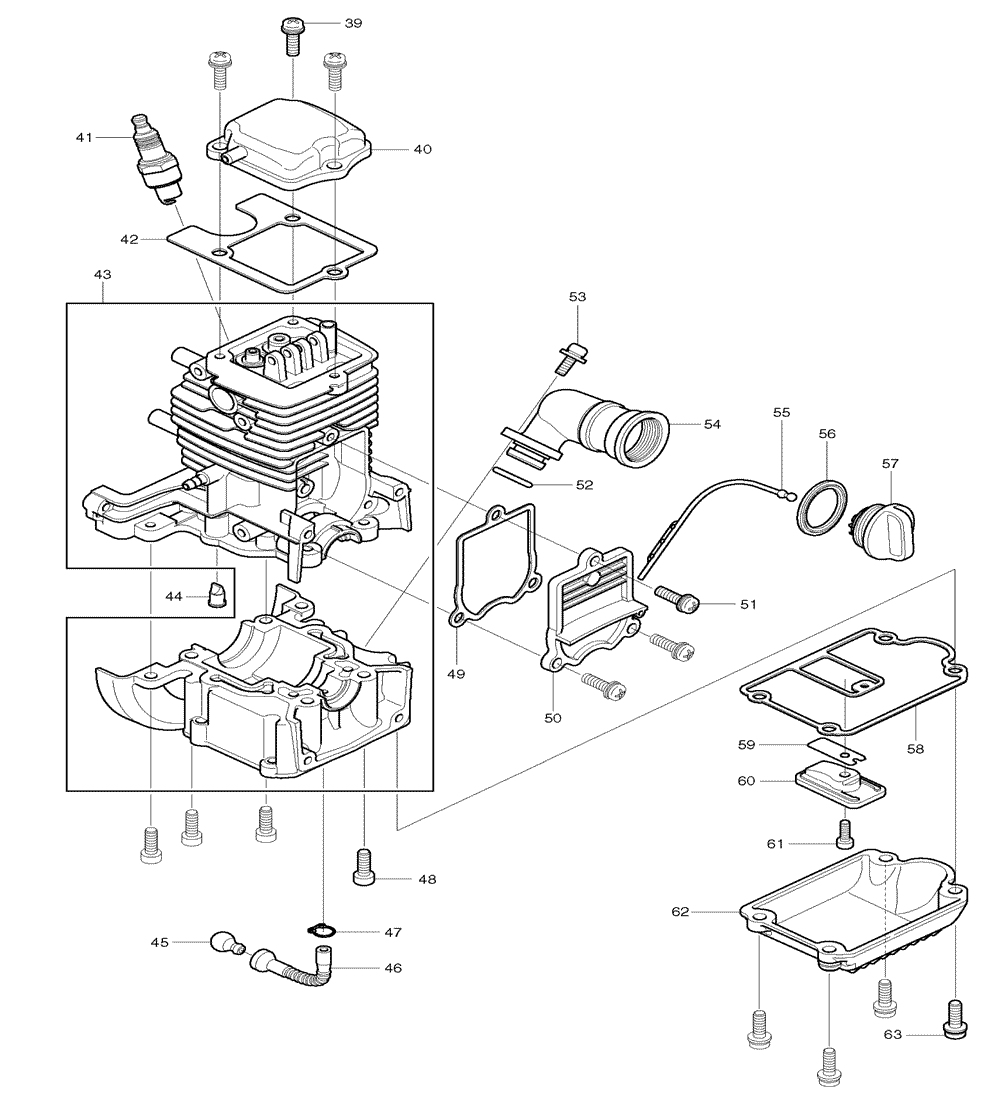

40 592-10040-01 ROCKER COVER CPL., EM4250 $12.19
41 065-01099-50 SPARK PLUG CMR6A, EM4251 $11.20
42 592-15008-00 ROCKER COVER GASKET, EM4251 $4.71
43 592-10110-01 CYLINDER BLOCK SET, BHX2500 $119.12
43 125914-3 N/A $119.12
44 424201-0 CHECK VALVE, EM2650LH $2.40
45 592-65003-00 OIL WEIGHT, BHX2500 $3.17
46 592-65002-00 OIL TUBE, EM4251 $6.14
47 282020-8 HOSE CLAMP, EM2650LH $0.42
48 011-90595-10 S.H. BOLT M5X14, EM4251 $1.96
49 592-15007-00 CAMGEAR COVER GASKET, EM4251 $4.93
50 592-15005-02 CAMGEAR COVER, EM4251 $8.01
51 004-36051-40 SCREW M5X14, RBC251 $1.41
53 004-36051-20 SCREW ASSEMBLY M5X12, G1100 $1.41
54 592-60210-00 OIL PIPE CPL. REPLACES 140813-8 $6.14
55 452610-3 OIL GAUGE $4.71
56 424343-0 GASKET, EM2650LH $1.08
57 452047-4 OIL CAP, EM2650LH $1.30
58 592-65001-00 CASE GASKET, EM4251 $6.14
59 592-15010-00 LEAD VALVE, EM4251 $4.71
60 592-15011-00 RETAINER PLATE, EM4251 $4.71
61 011-90499-80 S.H. BOLT M4X10, EM4251 $1.96
62 592-65000-00 OIL CASE, EM4251 $12.74
63 011-90595-10 S.H. BOLT M5X14, EM4251 $1.96
63 004-36051-80 SCREW ASSEMBLY, RBC230 $1.41

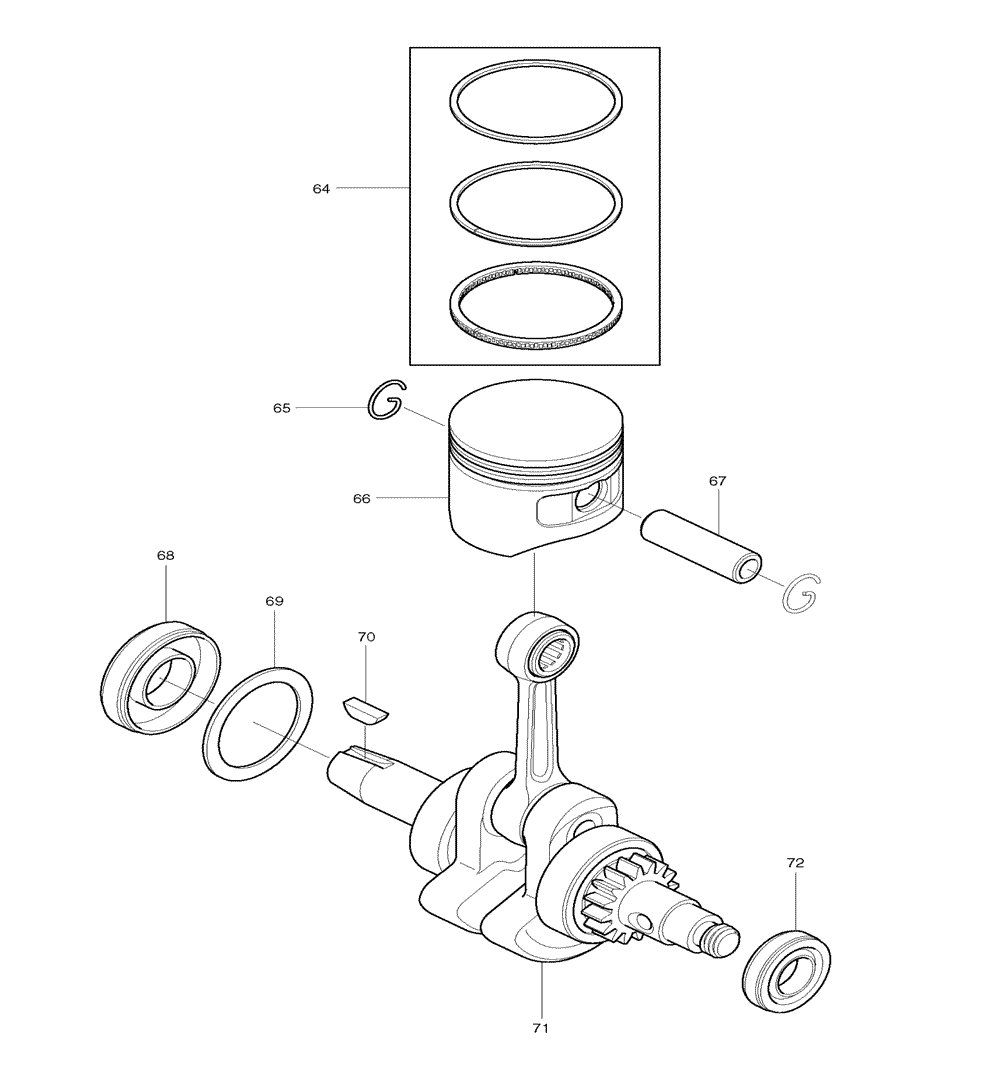

64 592-20040-00 PISTON RING SET, EM4251 $25.61
65 056-50899-70 CLIP, BBX2500 $1.96
66 592-25009-00 PISTON, EM4251 $30.70
67 257781-9 PISTON PIN, EM2650LH $1.30
68 044-01299-60 OIL SEAL (L), EM4251 $7.68
69 542-15005-00 CLIP, EM4251 $3.61
70 254040-2 WOODRUFF KEY 3, EM2650LH $2.40
71 592-20030-00 CRANKSHAFT ASS'Y, EM4251 $149.19
72 044-01099-70 OIL SEAL (S), EM4251 $6.14

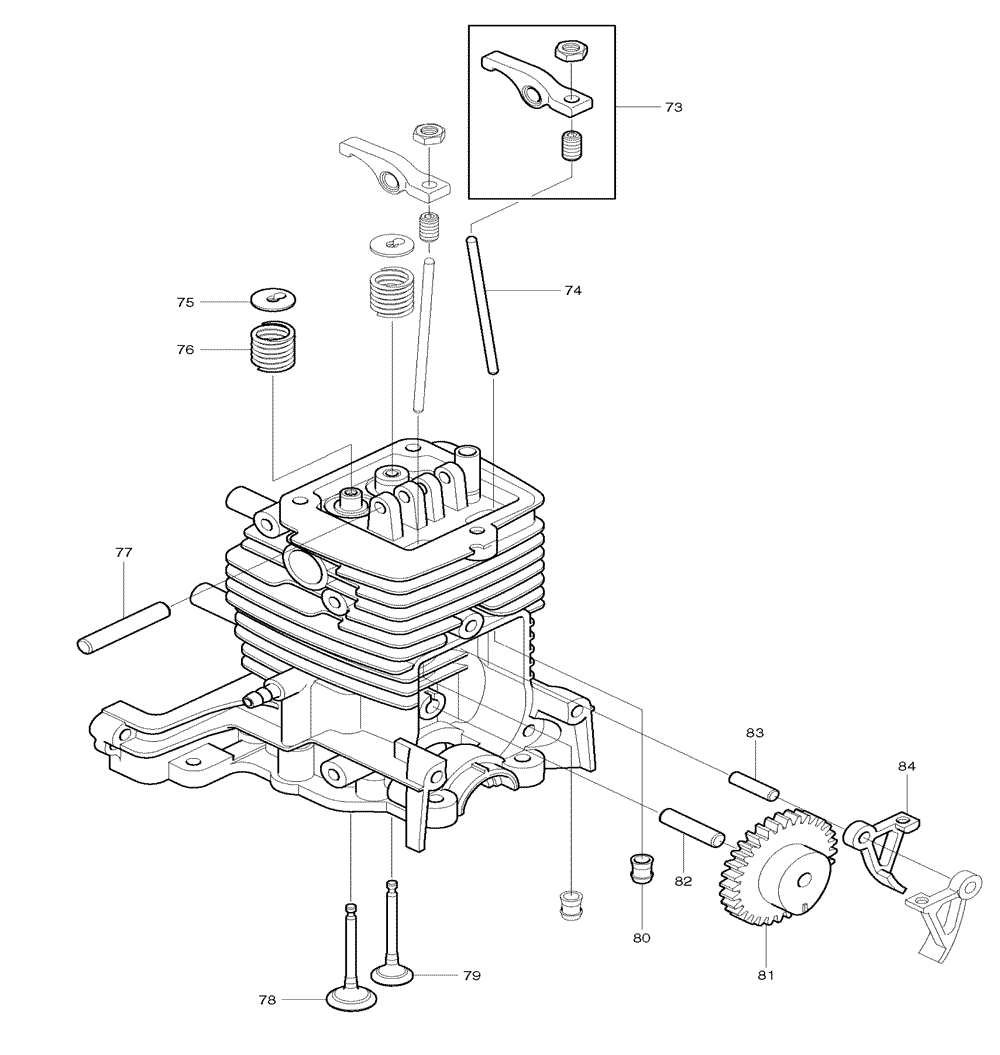

73 593-30020-00 ROCKER ARM ASS'Y, BHX2500 $15.16
74 592-35007-00 PUSH ROD, EM4251 $1.74
75 592-35013-00 SPRING RETAINER, EM4251 $3.61
76 592-35012-00 VALVE SPRING, EM4251 $3.61
77 256200-2 PIN 5, 2704 $3.28
78 592-35015-00 INTAKE VALVE, EM4251 $15.16
79 592-35014-00 EXHAUST VALVE, EM4251 $15.16
80 424200-2 SPACER, EM2650LH $1.08
81 593-30030-00 CAM GEAR ASSEMBLY, EM4250 $36.41
82 592-35005-01 CAM GEAR SHAFT, EM4251 $3.28
83 592-35006-00 CAM LIFTER SHAFT, EM4251 $1.41
84 592-35000-01 CAM LIFTER, EM4251 $7.68

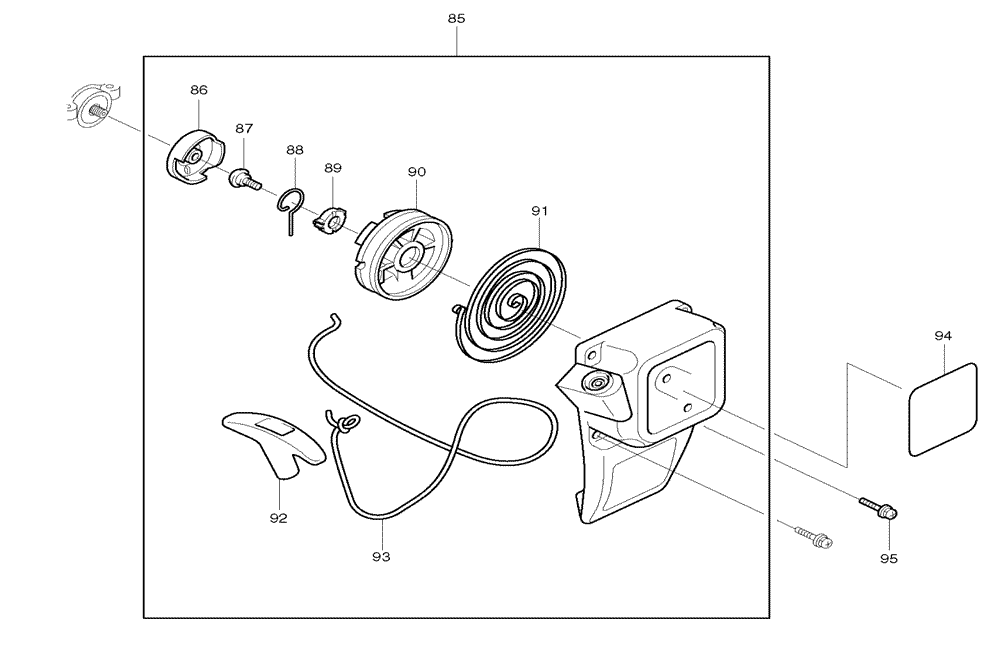

85 592-50010-02 STARTER COVER ASS'Y, EM4251 $36.21
86 168483-1 PULLEY, EM2650LH $1.30
87 266585-8 TAPPING SCREW 5X12, EM2650LH $1.30
88 325923-4 SWING ARM, EM2650LH $1.08
89 451938-6 COLLAR, EM2650LH $1.30
90 451937-8 REEL, EM2650LH $3.50
91 232258-5 SPIRAL SPRING, EM2650LH $4.60
92 424319-7 STARTER KNOB, EM2650LH $2.40
93 592-50010-50 STARTER ROPE, EM4251 $4.71
94 819328-3 MAKITA LOGO LABEL, BHX2500 $6.80
95 911128-8 P.H. SCREW M4X16, 1902 $1.48
96 592-35018-01 INSULATOR GASKET, EM4251 $1.74
96 592-35047-00 INSULATOR GASKET, BHX2500 $1.74
97 592-30130-00 INSULATOR CPL.,BHX2500 $12.19
97 125916-9 INSULATOR ASS'Y.,BHX2500 $12.19

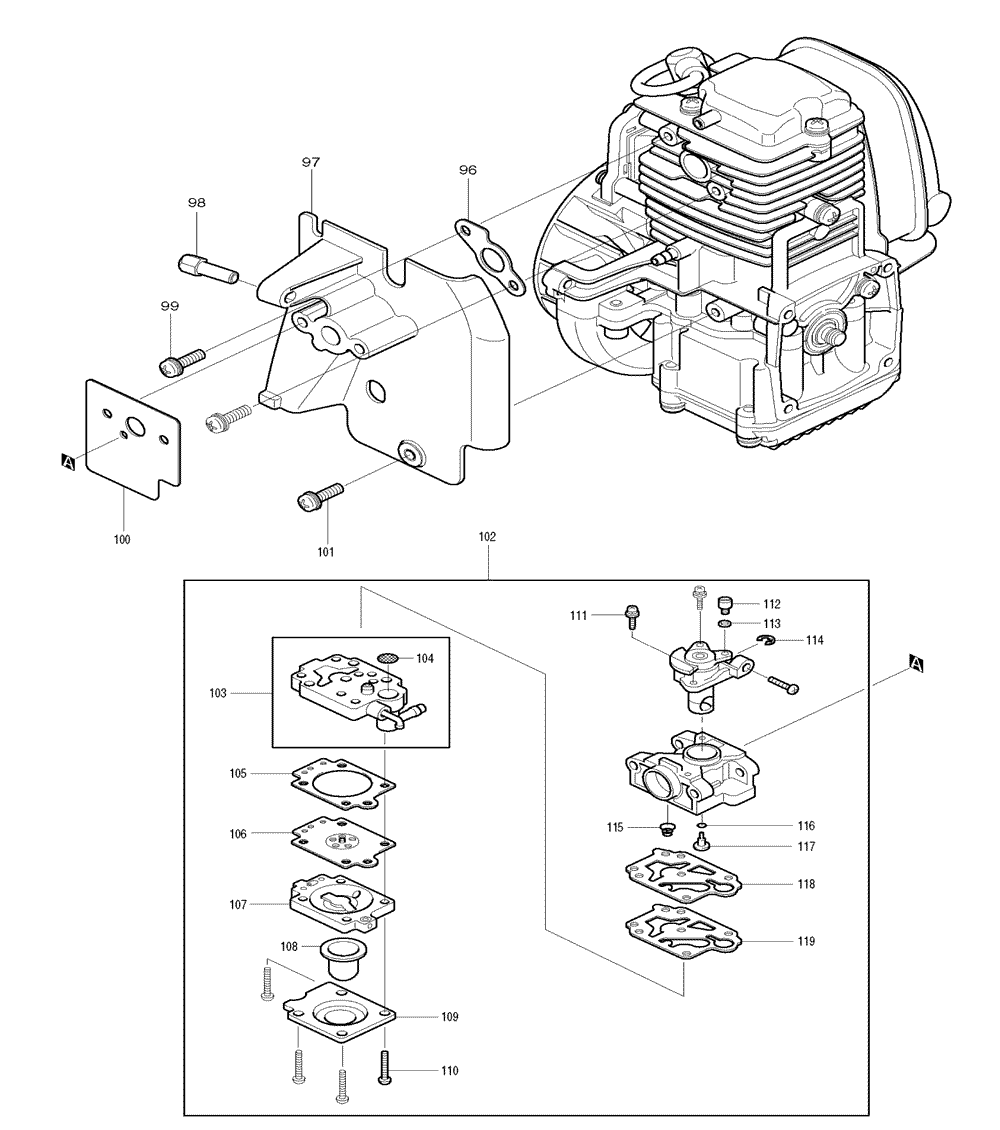

98 014-90699-72 ADJUST SCREW M6X16, EM4251 $4.71
99 004-36051-80 SCREW ASSEMBLY, RBC230 $1.41
100 592-35040-00 CARBURETOR GASKET, EM4250 $6.14
101 004-36051-40 SCREW M5X14, RBC251 $1.41
101 011-90597-80 S.H. BOLT M5X12 W/W & SW, BHX2500 $1.85
102 168641-9 CARBURETOR BHX2500 $55.20
103 140808-1 N/A $73.60
104 352010-6 INLET SCREEN, EM2650LH $2.40
105 442154-1 METERING DIAPHRAGM GASKET, EM2650LH $3.50
106 592-60080-10 METERING DIAPHRAGM, EM4251 $33.45
106 168620-7 METERING DIAPHRAGM, EM2650LH $11.20
107 140438-8 AIR PURGE BODY, EM2650LH $9.00
108 424314-7 PRIMER PUMP, EM2650LH $3.50
109 346270-0 PRIMER PUMP COVER, EM2650LH $3.50
110 266582-4 TAPPING SCREW 3X24, EM2650LH $1.30
111 266581-6 PAN HEAD SCREW M3X8, EM2650LH $1.30
112 325922-6 SWIVEL, EM2650LH $3.50
113 413140-9 WASHER, EM2650LH $1.30
114 257964-1 STOP RING E-3, EM2650LH $2.40
115 234183-6 CONICAL COMPRESSION SPRING 5-9, EM2650LH $2.40
116 213538-8 O RING 2, EM2650LH $2.40
117 519-60020-20 JET, RBC201 $16.70
117 525-60650-10 JET, BHX2500 $19.01
118 442155-9 PUMP GASKET, EM2650LH $2.40
119 168575-6 PUMP DIAPHRAGM, EM2650LH $4.60
120 345918-1 HOSE CLAMP, EM2650LH $0.64

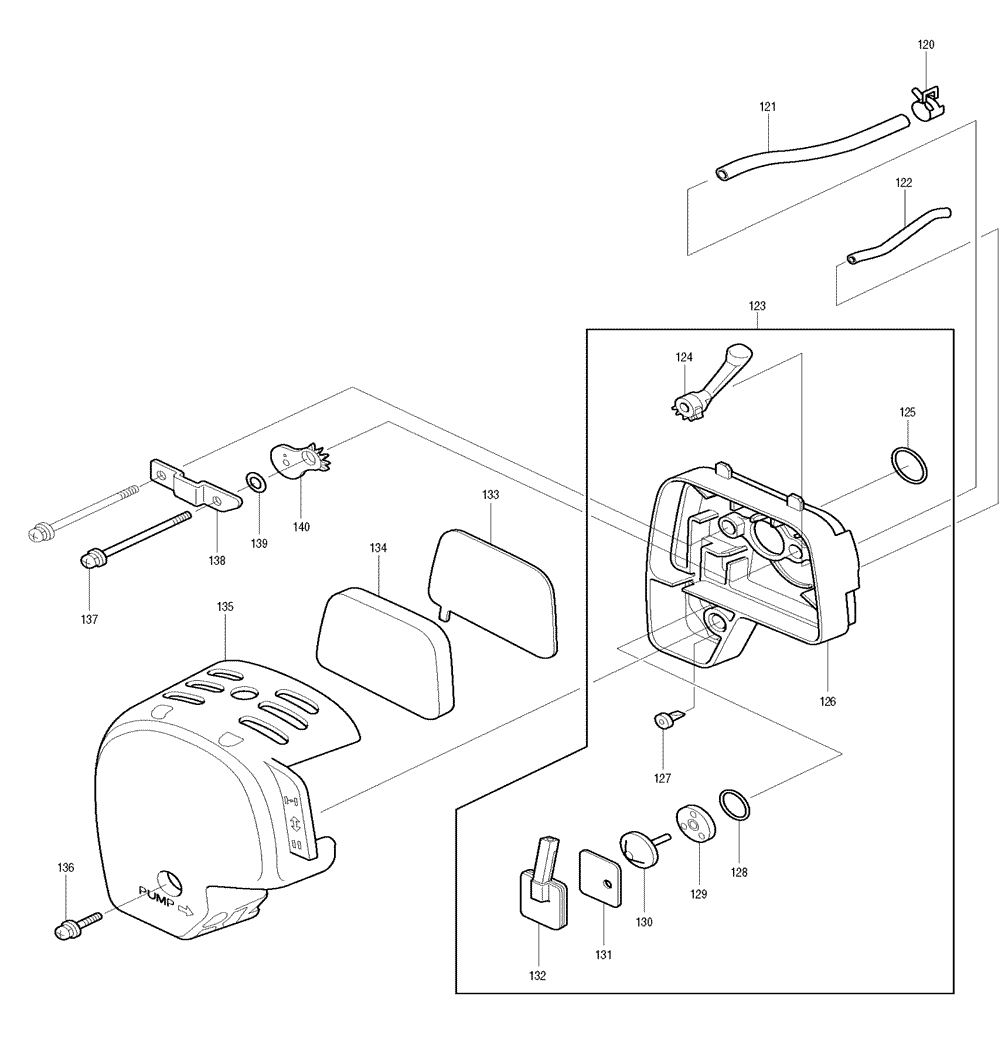

121 592-15009-00 BREATHER PIPE, EM4251 $4.71
122 422070-3 PIPE BHX2500 $4.71
123 593-30010-00 CLEANER PLATE ASSY, EM4250 $32.13
124 592-35022-00 CHOKE LEVER, EM4251 $1.74
125 213540-1 O RING 15, EM2650LH $1.08
126 593-30050-00 AIR CLEANER PLATE CPL, EM4250 $12.19
127 424316-3 CHECK VALVE, EM2650LH $3.50
128 024-01399-70 O RING P14, EM4251 $1.74
129 592-35025-00 CHECK VALVE PLATE, EM4251 $3.17
130 531-65007-01 CHECK VALVE, EM4251 $4.71
131 592-35035-00 SEPARATOR GASKET, EM4251 $1.41
132 593-35016-00 SEPARATOR PLATE,MS2514 $10.65
133 593-35009-00 AIR CLEANER ELEMENT,EM4250 $4.71
134 593-35012-00 AIR CLEANER ELEMENT,EM4250 $4.71
135 593-35008-00 AIR CLEANER COVER,EM4250 $4.71
136 014-00594-80 SCREW M5X14, BBX2500 $1.41
137 592-35031-00 SCREW M5X68(W,SW SUS),EM4251 $3.17
138 592-35026-00 PLATE, EM4251 $3.17
139 021-30699-90 GASKET, RBC230 $1.08
140 592-35023-01 CHOKE PLATE, EM4251 $3.17
141 011-90595-20 SOCKET HEAD BOLT M5X40, BHX2500 $3.50

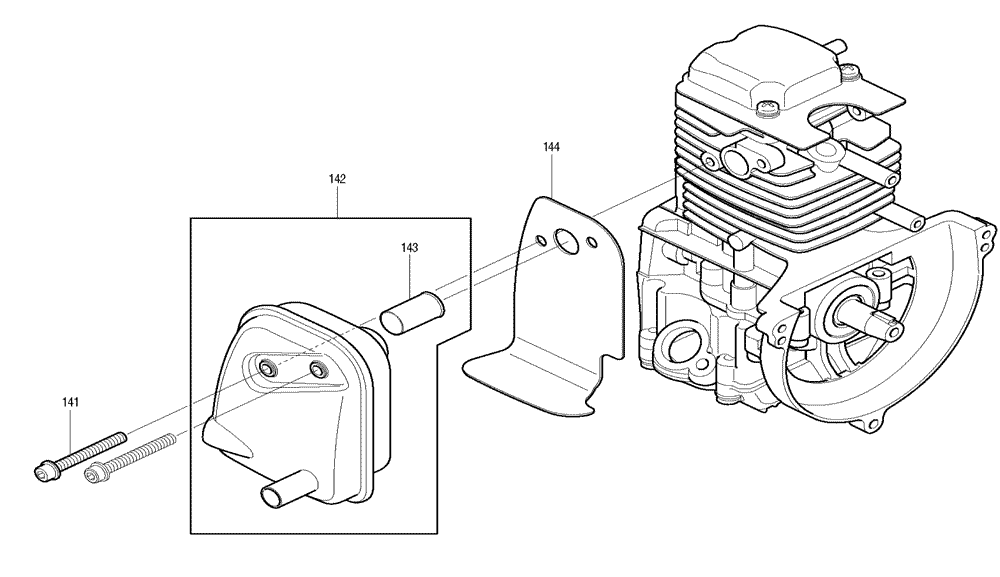

142 168643-5 EXHAUST MUFFLER $33.45
143 592-30080-11 SPARK ARRESTER, EM4251 $15.16
143 592-30080-10 SPARK ARRESTER, EM4251 $13.84
144 168593-4 MUFFLER GASKET $7.68

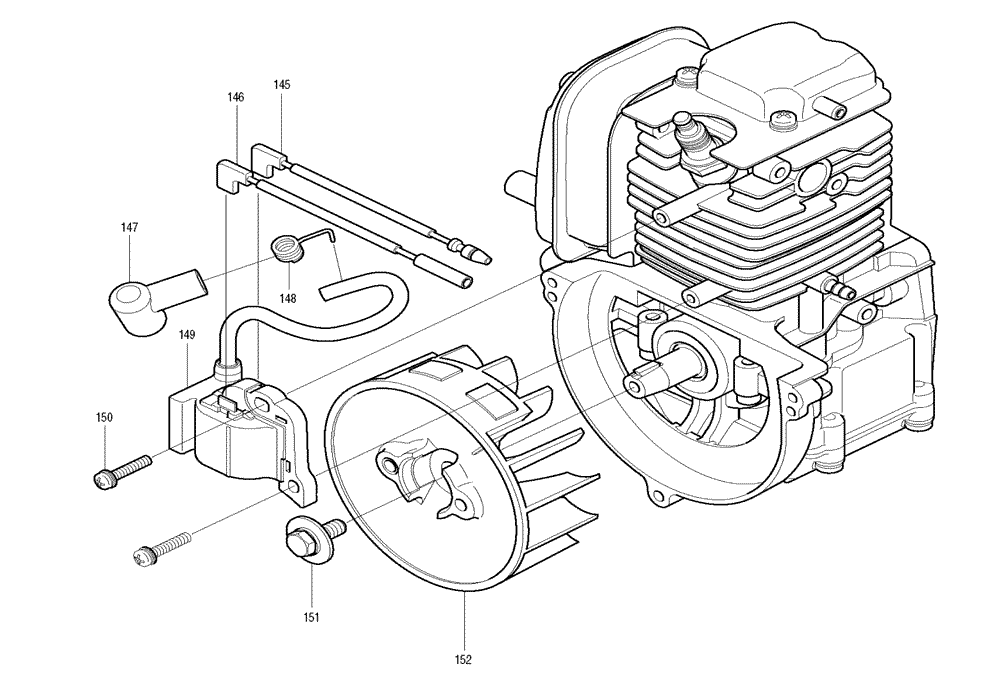

145 638709-0 WIRE 1 $4.71
146 592-70110-00 WIRE 2, BHX2500 $4.71
147 592-75001-00 PLUG CAP, EM4251 $3.17
148 065-40099-31 PLUG CAP SPRING,RBC221 $3.50
149 592-70120-11 IGNITION COIL, BHX2500 $120.19
150 011-90499-70 SOCKET HEAD BOLT, BBX7600 $1.48
151 013-00699-40 BOLT ASS'Y M6X16, BHX2500 $1.74
152 318702-7 FLYWHEEL BHX2500 $77.70

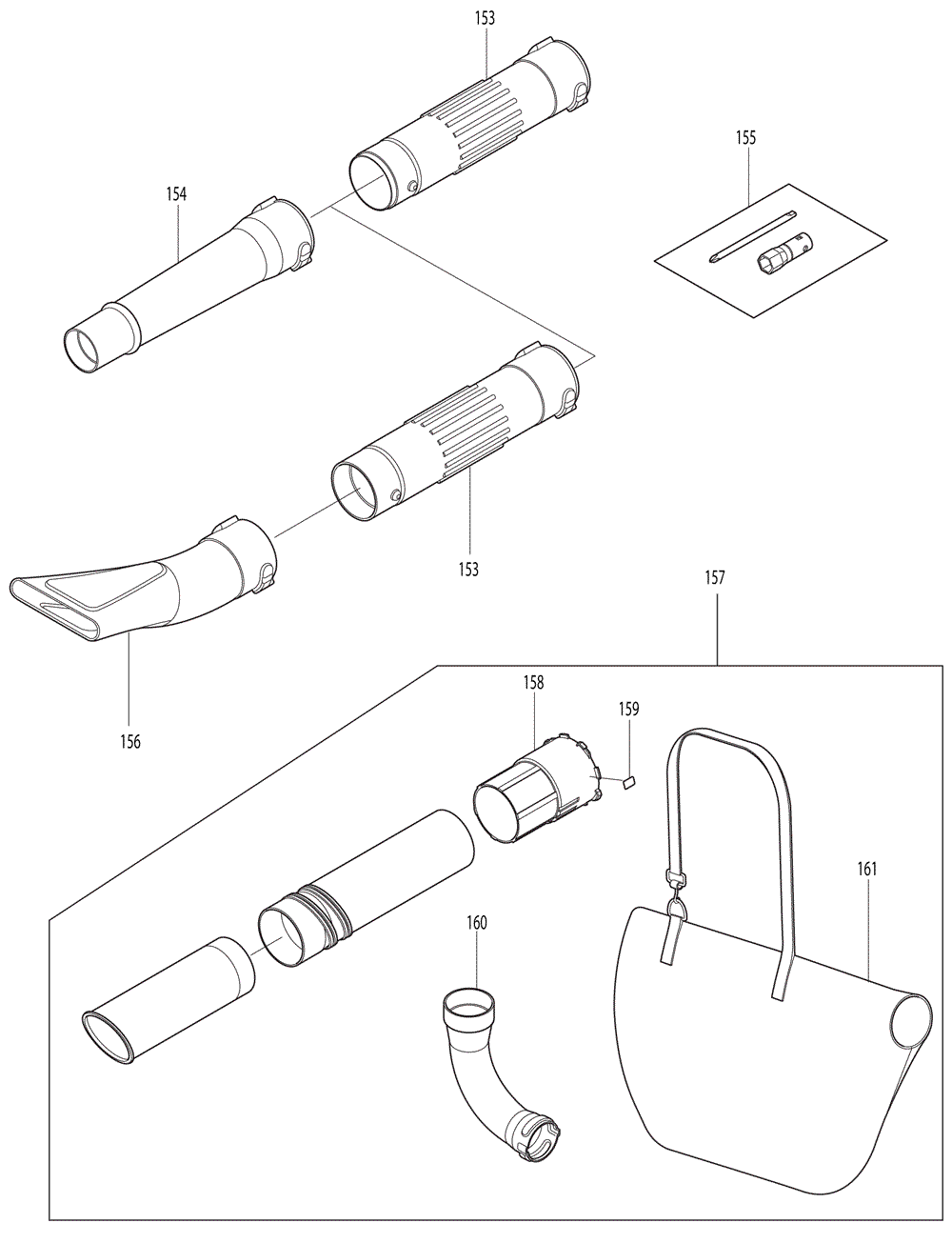

153 6659504000 EXTENSION PIPE BHX2500 $25.66
154 6659501000 ROUND END NOZZLE BHX2500 $31.55
156 592-35046-00 INTAKE PIPE,BHX2500 $4.71
157 213078-6 O RING 10, BHX2500 $2.51
1001 6909059000 TOOL KIT, BHX2500 $15.78
1002 810584-8 CAUTION PLATE, BHX2500 $1.12
