Makita BHR241 Rotary Hammer Parts

Makita BHR241 Rotary Hammer Parts Image

Makita BHR241 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita BHR241
18-Volt LXT Lithium-...
$439.00
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

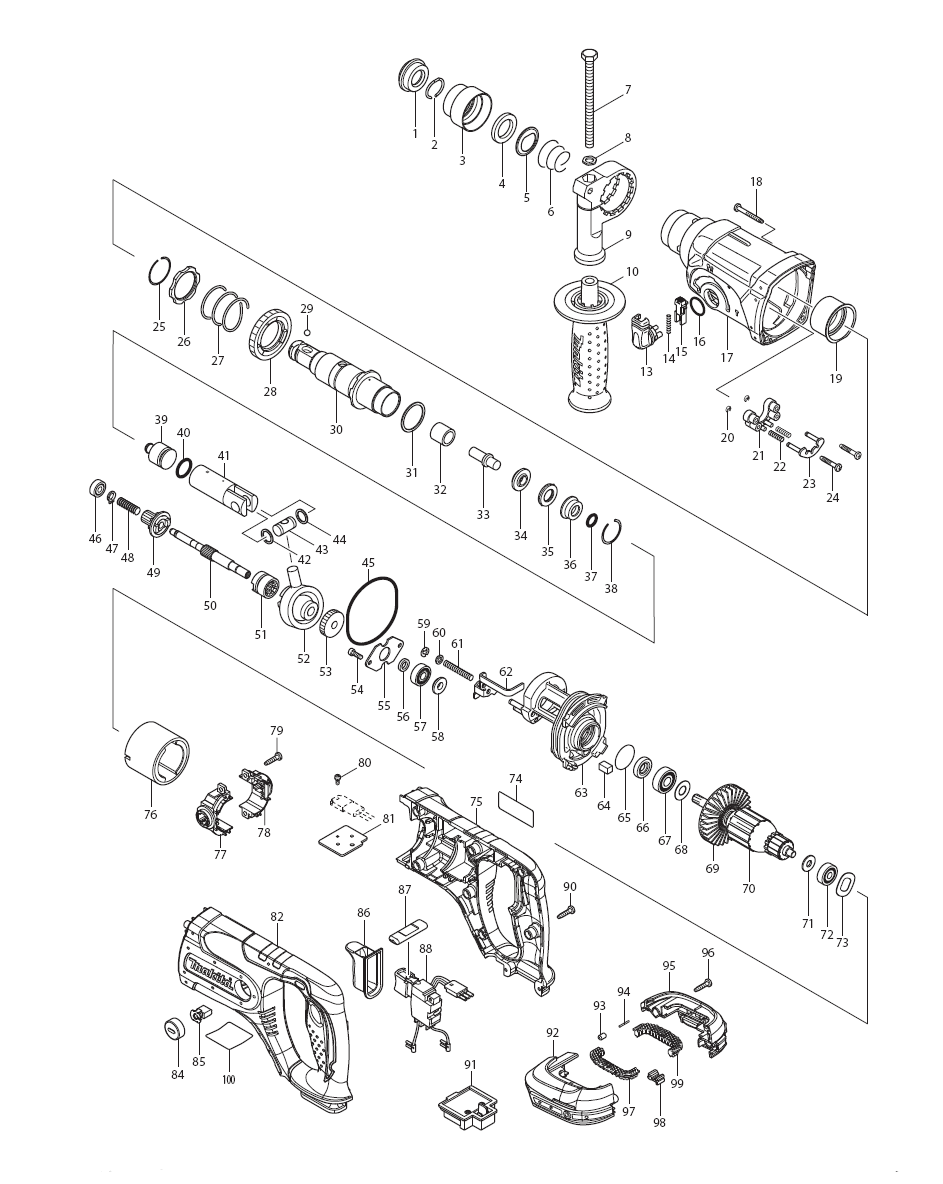

Makita BHR241 Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286263-4 CAP 35, HR2450F $1.52
2 233940-9 RING SPRING 19, HR2450F $0.86
3 417629-9 CHUCK COVER,HR2450F $5.92
4 257241-1 RING 21, HR2450F $1.52
5 345187-4 GUIDE WASHER, HR2450F $1.63
6 233916-6 CONICAL COMP. SPRING 21-29, HR2450F $1.96
7 921923-8 HEX. BOLT M8 X 120, HP2050F $1.96
8 345280-4 HEX. WASHER, HP2050F $1.01
9 417630-4 GRIP BASE, HP1640 $2.84
10 158057-6 GRIP 36 CPL., HR2811F $5.48
C10 931402-8 HEX NUT M8, 5037NB $1.34
13 162245-9 CHANGE LEVER, HR2470F $1.52
14 233459-8 COMPRESSION SPRING 3, HR1830F $0.53
15 419192-8 LOCK BUTTON, HR1830F $1.06
16 213278-8 O RING 17,HR2450F $0.86
17 158216-2 GEAR HOUSING CPL., HR2470F $13.84
18 266351-3 TAPPING SCREW 4X35, 9557PB $0.53
19 153290-5 NEEDLE BEARING CPL., HR2450F $7.02
20 961017-7 STOP RING E-3, 4304, SH01 $0.53
21 417796-0 GUIDE BASE, HR2455 $0.97
22 233344-5 COMP. SPRING 4, HR2450F $0.86
23 163430-7 LOCK PLATE CPL., HR2450F $1.52
24 266374-1 TAPPING SCREW 4X25, GA7021 $0.53
25 233929-7 RING SPRING 29, BHR240 $0.86
27 233401-9 COMP. SPRING 32, BHR240 $3.61
28 227109-5 SPUR GEAR 51, BHR240 $12.52
29 216022-2 STEEL BALL 7.0, HR2400 $0.86
30 158574-6 TOOL HOLDER CPL., HR2475 $23.96
31 267229-3 FLAT WASHER 28, BHR240 $1.34
32 331769-8 SLEEVE 9, HR2470F $2.84
33 324669-9 IMPACT BOLT, BHR240 $3.06
34 324402-9 RING 10, BHR240 $1.52
35 421955-0 CUSHION RING 13, BHR240 $2.84
36 324216-6 O RING CASE, HR2455 $5.48
37 213073-6 O RING 9,HR2455 $1.74
38 233917-4 RING SPRING 28, HR2450F $0.86
39 324214-0 STRIKER, HR2450F $4.16
40 213227-5 O RING 16M, HR2455 $3.61
41 318132-2 PISTON CYLINDER, HR2470F $9.33
42 267104-3 FLAT WASHER 12, HR2400 $2.16
43 324215-8 PISTON JOINT, HR2450F $2.84
44 267104-3 FLAT WASHER 12, HR2400 $2.16
45 213727-5 O-RING 63, BHR240 $4.93
46 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
47 961003-8 RETAINING RING S-7, 9015B $0.53
48 233343-7 COMP. SPRING 7, HR2450F $0.86
49 227179-4 SPUR GEAR 10, HR2470F $18.02
50 324668-1 CAM SHAFT, BHR240 $8.01
52 219014-0 SWASH BEARING 10, HR2455 $34.17
53 226632-7 HELICAL GEAR 25, BHR240 $4.49
54 266273-7 H.S.H. BOLT M4X12, HR2450F $1.34
55 345179-3 BEARING RETAINER, HR2450F $0.97
56 267234-0 FLAT WASHER 8, HM1304B $1.01
57 211032-4 B. BEARING 608ZZ, N1900B $8.78
58 324212-4 RING 8, HR2450F $4.16
59 961011-9 STOP RING E-4, 4301BV $1.48
60 941102-2 F. WASHER 5, HM1100C $0.75
61 233342-9 COMP. SPRING 6, HR2450F $0.86
62 345363-0 CHANGE PLATE, HR2450F $2.84
63 158215-4 INNER HOUSING CPL., HR2470F $8.01
64 443126-9 FELT, HR2475 $0.75
65 213407-3 O RING 26, 4200H $1.19
66 213077-8 OIL SEAL 10, BHR241 $4.16
67 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
68 267213-8 FLAT WASHER 10, HR2431 $1.63
69 240092-9 FAN 64, HR2470F $1.52
70 519226-8 ARMATURE ASSEMBLY 18V, BHR241 $23.96
71 253823-7 F. WASHER 7, LS1011 $1.34
72 210023-2 BALL BEARING 627DDW, 9910 $6.69
73 267816-8 WAVE WASHER 15, BHR202Z $1.01
74 865820-7 NAME PLATE, BHR241 $1.08
75 188577-6 HOUSING SET, BHR241 $16.04
76 638020-0 YOKE UNIT, BTD200SH $26.31
77 643836-0 BRUSH HOLDER, BHR241 $3.61
78 643837-8 BRUSH HOLDER, BHR241 $3.61
79 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
80 911006-2 P.H. SCREW M3X8, 6233DWAE $0.53
81 689070-8 HEAT SINK, 6908DWA $3.06
82 188577-6 HOUSING SET, BHR241 $16.04
84 643829-7 HOLDER CAP, BJR182Z $0.97
86 424111-1 SWITCH COVER, BHR202Z $1.48
87 450615-7 F/R CHANGE LEVER, BHR202Z $1.19
88 650587-8 SWITCH, BHR240 $26.27
90 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
91 643838-6 TERMINAL, BTD140 $5.92
92 188453-4 BATTERY HOUSING SET, BTW450 $18.57
93 263036-2 RUBBER PIN 5, BTW251 $1.74
94 268184-2 PIN 1.5, BTW251 $0.86
95 188453-4 BATTERY HOUSING SET, BTW450 $18.57
96 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
97 424042-4 CUSHION RUBBER, BTW450 $2.84
98 424026-2 CUSHION, BTW251 $2.95
99 424042-4 CUSHION RUBBER, BTW450 $2.84
100 814973-9 SERIAL NUMBER LABEL, BHR241 $0.42
A01 324219-0 DEPTH GAUGE,HP2050F $4.40
D01 652045-0 PAN HEAD SCREW M3.5 X 5, BTD130F $0.49
D01 BL1830 BATTERY BL1830 $172.20
D01 DC18RA DC18RA FAST CHARGER $165.00
