Makita BHP460 Hammer Drill Parts

Makita BHP460 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

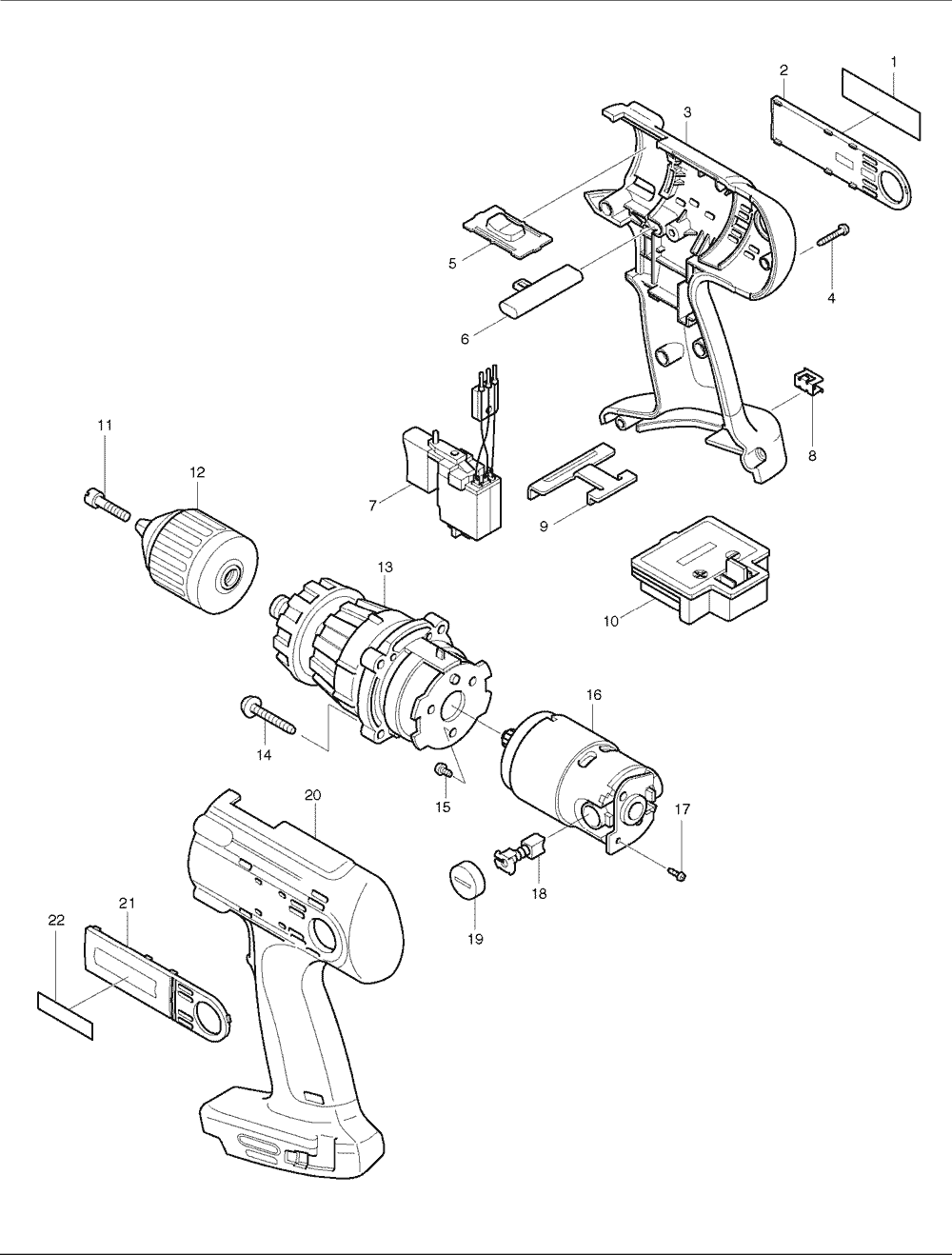

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	852295-9	NAME PLATE, BHP460	$1.12
2	183245-6	HOUSING BUMPER SET, BDF460SH	$4.16
3	183244-8	HOUSING SET, BDF460SH	$34.17
4	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
5	125102-2	SPEED CHANGE LEVER ASS'Y, BDF460SH	$1.52
6	416079-5	F/R CHANGE LEVER, 6933FD	$1.63
7	651992-2	SWITCH, BDF460SH	$42.84
8	344391-2	BIT HOLDER, 6233DWA	$0.97
9	344898-8	SUPPORT PLATE, BDF460SH	$2.84
10	643955-2	TERMINAL, BDF460SH	$4.16
10	643983-7	TERMINAL,BFT123F	$4.16
11	251465-1	F.H. SCREW M6X32, BDF460SH	$3.61
12	193065-0	KEYLESS DRILL CHUCK 13, BDF460SH	$62.20
13	125165-8	GEAR,BHP460	$106.32
15	266134-1	T. SCREW ST 4X8,6233DWA	$0.53
16	629755-4	DC MOTOR, BDF460SH	$60.60
17	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
19	643954-4	HOLDER CAP, BGA452	$1.52
20	183244-8	HOUSING SET, BDF460SH	$34.17
21	183245-6	HOUSING BUMPER SET, BDF460SH	$4.16
22	819063-3	MAKITA LABEL, DA3010F	$0.96
1002	122576-8	STOPPER POLE ASS'Y, BHP451	$4.40
1004	824567-2	PLASTIC TOOL CASE BDF460SH	$50.20
1005	193737-7	24V,2.OAH BATTERY BH2420,BJR240SHE	$294.20
