Makita BHP452 Hammer Drill Parts

Makita BHP452 Parts

18V LXT Lithium-Ion Cordless 1/2 Inch 2-Speed Hammer Driver-Drill Kit

Download Schematic

Time to buy a new tool?

Makita BHP452

18V LXT Lithium-Ion ...

$274.99

Free Shipping

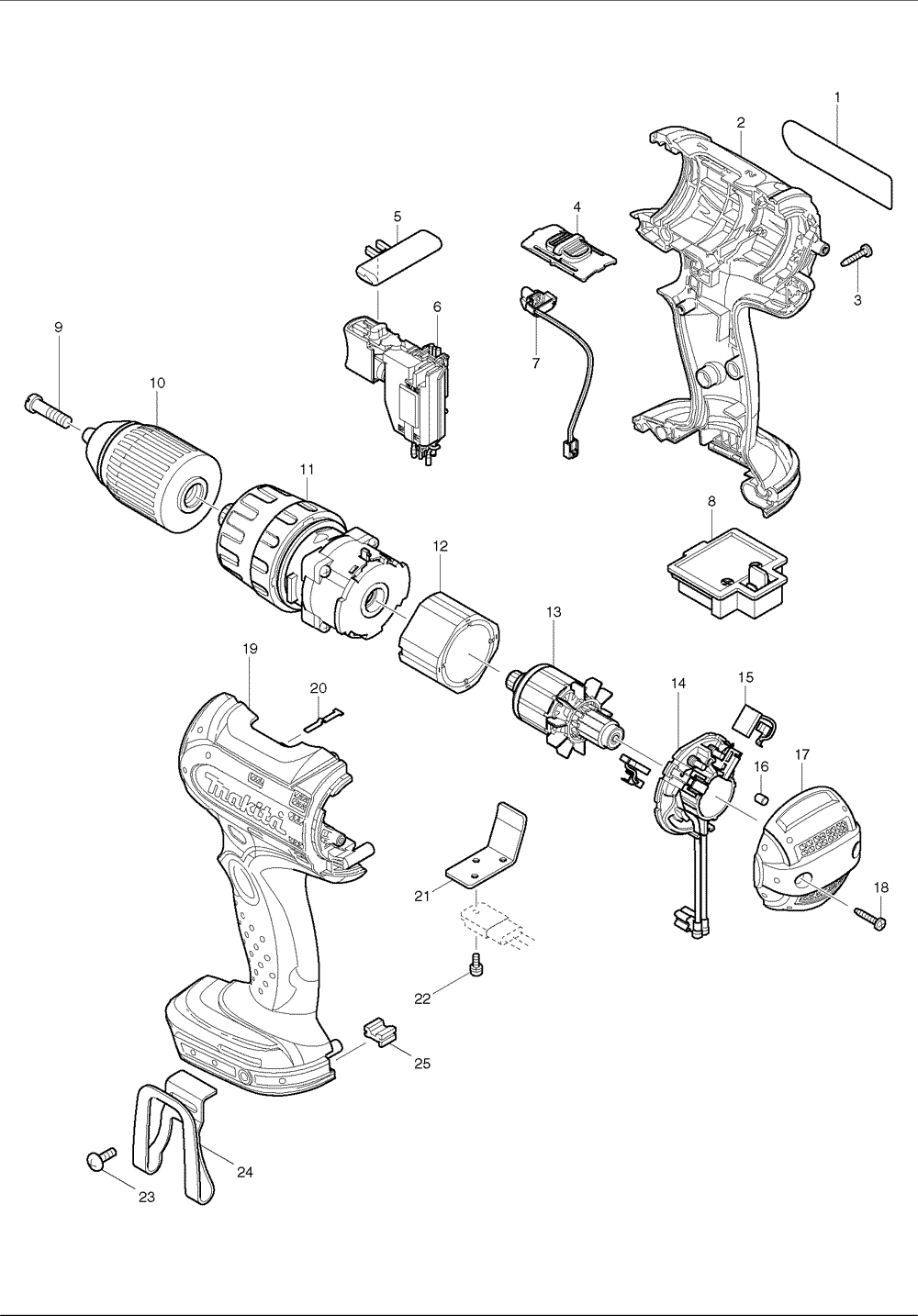

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	864191-9	NAME PLATE, BHP452	$0.93
2	188455-0	HOUSING SET (WHITE), BHP452HW	$18.35
2	188456-8	HOUSING SET (BLUE), BHP452	$19.45
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	125366-8	SPEED CHANGE LEVER, BDF452HW	$1.26
5	419250-0	F/R CHANGE LEVER, BHP452	$1.52
6	650583-6	SWITCH, BDF452	$25.17
7	631735-8	LED CIRCUIT, BDF452HW	$5.48
8	643838-6	TERMINAL, BTD140	$5.92
8	643844-1	TERMINAL, BDF452	$5.70
9	251472-4	F.H.SCREW M6X26, BDF452HW	$0.86
11	125387-0	GEAR ASS'Y, BHP452	$33.86
12	638425-4	YOKE UNIT, BDF451	$29.78
13	619198-8	ARMATURE, BDF452HW	$18.90
14	638494-5	BRUSH HOLDER, BDF452HW	$4.16
15	195021-6	CARBON BRUSH SET CB-440, BHP451	$4.71
16	263032-0	RUBBER PIN 4, BTD130F	$0.86
17	419601-7	REAR COVER, BDF452HW	$2.84
17	419693-6	REAR COVER (BLUE), BHP452	$2.73
18	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
19	188455-0	HOUSING SET (WHITE), BHP452HW	$18.35
19	188456-8	HOUSING SET (BLUE), BHP452	$19.45
20	232182-2	LEAF SPRING, 6096DWE	$2.07
21	689150-0	HEAT SINK, BDF452HW	$1.30
22	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
23	251314-2	SCREW M4X12, BHP451	$0.86
24	324705-1	HOOK, BHP451,BTW251	$2.84
24	346034-2	HOOK, BDF452HW,BTD142HW & BHP452HW	$2.51
25	424026-2	CUSHION, BTW251	$2.95
1004	450128-8	BATTERY COVER FOR 18V/14.4V LI-ION BATTERY	$2.40
1006	806098-3	MODEL NO. LABEL, BHP452	$0.44
5001	810292-1	CAUTION LABEL, BDF452HW	$0.71
