Makita BGA452 Grinder Parts

Makita BGA452 Parts

18V LXT Lithium-Ion Cordless Cut-Off/Angle Grinder Kit

Download Schematic

Time to buy a new tool?

Makita BGA452

18V LXT Lithium-Ion ...

$299.00

Free Shipping

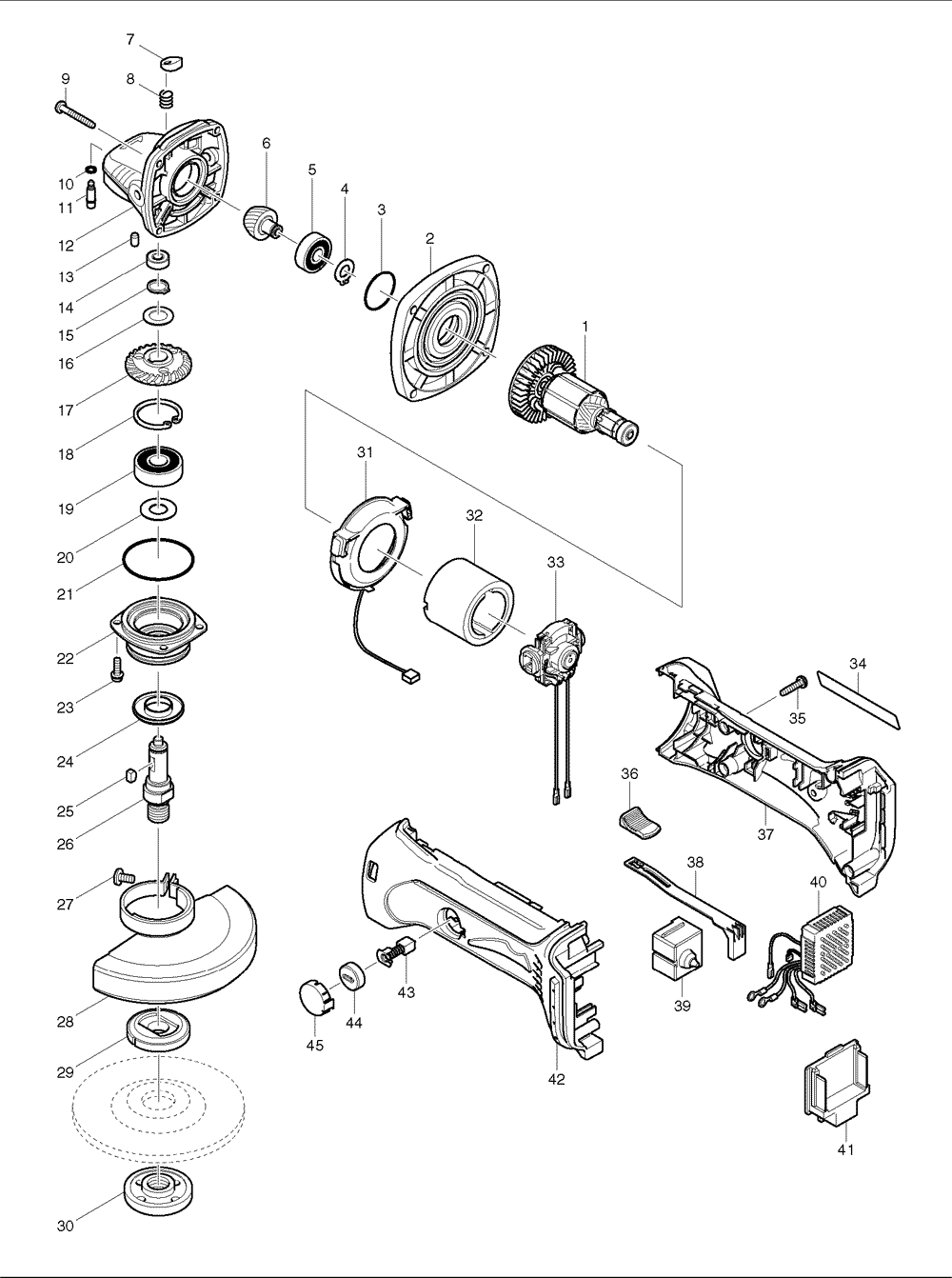

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	510091-8	ARMATURE ASS'Y, BGA452	$14.94
2	317821-6	GEAR HOUSING COVER, 9553NB	$4.27
3	213445-5	O-RING 26,9557NB	$0.86
4	961005-4	RETAINING RING S-9, 6832	$0.86
5	210042-8	BALL BEARING 629LLB, 5277NB	$6.03
6	227501-5	S. BEVEL GEAR 19, HRBGA452	$14.94
7	417771-6	PIN CAP, 9557NB	$0.75
8	233072-2	COMPRESSION SPRING 8, 9523NB	$0.86
9	266050-7	P.T. SCREW 4X30, 4304	$1.19
9	266361-0	TAPPING SCREW 4X30,9553NB	$0.53
10	213960-9	O RING 5, GA4530	$0.53
11	256496-5	SHOULDER PIN 4, BGA452	$1.19
12	318051-2	GEAR HOUSING, BGA452	$4.27
13	263002-9	RUBBER PIN 4, 5007NK	$0.86
14	210033-9	BALL BEARING 696ZZ, GA4030	$4.16
15	961052-5	RETAINING RING S-12, 9218PBL	$0.86
16	253744-3	F. WASHER 12, HR2410	$1.34
17	227502-3	S.BEVEL GEAR 39, BGA452	$11.09
18	962151-6	RETAINING RING R-32, 9005B	$1.48
19	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
20	267238-2	FLAT WASHER 12, 9557NB	$0.75
21	213622-9	O RING 45, 9557PB	$0.53
22	317819-3	BEARING BOX, 9553NB	$4.16
23	911121-2	P.H. SCREW M4X14, 9217SPC	$0.53
24	345464-4	LABYRINTH RING, GA4030	$0.75
25	254011-9	WOODRUFF KEY 4, 9557PB	$1.26
26	324474-4	SPINDLE, 9554NB	$4.16
27	265103-9	P.H. SCREW M5X14, BGA452	$0.53
29	224399-1	INNER FLANGE 45, 9554NB	$10.60
30	193465-4	LOCK NUT 5/8-45, 9005B REPLACES 224568-4	$12.60
31	631714-6	LED CIRCUIT, BGA452	$9.77
32	638376-1	YOKE UNIT, 6339DWDE,6349DWDE	$47.22
33	638448-2	ENDBELL CPL.,BGA452	$4.16
34	862598-3	NAME PLATE, BGA452	$0.45
35	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
35	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
36	419566-3	SWITCH KNOB, GA4030	$0.75
37	188704-5	HOUSING SET BGA452	$26.52
38	419519-2	SWITCH LEVER, BGA452	$2.84
39	650579-7	SWITCH, BGA452	$11.53
40	620072-5	CONTROLLER, LXDG01	$40.26
41	643838-6	TERMINAL, BTD140	$5.92
42	188704-5	HOUSING SET BGA452	$26.52
44	643954-4	HOLDER CAP, BGA452	$1.52
45	419518-4	HOLDER CAP COVER, BGA452	$1.52
1001	153489-2	GRIP 36, 9557NB	$2.84
1001	158237-4	GRIP 36 CPLT., BGA452	$5.15
1002	782424-9	LOCK NUT WRENCH 28, BGA452	$8.40
1002	782422-3	LOCK NUT WRENCH 28, 9557PB	$8.40
1003	135103-2	WHEEL COVER 9564CV(CUT-OFF WHEEL)	$12.60
1006	135103-2	WHEEL COVER 9564CV(CUT-OFF WHEEL)	$12.60
1008	450128-8	BATTERY COVER FOR 18V/14.4V LI-ION BATTERY	$2.40
