Makita BFL400F Cordless Screwdriver Parts

Makita BFL400F Cordless Screwdriver Parts Image

Makita BFL400F Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

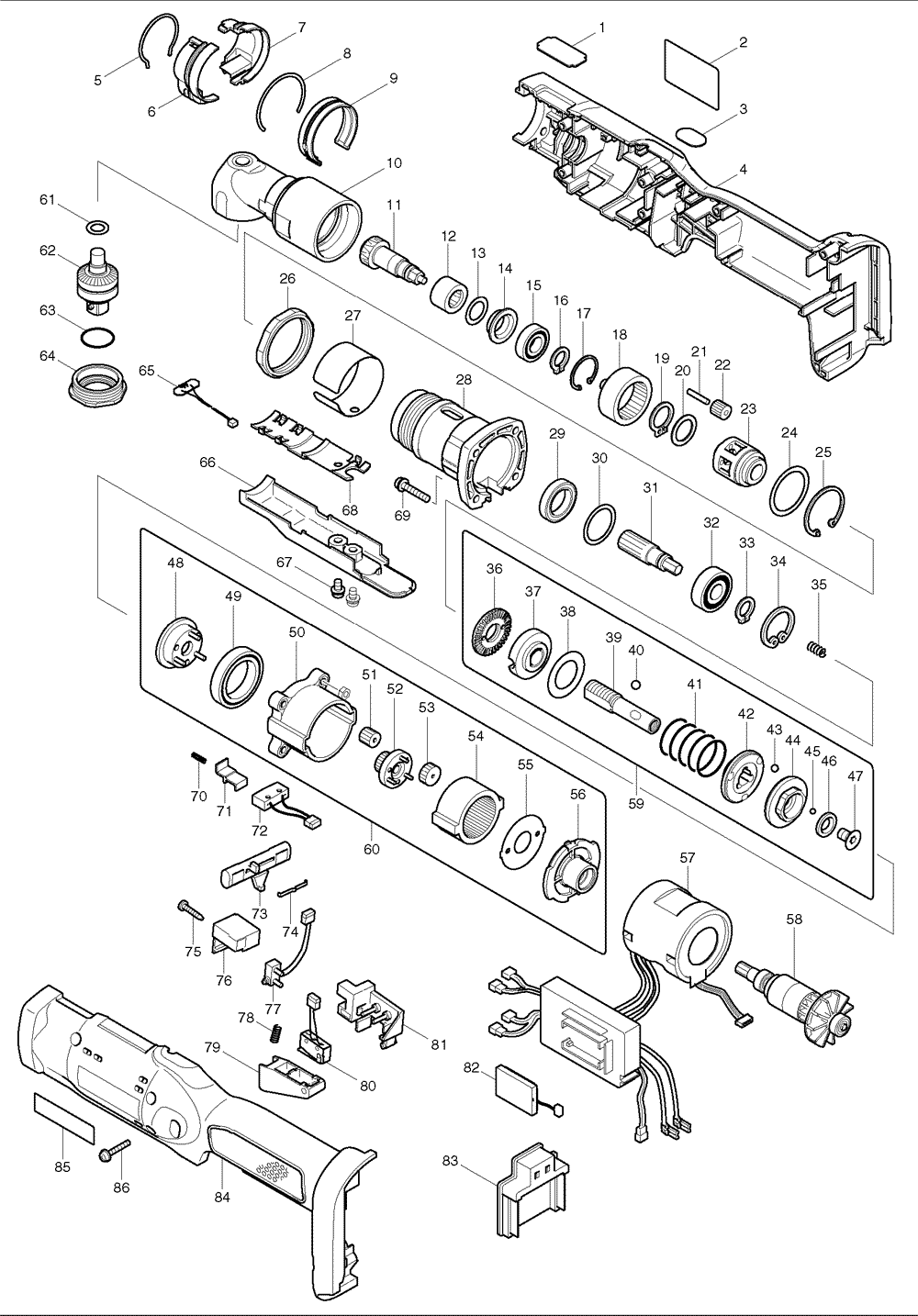

Makita BFL400F Cordless Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 345446-6 PLATE K, BFL400FZ $4.16
3 418001-8 LENZ, BFL200F $1.52
4 183867-2 HOUSING SET, BFL300FZ $36.61
5 233932-8 RING SPRING 29, BFL300FZ $3.61
6 183848-6 LIGHT COVER SET, BFL300FZ $6.80
7 183848-6 LIGHT COVER SET, BFL300FZ $6.80
8 233931-0 RING SPRING 36, BFL300FZ $1.96
9 418687-8 LEAD COVER, BFL300FZ $5.48
10 158056-8 ANGLE HEAD CPL., BFL400F $67.20
11 227479-2 SPIRAL BEVEL GEAR 9, BFL400FZ $34.47
12 212108-0 N. BEARING 1212, HR3851 $14.61
13 253312-2 WASHER 12, 9900B $1.01
14 345281-2 SPACER, BFL080FZ $2.84
15 210057-5 BALL BEARING 6900LLB, BFL080F $11.97
16 961026-6 RETAINING RING S-10, BFL080FZ $1.19
17 962102-9 RETAINING RING R-22, BFL300FZ $0.86
18 227120-7 INTERNAL GEAR 50,BFL300FZ $8.45
19 961054-1 RETAINING RING S-14, 6302 $0.86
20 253837-6 F. WASHER 14, 2030S $1.63
21 256104-8 PIN 3, 9046 $1.19
22 227138-8 SPUR GEAR 14, BFL300FZ $7.02
23 310148-3 CARRIER, BFL300FZ $45.39
24 267127-1 FLAT WASHER 26, 9046,SH01W $2.18
25 962161-3 RETAINING RING R-32, BFL300FZ $1.74
26 252187-6 HEX NUT M36-41, BFL300FZ $12.63
27 345447-4 RING 38K, BFL400FZ $6.80
28 317808-8 CLUTCH CASE, BFL300FZ $31.72
29 211283-9 BALL BEARING 6803ZZ, BFL300FZ $13.95
30 267283-7 FLAT WASHER 21, BFL300FZ $1.63
31 227137-0 SPUR GEAR 21, BFL300FZ $16.59
32 211088-7 BALL BEARING 6000DDW, 9005B $13.07
33 961026-6 RETAINING RING S-10, BFL080FZ $1.19
34 962105-3 RETAINING RING R-26, GA4530 $1.48
35 233019-6 COMP. SPRING 5, BFL080FZ $1.48
36 324281-5 LOCK NUT M12, BFL080FZ $8.12
36 324834-0 LOCK NUT M12, BFH040 $9.88
37 153442-8 ADJUST RING CPL. $5.48
37 158408-3 ADJUST RING CPLT., BFH040 $5.48
38 267276-4 FLAT WASHER 18, BFL080F $2.18
39 324296-2 SPINDLE, BFL080FZ $14.61
40 216018-3 STEEL BALL 5.0,BFT122FZ $1.96
41 233357-6 COMPRESSION SPRING 19B, BFL121FZ $4.93
42 223146-7 CAM D BFH040Z $15.93
43 216024-8 STEEL BALL 4, LS1016L $0.53
44 223139-4 CAM A BFL080FZ $19.78
45 216019-1 STEEL BALL 3, BTD060Z $0.53
46 267247-1 FLAT WASHER 7, BFL080FZ $3.72
47 266305-0 TORX C.S.H. SCREW M5X10, BFL080FZ $1.48
48 153443-6 CARRIER CPL. A, BFL080FZ $10.65
49 211375-4 BALL BEARING 6805LLB,6222DWE $41.92
50 418004-2 GEAR CASE, BFL080FZ $4.27
51 227050-2 SPUR GEAR 13, BFL080FZ $1.63
52 153445-2 SPUR GEAR 20 CPL. A, BFL080FZ $7.02
53 227049-7 SPUR GEAR 18, BFL080FZ $1.63
54 227048-9 INTERNAL GEAR 47, BFL080FZ $5.70
55 267774-8 LOCK WASHER, BFL080FZ $2.18
56 418003-4 MOTOR BRACKET, BFL080FZ $4.16
57 631620-5 MOTOR CONTROL UNIT, BFL300FZ $341.35
58 619144-1 ROTOR, BFL400FZ $231.84
59 125397-7 CLUTCH ASSEMBLY J, BFL400F $63.30
60 125189-4 GEAR ASSEMBLY A,BFL080FZ $49.67
61 253777-8 F. WASHER 8, 8412DWG $1.63
62 154448-9 SPINDLE A CPL.,BFL400FZ $46.30
63 213275-4 O RING 18, BFL400FZ $0.86
64 285723-3 BEARING RETAINER, BFL400FZ $18.57
65 631622-1 LED CURCUIT, BFL300FZ $13.84
66 418690-9 SWITCH COVER, BFL300FZ $6.80
67 911108-4 P.H. SCREW M4X8, LS1013 $0.86
67 265171-2 P.H. SCREW M4X8, BFH040 $1.19
68 418686-0 LEAD HOLDER, BFL300FZ $5.48
69 265145-3 P.H. SCREW M4 X 22, BFH040 $1.19
70 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
71 418002-6 SWITCH LEVER, BFT122FZ $1.52
72 638184-0 SWITCH UNIT, BFL200Fz $11.53
73 418201-0 F/R CHANGE LEVER, BFH040 $5.48
74 232201-4 LEAF SPRING, BPB180 $3.61
75 266130-9 TAPPING SCREW PT3X16, 6233DWA $0.86
76 418204-4 COVER, BFH040 $5.48
77 638276-5 SWITCH UNIT,BFL300FZ $9.22
78 231397-8 COMPRESSION SPRING 4, 2414B $0.86
79 418203-6 SWITCH LEVER A, BFH040 $6.80
80 638275-7 SWITCH UNIT, BFH040 $11.64
81 418202-8 SWITCH BASE, BFH040 $6.80
82 631514-4 BUZZER CIRCUIT, BFL080FZ $11.97
83 643983-7 TERMINAL,BFT123F $4.16
84 183867-2 HOUSING SET, BFL300FZ $36.61
85 819063-3 MAKITA LABEL, DA3010F $0.96
86 265095-2 PAN HEAD SCREW M3X20, BTD040Z $1.19
