Makita BFL300F Cordless Screwdriver Parts

Makita BFL300F Cordless Screwdriver Parts Image

Makita BFL300F Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

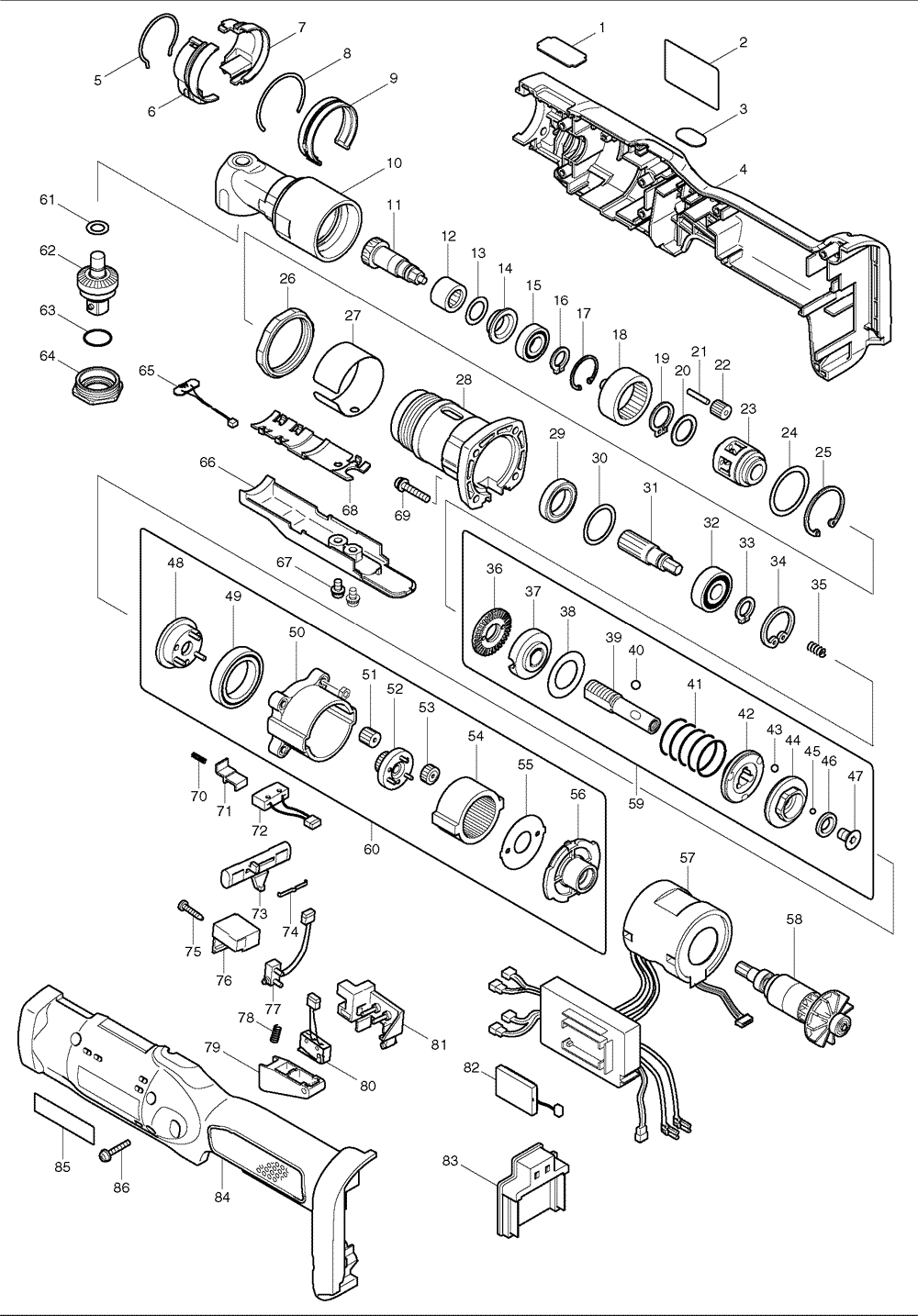

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	345445-8	PLATE J, BFL300FZ	$4.16
3	418001-8	LENZ, BFL200F	$1.52
4	183867-2	HOUSING SET, BFL300FZ	$36.61
5	233932-8	RING SPRING 29, BFL300FZ	$3.61
6	183848-6	LIGHT COVER SET, BFL300FZ	$6.80
7	183848-6	LIGHT COVER SET, BFL300FZ	$6.80
8	233931-0	RING SPRING 36, BFL300FZ	$1.96
9	418687-8	LEAD COVER, BFL300FZ	$5.48
10	158055-0	ANGLE HEAD CPL., BFL300F	$65.60
11	227478-4	SPIRAL BEVEL GEAR 9,BFL300FZ	$29.37
12	212122-6	NEEDLE BEARING 1212, BFL300FZ	$4.16
13	253312-2	WASHER 12, 9900B	$1.01
14	345281-2	SPACER, BFL080FZ	$2.84
15	210057-5	BALL BEARING 6900LLB, BFL080F	$11.97
16	961026-6	RETAINING RING S-10, BFL080FZ	$1.19
17	962102-9	RETAINING RING R-22, BFL300FZ	$0.86
18	227120-7	INTERNAL GEAR 50,BFL300FZ	$8.45
19	961054-1	RETAINING RING S-14, 6302	$0.86
20	253837-6	F. WASHER 14, 2030S	$1.63
21	256104-8	PIN 3, 9046	$1.19
22	227138-8	SPUR GEAR 14, BFL300FZ	$7.02
23	310148-3	CARRIER, BFL300FZ	$45.39
24	267127-1	FLAT WASHER 26, 9046,SH01W	$2.18
25	962161-3	RETAINING RING R-32, BFL300FZ	$1.74
26	252187-6	HEX NUT M36-41, BFL300FZ	$12.63
27	345448-2	RING 38L, BFL300FZ	$6.80
28	317808-8	CLUTCH CASE, BFL300FZ	$31.72
29	211283-9	BALL BEARING 6803ZZ, BFL300FZ	$13.95
30	267283-7	FLAT WASHER 21, BFL300FZ	$1.63
31	227137-0	SPUR GEAR 21, BFL300FZ	$16.59
32	211088-7	BALL BEARING 6000DDW, 9005B	$13.07
33	961026-6	RETAINING RING S-10, BFL080FZ	$1.19
34	962105-3	RETAINING RING R-26, GA4530	$1.48
35	233019-6	COMP. SPRING 5, BFL080FZ	$1.48
36	324281-5	LOCK NUT M12, BFL080FZ	$8.12
36	324834-0	LOCK NUT M12, BFH040	$9.88
37	153442-8	ADJUST RING CPL.	$5.48
37	158408-3	ADJUST RING CPLT., BFH040	$5.48
38	267276-4	FLAT WASHER 18, BFL080F	$2.18
39	324296-2	SPINDLE, BFL080FZ	$14.61
40	216018-3	STEEL BALL 5.0,BFT122FZ	$1.96
41	233417-4	COMP. SPRING 19F,BFL300FZ	$6.47
42	223146-7	CAM D BFH040Z	$15.93
43	216024-8	STEEL BALL 4, LS1016L	$0.53
44	223139-4	CAM A BFL080FZ	$19.78
45	216019-1	STEEL BALL 3, BTD060Z	$0.53
46	267247-1	FLAT WASHER 7, BFL080FZ	$3.72
47	266305-0	TORX C.S.H. SCREW M5X10, BFL080FZ	$1.48
48	153443-6	CARRIER CPL. A, BFL080FZ	$10.65
49	211375-4	BALL BEARING 6805LLB,6222DWE	$41.92
50	418004-2	GEAR CASE, BFL080FZ	$4.27
51	227050-2	SPUR GEAR 13, BFL080FZ	$1.63
52	153684-4	SPUR GEAR 20 CPL. C, BFT040FZ	$7.02
53	227104-5	SPUR GEAR 15, BFT040FZ	$1.63
54	227048-9	INTERNAL GEAR 47, BFL080FZ	$5.70
55	267774-8	LOCK WASHER, BFL080FZ	$2.18
56	418003-4	MOTOR BRACKET, BFL080FZ	$4.16
57	631620-5	MOTOR CONTROL UNIT, BFL300FZ	$341.35
58	619143-3	ROTOR, BFL300FZ	$231.84
59	125396-9	CLUTCH ASSEMBLY I, BFL300F	$63.30
60	125231-1	GEAR ASSEMBLY E, BFT040F	$45.90
61	253777-8	F. WASHER 8, 8412DWG	$1.63
62	154447-1	SPINDLE A CPL., BFL300FZ	$41.41
63	213222-5	O RING 15, BFL300FZ	$1.74
64	285722-5	BEARING RETAINER 15-26, BFL300FZ	$13.29
65	631622-1	LED CURCUIT, BFL300FZ	$13.84
66	418690-9	SWITCH COVER, BFL300FZ	$6.80
67	911108-4	P.H. SCREW M4X8, LS1013	$0.86
67	265171-2	P.H. SCREW M4X8, BFH040	$1.19
68	418686-0	LEAD HOLDER, BFL300FZ	$5.48
69	265145-3	P.H. SCREW M4 X 22, BFH040	$1.19
70	233025-1	COMPRESSION SPRING 2, JR3050T	$2.07
71	418002-6	SWITCH LEVER, BFT122FZ	$1.52
72	638184-0	SWITCH UNIT, BFL200Fz	$11.53
73	418201-0	F/R CHANGE LEVER, BFH040	$5.48
74	232201-4	LEAF SPRING, BPB180	$3.61
75	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
76	418204-4	COVER, BFH040	$5.48
77	638276-5	SWITCH UNIT,BFL300FZ	$9.22
78	231397-8	COMPRESSION SPRING 4, 2414B	$0.86
79	418203-6	SWITCH LEVER A, BFH040	$6.80
80	638275-7	SWITCH UNIT, BFH040	$11.64
81	418202-8	SWITCH BASE, BFH040	$6.80
82	631514-4	BUZZER CIRCUIT, BFL080FZ	$11.97
83	643983-7	TERMINAL,BFT123F	$4.16
84	183867-2	HOUSING SET, BFL300FZ	$36.61
85	819063-3	MAKITA LABEL, DA3010F	$0.96
86	265095-2	PAN HEAD SCREW M3X20, BTD040Z	$1.19
