Makita BFL121F Cordless Screwdriver Parts

Makita BFL121F Cordless Screwdriver Parts Image

Makita BFL121F Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

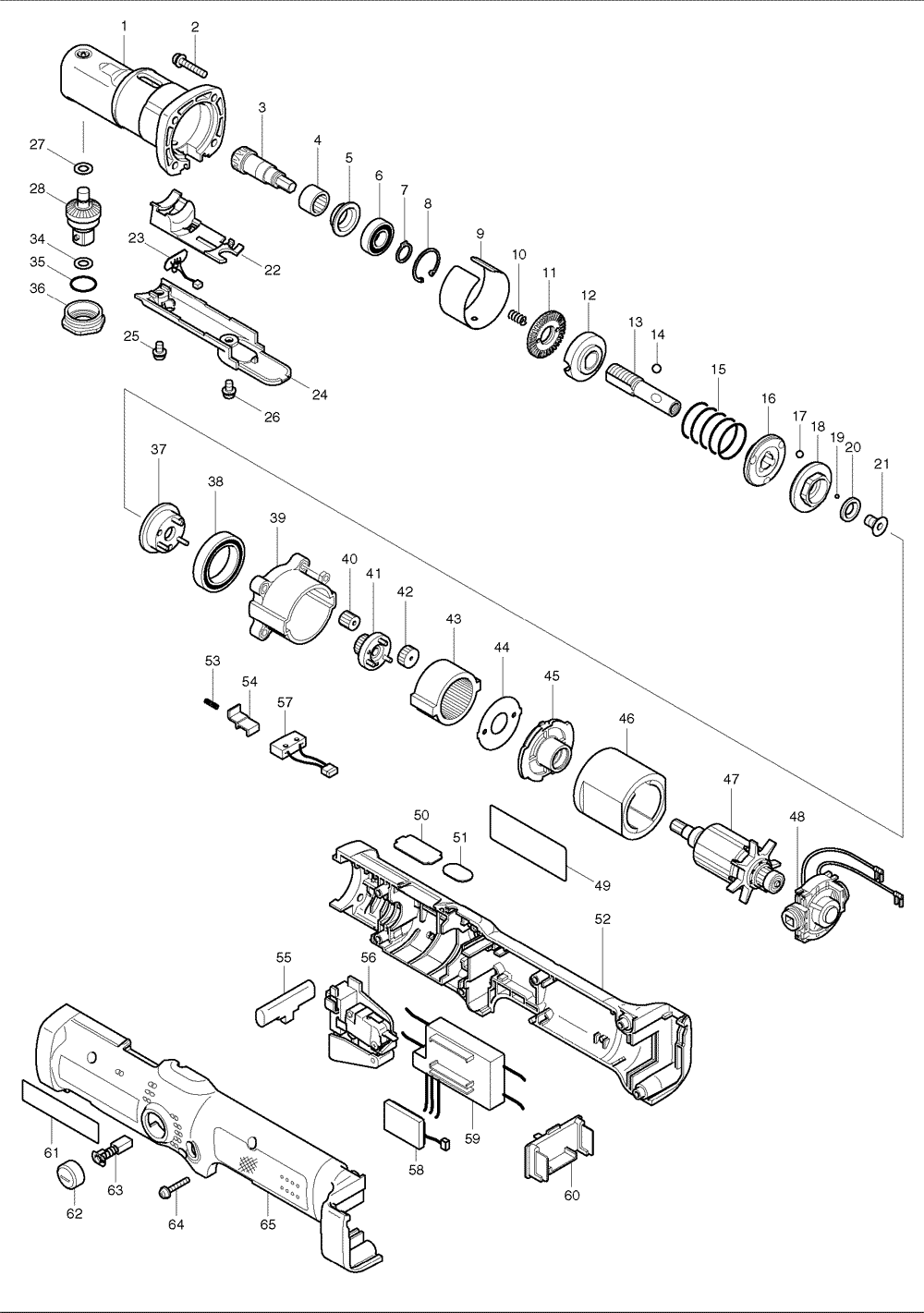

Makita BFL121F Cordless Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 154494-2 ANGLE HEAD CPL., BFL080F $34.88
2 911143-2 P.H. SCREW M4X22, 6211D $0.86
2 265145-3 P.H. SCREW M4 X 22, BFH040 $1.19
3 227469-5 SPIRAL BEVEL GEAR, BFL200FZ $13.84
4 212123-4 NEEDLE BEARING 1210, HR5001C $4.49
5 345281-2 SPACER, BFL080FZ $2.84
6 210057-5 BALL BEARING 6900LLB, BFL080F $11.97
7 961026-6 RETAINING RING S-10, BFL080FZ $1.19
8 962112-6 RETAINING RING R-22, AN451 $1.41
9 345286-2 RING 38B, BFL121FZ $5.48
10 233019-6 COMP. SPRING 5, BFL080FZ $1.48
11 324281-5 LOCK NUT M12, BFL080FZ $8.12
11 324834-0 LOCK NUT M12, BFH040 $9.88
12 153442-8 ADJUST RING CPL. $5.48
12 158408-3 ADJUST RING CPLT., BFH040 $5.48
13 324296-2 SPINDLE, BFL080FZ $14.61
14 216018-3 STEEL BALL 5.0,BFT122FZ $1.96
15 233357-6 COMPRESSION SPRING 19B, BFL121FZ $4.93
16 223140-9 CAM B BFL080FZ $10.65
17 216024-8 STEEL BALL 4, LS1016L $0.53
18 223139-4 CAM A BFL080FZ $19.78
19 216019-1 STEEL BALL 3, BTD060Z $0.53
20 267247-1 FLAT WASHER 7, BFL080FZ $3.72
21 266305-0 TORX C.S.H. SCREW M5X10, BFL080FZ $1.48
22 418011-5 LIGHT HOLDER, BFL080 $4.16
23 631513-6 LED CIRCUIT, BFL080FZ $11.97
24 418005-0 LIGHT COVER, BFL080FZ $2.84
25 911108-4 P.H. SCREW M4X8, LS1013 $0.86
25 265171-2 P.H. SCREW M4X8, BFH040 $1.19
26 911108-4 P.H. SCREW M4X8, LS1013 $0.86
26 265171-2 P.H. SCREW M4X8, BFH040 $1.19
27 253726-5 F. WASHER 6, 6000LR $1.34
28 154730-6 SPINDLE F CPL., BFL200F $36.61
34 253842-3 F. WASHER 14, HR2410 $1.34
35 213162-7 O RING 14, 2414B $0.86
36 285707-1 BEARING RETAINER 14-23, BFL200FZ $8.01
37 153443-6 CARRIER CPL. A, BFL080FZ $10.65
38 211375-4 BALL BEARING 6805LLB,6222DWE $41.92
39 418004-2 GEAR CASE, BFL080FZ $4.27
40 227050-2 SPUR GEAR 13, BFL080FZ $1.63
41 153446-0 SPUR GEAR 20 CPL., BFL121FZ $7.02
42 227051-0 SPUR GEAR 19, BFL121FZ $1.30
43 227048-9 INTERNAL GEAR 47, BFL080FZ $5.70
44 267774-8 LOCK WASHER, BFL080FZ $2.18
45 418003-4 MOTOR BRACKET, BFL080FZ $4.16
46 638183-2 YOKE UNIT, BFL080FZ $70.10
47 619095-8 ARMATURE, BFL121FZ $51.70
48 687138-4 ENDBELL COMPLETE, BFL080FZ $5.48
49 853881-9 NAME PLATE, BFL121FZ $1.21
50 345283-8 PLATE B, BFL120FZ $2.84
50 345406-8 PLATE J, BFL121FZ $4.16
51 418001-8 LENZ, BFL200F $1.52
52 183510-3 HOUSING SET,BFL121FZ $30.70
53 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
54 418002-6 SWITCH LEVER, BFT122FZ $1.52
55 417511-2 F/R CHANGE LEVER, 6796FDZ $2.84
56 650536-5 SWITCH, BFL080F $29.47
57 638184-0 SWITCH UNIT, BFL200Fz $11.53
58 631514-4 BUZZER CIRCUIT, BFL080FZ $11.97
59 638963-6 CONTROLLER BFL121FZ $110.10
60 643983-7 TERMINAL,BFT123F $4.16
61 819003-1 MAKITA LABEL, 5057KB $1.48
62 643933-2 HOLDER CAP, 6908DWA $1.63
63 195020-8 CARBON BRUSH CB-434 SET, BTW121SA $5.92
64 265095-2 PAN HEAD SCREW M3X20, BTD040Z $1.19
65 183510-3 HOUSING SET,BFL121FZ $30.70
66 125191-7 GEAR ASSEMBLY C, BFL121FZ $55.30
67 125389-6 CLUTCH ASSEMBLY B, BFL120F $58.50
