Makita BDF452HW Cordless Drill Parts

Makita BDF452HW Parts

Download Schematic

Time to buy a new tool?

Makita BDF452HW

1/2 Inch 18V LXT Lit...

$199.99

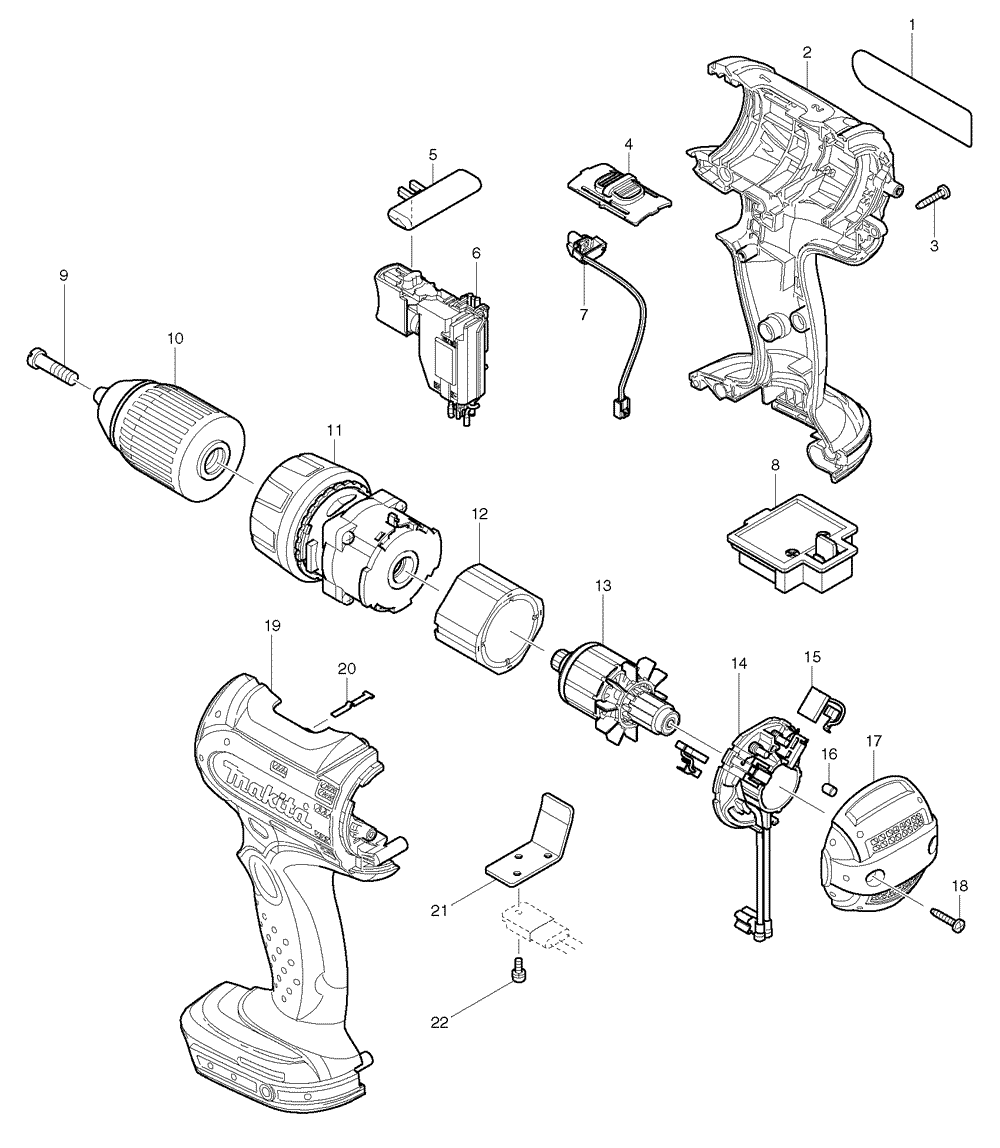

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	862815-1	NAME PLATE, BDF452	$0.96
2	188187-9	HOUSING SET, BDF452HW	$17.25
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	125366-8	SPEED CHANGE LEVER, BDF452HW	$1.26
C10	233438-6	COMPRESSION SPRING 4, BDF451	$0.86
5	419250-0	F/R CHANGE LEVER, BHP452	$1.52
6	650583-6	SWITCH, BDF452	$25.17
7	631735-8	LED CIRCUIT, BDF452HW	$5.48
9	251472-4	F.H.SCREW M6X26, BDF452HW	$0.86
11	125348-0	GEAR ASS'Y, BDF452HW	$26.93
12	638425-4	YOKE UNIT, BDF451	$29.78
13	619198-8	ARMATURE, BDF452HW	$18.90
14	638494-5	BRUSH HOLDER, BDF452HW	$4.16
16	263032-0	RUBBER PIN 4, BTD130F	$0.86
17	419601-7	REAR COVER, BDF452HW	$2.84
18	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
19	188187-9	HOUSING SET, BDF452HW	$17.25
20	232182-2	LEAF SPRING, 6096DWE	$2.07
21	689150-0	HEAT SINK, BDF452HW	$1.30
22	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
23	810292-1	CAUTION LABEL, BDF452HW	$0.71
A01	DC18RA	DC18RA FAST CHARGER	$165.00
C10	324679-6	SHAFT, BDF452HW	$1.63
C20	417724-5	LATCH, HP2070F	$1.26
C30	419216-0	HANDLE FOR CASE, BTD130F	$2.84
A04	804677-1	MODEL NO. LABEL, BDF452	$0.42
