Makita BDF452 Cordless Drill Parts

Makita BDF452 Parts

18 Volt LXT Lithium-Ion Cordless 1/2-Inch Driver-Drill Kit

Download Schematic

Time to buy a new tool?

Makita BDF452

18-Volt LXT Lithium-...

$276.99

Free Shipping

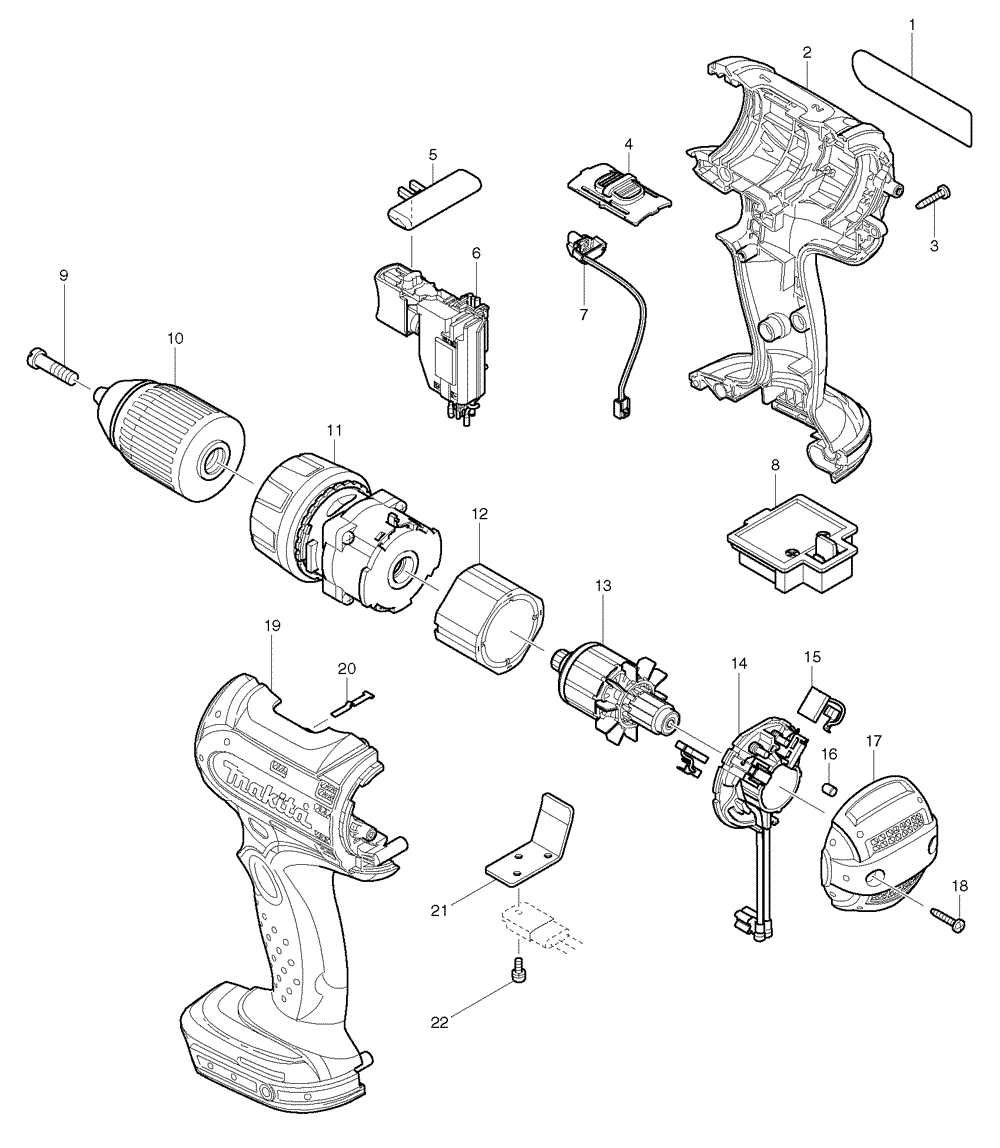

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	862815-1	NAME PLATE, BDF452	$0.96
2	188187-9	HOUSING SET, BDF452HW	$17.25
2	188238-8	HOUSING SET (BLUE), BDF452	$11.53
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	125366-8	SPEED CHANGE LEVER, BDF452HW	$1.26
5	419250-0	F/R CHANGE LEVER, BHP452	$1.52
6	650583-6	SWITCH, BDF452	$25.17
7	631735-8	LED CIRCUIT, BDF452HW	$5.48
8	643838-6	TERMINAL, BTD140	$5.92
8	643844-1	TERMINAL, BDF452	$5.70
9	251468-5	F.H. SCREW M6X22, BHP451	$0.86
9	251472-4	F.H.SCREW M6X26, BDF452HW	$0.86
11	125348-0	GEAR ASS'Y, BDF452HW	$26.93
12	638425-4	YOKE UNIT, BDF451	$29.78
13	619198-8	ARMATURE, BDF452HW	$18.90
14	638494-5	BRUSH HOLDER, BDF452HW	$4.16
15	195021-6	CARBON BRUSH SET CB-440, BHP451	$4.71
16	263032-0	RUBBER PIN 4, BTD130F	$0.86
17	419601-7	REAR COVER, BDF452HW	$2.84
17	419693-6	REAR COVER (BLUE), BHP452	$2.73
18	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
19	188187-9	HOUSING SET, BDF452HW	$17.25
19	188238-8	HOUSING SET (BLUE), BDF452	$11.53
20	232182-2	LEAF SPRING, 6096DWE	$2.07
21	689150-0	HEAT SINK, BDF452HW	$1.30
22	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
1004	804677-1	MODEL NO. LABEL, BDF452	$0.42
1006	450128-8	BATTERY COVER FOR 18V/14.4V LI-ION BATTERY	$2.40
5001	810292-1	CAUTION LABEL, BDF452HW	$0.71
5002	324705-1	HOOK, BHP451,BTW251	$2.84
5002	346034-2	HOOK, BDF452HW,BTD142HW & BHP452HW	$2.51
5003	251314-2	SCREW M4X12, BHP451	$0.86
