Makita AT2550A
Wide Crown Stapler
$291.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

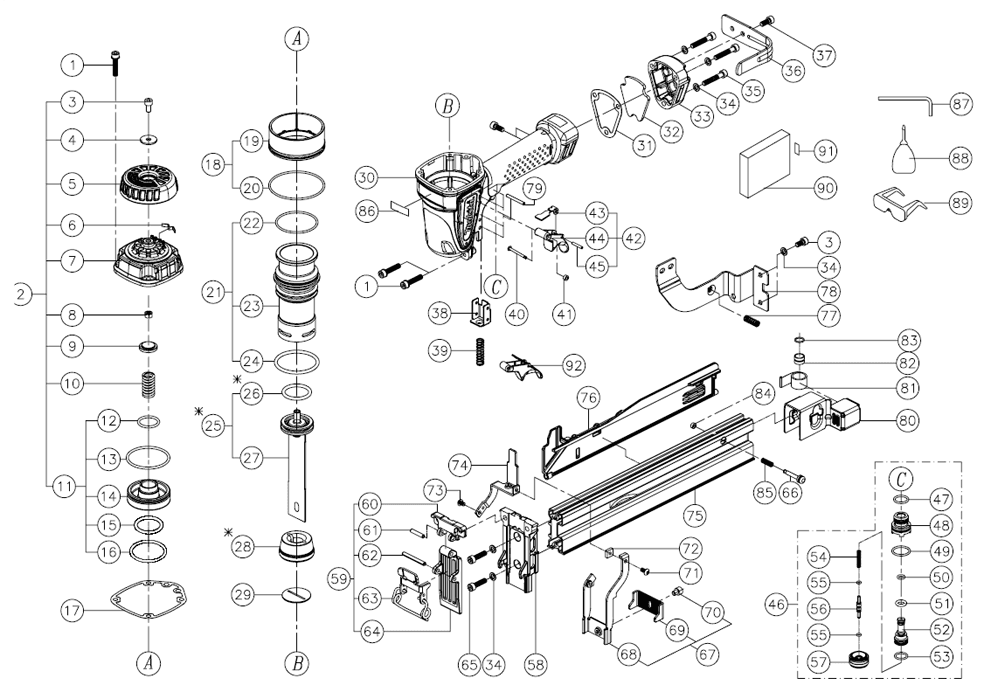

Makita AT2550A Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
63 B0800-0351 CLICK LEVER SET, AT2550A $6.14
1 B0000-0301 SCREW SET 5X25, AT1150A $1.41
27 B0600-4251 DRIVER CPL.,AT2550A $55.90
2 B0300-3471 TOP CAP SET, AT2550A $53.20
67 B0700-5121 CONTACT ARM SET. AT2550A $16.70
3 A0000-1131 SCREW 5X10, AT1150A $1.41
59 B0700-5131 DRIVER GUIDE CVR.SET, AT2550A $51.90
4 A0005-1271 FLAT WASHER, AT1150A $2.18
25 B0600-1841 PISTON UNIT, AT2550A $57.30
5 A0304-0611 EXHAUST COVER, AT1150A $4.71
2 B0300-3471 TOP CAP SET, AT2550A $53.20
6 A0105-0081 LEAF SPRING, AT1150A $3.61
18 B0300-3481 SPACER SET, AT2550A $6.14
7 A0301-1231 TOP CAP, AT2550A $27.94
8 A0004-0001 HEX. NUT M5, AF632 $1.96
21 B0300-3491 CYLINDER SET, AT2550A $34.88
62 A0011-0641 SPRING PIN 4X35, AT2550A $1.63
9 A0311-0631 SEAL AIR, AT1150A $4.71
30 K0400-0651 HOUSING CPL.,AT2550A $80.40
10 A0100-2391 COMP. SPRING, AT1150A $1.96
75 K0700-5611 MAGAZINE CPL.,AT2550A $60.00
11 B0300-3441 DISC VALVE SET, AT1150A $22.64
29 A0310-0681 NOZZLE, AT2550A $1.74
12 A0200-2121 O-RING 20.8X2.4, AT1150A $1.41
28 A0309-0701 BUMPER, AT2550A $18.13
13 A0200-1701 O-RING 47.3X2.62, AT1150A $3.17
75 A0702-0981 MAGAZINE, AT2550A $57.30
14 A0308-0591 DISC VALVE, AT1150A $18.13
82 A0703-0271 SPRING GUIDE, AT2550A $3.61
15 A0200-4131 O-RING 30X4, AT1150A $1.74
78 A0706-1531 SUPPORT, AT2550A $9.22
16 A0200-4121 O-RING 41.7X3.5, AT1150A $1.74
80 A0707-1931 PUSHER, AT2550A $12.19
17 A0205-0581 TOP CAP GASKET, AT2250A $9.22
18 B0300-3481 SPACER SET, AT2550A $6.14
68 A0711-2411 CONTACT ARM, AT2550A $13.62
74 A0711-2421 ARM, AT2550A $4.71
19 A0800-0871 "SPACER ""POM"", AT2550A" $4.71
69 A0714-0501 SAFETY ELEMENT, AT2550A $4.71
20 A0200-3941 O-RING 60.8X2, AT2550A $4.71
21 B0300-3491 CYLINDER SET, AT2550A $34.88
19 A0800-0871 "SPACER ""POM"", AT2550A" $4.71
58 A0713-0811 DRIVER GUIDE, AT2550A $51.90
22 A0200-2231 O-RING 45X2, AT1150A $3.17
64 A0713-0821 DOOR, AT2550A $36.21
23 A0303-0841 CYLINDER, AT2550A $33.45
75 A0919-5601 DECO. LABEL, AT2550A $3.10
24 A0200-3821 O-RING 44.7X3.5, AT1150A $3.17
25 B0600-1841 PISTON UNIT, AT2550A $57.30
71 A0000-0591 BHSC SCREW 4X8, AT2550A $1.41
72 A0004-0381 SQUARE NUTS, AT2550A $1.34
26 A0200-3981 O-RING 30.7X3.5, AT2550A $3.17
27 B0600-4251 DRIVER CPL.,AT2550A $55.90
66 A0007-0631 RETAINER, AT2550A $4.71
28 A0309-0701 BUMPER, AT2550A $18.13
7 A0301-1231 TOP CAP, AT2550A $27.94
29 A0310-0681 NOZZLE, AT2550A $1.74
23 A0303-0841 CYLINDER, AT2550A $33.45
30 K0400-0651 HOUSING CPL.,AT2550A $80.40
30 A0401-1621 MAIN BODY, AT2550A $62.70
30 A0401-1621 MAIN BODY, AT2550A $62.70

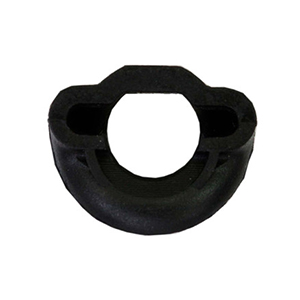

30 A0204-1391 GRIP, AT1150A $6.14
30A A0919-4721 CAUTION LABEL, AT1150A $1.65
30B A0316-0301 HOUSING BUMPER (R), AT1150A $7.68
31 A0316-0291 HOUSING BUMPER (L), AT1150A $7.68
32 A0205-0551 INLET CAP GASKET, AT1150A $4.71
33 A0203-0151 INLET FILTER, AT1150A $6.14
34 A0306-0811 INLET CAP (18NPT), AT1150A $12.19
35 A0005-0031 WASHER #5X1.1T, AF632 $1.34
36 A0000-0161 SCREW 5X30, AT1150A $1.41
37 A0316-0311 HOOK, AT1150A $4.71
38 A0000-0061 SCREW 5X12, AT1150A $1.41
39 A0712-1421 HOLDER, AT1150A $4.71
40 A0100-2371 SPRING, AT1150A $1.34
41 A0006-0732 TRIGGER PIN, AT1150A $1.41
42 A0005-0311 PIN RETAINER 5.5X2, AT1150A $1.08
43 B0500-1371 TRIGGER ASS'Y, AT1150A $4.71
44 A0501-0551 INNER TRIGGER, AT1150A $3.17
45 A0500-0831 TRIGGER, AT1150A $3.17
46 A0011-0251 SPRING PIN 2.5X16, AT1150A $1.34
46 B0500-1351 TRIGGER VALVE SET, AT1150A $19.67
47 A0200-2111 O-RING 13.8X1.9, AT1150A $1.41
48 A0503-0391 "TRIGGER VALVE GUIDE ""POM"",AT1150A" $3.17
49 A0200-2071 O-RING 17.8X1.9, AT1150A $1.41
50 A0200-4061 O-RING 5.5X1.8, AT1150A $0.82
51 A0200-2471 O-RING 7.59X2.62, AT1150A $1.41
52 A0504-0641 PILOT VALVE, AT1150A $6.14
53 A0200-4071 O-RING 12.1X1.7, AT1150A $0.82
54 A0100-1301 COMP. SPRING, AT1150A $1.63
55 A0200-3891 O-RING 2.5X1.5, AT1150A $0.82
56 A0504-0621 TRIGGER VALVE STEM, AT1150A $3.17
57 A0503-0671 TRIGGER VALVE CASE, AT1150A $9.22
58 A0713-0811 DRIVER GUIDE, AT2550A $51.90
59 B0700-5131 DRIVER GUIDE CVR.SET, AT2550A $51.90
60 A0719-0981 STOPPER, AT1150A $12.19
61 A0006-0671 PIN, AT1150A $1.08
62 A0011-0641 SPRING PIN 4X35, AT2550A $1.63
63 B0800-0351 CLICK LEVER SET, AT2550A $6.14
64 A0713-0821 DOOR, AT2550A $36.21
65 A0000-0091 SCREW 5X20, AF632 $1.41
66 A0007-0631 RETAINER, AT2550A $4.71
67 B0700-5121 CONTACT ARM SET. AT2550A $16.70
68 A0711-2411 CONTACT ARM, AT2550A $13.62
69 A0714-0501 SAFETY ELEMENT, AT2550A $4.71
70 A0000-0331 SCREW 5X6, AF632 $1.41
71 A0000-0591 BHSC SCREW 4X8, AT2550A $1.41
72 A0004-0381 SQUARE NUTS, AT2550A $1.34
73 A0000-0581 SCREW 4X6, AT2250A $1.41
74 A0711-2421 ARM, AT2550A $4.71
75 K0700-5611 MAGAZINE CPL.,AT2550A $60.00
75 A0702-0981 MAGAZINE, AT2550A $57.30
75 A0919-5601 DECO. LABEL, AT2550A $3.10
76 A0700-2011 MAGAZINE COVER, AT1150A $7.68
76 A0919-5571 CAUTION LABEL, AT1150A $1.65
77 A0100-0241 COMP. SPRING, AT1150A $1.63
78 A0706-1531 SUPPORT, AT2550A $9.22
79 A0011-0151 SPRING PIN 3X28, AF632 $1.34
80 A0707-1931 PUSHER, AT2550A $12.19
81 A0102-0151 SPRING, AT1150A $9.22
82 A0703-0271 SPRING GUIDE, AT2550A $3.61
83 A0200-0811 O-RING 11.8X1.5, AT2550A $1.08
84 A0005-0291 PIN RETAINER 6X2.9, AT1150A $1.08
85 A0100-2461 SPRING, AT1150A $1.34
