Makita AN911H Nailer Parts

Makita AN911H Parts

3-1/2 Inch High Pressure Framing Coil Nailer

Download Schematic

Time to buy a new tool?

Makita AN911H

3-1/2 Inch High Pres...

$605.99

Free Shipping

Page-1

Page-2

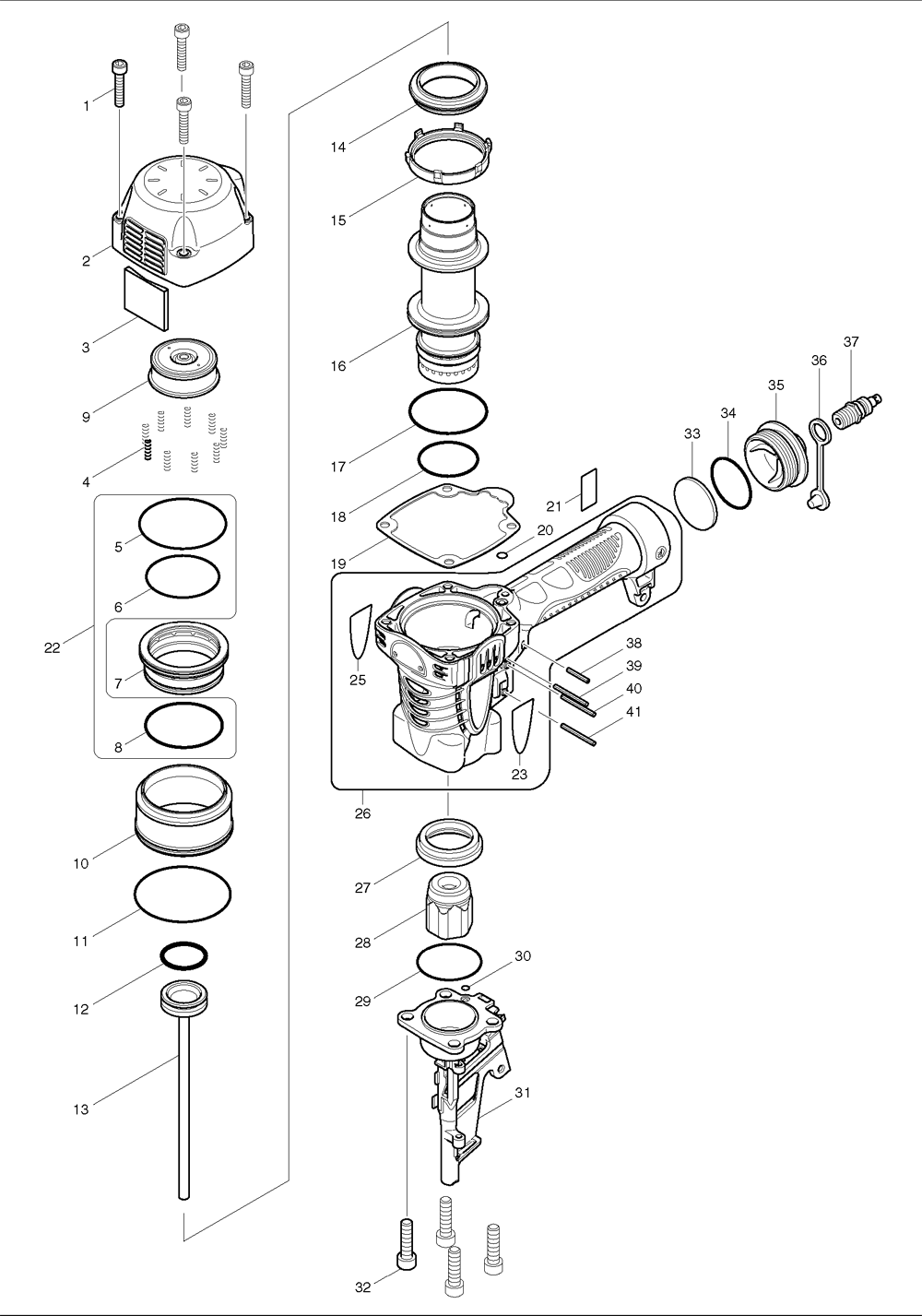

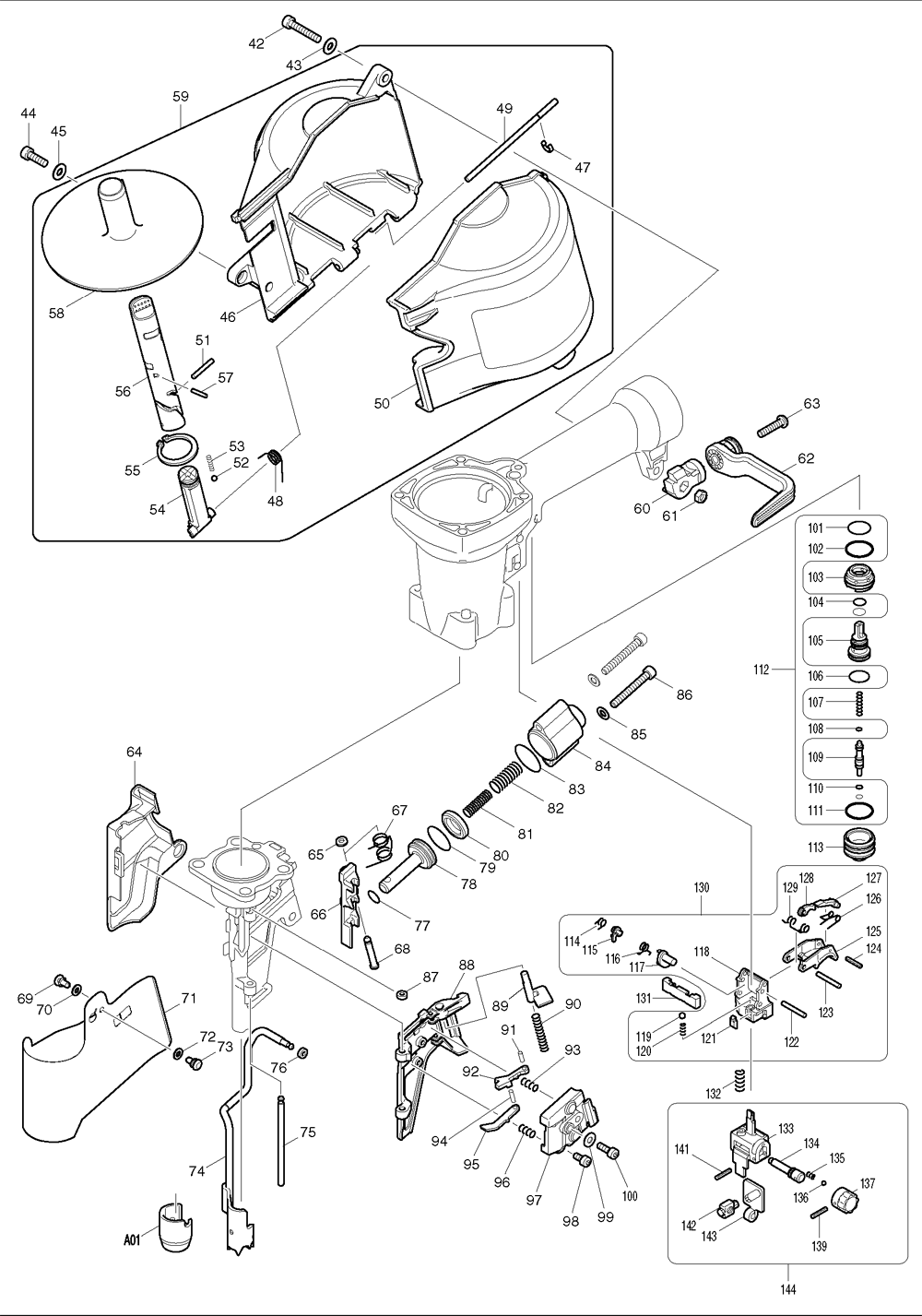

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265569-3	HEX SOCKET HEAD BOLT M6X45, AN911H	$2.51
00	188610-4	SLIDE LATCH RL SET, AN911H	$3.61
2	158222-7	TOP CAP CPL., AN911H	$47.53
3	413110-8	FILTER, AN911H	$13.84
4	233484-9	COMPRESSION SPRING 4, AN911H	$2.51
5	213668-5	O RING 60, AN922	$1.85
6	213612-2	O-RING 50, AN911H	$1.34
7	419842-5	HEAD VALVE, AN911H	$30.70
8	213657-0	O RING 53, AN901	$1.85
9	424012-3	REAR CUSHION, AN911H	$17.25
10	331760-6	HEAD VALVE GUIDE, AN911H	$20.55
11	213720-9	O RING 67, HR2400	$1.96
12	213982-9	O-RING26, AN911H	$4.71
13	168440-9	DRIVER, AN911H	$147.06
14	424013-1	VALVE SEAT, AN911H	$12.63
15	331759-1	CYLINDER STAY, AN911H	$12.63
16	331757-5	CYLINDER, AN911H	$62.00
17	213657-0	O RING 53, AN901	$1.85
18	213531-2	O-RING 39, AN911H	$1.34
19	162254-8	TOP CAPGASKET, AN911H	$5.92
20	213045-1	O-RING 6, AN911H, BO3710	$0.44
21	866125-8	NAME PLATE, AN911H	$1.08
22	194737-0	AIR LEAK REPAIR SET, AN911H	$14.94
23	819324-1	MAKITA LOGO LABEL L, AN911H	$3.50
25	819323-3	MAKITA LOGO LABEL R, AN911H	$3.50
26	188655-2	HOUSING SET, AN911H	$128.05
27	331758-3	CYLINDER GUIDE, AN911H	$10.43
28	424011-5	FRONT CUSHION, AN911H	$21.76
29	213554-0	O RING, HR2511	$1.96
30	213023-1	O RING 4, AF501	$0.82
31	310225-1	DRIVER GUIDE, AN911H	$255.02
32	265565-1	HEX SOCKET HEAD BOLT M8X30, AN911H	$2.51
33	413105-1	INLET FILTER, AN911H	$3.61
34	213521-5	O RING 36, AN611	$1.41
35	318108-9	INLET CAP, AN911H	$18.35
36	286280-4	CAP 9, AN911H	$2.51
38	951069-6	SPRING PIN 3-20, 2412(W)	$0.90
39	951078-5	SPRING PIN, AN911H	$0.90
40	951078-5	SPRING PIN, AN911H	$0.90
41	951078-5	SPRING PIN, AN911H	$0.90
42	265570-8	HEX SOCKET HEAD BOLT M5X28, AN911H	$1.34
43	267343-5	FLAT WASHER 5, AN911H	$0.66
44	265563-5	HEX SOCKET HEAD BOLT M5X16, AN911H	$1.12
45	267343-5	FLAT WASHER 5, AN911H	$0.66
46	140079-0	MAGAZINE CPL., AN911H	$16.04
47	259042-3	STOP RING E-3, AN911H	$0.66
48	233505-7	TORSION SPRIN SPRING 7, AN911H	$2.51
49	256773-5	PIN 4, AN911H	$3.61
50	158923-7	MAGAZINE CAP CPL., AN911H	$19.45
51	268168-0	PIN 3, AN911H	$1.34
52	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
53	233492-0	COMPRESSION SPRING 2, AN911H	$1.34
54	419858-0	ADJUST SHAFT, AN911H	$2.51
55	961105-0	RETAINING RING S-25,8015DW	$1.48
56	419859-8	ADJUST SLEEVE, AN911H	$2.51
58	419860-3	CHANGE PLATE, AN911H	$4.71
59	135230-5	MAGAZINE ASS'Y, AN911H	$44.37
60	162255-6	HOOK BASE, AN911H	$3.61
61	931202-6	HEX NUT M5, HR2410	$0.79
62	168499-6	HOOK, AN911H	$7.02
63	265176-2	PAN HEAD SCREW M5X22, AN911H	$1.34
64	419845-9	CONTACT ARM COVER, AN911H	$3.61
65	262130-7	URETHANE RING 4, AN911H	$1.34
66	310231-6	FEEDING CLAW, AN911H	$33.86
67	233515-4	TORSION SPRIN SPRING 9 , AN911H	$3.61
68	268180-0	PIN 4.5, AN911H	$2.51
69	255174-4	PUSH RIVET, AN911H	$1.34
70	941052-1	F. WASHER 4, 9218SB	$0.75
71	413111-6	COVER, AN911H	$8.12
72	941052-1	F. WASHER 4, 9218SB	$0.75
73	255174-4	PUSH RIVET, AN911H	$1.34
74	165463-8	CONTACT ARM, AN911H	$43.24
75	268178-7	PIN 4, AN911H	$1.34
76	262120-0	URETHANE RING 3, AN911H	$1.12
77	213054-0	O RING 9, 5014NB	$0.82
78	324766-1	PISTON, AN911H	$7.02
79	213154-6	O RING 14, 6801DBV	$1.19
80	262129-2	RUBBER RING 13, AN911H	$1.34
81	234007-6	COMPRESSION SPRING 6 , AN911H	$3.61
82	234008-4	COMPRESSION SPRING 9, AN911H	$2.51
83	213008-7	O RING, 3901	$0.86
84	419840-9	CYLINDER, AN911H	$3.61
85	267345-1	FLAT WASHER 5, AN911H	$2.51
86	265562-7	HEX SOCKET HEAD BOLT M5X35, AN911H	$1.12
87	262120-0	URETHANE RING 3, AN911H	$1.12
88	310316-8	DOOR, AN911H	$91.90
89	310233-2	LOCK LEVER, AN911H	$17.25
90	233486-5	COMPRESSION SPRING 5, AN911H	$1.34
91	268177-9	PIN 2.5, AN911H	$1.34
92	310232-4	NAIL HOLDER, AN911H	$16.04
93	234009-2	COMPRESSION SPRING 4, AN911H	$2.51
94	268177-9	PIN 2.5, AN911H	$1.34
95	345802-0	CHECK CLAW, AN610H	$1.34
96	234010-7	COMPRESSION SPRING 5, AN911H	$1.34
97	419861-1	DORR COVER, AN911H	$3.61
98	922107-1	H.S.H. BOLT M4X8, 4329K	$1.34
98	265911-8	H.S.H. BOLT M4X8, AG125	$1.96
99	941051-3	F. WASHER 4, 2107F	$0.75
100	266201-2	HEX SOCKET HEAD BOLT M4X14, BST221	$0.90
100	922122-5	HEX. SOCKER HEAD BOLT M4X14, AN911H	$0.66
101	213233-0	O-RING 15, AN911H	$0.90
102	213275-4	O RING 18, BFL400FZ	$0.86
103	419841-7	TRIGGER VALVE GUIDE, AN911H	$30.70
104	213968-3	O-RING 7, AN911H	$2.51
105	419958-6	PILOT VALVE, AN911H	$30.70
106	213185-5	O-RING 12.5, AN911H	$1.12
107	234187-8	COMPRESSION SPRING 3, AN911H	$2.40
108	213034-6	O RING 3, AF502	$0.53
109	324743-3	TRIGGER VALVE STEM, AN911H	$4.71
110	213979-8	O-RING 3, AN911H	$2.51
111	213275-4	O RING 18, BFL400FZ	$0.86
112	194737-0	AIR LEAK REPAIR SET, AN911H	$14.94
113	331741-0	TRIGGER VALVE CASE, AN911H	$9.22
114	233501-5	TORSION SPRIN SPRING 5 , AN911H	$1.34
115	310199-6	STOPPER PLATE, AN911H	$4.71
116	233576-4	TORSION SPRING 6, AN911H	$2.40
117	310310-0	LEVER, AN911H	$5.92
118	419844-1	TRIGGER BASE, AN911H	$3.61
119	216024-8	STEEL BALL 4, LS1016L	$0.53
120	233490-4	COMPRESSION SPRING 2, AN911H	$1.12
121	419743-7	SPRING COVER, AN911H	$1.12
122	268168-0	PIN 3, AN911H	$1.34
123	268168-0	PIN 3, AN911H	$1.34
124	951007-8	SPRING PIN 2-12, AN911H	$0.66
125	310294-2	TRIGGER, AN911H	$20.55
126	231699-2	TORSION SPRING 4, AN911H	$1.34
127	310196-2	TRIP LEVER, AN911H	$4.71
128	310198-8	LEVER, AN911H	$4.71
129	233503-1	TORSION SPRIN SPRING 4 , AN911H	$2.51
130	135231-3	TRIGGER ASS'Y, AN911H	$43.24
131	310293-4	CHANGE ROD, AN911H	$10.43
132	233489-9	COMPRESSION SPRING 6, AN911H	$1.12
133	310227-7	UPPER YOKE, AN911H	$16.04
134	324767-9	ADJUSTER SHAFT, AN911H	$2.51
135	233491-2	COMPRESSION SPRING 2, AN911H	$1.12
136	216031-1	STEEL BALL 2.3, AN911H	$0.66
137	158747-1	ADJUSTER CPL., AN911H	$47.53
139	951010-9	SPRING PIN 2-14, AN611	$0.79
141	951010-9	SPRING PIN 2-14, AN611	$0.79
142	310201-5	ADJUSTER PIECE, AN911H	$4.71
143	345801-2	SLIDE PLATE, AN911H	$3.61
144	135228-2	ADJUSTER ASS'Y, AN911H	$26.27
1001	424136-5	NOSE ADAPTER, AN911H	$8.40
