Makita AN901 Nailer Parts

Makita AN901 Parts

3-1/2 Inch Framing Coil Nailer

Download Schematic

Time to buy a new tool?

Makita AN901

3-1/2 Inch Framing C...

$500.99

Free Shipping

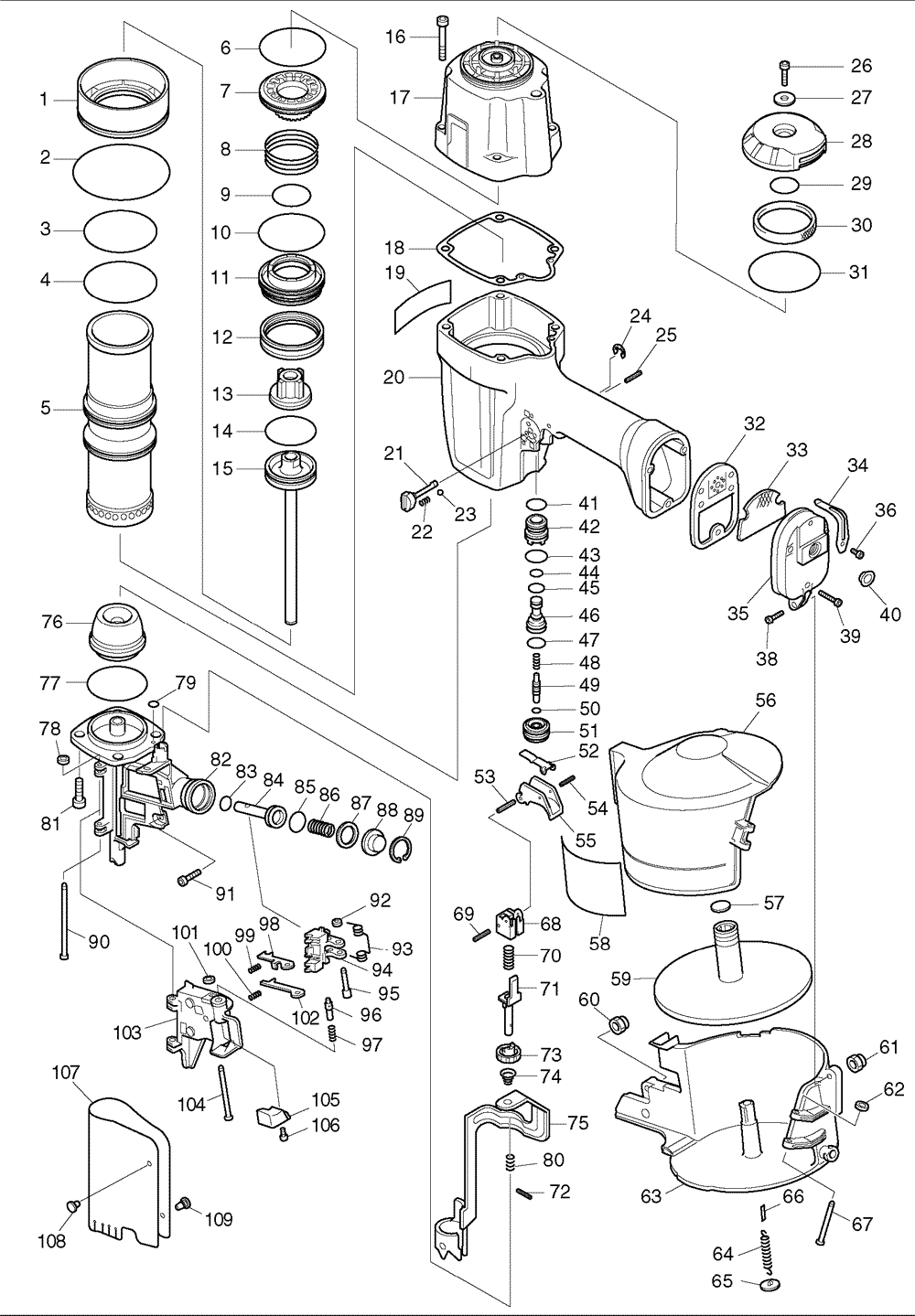

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	416808-6	CYLINDER SEPARATER, AN901	$13.40
88	344717-8	CUP WASHER 5, AN901	$3.72
2	213761-5	O RING 76, AN901	$3.50
3	213657-0	O RING 53, AN901	$1.85
4	213605-9	O RING 50, 6920B	$3.28
5	331545-0	CYLINDER, AN901	$83.90
6	213657-0	O RING 53, AN901	$1.85
7	416807-8	SEPARATER, AN901	$10.10
8	233241-5	COMPRESSION SPRING 44, AN901	$5.15
9	213462-5	O RING 33, AN451	$1.08
10	213657-0	O RING 53, AN901	$1.85
11	416803-6	HEAD VALVE, AN901	$19.89
12	421661-7	VALVE SHEET, AN901	$6.80
13	421660-9	CUSHION R, AN901	$8.45
14	213504-5	O RING, 9820-2	$1.96
15	158606-9	DRIVER CPLT., AN901	$89.90
16	922356-0	H.S.H.BOLT M6X35, HM1500	$1.96
17	317131-1	TOP CAP, AN901	$66.00
18	162207-7	TOP CAP GASKET, AN901	$10.10
19	852034-7	NAME PLATE, AN901	$2.51
20	151892-1	HOUSING COMPLETE, AN901	$167.04
21	162208-5	LOCK PIN 6, AN922, AN901	$12.19
22	231236-2	COMP. SPRING 3, AN611	$1.34
23	216008-6	STEEL BALL 4.0, 5007NK	$0.53
24	961011-9	STOP RING E-4, 4301BV	$1.48
25	951075-1	SPRING PIN 3-28, AN611	$0.90
26	265853-6	HEX. SOCKET HEAD BOLT M5X18,AN901	$1.96
27	267171-8	FLAT WASHER 6, AN611	$1.63
28	317128-0	EXHAUST COVER, AN901	$26.49
29	213320-5	O RING 20, AN901	$1.08
30	323853-3	FILTER, AN901	$8.45
31	213654-6	O RING 60, HR3851	$1.96
32	162198-2	INLET CAP GASKET, AN611	$8.45
33	415784-1	INLET FILTER, AN611	$5.15
34	344720-9	HOOK, AN901	$8.45
35	317340-2	INLET CAP, AN901	$26.11
36	922212-4	H.S.H. BOLT M5X12, HR3851	$1.08
38	922232-8	H.S.H. BOLT M5X20, JS3200	$1.08
39	922256-4	H.S.H. BOLT M5X35, 2012	$2.40
40	286219-7	CAP 12, AF502	$1.41
41	213176-6	O RING 14, AN922	$0.82
42	417695-6	TRIGGER VALVE GUIDE, AN922	$4.71
43	213262-3	O RING 18, 5005BA	$1.96
44	213039-6	O RING 6, AN922	$0.82
45	213040-1	O RING 8, AN922	$0.82
46	317520-0	PILOT VALVE, AN922	$10.65
46	417694-8	PILOT VALVE, AN922-T2	$3.61
47	213122-9	O RING 12, AN922	$0.82
48	233239-2	COMPRESSION SPRING 3, AN922	$2.07
49	323852-5	TRIGGER VALVE STEM, AN922	$5.15
50	213044-3	O RING 3, AN901	$0.82
51	317521-8	TRIGGER VALVE CASE, AN922	$7.68
51	416805-2	TRIGGER VALVE CASE, AN922	$5.92
52	344265-7	IDLER, AN611	$3.17
53	951075-1	SPRING PIN 3-28, AN611	$0.90
54	258004-8	SPRING PIN 2.5-16, 420S	$2.07
55	415790-6	TRIGGER, AN611	$1.85
56	416811-7	MAGAZINE CAP, AN901	$29.17
57	414934-5	HOLDER CAP, AN451	$3.50
58	818599-9	INDICATION LABEL, AN611	$1.52
59	416810-9	CHANGE PLATE, AN901	$18.24
60	252103-8	HEX. LOCK NUT M5-8, 5007FK	$2.29
61	252103-8	HEX. LOCK NUT M5-8, 5007FK	$2.29
62	262054-7	URETHANE RING 3, AN451	$1.85
63	151915-5	MAGAZINE COMPLETE, AN901	$41.41
64	231820-3	TENSION SPRING 5, AN901	$3.50
65	414934-5	HOLDER CAP, AN451	$3.50
66	423232-6	RUBBER PLATE 6-20, AN451	$0.82
67	268026-0	PIN 4, AN611	$3.50
68	344895-4	HOLDER, AN621	$3.17
69	951075-1	SPRING PIN 3-28, AN611	$0.90
70	233197-2	COMPRESSION SPRING 7, AN611	$0.90
71	310055-0	STOPPER, AN611	$22.64
72	951010-9	SPRING PIN 2-14, AN611	$0.79
73	310056-8	ADJUSTER, AN611	$16.70
74	231978-8	CONICAL COMP SPRING 9-16, AN611	$2.07
75	344721-7	CONTACT ARM, AN901	$51.10
76	421659-4	CUSHION F, AN901	$26.49
77	213604-1	O RING 50, 6911D	$3.61
78	262054-7	URETHANE RING 3, AN451	$1.85
79	213017-6	O RING 6, 5177B	$0.53
80	233127-3	COMPRESSION SPRING 7, 9526PB	$2.07
81	265386-1	H.S.H. BOLT M8X25, AN8300	$1.85
82	134960-5	DRIVER GUIDE ASSEMBLY, AN901	$385.29
82	310063-1	DRIVER GUIDE, AN901	$281.60
83	213054-0	O RING 9, 5014NB	$0.82
84	324876-4	PISTON, AN901	$13.62
85	213304-3	O RING 20, 6904VH	$1.19
86	233240-7	COMPRESSION SPRING 11, AN901	$3.50
87	262080-6	RUBBER RING 16, AN901	$1.85
88	344717-8	CUP WASHER 5, AN901	$3.72
89	962106-1	RETAINING RING R-28,GD0800C	$1.63
90	268039-1	PIN 5, AN901	$6.80
91	922212-4	H.S.H. BOLT M5X12, HR3851	$1.08
92	262054-7	URETHANE RING 3, AN451	$1.85
93	231642-1	TORSION SPRING 6, AN901	$6.80
94	310074-6	FEEDING CLAW, AN901	$39.88
95	268038-3	PIN 5, AN901	$3.50
96	323850-9	LOCK PIN, AN901	$5.15
97	233201-7	COMPRESSION SPRING 6, AN611	$0.90
98	344719-4	CHECH CLAW R, AN901	$5.15
99	233101-1	COMPRESSION SPRING 4, 4304	$0.86
100	233101-1	COMPRESSION SPRING 4, 4304	$0.86
101	262054-7	URETHANE RING 3, AN451	$1.85
102	344718-6	CHECK CLAW F, AN901	$3.50
103	310072-0	DOOR, AN901	$85.40
104	268037-5	PIN 4, AN901	$5.15
105	310050-0	LOCK LEVER, AN611	$15.16
106	266167-6	H.S.H. BOLT M4X10, AN611	$1.34
107	416809-4	COVER, AN901	$1.85
108	421418-6	RUBBER PIN 9.5, AN611	$1.41
109	421418-6	RUBBER PIN 9.5, AN611	$1.41
1002	181434-7	OIL SUPPLY 30CC, AF502	$4.50
1003	421658-6	NOSE ADAPTER, AN901	$8.40
1004	783202-0	HEX WRENCH 4, JR3000V	$3.24
