Makita 9924B Sander & Polisher Parts

Makita 9924B Sander & Polisher Parts Image

Makita 9924B Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

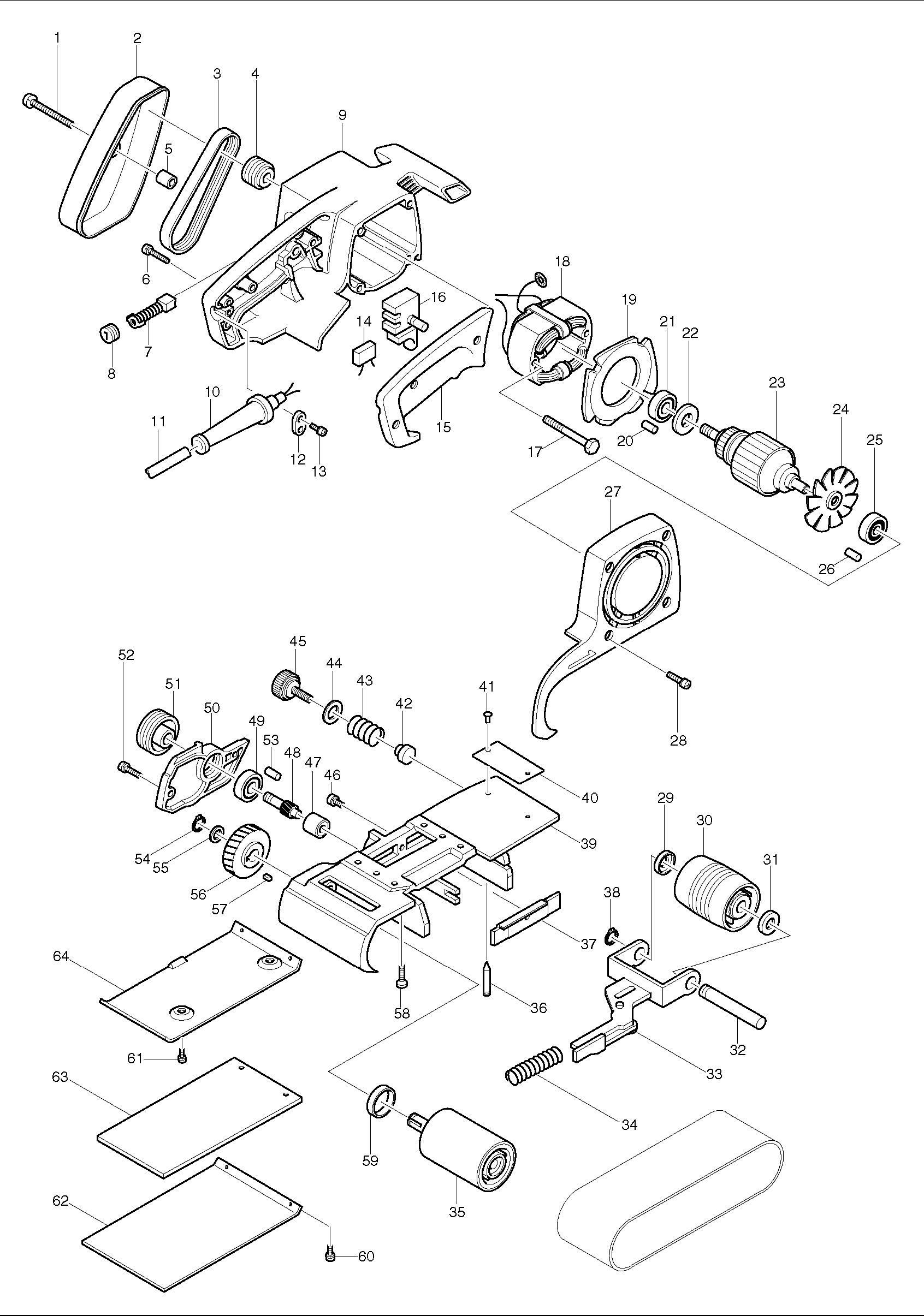

Makita 9924B Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911261-6 P.H. SCREW M5X40, 9900B $1.19
2 343270-1 BELT COVER, 9924DB $5.92
3 225008-5 POLY V-BELT 5-304, 9900B $27.59
4 222010-9 V-PULLEY 5-25L, 9900B $7.46
5 257504-5 SLEEVE 6, 9900B $1.26
6 911158-9 P.H. SCREW M4X30, 9045B $0.86
7 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
8 643600-9 BRUSH CAP 6-10, 9005B $1.63
9 156490-6 MOTOR HOUSING, 9924DB $49.57
10 682502-4 CORD GUARD 8-85, HP2010N $2.51
10 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
11 664026-2 CORD (2X18X16 SJT), 9900B $22.86
12 687001-1 STRAIN RELIEF, 6013BR $0.97
13 911133-5 P.H. SCREW M4X18, N9501B $0.86
15 411321-9 HANDLE COVER, 9900B $7.46
16 651225-5 SWITCH,JN3200 $21.76
17 925268-6 HEX BOLT M5X45, 9900B,T1 $1.08
19 411322-7 BAFFLE PLATE, 9900B $3.06
20 263002-9 RUBBER PIN 4, 5007NK $0.86
21 211066-7 B. BEARING 6200LLB, BO4552 $10.98
22 681623-9 INS. WASHER, 2012NB $1.63
24 241094-8 FAN 80, 9924B $4.49
25 211066-7 B. BEARING 6200LLB, BO4552 $10.98
26 263002-9 RUBBER PIN 4, 5007NK $0.86
28 911261-6 P.H. SCREW M5X40, 9900B $1.19
29 253922-5 CUP WASHER 12, 9900B $1.63
30 152104-5 TENSION ROLLER, 9900B $21.76
31 253922-5 CUP WASHER 12, 9900B $1.63
32 325458-5 TENSION ROLLER SHAFT, 9900B $7.46
33 163104-0 TENSION ROLLER ARM, 9924DB $18.90
34 231033-6 COMP. SPRING 11, 9900B $2.07
35 151113-1 DRIVING ROLLER, 9900B $44.26
36 323634-5 SUPPORT PIN, 9900B $3.06
37 155326-6 EDGE SLIDER, 9924B $4.49
38 961052-5 RETAINING RING S-12, 9218PBL $0.86
40 862516-1 NAME PLATE, 9924B $1.12
41 953106-2 RIVET 0-5, HM1500 $0.49
42 411594-4 SHOE, 9900B $1.26
43 231225-7 COMP. SPRING 16, 9900B $1.48
44 253707-9 F. WASHER 16, 6802BV $1.34
46 911211-1 P.H. SCREW M5X12, HM1500B $0.86
47 212003-4 N. BEARING 810, 6300LR $5.92
48 221193-2 H. GEAR 10, 9900B $18.24
49 211066-7 B. BEARING 6200LLB, BO4552 $10.98
50 312808-3 GEAR COVER, 9900B $12.19
51 222011-7 V-PULLEY 5-45, 9900B $17.47
52 911131-9 P.H. SCREW M4X18, HR3851 $0.53
53 263002-9 RUBBER PIN 4, 5007NK $0.86
54 961052-5 RETAINING RING S-12, 9218PBL $0.86
55 253312-2 WASHER 12, 9900B $1.01
56 221070-8 H. GEAR 48, 9900B $21.32
57 254202-2 KEY 4, 9924DB $1.26
58 912227-9 C.S.H. SCREW M5X18, 9900B $0.86
59 253922-5 CUP WASHER 12, 9900B $1.63
60 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
61 911111-5 P.H. SCREW M4X10, LS1011 $0.53
62 342526-9 STEEL PLATE, 9924B (TYPE 3) $4.49
63 423021-9A CORK PLATE, 9924B (TYPE 2) $4.49
64 345164-6 BASE PLATE, 9924B $5.92
400 342526-9 STEEL PLATE, 9924B (TYPE 3) $4.49
