Makita 9526PB Grinder Parts

Makita 9526PB Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	266173-1	T. SCREW FLANGE PT5X3, GA7011c	$1.19

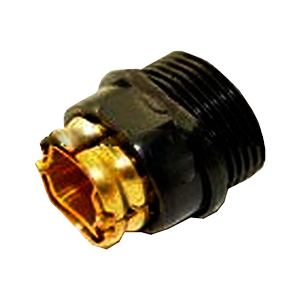

00	643927-7	BRUSH HOLDER, 9526PB	$3.06
2	415491-6	PIN CAP, 9523NB	$0.97
3	233072-2	COMPRESSION SPRING 8, 9523NB	$0.86
4	256437-1	PIN 4, 9523NB	$1.96
5	961002-0	RETAINING RING S-6, 6012HDW	$0.53
6	226735-7	SPIRAL BEVEL GEAR 10, 9527NB,T1	$13.84
6	226748-8	SPIRAL BEVEL GEAR 10, 9527NB	$10.76
7	211088-7	BALL BEARING 6000DDW, 9005B	$13.07
8	316807-7	GEAR HOUSING COVER, 9527PB,9528PB	$22.75
9	241891-2	FAN 57, 9527PB,9528PB	$4.49
10	415971-2	BAFFLE PLATE, 9527PB,9528PB	$4.27
11	517306-4	ARMATURE ASSEMBLY, 9527NB	$60.90
12	681638-6	INSULATING WASHER, 9523NB	$1.63
13	211012-0	BALL BEARING 606ZZ, HR2410	$15.27
14	521626-0	FIELD ASS'Y 115V, 9527PB,9528NB	$44.16
14	521628-6	FIELD ASS'Y 220/240V	$26.27
15	266007-8	TAPPING SCREW 3X10, 9557NB	$0.53
16	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
17	153550-5	MOTOR HOUSING CPL. 9526PBH	$14.61
18	858207-0	NAME PLATE, 9526PB	$0.89
19	344357-2	PLATE, 9527PB,9528PB	$3.06
20	265954-0	TAPPING SCREW BIND PT3X8, GA4030	$0.53
21	682502-4	CORD GUARD 8-85, HP2010N	$2.51
21	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
22	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
22	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
23	182825-5	REAR COVER SET, 9527PB,9528PB	$11.75
24	645200-1	NISE SURPRESSOR	$3.61
25	652186-2	DIVIDER, 9527PB,9528PB	$3.06
26	651947-7	SWITCH, 9527PB, 9528PB	$11.53
27	687063-9	STRAIN RELIEF, 4323K	$1.26
28	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
29	231252-4	COMP. SPRING 6, 9557PB	$0.86
30	415973-8	LOCK-ON BUTTON, 9527PB,9528PB	$4.27
32	182825-5	REAR COVER SET, 9527PB,9528PB	$11.75
33	415972-0	SWITCH LEVER,9527PB,9528PB	$4.49
34	415974-6	LOCK-OFF BUTTON, 9527PB,9528PB	$4.27
35	233127-3	COMPRESSION SPRING 7, 9526PB	$2.07
36	195008-8	CARBON BRUSH 408 SET, 3901	$8.12
37	643928-5	HOLDER CAP, 9523NB	$1.63
38	819063-3	MAKITA LABEL, DA3010F	$0.96
39	224563-4	LOCK NUT 10-35, 9523NB	$10.60
41	152528-5	SPINDLE COMPLETE, 9523NB	$11.75
42	165187-6	WHEEL COVER, 9523NB	$12.60
43	251391-4	P.H.SCREW M5X16,9523NB	$1.96
44	316800-1	BEARING BOX, 9523NB	$17.47
45	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
46	962151-6	RETAINING RING R-32, 9005B	$1.48
47	226734-9	S.BEVEL GEAR 36, 9527PB,9528PB,T1	$19.45
47	226749-6	SPIRAL BEVEL GEAR 36, 9527NB	$6.25
48	159874-7	GEAR HOUSING COMP.,9527PB,9528PB	$27.26
1001	782401-1	LOCK NUT WRENCH, N9514B	$8.40
1002	153489-2	GRIP 36, 9557NB	$2.84
1002	152487-3	GRIP 36, 9523NB	$4.49
2001	192640-9	SPIRAL GEAR SET	$28.56
