Makita 9401 Sander & Polisher Parts

Makita 9401 Sander & Polisher Parts Image

Makita 9401 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

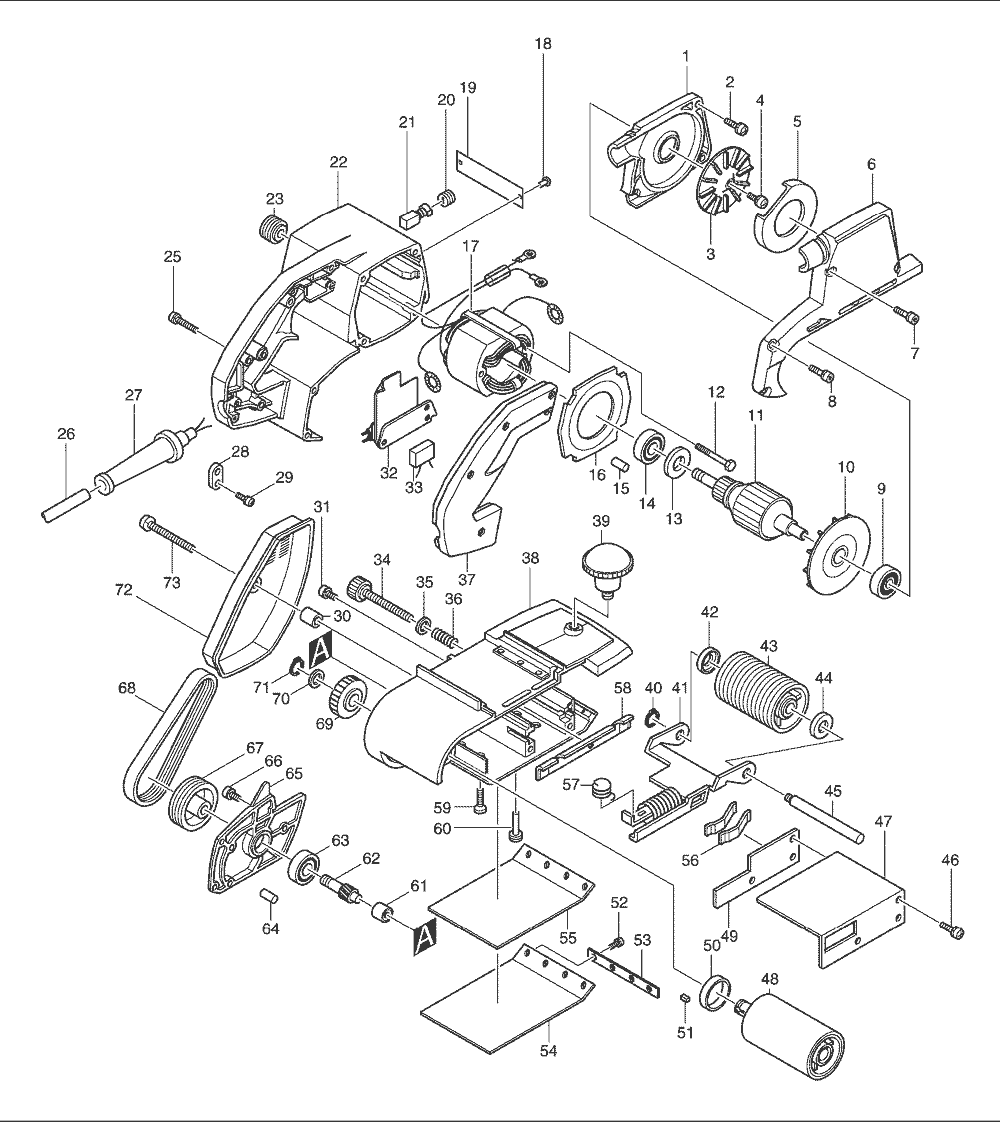

Makita 9401 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 151177-5 DUST COLLECTOR BRACKET, 9401 (T2) $38.96
54 342328-3 STEEL PLATE, 9401 $4.49
2 911226-8 P.H. SCREW M5X18, GA7911 $0.86
00 155325-8 EDGE SLIDER, 9401 $5.92
3 241611-4 FAN 74, 9900B $10.32
54 342328-3 STEEL PLATE, 9401 $4.49
4 911211-1 P.H. SCREW M5X12, HM1500B $0.86
403 122297-2 DUST BAG ASSEMBLY, 9401 $12.63
403 122297-2 DUST BAG ASSEMBLY, 9401 $12.63
5 343166-6 SEPARATOR, 9401 $3.06
48 151121-2 ROLLER, 9401 (TYPE 2) $52.50
6 315772-7 DUST COLLECTOR COVER, 9401 $37.53
6 315772-7 DUST COLLECTOR COVER, 9401 $37.53
7 911241-2 P.H. SCREW M5X25, 9005B $0.86
8 911241-2 P.H. SCREW M5X25, 9005B $0.86
00 155325-8 EDGE SLIDER, 9401 $5.92
10 241806-9 FAN 90, 9401 $7.46
11 614202-8 ARMATURE, 9401 $120.09
12 911270-5 P.H. SCREW M5X45, 9924DB $1.74
14 211066-7 B. BEARING 6200LLB, BO4552 $10.98
15 263002-9 RUBBER PIN 4, 5007NK $0.86
16 411143-7 BAFFLE PLATE, 9401 (TYPE 2) $1.63
18 953106-2 RIVET 0-5, HM1500 $0.49
19 850166-4 NAME PLATE, 9401 $0.89
20 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
21 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
22 156225-5 MOTOR HOUSING, 9401 (TYPE 2) $35.90
23 222012-5 V-PULLEY 6-24L, 9401 $8.78
25 911158-9 P.H. SCREW M4X30, 9045B $0.86
26 664026-2 CORD (2X18X16 SJT), 9900B $22.86
27 682502-4 CORD GUARD 8-85, HP2010N $2.51
27 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
28 687001-1 STRAIN RELIEF, 6013BR $0.97
29 911133-5 P.H. SCREW M4X18, N9501B $0.86
30 257504-5 SLEEVE 6, 9900B $1.26
31 911221-8 P.H. SCREW M5X16, JR3000V $0.86
32 651018-0 SWITCH, 1806B $22.86
34 251821-5 SCREW M8X72, 9401 $3.61
35 941202-8 F. WASHER 8, 5037NB $0.75
36 231110-4 COMP. SPRING 9, 9401 $1.48
38 156226-3 FRAME, 9401 $133.48
39 271207-7 KNOB 55, 9401 $5.92
40 961052-5 RETAINING RING S-12, 9218PBL $0.86
41 163039-5 TENSION ROLLER ARM, 9401 $21.76
42 253922-5 CUP WASHER 12, 9900B $1.63
43 152103-7 TENSION ROLLER, 9401 $37.53
44 253922-5 CUP WASHER 12, 9900B $1.63
45 325108-2 TENSION ROLLER SHAFT, 9401 $7.46
46 911226-8 P.H. SCREW M5X18, GA7911 $0.86
47 342331-4 BASE COVER, 9401 $5.92
48 151121-2 ROLLER, 9401 (TYPE 2) $52.50
49 341195-3 BALANCE PLATE, 9401 $4.49
50 253922-5 CUP WASHER 12, 9900B $1.63
51 254202-2 KEY 4, 9924DB $1.26
52 911111-5 P.H. SCREW M4X10, LS1011 $0.53
53 341079-5 STRAP WASHER, 9401 $1.63
54 342328-3 STEEL PLATE, 9401 $4.49
55 421093-8A CORK PLATE, 9401 (TYPE 2) $5.92
56 232029-0 LEAF SPRING, 9401 $2.07
57 231520-5 TOR. SPRING 18, 9401 $2.07
59 912227-9 C.S.H. SCREW M5X18, 9900B $0.86
60 325109-0 SUPPORT PIN, 9401 $1.63
61 212003-4 N. BEARING 810, 6300LR $5.92
62 221193-2 H. GEAR 10, 9900B $18.24
63 211066-7 B. BEARING 6200LLB, BO4552 $10.98
64 263002-9 RUBBER PIN 4, 5007NK $0.86
65 152204-1 GEAR COVER COMPLETE, 9401 $13.95
65 312549-1 GEAR COVER, 9401 $14.61
66 911221-8 P.H. SCREW M5X16, JR3000V $0.86
67 222038-7 V-PULLEY 6-55.7, 9401 $28.25
68 225021-3 POLY V-BELT, 9401 $34.88
69 221194-0 H. GEAR 42, 9401 $19.78
70 253312-2 WASHER 12, 9900B $1.01
71 961052-5 RETAINING RING S-12, 9218PBL $0.86
72 343165-8 BELT COVER, 9401 $7.46
73 911261-6 P.H. SCREW M5X40, 9900B $1.19
403 122297-2 DUST BAG ASSEMBLY, 9401 $12.63
